OCSP and Certificate Revocation for WiFi Authentication

This comprehensive guide explores the critical mechanisms of certificate revocation in enterprise WiFi environments, focusing on the transition from CRLs to OCSP. It provides actionable implementation strategies for IT teams managing large-scale, high-density networks where real-time security and low latency are paramount.

📖 6 min read📝 1,362 words🔧 2 examples❓ 3 questions📚 8 key terms

🎧 Listen to this Guide

View Transcript

Welcome to the Purple Technical Briefing. I'm your host, and today we are diving deep into a critical security mechanism for enterprise WiFi networks: OCSP and Certificate Revocation.

If you are an IT manager, a network architect, or a CTO managing large-scale deployments in hospitality, retail, or public-sector environments, you know that certificate-based authentication—specifically EAP-TLS over 802.1X—is the gold standard for securing network access. But what happens when a device is compromised, lost, or an employee leaves? How do you ensure that a revoked certificate is instantly rejected by your network?

That is exactly what we are covering today. We will break down the differences between CRL and OCSP, explain how a RADIUS server checks revocation status, explore the concept of OCSP stapling in a WiFi context, and provide actionable implementation strategies.

Let's start with the basics: CRL versus OCSP.

When a device connects to your WiFi using a certificate, the RADIUS server needs to verify that the certificate is not only mathematically valid and unexpired, but also that it hasn't been explicitly revoked by the Certificate Authority, or CA.

Historically, this was done using a Certificate Revocation List, or CRL. A CRL is exactly what it sounds like: a big file containing the serial numbers of every revoked certificate. The RADIUS server downloads this list periodically—maybe once a day, or every few hours.

The problem with CRLs in modern, high-density environments is twofold: latency and bandwidth. If you have a large PKI deployment, that list gets huge. Downloading it takes bandwidth, and parsing it takes CPU cycles on your RADIUS server. Worse, there's a vulnerability window. If a device is compromised at 9 AM, but your RADIUS server doesn't pull the new CRL until noon, that compromised device has three hours of unfettered access to your network.

Enter OCSP: the Online Certificate Status Protocol.

OCSP is a real-time, targeted query. Instead of downloading a massive list of every revoked certificate, the RADIUS server simply asks the CA's OCSP responder: "Hey, is this specific certificate serial number valid right now?" The responder replies with a signed message: "Good," "Revoked," or "Unknown."

This drastically reduces bandwidth and processing overhead on the RADIUS server. More importantly, it closes the vulnerability window. Revocations are enforced immediately.

So, how does this work in a WiFi authentication flow?

When a client device—let's say a corporate laptop—tries to connect to the WiFi, it communicates with the Wireless Access Point. The AP acts as an authenticator, passing the EAP-TLS messages to the RADIUS server.

The laptop presents its client certificate. The RADIUS server validates the cryptographic signature against its trusted root CA. Then, the RADIUS server pauses the authentication process. It reaches out over the network to the OCSP responder URI embedded in the client's certificate. It waits for the response. If the response is "Good," the RADIUS server sends an Access-Accept message back to the AP, and the laptop gets online. If the response is "Revoked," it sends an Access-Reject.

Now, you might be thinking, "Doesn't that add latency to the connection process?" Yes, it does. Every single authentication requires an external DNS lookup and an HTTP request to the OCSP responder. In a busy stadium or a large hotel during peak check-in, that can cause authentication timeouts.

This brings us to a crucial concept: OCSP Stapling.

In the web server world, OCSP stapling is common. The web server periodically queries the OCSP responder for its own certificate status, gets a time-stamped, signed response, and "staples" that response to the certificate it sends to the client during the TLS handshake. The client doesn't have to query the CA; it just verifies the CA's signature on the stapled response.

Can we do this for WiFi? Yes, but it's complex.

In EAP-TLS, the RADIUS server also presents a server certificate to the client, so the client knows it's talking to the legitimate network and not an evil twin AP. The RADIUS server can use OCSP stapling here. It queries the CA for its own status and staples the response into the EAP-TLS Server Hello. This saves the client device from having to do an OCSP lookup on the RADIUS server's certificate.

However, stapling the *client's* certificate status is different. The client can't staple its own status because the network doesn't trust the client yet. So, for client certificate validation, the RADIUS server still has to perform the traditional OCSP query.

To mitigate the latency of these queries, enterprise RADIUS servers use caching. They will cache a "Good" OCSP response for a configurable amount of time—say, 15 minutes or an hour. This means subsequent roam events or reconnects don't trigger a new external query, balancing security with performance.

Let's look at a real-world implementation scenario.

Imagine a large retail chain with thousands of point-of-sale devices and corporate laptops connecting via EAP-TLS. They are rolling out Purple's WiFi platform. They need strict security, but they can't afford POS devices timing out during authentication.

Here is the recommended approach:

First, ensure your CA infrastructure is robust. Your OCSP responders must be highly available, ideally behind a load balancer, and geographically distributed. If your RADIUS server can't reach the OCSP responder, it has to decide whether to "fail open" (allow the connection) or "fail closed" (deny the connection). In high-security environments, you fail closed. But if your OCSP responder goes down, nobody gets on the WiFi.

Second, configure OCSP caching on your RADIUS servers. A 30-minute cache is a good middle ground. It significantly reduces load on your CA and speeds up authentications, while keeping the revocation window reasonably tight.

Third, implement a fallback mechanism. Configure your RADIUS server to try OCSP first. If the OCSP responder is unreachable, fall back to a locally cached CRL. This provides resilience against CA outages.

Finally, consider the impact of certificate expiration. Expiration is not revocation. A certificate simply reaches its "Not After" date. Your RADIUS server will reject it automatically, without needing to check OCSP or a CRL. The operational challenge here is lifecycle management—ensuring certificates are renewed and deployed to devices *before* they expire.

Let's move to a quick rapid-fire Q&A based on common client questions.

Question 1: "We use a cloud-based MDM to push certificates. Do we still need OCSP?"
Answer: Absolutely. Your MDM issues the certificate, but the RADIUS server enforces network access. If you wipe a device in your MDM, the MDM tells the CA to revoke the certificate. But until the RADIUS server checks that revocation status via OCSP, the device can still connect to the WiFi.

Question 2: "What happens if a device is offline when we revoke its certificate?"
Answer: It doesn't matter if the device is offline. Revocation happens at the CA level. The next time that device tries to connect to the WiFi, the RADIUS server will check OCSP, see the "Revoked" status, and deny access.

Question 3: "Is OCSP traffic encrypted?"
Answer: Historically, OCSP requests were sent over plain HTTP. This was considered acceptable because the response itself is cryptographically signed by the CA, preventing tampering. However, modern implementations increasingly use HTTPS to protect privacy, preventing observers from seeing which certificates are being checked.

To summarize and outline next steps:

Certificate revocation is a non-negotiable component of a secure 802.1X deployment. While CRLs are acceptable for small networks, OCSP is essential for enterprise scale, providing real-time security and lower bandwidth overhead.

For your next steps:
1. Audit your current RADIUS configuration. Are you checking revocation status at all?
2. If you are using CRLs, evaluate the size of your list and your download frequency.
3. Plan a migration to OCSP. Ensure your CA infrastructure can handle the query load, and configure sensible caching on your RADIUS servers to optimize performance.

By implementing robust OCSP checking, you ensure that your Purple WiFi deployment remains secure, compliant, and performant, giving you absolute control over who—and what—can access your network.

Thank you for listening to this Purple Technical Briefing.

Executive Summary

For enterprise venues operating high-density WiFi networks—from sprawling retail chains to modern conference centres—certificate-based authentication (EAP-TLS) is the definitive standard for securing network access. However, issuing a certificate is only half the lifecycle. The critical operational challenge lies in revocation: ensuring that when a device is compromised, lost, or decommissioned, its network access is terminated immediately. This guide explores the technical architecture of certificate revocation, contrasting legacy Certificate Revocation Lists (CRLs) with the Online Certificate Status Protocol (OCSP). We detail how RADIUS servers integrate with Public Key Infrastructure (PKI) to enforce real-time revocation, the complexities of OCSP stapling in an 802.1X context, and the strategic deployment models required to balance stringent security with seamless user experience. By implementing robust OCSP checking, venue operators can mitigate risk, ensure compliance, and maintain the high throughput required for Guest WiFi and enterprise access.

Listen to our 10-minute executive briefing on this topic:

Technical Deep-Dive

The Mechanics of Revocation in 802.1X

In an 802.1X authentication flow, the Wireless Access Point (AP) acts as an authenticator, passing Extensible Authentication Protocol (EAP) messages between the client device (supplicant) and the RADIUS server. When a client presents a certificate during the EAP-TLS handshake, the RADIUS server must validate its cryptographic integrity, verify its trust chain, and confirm its current revocation status.

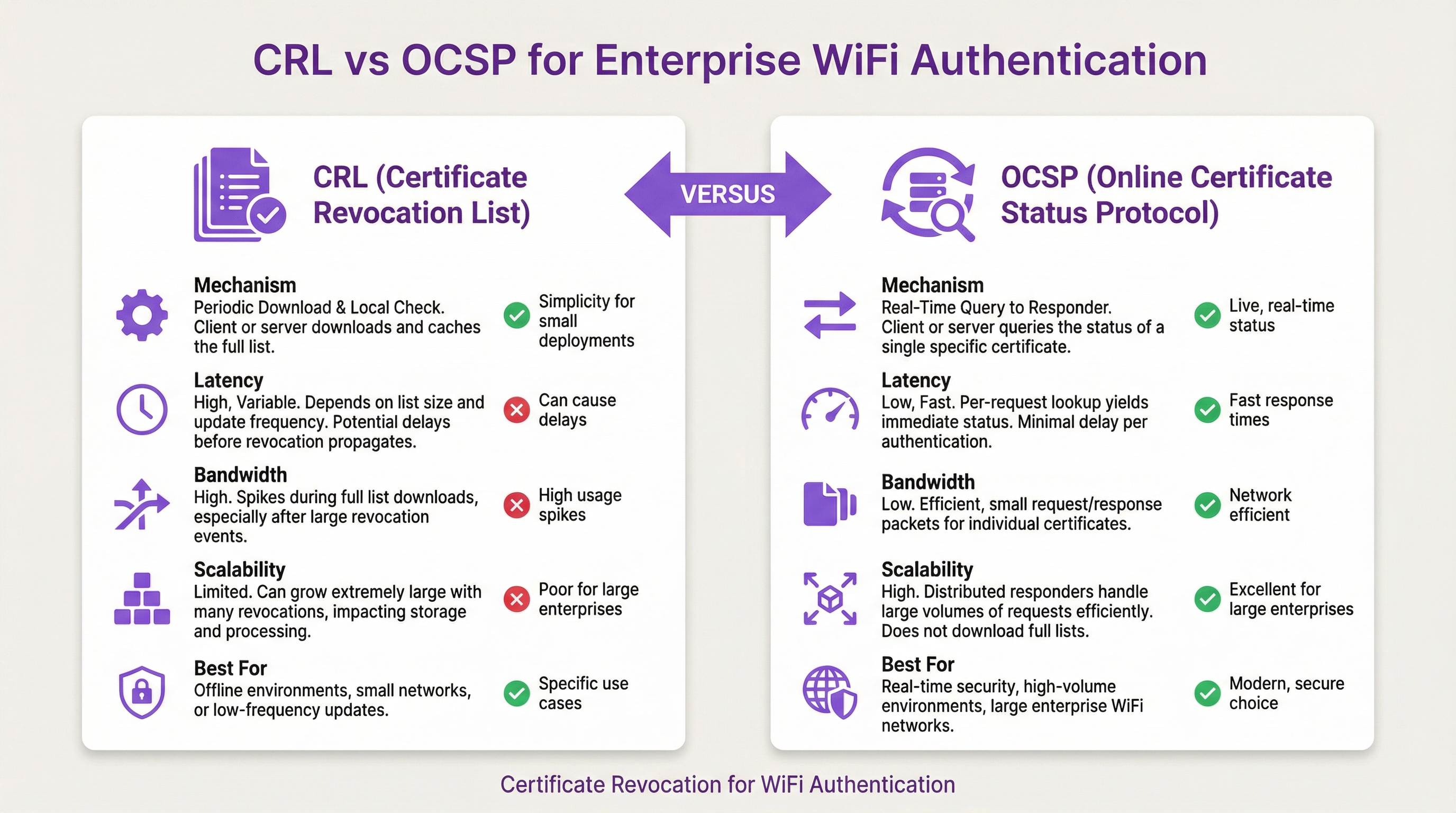

Historically, this was achieved via a Certificate Revocation List (CRL). A CRL is a digitally signed file containing the serial numbers of all revoked certificates issued by a specific Certificate Authority (CA). The RADIUS server downloads this file periodically and caches it locally. While simple to implement, CRLs present significant scalability challenges. In large enterprise environments, such as those found in the Retail sector, CRLs can grow to megabytes in size. Downloading and parsing these lists consumes bandwidth and processing cycles. More critically, CRLs introduce a vulnerability window: the time between a certificate being revoked at the CA and the RADIUS server downloading the updated list.

The Transition to OCSP

To address the limitations of CRLs, the Online Certificate Status Protocol (OCSP) was developed. OCSP replaces the bulk download model with a real-time, targeted query mechanism. When a client presents a certificate, the RADIUS server extracts the OCSP responder URI from the certificate's Authority Information Access (AIA) extension. It then sends a lightweight HTTP request to the responder, querying the status of that specific certificate serial number. The responder returns a signed response indicating whether the certificate is 'Good', 'Revoked', or 'Unknown'.

This approach eliminates the vulnerability window associated with CRLs, enforcing revocations immediately. It also significantly reduces bandwidth consumption, as the RADIUS server only requests data for certificates actively attempting authentication.

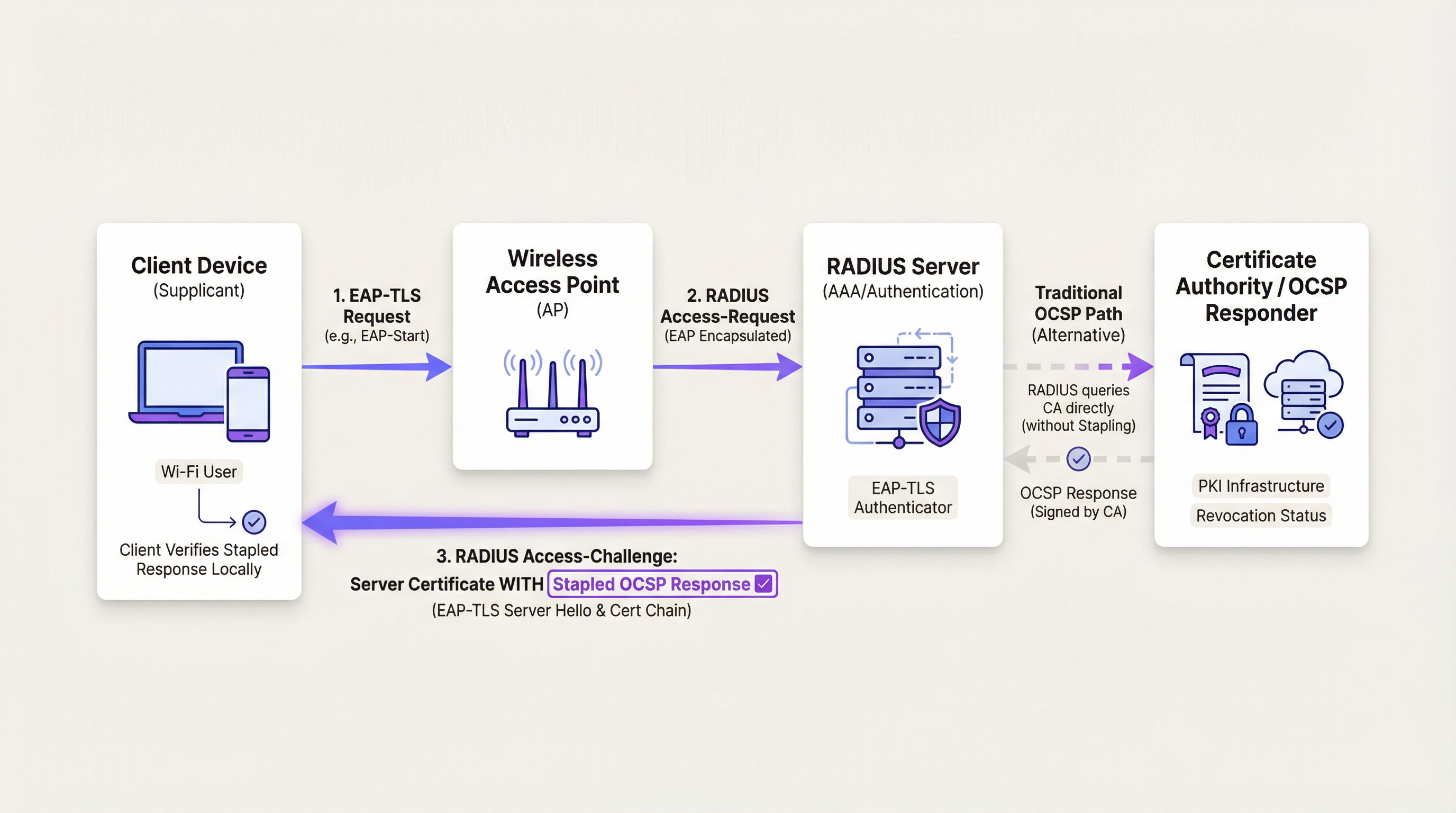

OCSP Stapling in WiFi Environments

OCSP stapling is a performance optimization technique widely used in web servers. Instead of the client querying the OCSP responder, the server periodically queries the responder for its own certificate status. It then 'staples' the signed response to the certificate it presents to the client during the TLS handshake. This shifts the query burden from the client to the server and reduces the number of external network connections required.

In the context of WiFi authentication, OCSP stapling is highly relevant but nuanced. During EAP-TLS, the RADIUS server presents its own server certificate to the client to prove its identity. The RADIUS server can utilize OCSP stapling here, appending the OCSP response to the EAP-TLS Server Hello. This allows the client device to verify the RADIUS server's revocation status without requiring its own internet connection—a critical feature for devices that have not yet been granted network access.

However, stapling the client's certificate status is not feasible. The client cannot staple its own status because the network does not yet trust the client. Therefore, for client certificate validation, the RADIUS server must perform a traditional OCSP query to the CA.

Implementation Guide

Deploying OCSP in a high-density enterprise environment requires careful architectural planning to ensure both security and availability. The following steps outline a robust deployment strategy.

1. High-Availability CA Infrastructure

The shift to OCSP introduces a critical dependency on the CA's responder infrastructure. If the RADIUS server cannot reach the OCSP responder, it cannot definitively verify the certificate's status. Therefore, the OCSP responder must be highly available, geographically distributed, and placed behind load balancers to handle authentication spikes, such as those experienced during a major conference or sporting event.

2. RADIUS Server Configuration and Caching

To mitigate the latency introduced by real-time OCSP queries, enterprise RADIUS servers must be configured with intelligent caching mechanisms. When a RADIUS server receives a 'Good' response from the OCSP responder, it should cache that response for a configurable duration—typically between 15 and 60 minutes. Subsequent authentication requests from the same client within that window will be validated against the cache, bypassing the external query. This balances the need for real-time security with the performance requirements of a busy network.

3. Failover and Resilience Mechanisms

Network architects must define the RADIUS server's behaviour in the event that the OCSP responder is unreachable. This is known as 'fail open' versus 'fail closed'. In a 'fail closed' configuration, the RADIUS server will deny access if it cannot verify the certificate's status. This is the most secure posture but risks widespread outages if the CA infrastructure fails. In a 'fail open' configuration, the RADIUS server will permit access if the responder is unreachable, prioritizing availability over strict security.

A recommended hybrid approach involves configuring the RADIUS server to attempt an OCSP query first. If the responder is unreachable, the server falls back to a locally cached CRL. This provides resilience against CA outages while maintaining a baseline level of revocation checking.

Best Practices

Minimize Certificate Lifespans: While revocation handles premature invalidation, the most effective security control is a short certificate lifespan. Implement automated certificate provisioning via MDM to issue certificates valid for days or weeks, rather than years. This reduces reliance on revocation mechanisms entirely. For further reading on modern device security, refer to our guide on 802.1X Authentication: Securing Network Access on Modern Devices.
Monitor OCSP Latency: Continuously monitor the latency of OCSP queries from your RADIUS servers to the CA infrastructure. High latency will directly impact the user experience, leading to authentication timeouts and dropped connections.
Implement Strict CA Access Controls: The security of your WiFi network is intrinsically linked to the security of your CA. Ensure strict access controls, multi-factor authentication, and comprehensive auditing are in place for all CA management interfaces.

Troubleshooting & Risk Mitigation

When deploying OCSP, IT teams frequently encounter several common failure modes:

Authentication Timeouts: If the OCSP responder is slow to reply, the EAP-TLS handshake may time out. This is often caused by network congestion or an under-provisioned CA infrastructure. Mitigation involves optimizing OCSP caching on the RADIUS server and scaling the responder infrastructure.
Clock Skew: OCSP responses are time-stamped and signed. If the clock on the RADIUS server is out of sync with the CA, the server may reject a valid OCSP response as expired. Ensure all infrastructure components are synchronized via reliable NTP servers.
Firewall Blocking: OCSP queries typically use HTTP (port 80) or HTTPS (port 443). Ensure that firewalls between the RADIUS server and the CA infrastructure are configured to permit this traffic. Modern implementations increasingly use HTTPS to protect privacy and prevent network observers from analyzing certificate queries.

ROI & Business Impact

Implementing robust certificate revocation mechanisms delivers measurable business value beyond raw security compliance.

Risk Mitigation: By eliminating the vulnerability window associated with CRLs, OCSP significantly reduces the risk of a compromised device accessing sensitive corporate resources. This protects intellectual property and mitigates the financial and reputational damage of a data breach.
Operational Efficiency: Automating revocation checks via OCSP reduces the administrative overhead associated with managing massive CRL files. IT teams can focus on strategic initiatives rather than troubleshooting CRL download failures.
Compliance Enablement: For venues operating in regulated industries, such as Healthcare or finance, strict access controls and real-time revocation are often mandatory compliance requirements (e.g., HIPAA, PCI DSS). A robust OCSP deployment ensures continuous compliance and simplifies audit processes.

Key Terms & Definitions

OCSP (Online Certificate Status Protocol)

An internet protocol used for obtaining the revocation status of an X.509 digital certificate in real-time.

Used by RADIUS servers to instantly verify if a device's certificate has been revoked, closing the vulnerability window associated with legacy CRLs.

CRL (Certificate Revocation List)

A periodically updated, digitally signed list of certificate serial numbers that have been revoked by the issuing Certificate Authority.

The legacy method for revocation checking. It suffers from scalability issues and introduces a vulnerability window between updates.

OCSP Stapling

A mechanism where the certificate presenter (e.g., a RADIUS server) obtains a time-stamped OCSP response from the CA and appends it to the certificate during the TLS handshake.

Used to improve performance and privacy by offloading the OCSP query burden from the client device.

EAP-TLS (Extensible Authentication Protocol - Transport Layer Security)

A highly secure 802.1X authentication method that requires mutual certificate-based authentication between the client and the RADIUS server.

The standard protocol used in enterprise WiFi environments that necessitates robust certificate revocation checking.

Vulnerability Window

The period of time between a certificate being revoked at the CA and the enforcing system (e.g., RADIUS server) becoming aware of the revocation.

A primary driver for adopting OCSP over CRLs, as OCSP effectively reduces this window to near zero.

Fail Open vs. Fail Closed

A configuration decision determining the system's behaviour when a dependency (like an OCSP responder) is unreachable. 'Fail open' allows access; 'fail closed' denies access.

A critical architectural decision for IT teams balancing network availability against strict security compliance.

AIA (Authority Information Access)

An extension within an X.509 certificate that indicates how to access information and services for the issuer of the certificate, including the OCSP responder URI.

The RADIUS server reads this extension to determine exactly where to send the OCSP query for a specific client certificate.

Supplicant

The software client on a device (e.g., a laptop or smartphone) that attempts to access the network and responds to authentication requests.

The entity presenting the client certificate that the RADIUS server must validate against the OCSP responder.

Case Studies

A 500-room luxury hotel in the [Hospitality](/industries/hospitality) sector is upgrading its back-of-house WiFi network to use EAP-TLS for staff devices. They currently use a centralized RADIUS server in their corporate data centre, connected via SD-WAN. They are concerned that real-time OCSP queries to their cloud-based CA will cause authentication timeouts during shift changes when hundreds of staff connect simultaneously.

The implementation must prioritize low-latency authentication without compromising security. The solution involves three steps: 1) Deploy a localized RADIUS proxy at the hotel property to handle the initial EAP termination. 2) Configure the RADIUS proxy to perform OCSP queries and cache the 'Good' responses for 60 minutes. 3) Implement a fallback mechanism where the RADIUS proxy relies on a locally downloaded, daily CRL if the SD-WAN link to the cloud CA fails.

Implementation Notes: This approach effectively mitigates the latency risk. By caching OCSP responses locally at the edge, the hotel avoids sending hundreds of simultaneous queries across the WAN during a shift change. The 60-minute cache window is a pragmatic compromise, keeping the vulnerability window small while ensuring high availability. The CRL fallback provides critical resilience against WAN outages, ensuring staff can still authenticate even if the cloud CA is temporarily unreachable. This architecture aligns with the principles discussed in our article on [The Core SD WAN Benefits for Modern Businesses](/blog/sd-wan-benefits).

A large public-sector organisation is deploying [Sensors](/products/sensors) across multiple municipal buildings. These IoT devices authenticate via 802.1X using certificates with a 5-year lifespan. The IT security team requires immediate network disconnection if a sensor is reported stolen.

Given the long certificate lifespan, robust revocation is critical. The organisation must configure their RADIUS servers to perform mandatory OCSP queries for every authentication request from the sensor VLAN. Caching should be disabled or set to a very short duration (e.g., 5 minutes). The RADIUS servers must be configured to 'fail closed'—if the OCSP responder is unreachable, the sensor is denied access.

Implementation Notes: While long-lived certificates are generally discouraged, they are common in IoT deployments due to the difficulty of automated renewal. In this scenario, OCSP is the only effective security control. Disabling caching ensures that a revoked certificate is rejected almost immediately upon the next authentication attempt. The 'fail closed' configuration prioritizes security over availability, which is appropriate given the risk of a compromised physical sensor providing a bridgehead into the municipal network.

Scenario Analysis

Q1. Your organisation is migrating from a daily CRL download to real-time OCSP checking for your corporate WiFi. During the pilot phase, you notice a significant increase in authentication timeouts, particularly for users roaming between buildings. What is the most likely cause and the recommended mitigation?

💡 Hint:Consider the latency introduced by external network queries during the EAP-TLS handshake.

Show Recommended Approach

The timeouts are likely caused by the latency of performing an external HTTP query to the OCSP responder for every authentication event, including fast reconnects during roaming. The recommended mitigation is to configure OCSP caching on the RADIUS server. By caching 'Good' responses for a period (e.g., 30 minutes), subsequent roam events will be validated locally against the cache, eliminating the external query latency and preventing timeouts.

Q2. A critical security audit requires that no compromised device can access the network for more than 5 minutes after its certificate is revoked in the MDM platform. Your RADIUS server is configured to use OCSP with a 60-minute cache. Does this configuration meet the audit requirement?

💡 Hint:Analyze the relationship between the cache duration and the vulnerability window.

Show Recommended Approach

No, this configuration fails the audit requirement. The 60-minute cache creates a vulnerability window of up to one hour. If a device authenticates and its 'Good' status is cached, and the certificate is revoked 1 minute later, the RADIUS server will continue to permit access for the remaining 59 minutes based on the cached response. To meet the 5-minute requirement, the OCSP cache duration must be reduced to 5 minutes or less, though this will increase the query load on the CA infrastructure.

Q3. During a major ISP outage, your cloud-based OCSP responder becomes unreachable. Your RADIUS server is configured for OCSP checking with a 'fail closed' policy. What is the impact on the network, and how could the architecture be improved for resilience?

💡 Hint:Consider the implications of 'fail closed' when a critical dependency is unavailable.

Show Recommended Approach

The impact is a total outage for all new WiFi authentications. Because the RADIUS server cannot reach the responder and is configured to 'fail closed', it will deny all access requests. To improve resilience, the architecture should implement a fallback mechanism. The RADIUS server should be configured to attempt OCSP first, and if unreachable, fall back to a locally cached CRL. This allows authentications to proceed using the last known good revocation state during the ISP outage.

Key Takeaways

✓OCSP replaces bulky CRL downloads with real-time, targeted certificate status queries, eliminating the vulnerability window.
✓In 802.1X environments, the RADIUS server performs the OCSP query to validate the client's certificate before granting network access.
✓OCSP stapling allows the RADIUS server to prove its own validity to the client without requiring the client to query the CA.
✓Intelligent caching of 'Good' OCSP responses on the RADIUS server is critical to prevent authentication timeouts in high-density venues.
✓Implementing a CRL fallback mechanism ensures network resilience if the primary OCSP responder becomes unreachable.
✓A 'fail closed' configuration maximizes security but risks widespread outages, whereas 'fail open' prioritizes availability.
✓Robust certificate lifecycle management, including short certificate lifespans, reduces reliance on revocation mechanisms.
