How to Create and Use a Heat Map for WiFi

Ever wondered what your WiFi signal actually looks like? You can’t see it, but you can definitely feel it when a video call drops in the conference room or the payment terminal loses connection during a lunch rush.

A WiFi heat map is the tool that makes the invisible visible. It’s a visual overlay on top of your building’s floor plan, using a simple colour code—usually green for great signal, yellow for okay, and red for weak spots or dead zones—to show you exactly how your wireless network is performing everywhere.

What Is a WiFi Heat Map Anyway?

Think about trying to find a draught in a huge building just by walking around. You might get lucky, but it’s mostly guesswork. A WiFi heat map is like giving a network engineer a thermal camera; it instantly reveals the entire landscape of your wireless coverage, hot spots and cold spots included.

Instead of relying on vague complaints like "the WiFi is slow over here," this tool gives you a clear, data-driven picture of your network's health. A single speed test on a phone only tells you what’s happening in one spot, at one moment. A heat map provides the full story across your entire property.

Turning Data Into a Clear Picture

The real magic of a WiFi heat map is how it translates complex radio frequency (RF) data into a format anyone can understand. By layering this information over a map of your office, hotel, or retail space, you can see at a glance where your network is strong and where it’s failing.

This visual approach is brilliant for spotting common network gremlins that are otherwise hard to track down. You can instantly identify problems that would take days of manual testing to find, such as:

• Coverage Gaps: Those infamous "dead zones" where the signal is too weak for a stable connection.
• Signal Bleed: When your WiFi signal escapes your building's boundaries, which can be a security risk.
• Channel Interference: Areas where too many access points are shouting over each other on the same channel, causing digital traffic jams.

A WiFi heat map helps you move from just reacting to connectivity complaints to proactively designing a network that actually works. It’s the difference between fumbling around in the dark and having a detailed map to guide you.

It’s About Quality, Not Just Strength

While signal strength is the star of the show, a proper heat map tells you so much more. Professional site survey tools scoop up a whole range of data points that all contribute to the real-world user experience. This lets you understand not just how far your signal reaches, but how good it is when it gets there.

Think of it like tuning a radio. You might be able to pick up the station (that’s your signal strength), but if it’s full of static and hiss (that’s noise), you can't actually listen to the music. A heat map helps you see both the volume and the clarity of your WiFi, ensuring a great connection for every user, in every corner.

To really get to the bottom of network issues, you need to look beyond just the green and red of signal strength. Here’s a quick look at the key metrics a professional heat map will show you.

Key Metrics on Your WiFi Heat Map

This table breaks down the essential data points you’ll find on a comprehensive heat map. Understanding each one is key to diagnosing and fixing your WiFi for good.

By looking at all these metrics together, you get a complete diagnostic report. A spot with strong RSSI but low throughput might be suffering from high interference (low SNR) or too many users (high client density), problems you’d miss if you only looked at signal strength.

Understanding the Metrics That Power Your Heat Map

A great WiFi heat map is so much more than a pretty picture with colours splashed across a floor plan. It’s a story told through data. To really understand what’s going on with your network, you need to look beyond the surface and get familiar with the core metrics that bring these visuals to life.

These numbers are the building blocks of a reliable wireless experience. They transform vague user complaints like "the WiFi is slow" into specific, measurable problems you can actually solve. Let's break down the essential metrics you'll encounter and what they really mean for your network.

Signal Strength: The Foundation of Coverage

The most fundamental metric is the Received Signal Strength Indicator (RSSI). Think of RSSI as the volume of the WiFi signal your device is hearing. It’s measured in negative decibels-milliwatts (-dBm), and it's a bit counterintuitive: numbers closer to zero are stronger.

A value of -50dBm is like someone speaking clearly right next to you—a very strong signal. In contrast, -75dBm is like trying to hear someone whispering from across a large room; the signal is weak and prone to dropping out. The main goal of most heat maps is to ensure RSSI is consistently above a minimum threshold (typically -67dBm) across all the areas that matter.

But a loud signal isn't always a good signal. Just because you can hear someone shouting doesn't mean you can understand them, especially if the room is noisy. This is where our next metric becomes vital.

Signal-to-Noise Ratio: The Measure of Clarity

This is where the Signal-to-Noise Ratio (SNR) comes in. It measures the clarity of your WiFi signal by comparing the strength of your desired signal (RSSI) to the level of background radio frequency (RF) noise. This noise can come from anything—microwave ovens, Bluetooth devices, or even your neighbours' WiFi networks.

Imagine trying to have a conversation in a quiet library versus at a loud concert. In the library (high SNR), a whisper is enough. At the concert (low SNR), even shouting might not get the message across. Your WiFi connection experiences the exact same thing.

SNR is measured in decibels (dB), and a higher number is always better. An SNR of 25dB or more is considered good, pointing to a clean, stable connection. If your heat map shows strong RSSI but you’re still getting complaints about performance, a low SNR is often the culprit. It's a dead giveaway that you have an interference problem.

Throughput: The Real-World Speed Test

While RSSI and SNR tell you about signal health, Throughput tells you what your users actually experience—the real-world data speed. Measured in megabits per second (Mbps), this metric shows how much data can actually be pushed through the network at any given point on your map.

This is very different from the theoretical "data rate" you see advertised on the box your equipment came in. Throughput is the practical result after accounting for signal strength, noise, interference, and network congestion. To measure this accurately, you need an active survey, where a device connects to the network and actually sends and receives data. A spot with a strong signal but low throughput is a classic sign of capacity problems.

Client Density: Planning for People

Finally, Client Density isn't a signal metric but a capacity one. It maps out how many devices are connected in a specific area. A strong signal in a conference room is useless if the access point is overwhelmed by 50 laptops all trying to connect at once.

Visualising client density on your heat map helps you anticipate and plan for high-traffic zones. You can ensure lobbies, meeting rooms, and common areas have enough access points to handle the load without grinding to a halt. This shifts the focus from just providing coverage to delivering reliable performance where it’s needed most.

A Practical Guide to Creating Your WiFi Heat Map

Putting together an actionable heat map for WiFi isn't about guesswork; it's a methodical process that turns abstract network data into a clear, visual guide. Think of it less like a tech chore and more like creating a blueprint for great connectivity. This guide will walk you through the essential steps, from planning on paper to walking the floor, so your final map becomes a reliable tool for making smart network decisions.

The real work starts long before you take your first step on-site. The foundation of any accurate heat map is an equally accurate floor plan. You'll need up-to-date blueprints or architectural drawings of your space, scaled correctly. If your map is off, your measurements will be skewed, and the whole exercise becomes unreliable.

Next, you need the right software for the job. While some basic mobile apps can give you a rough idea of signal strength, they just don't cut it for a business environment. Professional-grade tools like Ekahau Site Survey are built to capture a rich set of data—from RSSI and SNR to channel interference—which is crucial for building a detailed and trustworthy map.

Choosing Your Survey Method

Not all WiFi surveys are created equal. The right approach depends entirely on what you're trying to achieve, whether that's designing a brand-new network or fixing issues with an existing one. Each method gives you a different piece of the puzzle.

You’ll generally choose from one of three survey types:

• Predictive Surveys: This is your starting point for a new network, a simulation done before a single piece of hardware is installed. You'll import your floor plan, "draw" in walls and other obstacles (specifying materials like concrete or glass), and then digitally place virtual access points. The software then crunches the numbers to predict what your WiFi coverage will look like, giving you a solid design to build from.
• Passive Surveys: Here, you physically walk through the venue with a survey device, like a laptop with a specialised Wi-Fi adapter, and simply listen to the existing network traffic. The software gathers data from all nearby access points without actually connecting to them. It’s the perfect way to get a bird's-eye view of your current coverage and spot interference from neighbouring networks.
• Active Surveys: For this survey, your device connects to your WiFi network and starts actively sending and receiving data. This is how you measure what your users are actually experiencing—things like real-world throughput (upload/download speeds) and packet loss. An active survey shows you how the network truly performs at any given spot.

The On-Site Data Collection Process

With your floor plan loaded and your survey type selected, it’s time for the walk-through. This is where you collect the raw data that your software will turn into a heat map. Getting this part right is absolutely critical for a trustworthy result.

You'll follow a predetermined path, usually a grid pattern that covers every inch of the area you need to map. As you move, the survey software continuously records data points and ties them to your precise location on the floor plan. The key is to walk at a steady, consistent pace and click on the map in the software every time you turn a corner. This keeps all your data points accurately plotted.

Think of it like painting a room. You wouldn't just splash paint randomly and hope for the best. You use deliberate, overlapping strokes to ensure even coverage. A WiFi survey requires the same methodical approach to capture a complete and accurate picture of your network's performance.

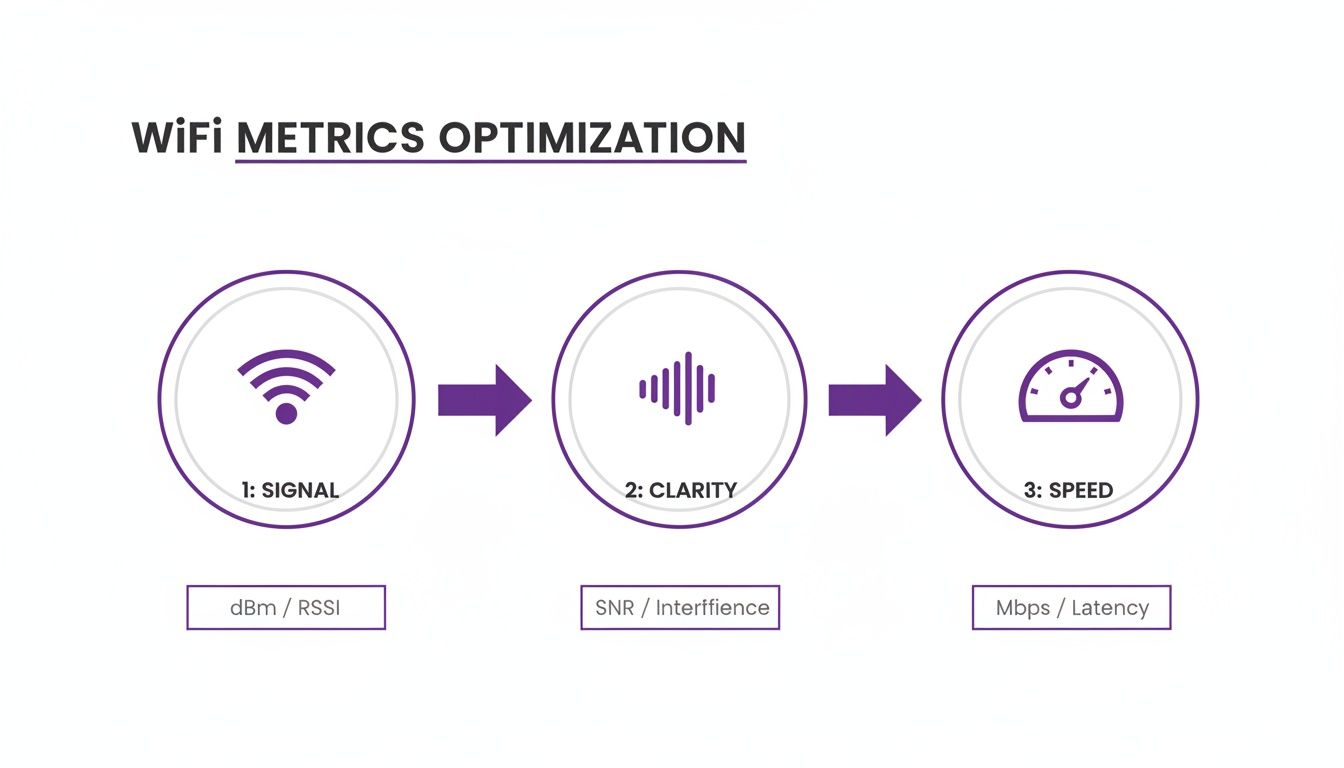

This infographic breaks down the core metrics gathered during a survey, showing how signal, clarity, and speed come together.

The image really drives home that a great WiFi network isn't about just one thing; it's about balancing these three critical elements to deliver an amazing user experience.

From Data Points to Visual Insight

Once the walk-through is done, the software works its magic. It takes the thousands of data points you’ve gathered and translates them into the colourful overlay we all recognise as a heat map. From there, you can generate different visualisations for each metric you measured, allowing you to analyse everything from basic signal strength to complex channel overlap.

A common workflow is to start with a predictive survey to figure out how many access points you’ll need. You can get a good starting estimate by using our access point calculator to get a baseline for your space. After the hardware is installed, you’d follow up with a passive or active survey to validate that the real-world performance matches the prediction, making any tweaks as needed. This systematic process ensures your network is built on solid data, not just assumptions.

How Different Industries Use WiFi Heat Maps

A heat map for WiFi is much more than a technical diagnostic tool. It's a strategic asset that solves real-world business challenges across a huge range of sectors. The same data used to hunt down dead zones in an office can be used to perfect guest satisfaction in a hotel or ensure life-saving equipment stays connected in a hospital.

By translating complex signal data into a simple visual map of a physical space, businesses can finally ditch the guesswork. They get a clear, data-driven picture of how their wireless network is actually performing and how it supports their unique operational needs, customer experiences, and commercial goals.

Hospitality: Perfecting the Guest Experience

In the hospitality world, reliable WiFi isn't a perk anymore; it's as fundamental as hot water. A single negative review complaining about bad connectivity can be enough to put off future bookings. For any hotelier, a detailed WiFi heat map is the best tool for guaranteeing a five-star digital experience.

For instance, a luxury hotel can use a heat map to meticulously check the coverage in every single guest room, hallway, and common area. The aim is to ensure a strong, consistent signal—ideally -67dBm or better—is available everywhere. This proactive analysis lets them find and fix frustrating dead zones in a corner suite or a weak signal by the pool before a guest ever has a chance to complain.

By looking at both signal strength and client density on the map, hotel operators can see where guests congregate, like lobbies, conference centres, and restaurants. This insight allows them to deploy enough access points to handle the load, preventing the network from grinding to a halt during a busy check-in or a major event.

The result is a seamless experience where guests can stream movies, join video calls, and use hotel apps without a single hiccup. This directly boosts satisfaction scores and encourages those all-important positive reviews.

Retail: Optimising Operations and Engagement

For retailers, strong WiFi has a dual role: it enhances the shopper's experience while also powering critical back-of-house operations. A WiFi heat map is the key to balancing both of these needs in what is often a crowded and complex environment.

Think about a large shopping centre. A comprehensive heat map analysis can show:

• Coverage for Shopper WiFi: It ensures the free guest WiFi is strong and easy to access everywhere, from the food court to the car park, which is vital for engagement.
• Support for Business Systems: It confirms that essential systems like point-of-sale (POS) tills, inventory scanners, and digital signs have rock-solid connectivity.
• Client Density Insights: The map reveals where shoppers tend to gather, providing valuable footfall data that can inform store layouts and marketing promotions. You can discover more about how WiFi analytics transforms the retail shopping experience on purple.ai and drives smarter business decisions.

By using this data to optimise access point (AP) placement, a retail centre can prevent failed card payments during a busy sale and, at the same time, offer a great guest network that keeps shoppers connected and in the building for longer.

Healthcare: Ensuring Mission-Critical Reliability

In a hospital or clinic, WiFi isn't about convenience—it can be a lifeline. The network supports everything from electronic health records (EHRs) on tablets to internet-connected medical devices and vital telehealth calls. There is absolutely zero room for dropped connections or dead zones.

A heat map is an indispensable tool for a hospital's IT team. They use it to guarantee complete, uninterrupted coverage across every patient room, operating theatre, and nurses' station. The main focus here is on ultra-reliable signal quality, often requiring a Signal-to-Noise Ratio (SNR) of 25dB or higher to ensure no data packets are ever lost.

This detailed planning ensures that doctors can pull up patient data instantly at the bedside, vital sign monitors can transmit data without fail, and telehealth appointments proceed smoothly. Ultimately, it all contributes to better patient care and more efficient hospital operations.

Property Management: Meeting Tenant Expectations

For residential properties like student accommodation, build-to-rent communities, and managed apartment blocks, high-speed internet is a major selling point. Tenants don't just want WiFi; they expect flawless connectivity in every single room from the day they move in. Property managers use WiFi heat maps to make sure they can deliver on that promise.

Before a new building even opens, a predictive heat map survey is used to design the network, placing APs to overcome structural hurdles like concrete walls and ensure strong coverage in every flat. After installation, a validation survey is done on-site to confirm that the real-world performance matches the design. This guarantees every tenant gets the fast, reliable internet they were promised and are paying for, minimising complaints, reducing support tickets, and helping to keep occupancy rates high.

How to Read Your Heat Map and Fix Network Issues

So, your WiFi heat map is ready. It's a vibrant, detailed picture of your network, but what do all those greens, yellows, and reds actually mean? A map is only useful if you know how to read it, and a WiFi heat map is no different. This is the part where you turn those visual patterns into tangible actions for a faster, more reliable network for everyone.

Think of yourself as a network detective. The heat map gives you the clues—the discoloured patches and weak spots—and it’s your job to piece them together to solve common wireless mysteries. The key is to look at different map layers at the same time to get the full story. A patch of red on your signal strength map might not tell you why the signal is poor, but checking it against an interference map might point to the culprit straight away.

Spotting and Solving Coverage Gaps

The most obvious problem a heat map reveals is a coverage gap, often shown in red or grey. These are the dead zones where the signal is too weak for a stable connection, typically dropping below -70dBm. They’re the reason for choppy video calls in the corner office or failed card payments at the far end of the shop floor.

Once you’ve found a gap, the fix is usually quite direct. The most common solutions are:

• Relocate an Existing Access Point (AP): Sometimes, just shifting an AP a few metres can make a world of difference, especially if its signal is being blocked by a thick wall or a row of metal filing cabinets.
• Add a New Access Point: In larger spaces or buildings with lots of signal-blocking materials, you might simply need more APs to fill in the weak spots and provide consistent coverage.
• Increase AP Transmit Power: Boosting the power can help a signal reach further, but this one comes with a warning. Cranking it up too high can create its own set of problems by increasing interference with other APs. It’s a delicate balancing act.

Tackling Channel Interference

Your heat map might also show areas with strong signal strength but terrible performance. This is a classic case of channel interference. Imagine two people trying to shout over each other in the same conversation—that’s exactly what’s happening when too many APs are broadcasting on the same or overlapping channels. This is a particularly common headache in the crowded 2.4 GHz band.

A channel interference map will show you exactly where this is happening. The goal is to see a clean separation of colours, with each AP operating on a distinct, non-overlapping channel from its immediate neighbours.

To fix this, you need a smart channel plan. For the 2.4 GHz band, that means sticking exclusively to channels 1, 6, and 11, as these are the only ones that don’t overlap. With the 5 GHz band, you have a lot more channels to play with, making it much easier to dodge congestion. Most modern network systems can handle this automatically, but a heat map is your way of verifying that the automated plan is actually working in the real world.

Improving Signal Quality and SNR

Finally, you have to look beyond signal strength and focus on signal quality. Your Signal-to-Noise Ratio (SNR) map is vital here. An area with a low SNR (anything below 25dB) means that even if the signal is strong, it's being drowned out by background "noise." This noise could be coming from non-WiFi sources like microwave ovens or from other nearby WiFi networks bleeding into your space.

Fixing low SNR usually involves a two-pronged attack:

1. Reduce Noise: If you can, find and move the source of RF noise away from the problem area.
2. Increase Signal: Strategically placing an AP closer to the low-SNR zone will make your desired WiFi signal much stronger relative to the background noise, instantly improving clarity.

It's also important to remember that the underlying broadband infrastructure can be a limiting factor, completely separate from your internal WiFi setup. An ONS visualisation shows that even with a perfect WiFi network, some premises are still unable to receive 30Mbit/s internet speeds because of their core connection. You can explore a map of UK broadband availability on ons.gov.uk to see how this varies.

By methodically identifying these issues on your heat map and applying targeted fixes, you can systematically stamp out network problems and deliver the reliable performance your users and customers expect.

Using Analytics to Elevate Your WiFi Strategy

A technically perfect heat map for WiFi is an essential starting point, but its real power is unlocked when you layer business intelligence on top. This is the moment you stop just thinking about coverage and start understanding how people actually behave in your physical space.

When you connect a high-performing network to a smart analytics platform, your WiFi stops being a simple utility. It becomes a rich source of insight, bridging the gap between raw network performance and tangible business outcomes.

From Signal Strength to Visitor Behaviour

Overlaying visitor analytics on your heat map tells a much more compelling story. You’re no longer just seeing where the signal is strong; you're seeing how people move, gather, and interact within those well-covered areas.

Suddenly, you can answer the questions that really matter to your business:

• Footfall Patterns: Which entrances get the most traffic, and at what specific times of the day?
• Dwell Times: Where do visitors hang around the longest? What holds their attention?
• Visitor Flow: What are the most common paths people take as they move through your venue?

This shift in perspective elevates the entire conversation. You're not just fixing dead zones anymore. You're optimising store layouts, streamlining operations, and personalising marketing, all driven by real-world data from your own space.

Turning Data into Actionable Strategy

The real magic happens when you connect this location data with visitor profiles. A retail centre, for instance, can pinpoint its busiest zones and then see the demographic makeup of the visitors who flock there.

This powerful combination makes it easy to justify network investments and prove a clear ROI. A solid WiFi strategy is as crucial as a robust plan for preventive IT maintenance; both are about ensuring the long-term health and optimal performance of your core infrastructure.

By weaving these insights together, your WiFi network becomes a central pillar of your marketing, operations, and strategic planning. You can explore how Purple’s guest WiFi analytics helps turn your network data into measurable business growth.

Common Questions About WiFi Heat Mapping

When you're first diving into WiFi heat mapping, a few questions always pop up. Whether you're planning a new network from scratch or trying to fix an existing one, getting these practical details right can save you a world of pain down the line. Let's clear up some of the most common queries.

Think of these points as moving from theory to practice—they'll help you figure out the right approach and how often you need to check in on your network to keep it running smoothly.

How Often Should I Create a WiFi Heat Map?

The simple answer is: it depends on how much your space changes. You absolutely need to create a new heat map after any major physical changes. This could be anything from a renovation that adds or removes walls, to rearranging big metal shelves in a warehouse, or even a big jump in the number of people and devices using your network.

For environments that don't change much, a routine check-up every 12 to 18 months is a solid best practice. This proactive schedule helps you catch gradual performance drift before it becomes a real problem, ensuring your WiFi keeps up with expectations.

Are Free Mobile Apps Good Enough for Heat Mapping?

For a quick signal check in your living room, a free app can be handy. But for any kind of business or public venue, they just don't cut it. They lack the accuracy and depth you need to design a professional network or troubleshoot it reliably.

Professional tools are essential because they measure critical metrics that basic apps can't see, like Signal-to-Noise Ratio (SNR) and channel interference. Without that data, you're only getting half the story. You can see you have a signal, but you can't diagnose the complex issues causing poor quality or network congestion.

Does a Heat Map Show My Internet Speed?

This is a really common point of confusion. A standard heat map (the kind produced by a passive survey) shows you WiFi signal strength and quality, not your internet speed. Think of it this way: a strong, clear signal is the foundation you need for good speeds, but it doesn't guarantee them.

To get a true picture of real-world performance, you need to run an active survey. During an active survey, the testing device actually connects to the network and measures throughput. This gives you a much clearer map of the actual upload and download speeds people can expect in different spots across your venue.
