Microsoft Intune WiFi Certificate Deployment via SCEP and PKCS

Executive Summary

For enterprise venues—whether a bustling Hospitality environment, a multi-site Retail operation, or a modern corporate campus—relying on pre-shared keys or basic captive portals for staff WiFi is a security vulnerability and an operational bottleneck. Modern network architecture demands 802.1X authentication using EAP-TLS, ensuring every device is cryptographically verified before accessing the network.

However, the challenge lies in distribution: how do you deploy unique client certificates to thousands of Windows, iOS, and Android devices without burying your helpdesk in support tickets? Microsoft Intune solves this through automated certificate lifecycle management. By leveraging SCEP (Simple Certificate Enrollment Protocol) or PKCS (Public Key Cryptography Standards) certificate profiles, IT teams can push trusted root and client certificates silently to managed endpoints.

This guide provides a definitive architectural blueprint and step-by-step implementation strategy for Intune WiFi certificate deployment. We will explore the critical differences between SCEP and PKCS, detail the exact deployment sequence required for success, and outline real-world risk mitigation strategies to ensure your Guest WiFi and corporate networks remain secure and performant.

Listen to the companion podcast briefing:

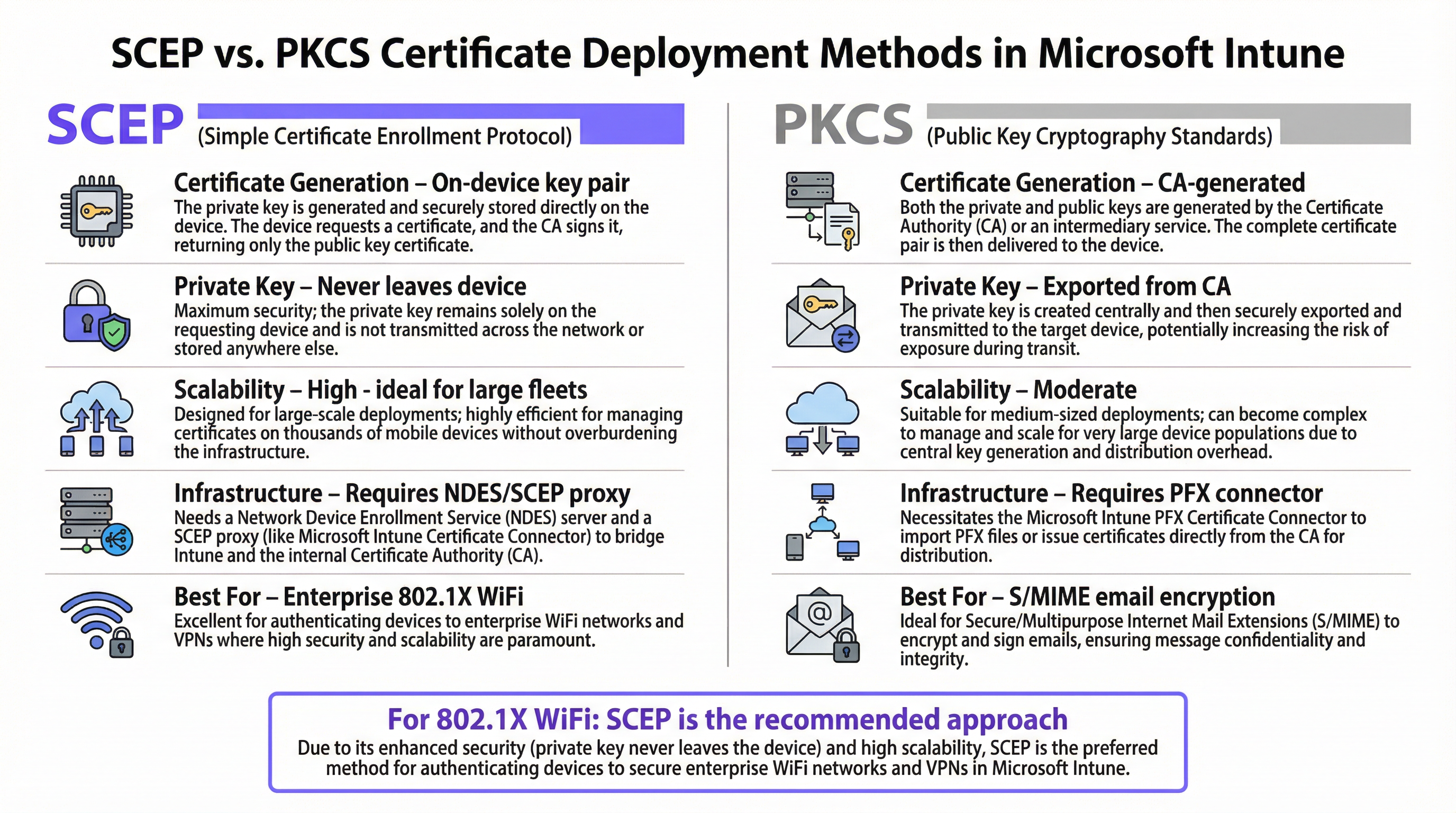

Technical Deep-Dive: SCEP vs. PKCS

When designing your Intune WiFi certificate deployment strategy, the first architectural decision is selecting the certificate delivery mechanism. Intune supports both SCEP and PKCS, but they operate fundamentally differently.

SCEP (Simple Certificate Enrollment Protocol)

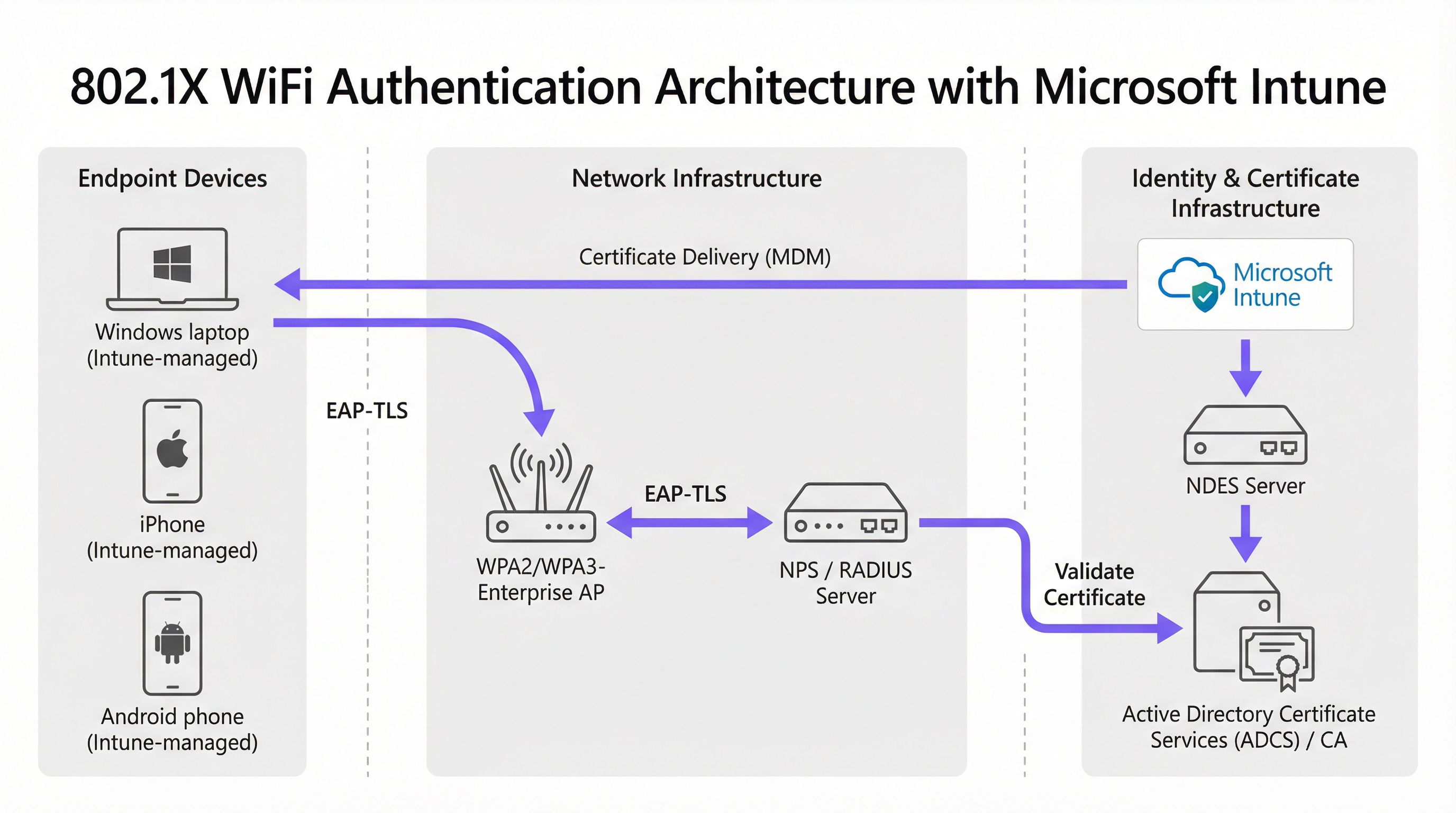

SCEP is the industry standard for enterprise device enrollment. In a SCEP workflow, the Intune service instructs the endpoint to generate its own private/public key pair. The device then creates a Certificate Signing Request (CSR) and sends it via a Network Device Enrollment Service (NDES) server to your Certificate Authority (CA). The CA signs the request and returns the public certificate to the device.

The critical security advantage of SCEP is that the private key never leaves the device. It is generated locally, stored in the device's secure enclave (such as the TPM on Windows or the Secure Enclave on iOS), and is never transmitted across the network. This makes SCEP the strongly recommended approach for 802.1X authentication.

PKCS (Public Key Cryptography Standards)

Conversely, with PKCS, the Certificate Authority generates both the public and private keys centrally. The Microsoft Intune Certificate Connector then securely exports this key pair and pushes it down to the target device.

While PKCS eliminates the need to deploy and maintain an NDES server—simplifying the infrastructure footprint—it introduces a theoretical security risk because the private key is transmitted over the network. PKCS is generally better suited for use cases where key escrow is required, such as S/MIME email encryption, rather than network authentication.

Implementation Guide: The Deployment Sequence

Successfully configuring an Intune WiFi profile for 802.1X requires strict adherence to a specific deployment sequence. Intune profile dependencies dictate that trust must be established before authentication can be configured.

Step 1: Deploy the Trusted Root Certificate Profile

Before any device can request a client certificate or trust your RADIUS server, it must trust the issuing Certificate Authority.

1. Export your Root CA certificate (and any Intermediate CA certificates) as .cer files.
2. In the Microsoft Endpoint Manager admin center, navigate to Devices > Configuration profiles > Create profile.
3. Select the target platform (e.g., Windows 10 and later) and choose the Trusted certificate profile type.
4. Upload the .cer file and deploy this profile to your target device groups.

Rule of Thumb: Always target the same groups (either Users or Devices) across all related profiles to prevent deployment mismatches.

Step 2: Configure the SCEP Certificate Profile

Once trust is established, configure the SCEP profile to instruct devices on how to obtain their client certificate.

1. Create a new configuration profile and select SCEP certificate.
2. Configure the Subject name format. For user-driven authentication, CN={{UserPrincipalName}} is standard. For device authentication, use CN={{AAD_Device_ID}}.
3. Set the Key usage to Digital signature and Key encipherment.
4. Under Extended key usage, specify Client Authentication (OID: 1.3.6.1.5.5.7.3.2).
5. Link this profile to the Trusted Root certificate profile created in Step 1.
6. Provide the external URL of your NDES server.

Step 3: Deploy the 802.1X WiFi Profile

The final step is pushing the WiFi configuration that ties the certificates to the network SSID.

1. Create a Wi-Fi configuration profile.
2. Enter the Network name (SSID) exactly as it is broadcast by your Wireless Access Points.
3. Select WPA2-Enterprise or WPA3-Enterprise as the security type.
4. Set the EAP type to EAP-TLS.
5. In the authentication settings, select the SCEP certificate profile created in Step 2 as the client authentication certificate.
6. Specify the Trusted Root certificate for server validation to ensure the device only connects to your legitimate RADIUS server.

Best Practices & Industry Standards

When implementing Intune WiFi certificate deployment, adhere to the following vendor-neutral best practices to ensure compliance and reliability.

NDES Server Placement and Security

The NDES server must be accessible from the internet to allow remote devices to provision certificates before arriving on-site. However, exposing an internal server directly to the internet is a significant security risk.

Recommendation: Publish the NDES URL using Azure AD Application Proxy. This provides secure remote access without opening inbound firewall ports and allows you to apply Conditional Access policies to the enrollment flow.

RADIUS and CRL Checking

Certificate deployment is only half the security equation; revocation is equally critical. If an employee is terminated, disabling their Active Directory account may not immediately revoke their WiFi access if their client certificate remains valid and the RADIUS server is not strictly checking the Certificate Revocation List (CRL).

Recommendation: Configure your Network Policy Server (NPS) or RADIUS server to enforce strict CRL checking. Ensure your CRL Distribution Points (CDPs) are highly available; if the RADIUS server cannot reach the CRL, authentication will fail, causing a widespread outage.

For more insights on secure network design, consider reviewing The Core SD WAN Benefits for Modern Businesses.

Troubleshooting & Risk Mitigation

Even with meticulous planning, certificate deployment can encounter issues. Here are common failure modes and mitigation strategies.

Issue: WiFi Profile Fails to Apply

Symptom: The device receives the Trusted Root and SCEP certificates, but the WiFi profile shows as 'Error' or 'Not Applicable' in Intune.

Root Cause: This is almost always caused by a mismatch in group targeting. If the SCEP profile is assigned to a User Group, but the WiFi profile is assigned to a Device Group, Intune cannot resolve the dependency.

Mitigation: Audit your assignments. Ensure the Trusted Root, SCEP, and WiFi profiles are all deployed to the exact same Azure AD group.

Issue: NDES 403 Forbidden Errors

Symptom: Devices fail to retrieve the SCEP certificate, and the NDES IIS logs show HTTP 403 errors.

Root Cause: The Intune Certificate Connector service account lacks the necessary permissions on the certificate template, or the URL filtering on your firewall is blocking the specific query string parameters used by SCEP.

Mitigation: Verify that the connector account has 'Read' and 'Enroll' permissions on the CA template. Check firewall logs to ensure URLs containing ?operation=GetCACaps are not being blocked.

ROI & Business Impact

Transitioning to Microsoft Intune 802.1X certificate deployment delivers measurable returns across security and operations.

1. Helpdesk Ticket Reduction: Password-based WiFi generates a significant volume of support tickets (password expirations, lockouts, typos). Certificate-based authentication is invisible to the user, typically reducing WiFi-related helpdesk volume by 70-80%.
2. Enhanced Security Posture: EAP-TLS eliminates the risk of credential harvesting and Man-in-the-Middle (MitM) attacks. This is critical for compliance with frameworks like PCI DSS and GDPR, particularly in Healthcare and retail environments.
3. Seamless Onboarding: For organisations managing large fleets of Apple devices alongside Windows, integrating Intune with existing MDM workflows (see our guide on Jamf and RADIUS: Certificate-Based WiFi Authentication for Apple Device Fleets) ensures a unified, zero-touch provisioning experience from day one.
