NAC পোস্টার অ্যাসেসমেন্ট: নেটওয়ার্ক অ্যাক্সেসের আগে পরিচালিত ডিভাইসের সম্মতি নিশ্চিত করা

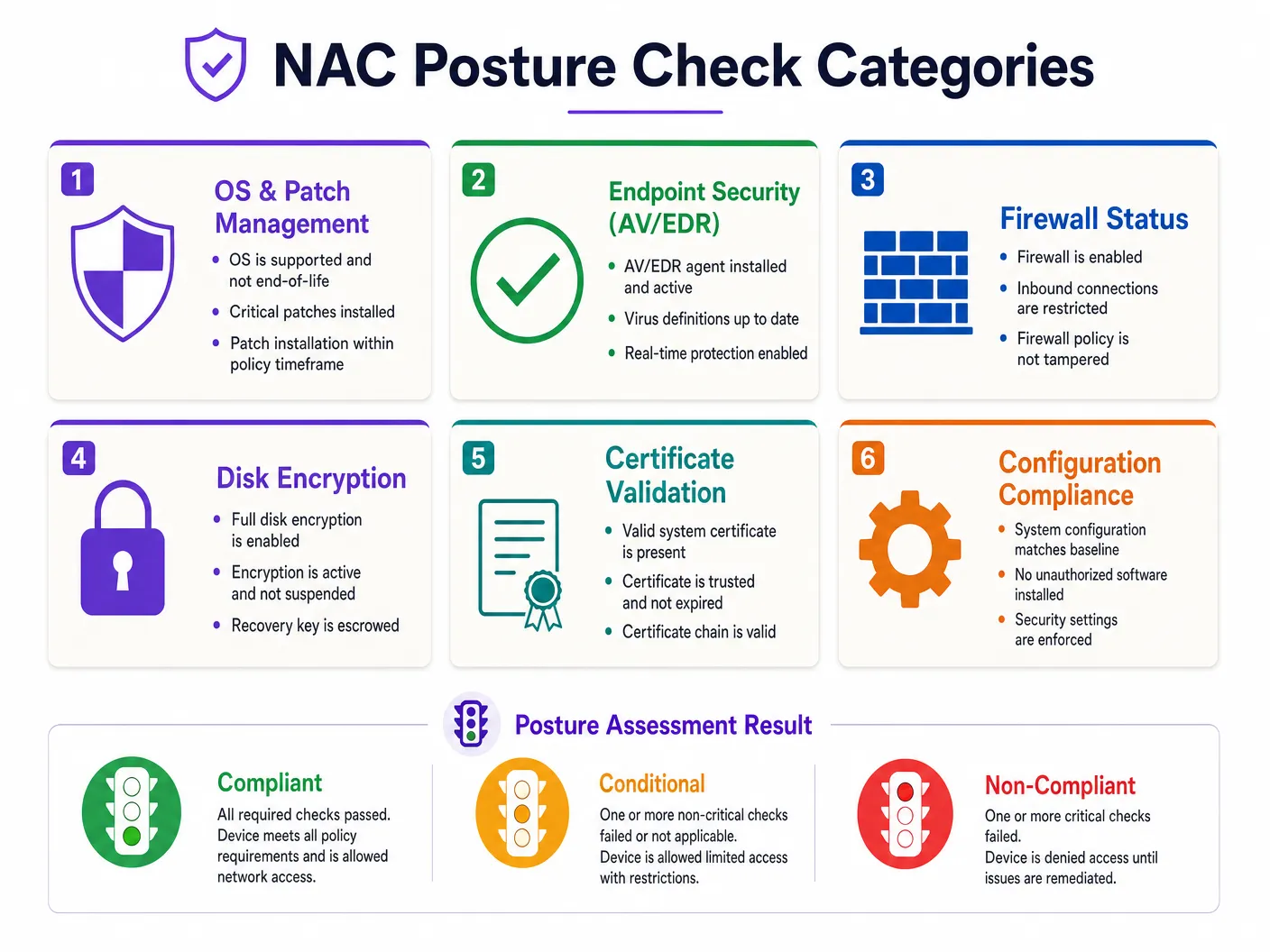

Welcome to the Purple Technical Briefing series. Today we're getting into one of the most operationally critical — and frequently misunderstood — areas of enterprise network security: NAC posture assessment, and specifically how you ensure that only managed, compliant devices gain access to your network before they've even sent a single packet of production traffic. If you're an IT manager, network architect, or CTO responsible for a multi-site estate — whether that's a hotel group, a retail chain, a stadium, or a public-sector organisation — this is directly relevant to your security posture right now. We're going to cover the architecture, the standards, the real-world deployment patterns, and the pitfalls that catch even experienced teams out. Let's get into it. So, what exactly is NAC posture assessment? Network Access Control, or NAC, is the overarching framework that governs which devices can connect to your network and under what conditions. Posture assessment is the specific mechanism within NAC that interrogates the security state of a device before — or immediately after — it connects. Think of it as a health check at the door. The device doesn't just need to prove who it is; it needs to prove it's in a fit state to be trusted. The architecture here has three core components. First, you have the Policy Enforcement Point — the PEP. This is typically your access point, your switch, or your wireless controller. It's the gatekeeper that physically controls whether traffic flows. Second, you have the Policy Decision Point — the PDP. This is your NAC engine, often integrated with a RADIUS or AAA server. It receives the posture data, evaluates it against your policy, and tells the PEP what to do. Third, you have the Posture Assessment Engine itself — this is either an agent running on the endpoint, or an agentless mechanism using protocols like SNMP, WMI, or SSH to query the device remotely. Now, the authentication layer underpinning all of this is IEEE 802.1X. This is the port-based network access control standard that's been around since 2001 but remains the backbone of enterprise NAC today. 802.1X defines three roles: the Supplicant — that's the device trying to connect; the Authenticator — your switch or access point; and the Authentication Server — your RADIUS server. The Supplicant and Authentication Server communicate via EAP — the Extensible Authentication Protocol — tunnelled through the Authenticator. EAP-TLS, which uses mutual certificate-based authentication, is the gold standard here. It's what you should be deploying if you're serious about managed device compliance. What does the posture check actually look at? There are six primary categories. Operating system patch level — is the device running a supported OS version, and are critical patches applied within your defined window? Endpoint security status — is an approved AV or EDR agent installed, active, and with up-to-date definitions? Firewall status — is the host-based firewall enabled and its policy intact? Disk encryption — is full-disk encryption active and not suspended? Certificate validity — does the device hold a valid, trusted machine certificate issued by your PKI? And finally, configuration compliance — does the device's security configuration match your defined baseline? Based on the outcome of these checks, your NAC policy engine assigns one of three states. Compliant — the device passes all required checks and receives full network access, typically to its assigned VLAN or role. Conditional — the device passes critical checks but fails one or more non-critical checks; it gets limited access, perhaps internet-only, with a notification to the user. And Non-Compliant — the device fails a critical check and is placed in a quarantine VLAN with access only to a remediation portal. That remediation portal is where the device can download patches, update AV definitions, or receive instructions for manual remediation. Now, where does WPA3 fit into this? WPA3-Enterprise, specifically with 192-bit mode, strengthens the cryptographic layer beneath 802.1X. It mandates GCMP-256 for encryption and HMAC-SHA-384 for integrity, which is particularly relevant for environments handling payment card data or sensitive personal data under GDPR. If you're running a retail environment with PCI DSS scope, or a healthcare facility under NHS data governance requirements, WPA3-Enterprise should be on your roadmap for new deployments. Let's talk about agentless versus agent-based posture assessment, because this is a genuine architectural decision point. Agent-based assessment — where a lightweight client runs on the endpoint — gives you the deepest visibility. You can query registry keys, running processes, installed software, and real-time security state. The trade-off is deployment overhead: you need an MDM or endpoint management platform to push and maintain the agent across your estate. Agentless assessment uses network-based interrogation — SNMP, WMI over the network, or API calls to your MDM platform. It's easier to deploy but gives you shallower visibility and is more susceptible to evasion. For a managed corporate estate, agent-based is the right answer. For environments where you have a mix of managed and unmanaged devices — think a conference centre or a hotel back-of-house network — a hybrid approach makes more sense. One more architectural point worth calling out: continuous posture assessment versus point-in-time. Most legacy NAC implementations only check posture at connection time. That's a significant gap. A device that was compliant at nine in the morning when it connected might have its AV disabled by a user at eleven. Modern NAC platforms support continuous assessment — re-evaluating posture at defined intervals or in response to events — and dynamically changing the device's network access level without requiring a reconnect. This is the direction you should be moving in. Right, let's get practical. When you're deploying NAC posture assessment, the single most common failure mode I see is going straight to enforcement mode. Don't do it. Start in monitor mode — sometimes called audit mode or visibility mode. Run your posture checks, log the results, but don't enforce policy. Run this for at least two to four weeks. You will almost certainly discover devices you didn't know existed on your network, and you will discover that a significant proportion of your known devices fail one or more posture checks. Use that data to fix your estate before you enforce. The second pitfall is certificate infrastructure. Agent-based posture assessment with EAP-TLS requires a functioning PKI. If you don't have one, or if your certificate lifecycle management is manual and ad hoc, you will have outages. Certificates expire. Devices get rebuilt without certificates. Plan your PKI before you plan your NAC deployment. Third: VLAN design. Your quarantine VLAN needs to be genuinely isolated — not just a different subnet on the same physical infrastructure. It should have access only to your remediation portal and, if necessary, Windows Update or your patch management server. If your quarantine VLAN has any route to production systems, you've created a false sense of security. Fourth: exceptions and bypass processes. Every organisation has devices that can't run an agent — printers, IoT sensors, building management systems. You need a documented, approved process for granting MAC authentication bypass to these devices, with compensating controls. If you don't define this process upfront, you'll end up with an informal whitelist that nobody owns and nobody audits. From a standards perspective, align your posture policy with CIS Benchmarks for your operating system platforms. These are vendor-neutral, regularly updated, and widely accepted as the baseline for enterprise endpoint security. For PCI DSS environments, Requirement 6.3 on patch management and Requirement 5.3 on anti-malware directly map to your posture check categories. Now for a few rapid-fire questions. Can NAC posture assessment work for BYOD devices? Yes, but you need a separate policy track. BYOD devices typically go through a different EAP method — EAP-PEAP with user credentials rather than EAP-TLS with machine certificates — and receive a more restricted network segment. Posture checks for BYOD are typically lighter: OS version, basic AV presence, screen lock enabled. How does this interact with a guest WiFi network? It doesn't, and it shouldn't. Guest WiFi is a completely separate SSID and network segment, isolated from your corporate infrastructure. NAC posture assessment applies to your corporate SSID only. The two networks should never share a VLAN or route to each other. What's the typical timeline for a full NAC deployment? For a medium-sized enterprise — say, five hundred to two thousand endpoints across multiple sites — allow twelve to sixteen weeks from design to full enforcement. That includes PKI setup, agent deployment, monitor mode, remediation, and phased enforcement rollout. To wrap up: NAC posture assessment is the mechanism that ensures your network access control framework has teeth. Identity alone — knowing who is connecting — is not sufficient. You need to know the security state of the device, validate it against policy, and enforce consequences for non-compliance. The architecture is mature and well-standardised around 802.1X, RADIUS, and EAP-TLS. The implementation challenges are real but manageable if you follow a phased approach. Your immediate next steps: audit your current endpoint estate for posture compliance using your existing MDM or endpoint management tooling. Assess your PKI readiness. Design your VLAN architecture for compliant, conditional, and quarantine segments. And plan a monitor-mode deployment before you touch enforcement. For organisations running mixed environments — corporate back-of-house alongside guest or public WiFi — platforms like Purple provide the guest-side network intelligence and analytics that complement your corporate NAC deployment, keeping those two worlds cleanly separated while giving you full visibility across both. Thanks for listening. Explore the full written guide on the Purple platform for architecture diagrams, worked examples, and configuration references.
