Gestión de ancho de banda para WiFi de personal: modelado, QoS y reducción de tráfico

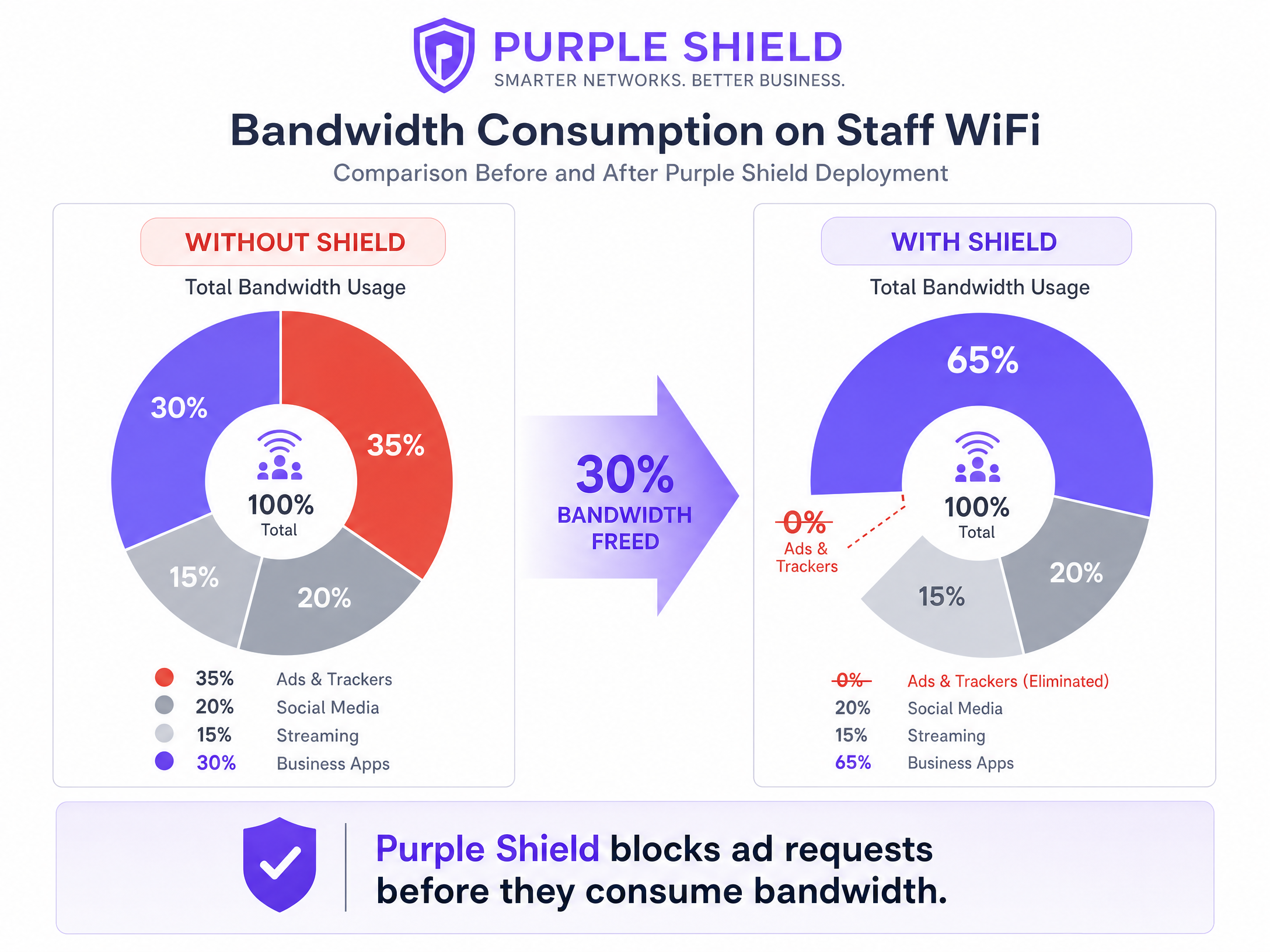

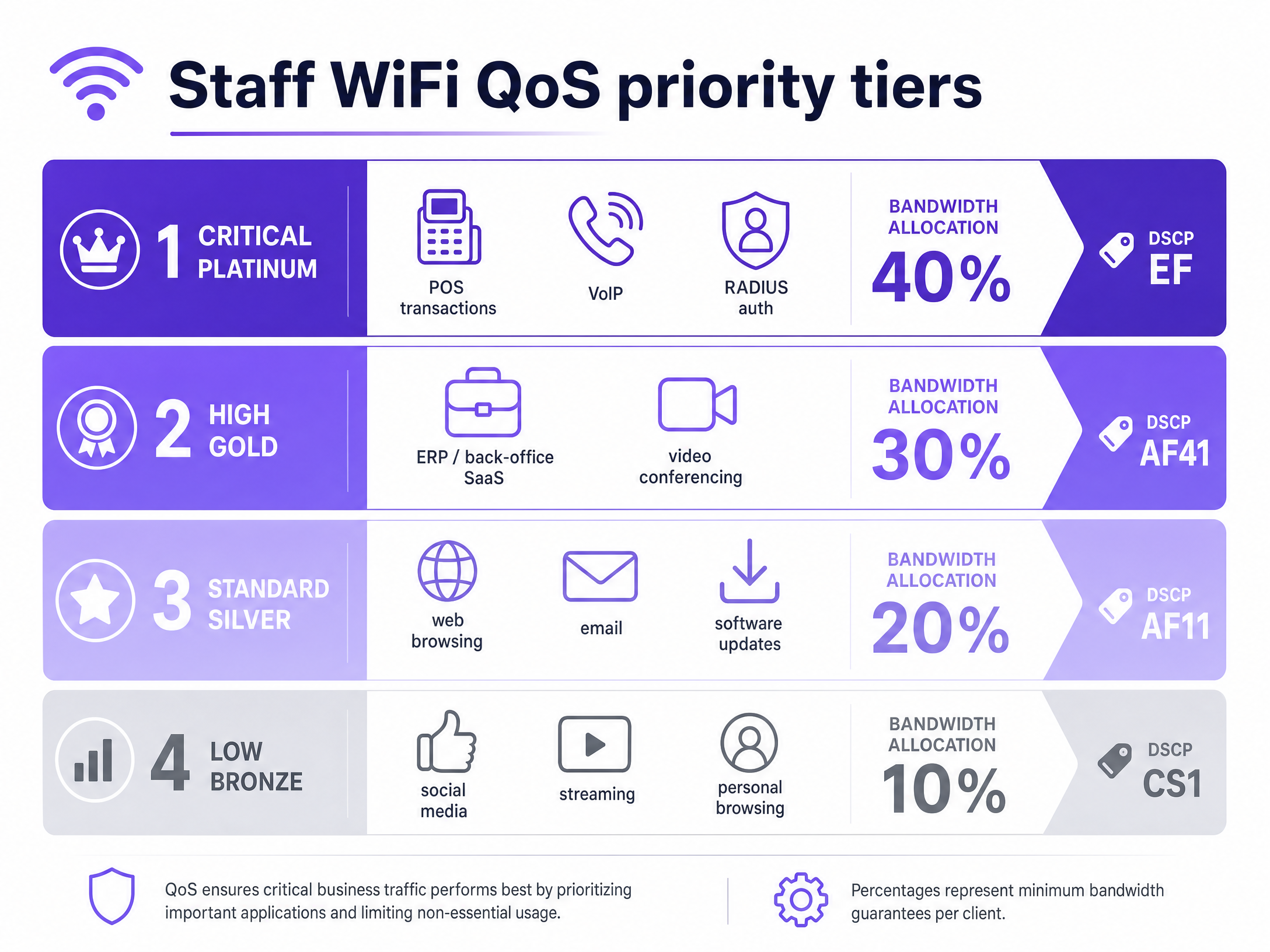

Managing Bandwidth for Staff WiFi: Shaping, QoS and Reducing Traffic. A Purple Technical Briefing. Welcome. If you're listening to this, you're probably dealing with one of the most common complaints in enterprise IT: staff saying the WiFi is slow. Maybe it's the hotel back-of-house team struggling to process check-ins. Maybe it's a retail chain where the POS terminals are timing out. Or maybe it's a conference centre where the AV team can't get a stable connection during a live event. Whatever the context, the root cause is almost always the same - you have more traffic than your network is designed to handle, and the wrong traffic is getting priority. In this briefing, we're going to cover three things: how traffic shaping and QoS actually work in a staff WiFi environment, what a practical deployment looks like across different venue types, and how deploying Purple Shield for ad-blocking can reduce your overall network load by a meaningful amount - without touching your line speed or spending on infrastructure upgrades. Let's get into it. Section one: Understanding the problem. Most enterprise venues run a shared internet connection. The staff WiFi, the guest WiFi, the back-office systems, the CCTV, the building management systems - they all share the same upstream pipe. When that pipe gets congested, everything degrades. But not all traffic is equal. A VoIP call dropping mid-sentence is catastrophic. A software update taking an extra two minutes is irrelevant. The problem is that without active management, your network doesn't know the difference. Traffic shaping is the mechanism you use to tell the network which traffic matters. Quality of Service, or QoS, is the framework that defines the rules. Together, they let you guarantee bandwidth to critical applications and constrain everything else. The IEEE 802.11e standard introduced QoS to wireless networks through a mechanism called WMM - Wireless Multimedia. WMM defines four access categories: voice, video, best effort, and background. Every modern access point from Cisco Meraki, HPE Aruba, Ruckus, Juniper Mist, and Ubiquiti UniFi supports WMM. The question is whether you're using it properly. On the wired side, QoS is implemented using DSCP - Differentiated Services Code Point - markings in the IP header. DSCP EF, which stands for Expedited Forwarding, is used for voice traffic. DSCP AF41 is used for video conferencing. DSCP CS1 is the background class - software updates, bulk transfers, anything that can wait. When you map your application traffic to the right DSCP markings and configure your switches and access points to honour them, you get predictable performance for the applications that matter. Section two: Architecture and segmentation. Before you configure QoS, you need to segment your network correctly. Staff WiFi should sit on its own VLAN - a Virtual Local Area Network - completely isolated from guest WiFi and IoT devices. This is not just a security requirement under PCI DSS and GDPR; it's a prerequisite for effective QoS, because you can apply different policies to different VLANs. A typical enterprise venue architecture looks like this. You have a core switch connecting to your internet gateway. Off that switch, you have multiple VLANs: one for staff devices, one for guest access, one for POS and payment systems, one for building management. Each VLAN has its own QoS policy. The staff VLAN gets the highest guaranteed bandwidth allocation. The guest VLAN gets a per-user rate limit - typically two to five megabits per second downstream - so no single visitor can saturate the connection. On the staff VLAN itself, you apply application-aware QoS. POS transactions and RADIUS authentication traffic get DSCP EF - the highest priority. Your ERP system and video conferencing tools get DSCP AF41. General web browsing gets best effort. Software updates and OS patch downloads get DSCP CS1 - they run in the background and don't compete with operational traffic. For authentication, staff devices should authenticate using 802.1X with either EAP-TLS - certificate-based - or PEAP with MSCHAPv2 against your RADIUS server. If you're running Microsoft Entra ID, Okta, or Google Workspace, Purple integrates directly with all three via SAML and SCIM, so your identity provider becomes the source of truth for network access. When a staff member leaves, you revoke their access in Entra ID and the network access disappears automatically. Section three: The hidden bandwidth drain - and how Shield fixes it. Here's something most IT teams don't think about. A significant portion of the traffic on your staff WiFi has nothing to do with your business. Every webpage a staff member visits loads dozens of third-party ad networks, tracking pixels, analytics scripts, and telemetry endpoints. Research from Ghostery and similar ad-blocking analytics consistently shows that ad and tracker requests account for between 25% and 40% of total HTTP requests on a typical browsing session. That traffic consumes real bandwidth. It consumes DNS query capacity. It adds latency to every page load. And it introduces security risk - malvertising, drive-by downloads, and data exfiltration via tracking pixels are all real attack vectors. Purple Shield addresses this at the network level. Rather than relying on browser extensions that staff may or may not have installed, Shield operates as a DNS-layer filter. Every DNS query from the staff VLAN passes through Shield's blocklist before it resolves. Ad network domains, known tracker endpoints, and malicious domains are blocked before a single byte of content is downloaded. The device never makes the connection. The bandwidth is never consumed. In practice, venues deploying Shield on their staff WiFi report a reduction in total DNS query volume of around 30%. That's bandwidth that was previously wasted on ads and trackers, now available for your ERP system, your video calls, your POS terminals. You get the equivalent of a 30% bandwidth upgrade without paying for a faster line. Shield also reduces your security exposure. By blocking known malicious domains at the DNS layer, you eliminate a category of threat that endpoint antivirus often misses - particularly for IoT devices and shared terminals that don't run traditional security software. Section four: Real-world implementation. Let me walk you through two scenarios. First: a 200-room hotel. The back-of-house team runs property management software, a VoIP phone system, and a video surveillance platform over the same network. The guest WiFi is on a separate VLAN with a five megabit per-user cap, but the staff VLAN has no QoS policy. During peak check-in periods, the property management system slows to a crawl because staff are streaming music and the surveillance system is uploading footage. The fix: apply DSCP EF to the property management system's traffic and the VoIP system. Apply DSCP AF41 to the surveillance upload traffic - it's important but not latency-sensitive. Apply DSCP CS1 to everything else. Deploy Shield on the staff VLAN to eliminate ad and tracker traffic. Result: property management system response times drop by over 40% during peak periods. VoIP call quality improves measurably on the Mean Opinion Score scale used to rate voice quality. Second: a retail chain with 50 stores. Each store has a single 100 megabit broadband connection shared between staff WiFi, guest WiFi, and POS terminals. During busy trading periods, staff browsing on personal devices saturates the connection and POS transactions start timing out. The chain is looking at upgrading to 200 megabit lines at a cost of around 18,000 pounds per year across the estate. The fix: segment the POS terminals onto a dedicated VLAN with guaranteed bandwidth. Apply per-user rate limits on the staff WiFi VLAN - 10 megabits per user downstream, two megabits upstream. Deploy Shield to eliminate ad traffic. The combination reduces peak utilisation by 35%, POS timeouts drop to zero, and the line upgrade is deferred indefinitely. The annual saving on line costs alone is 18,000 pounds. Shield and QoS configuration cost a fraction of that. Section five: Implementation pitfalls. A few things to watch out for. DSCP remarking. Many ISPs and some enterprise switches strip or remark DSCP values at the network boundary. Check that your QoS markings survive the full path from device to application. Use a packet capture at the gateway to verify. WMM and legacy devices. Some older devices - particularly shared terminals and IoT sensors - don't support WMM properly. They may ignore QoS markings or generate traffic with incorrect DSCP values. Audit your device inventory before deploying QoS policies. Rate limiting and burst traffic. A hard rate limit of 10 megabits per user sounds reasonable, but if 20 staff members simultaneously trigger software updates, you'll hit the aggregate cap. Use token bucket shaping with a burst allowance rather than a hard policer. This allows short bursts while constraining sustained high-bandwidth use. Shield and DNS-over-HTTPS. If staff devices use DNS-over-HTTPS to bypass your DNS resolver, Shield's filtering won't apply. You need to either block DNS-over-HTTPS at the firewall or configure your devices via MDM to use your internal DNS resolver. This is a one-time configuration step, not an ongoing management burden. Section six: Rapid-fire questions. Do I need QoS if I have plenty of bandwidth? Yes. Bandwidth is not the same as performance. A 1 gigabit connection with no QoS will still deliver poor VoIP quality if a single device is running a bulk file transfer. QoS ensures latency-sensitive traffic gets the queue priority it needs regardless of total throughput. Can I deploy Shield without changing my existing hardware? Yes. Shield operates as a DNS overlay. You point your DHCP server to Purple's DNS resolvers and Shield applies immediately. It works with Cisco Meraki, HPE Aruba, Ruckus, Juniper Mist, Ubiquiti UniFi, Cambium, Extreme, and Fortinet - no hardware changes required. How do I measure the impact? Track three metrics before and after deployment: peak utilisation percentage on your uplink, DNS query volume per hour, and application response times for your critical systems. Purple's dashboard surfaces all three in real time. Section seven: Summary and next steps. To summarise. Managing bandwidth for staff WiFi is not about buying more bandwidth. It's about making sure the bandwidth you have goes to the right places. Traffic shaping and QoS give you the control. Purple Shield gives you the reduction. Together, they deliver measurable improvements in application performance without infrastructure spend. Your next steps: audit your current VLAN structure and confirm staff WiFi is isolated from guest and IoT traffic. Map your critical applications to DSCP classes. Deploy Shield on your staff VLAN and measure the DNS query reduction. Review your per-user rate limits quarterly as device counts change. If you want to go deeper on any of this, the full written guide is available at purple.ai. It covers the technical architecture in detail, includes configuration examples for the major hardware platforms, and walks through the ROI calculation for Shield deployment. Thanks for listening. This has been a Purple technical briefing.
