कॉर्पोरेट नेटवर्क के लिए 802.1X प्रमाणीकरण समझाया गया

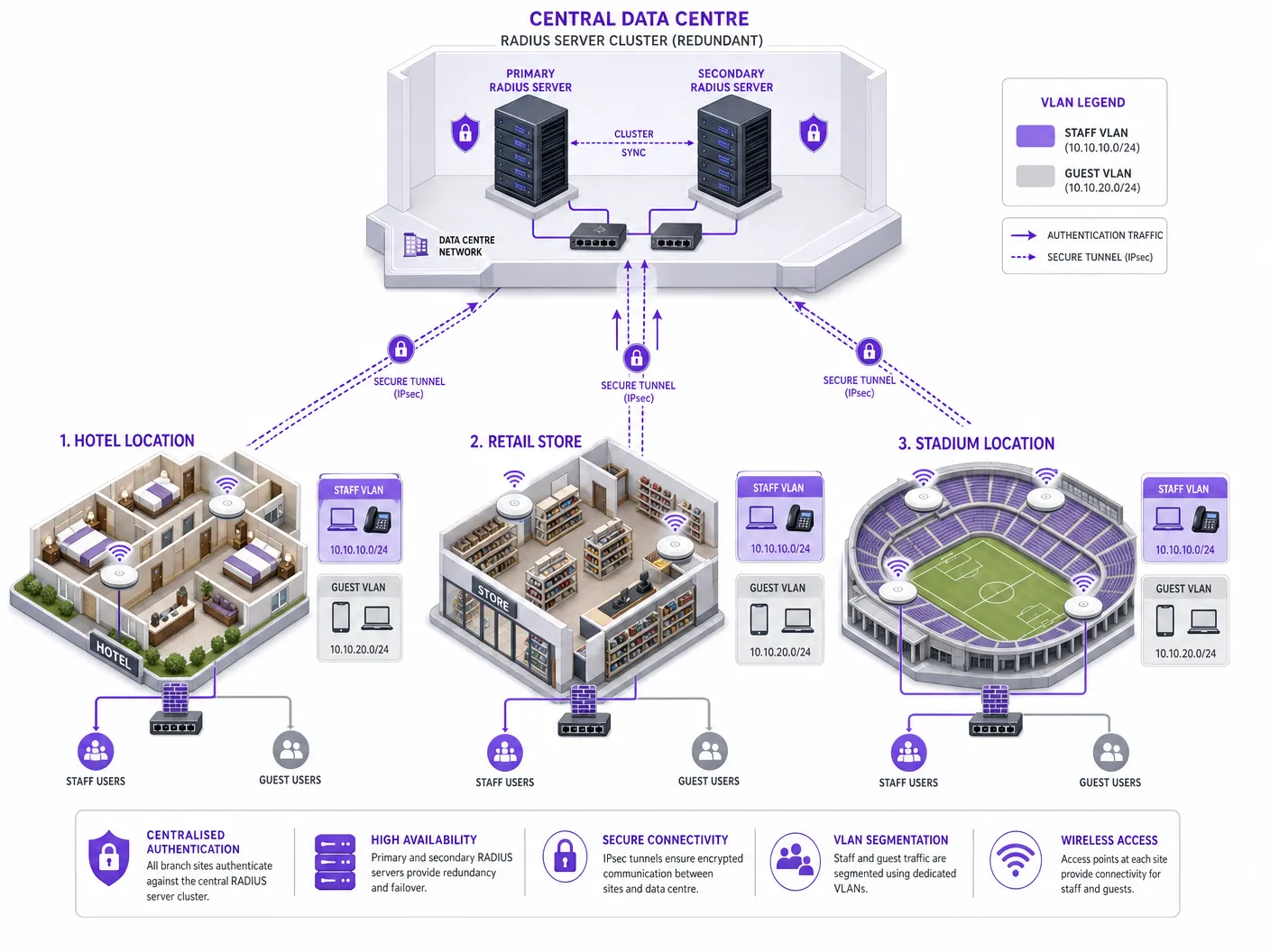

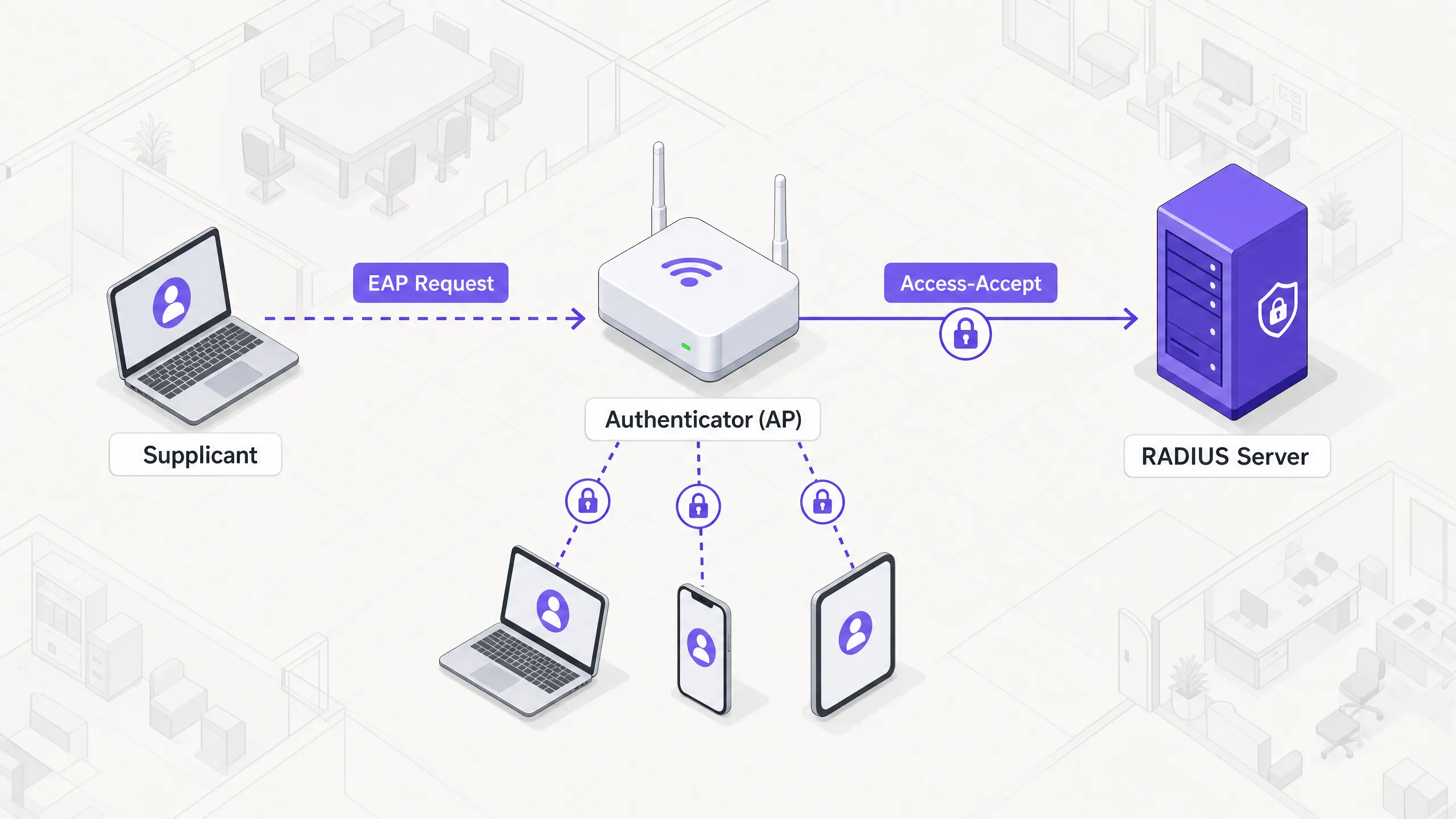

802.1X Authentication Explained for Corporate Networks. A Purple WiFi Intelligence Briefing. Welcome. If you're responsible for network security across a multi-site organisation — whether that's a hotel group, a retail chain, a stadium, or a public-sector estate — this briefing is for you. Over the next ten minutes, we're going to cover everything you need to know about 802.1X authentication: what it is, how it works under the hood, how to deploy it properly, and the pitfalls that catch most organisations out. Let's get into it. Section one: Context and why this matters right now. The threat landscape for corporate WiFi has shifted dramatically. Pre-shared key networks — the kind where everyone knows the WiFi password — are no longer acceptable for staff networks in regulated environments. Under PCI DSS version 4.0, which came into full effect in 2024, organisations handling payment card data must implement strong access controls on any network that touches the cardholder data environment. GDPR places similar obligations on any network carrying personal data. And with hybrid working meaning that staff are connecting from managed and unmanaged devices across dozens of locations, the old perimeter model simply doesn't hold. 802.1X is the IEEE standard that solves this. It provides port-based network access control — meaning a device cannot join the network at all until it has been authenticated against a central identity store. Not just a shared password. An actual verified identity. That's the fundamental shift. Section two: Technical deep-dive. Let's walk through the architecture. 802.1X defines three roles. The supplicant — that's the end device, the laptop or smartphone trying to connect. The authenticator — that's the wireless access point or the network switch. And the authentication server — which in virtually every enterprise deployment is a RADIUS server. Here's how the handshake works. When a device attempts to connect to a protected SSID, the access point places that device in an unauthenticated state. It can't reach the network. The AP sends an EAP Request Identity frame to the device. EAP stands for Extensible Authentication Protocol — it's the framework that carries the actual credentials. The device responds with its identity. The AP forwards this to the RADIUS server, encapsulated in a RADIUS Access-Request packet. The RADIUS server then challenges the device — the specific challenge depends on which EAP method you're using. The device responds with its credentials. The RADIUS server validates those credentials against your identity store — Active Directory, LDAP, or a cloud IdP — and sends back either an Access-Accept or an Access-Reject. If it's an Accept, the AP opens the port and the device gets network access. If it's a Reject, the device stays blocked. The whole exchange takes under a second. Now, EAP method selection is where most architects spend their time. You have four main options. EAP-TLS is the gold standard. It requires a client certificate on every device, which means you need a PKI infrastructure, but it provides mutual authentication — the server proves its identity to the client, and the client proves its identity to the server. No credentials can be phished because there are no passwords involved. This is the right choice for fully managed device fleets. PEAP — Protected EAP — is the most widely deployed method in practice. It creates a TLS tunnel using only a server certificate, then passes username and password credentials inside that tunnel. It's significantly easier to deploy than EAP-TLS because you don't need client certificates, and it's supported natively on every major operating system. The trade-off is that it relies on users validating the server certificate, which in practice they often don't. Proper PEAP deployment requires locking down the supplicant configuration so it only trusts your specific RADIUS server certificate. EAP-TTLS is similar to PEAP but more flexible in the inner authentication method. It's particularly useful in environments with legacy devices or non-Windows endpoints. EAP-FAST was developed by Cisco as a faster alternative that uses Protected Access Credentials instead of certificates, but it's less commonly deployed in new builds. The RADIUS server itself deserves attention. The two dominant open-source options are FreeRADIUS, which powers a significant proportion of enterprise deployments globally, and Microsoft NPS — Network Policy Server — which is included with Windows Server and integrates natively with Active Directory. Commercial options include Cisco ISE, Aruba ClearPass, and Portnox Cloud, which offers a cloud-native RADIUS-as-a-service model that removes the need for on-premises server infrastructure entirely. VLAN assignment is one of the most powerful features of a properly configured 802.1X deployment. The RADIUS server can return VLAN attributes in the Access-Accept response, dynamically assigning the authenticated device to the appropriate network segment. A staff member authenticates and lands on the staff VLAN. A contractor authenticates with different credentials and lands on a restricted VLAN with limited access. A device that fails certificate validation gets placed in a quarantine VLAN. This is dynamic segmentation, and it's a significant security control. Section three: Implementation recommendations and the pitfalls to avoid. Let me give you the deployment sequence that works. Start with a network audit. Before you touch a single configuration, document every device that will need to authenticate. This includes printers, IP phones, building management systems, CCTV cameras — any device that connects to the network. These headless devices don't have a supplicant and can't do 802.1X. You'll need a strategy for them, typically MAC Authentication Bypass with strict MAC address whitelisting and placement in an isolated VLAN. Step two: stand up your RADIUS infrastructure. For resilience, you need at minimum a primary and secondary RADIUS server. Configure your access points to fail over automatically. A RADIUS outage that blocks all staff from the network is a P1 incident. Don't let it happen because you deployed a single server. Step three: deploy your PKI if you're going EAP-TLS. Use your existing Active Directory Certificate Services or a cloud PKI provider. Auto-enrolment through Group Policy makes client certificate deployment manageable at scale. Step four: configure your network policies. Define your authentication policies in RADIUS — which users or device groups get which VLAN assignments, what happens to failed authentications, how you handle guest versus staff traffic. This is where you enforce the principle of least privilege at the network layer. Step five: pilot before you roll out. Take one location, one floor, one SSID. Test every device type. Test failure scenarios. Test what happens when the RADIUS server is unreachable. Only then expand. Now, the pitfalls. The most common one I see is certificate validation misconfiguration on PEAP deployments. If your supplicant policy doesn't enforce server certificate validation, you're vulnerable to rogue AP attacks where an attacker sets up a fake access point and harvests credentials. Lock down your supplicant profiles through Group Policy or MDM. The second pitfall is ignoring non-802.1X devices until go-live day. IoT devices, printers, and legacy systems will break your rollout if you haven't planned for them. MAC Authentication Bypass is your friend here, but it needs to be configured before you flip the switch. The third pitfall is single points of failure in RADIUS. I've seen organisations deploy a single NPS server and discover their entire staff network goes down during a Windows Update reboot. Always deploy redundant RADIUS infrastructure. Section four: Rapid-fire questions. Can 802.1X work alongside a guest WiFi network? Absolutely. Your guest SSID runs separately — typically using a captive portal approach — while your staff SSID enforces 802.1X. They're completely independent SSIDs with separate VLANs. Purple's platform handles the guest side, with analytics and engagement tools layered on top, while your 802.1X infrastructure secures the staff side. Does 802.1X replace a VPN? No. 802.1X controls network admission — who can join the network. A VPN encrypts traffic in transit and extends the corporate network over untrusted connections. They serve different purposes and are often used together. What's the impact on roaming performance? With 802.1X, each time a device roams between access points, it needs to re-authenticate. For most enterprise deployments this is imperceptible. PMK caching and OKC — Opportunistic Key Caching — reduce re-authentication overhead significantly. For high-density environments like stadiums or conference centres, this is worth configuring explicitly. Is WPA3-Enterprise a replacement for 802.1X? No — WPA3-Enterprise uses 802.1X for authentication. WPA3 improves the encryption layer, specifically mandating 192-bit security mode for the most sensitive deployments. 802.1X is the authentication framework underneath. Section five: Summary and next steps. Here's what you should take away from this briefing. 802.1X is the only enterprise-grade authentication mechanism for corporate WiFi. Pre-shared keys are not acceptable for regulated environments. Choose your EAP method based on your device fleet — EAP-TLS if you have managed devices and a PKI, PEAP if you need broader compatibility. Plan for non-802.1X devices before you deploy, not after. Deploy redundant RADIUS infrastructure — a single server is a single point of failure. Use dynamic VLAN assignment to enforce network segmentation at authentication time. And pilot thoroughly before rolling out across your estate. If you're building out a multi-site deployment and need to think through the architecture, Purple's technical team works with network architects across hospitality, retail, and public sector every day. The combination of secure staff WiFi through 802.1X and intelligent guest WiFi through Purple's platform gives you a complete, segmented network strategy that meets both your security obligations and your guest experience requirements. That's a wrap on this briefing. Thanks for listening.
