Executive Summary

For enterprise venues—ranging from luxury hotels Hospitality and retail chains Retail to transit hubs Transport and modern medical campuses Healthcare —the guest WiFi splash page is the digital front door. However, over 90% of guest WiFi logins occur on mobile devices, where rendering is governed not by standard browsers like Safari or Chrome, but by highly restricted Captive Network Assistant (CNA) webviews [1]. These "mini-browsers" enforce severe sandbox limitations: they block external CDNs, disable persistent cookies, ignore external web fonts, and severely restrict JavaScript execution to mitigate security risks and prevent session hijacking [2].

When a developer designs a splash page using traditional web standards, these constraints result in broken layouts, missing brand assets, and non-functional login buttons, directly impacting customer satisfaction and digital engagement. This guide provides solutions to these challenges, presenting defensive coding practices—such as inline CSS, Base64 asset encoding, system font stacks, and explicit navigation-driven authentication handshakes—to ensure seamless cross-platform rendering. Furthermore, we examine how utilising a managed solution like Purple's portal builder allows developers to maintain complete HTML/CSS creative control while offloading RADIUS authentication, database scaling, GDPR/PCI compliance, and multi-vendor AP integrations [3].

Technical Deep-Dive

To build a resilient custom captive portal, developers must understand the network-level interception and browser virtualisation that occurs when a guest associates with an open Service Set Identifier (SSID).

The Captive Portal Lifecycle

When a client device associates with a captive SSID, the following sequence is triggered:

1. IP Association: The device completes a 3-way handshake and requests an IP address via DHCP.
2. Active Connectivity Probe: The operating system's background network manager immediately sends an HTTP GET request to a dedicated vendor-neutral canary URL (e.g., Apple's http://captive.apple.com/hotspot-detect.html or Google's http://connectivitycheck.gstatic.com/generate_204) [1].
3. DNS/HTTP Interception: The local Wireless LAN Controller (WLC) or Access Point (AP) intercepts this port 80 HTTP request. Instead of returning the expected HTTP 200 or 204 status, the gateway redirects the client's traffic to the captive portal's landing page URL via an HTTP 302 redirect [2].
4. Webview Spawning: Detecting the redirect, the OS spawns its native Captive Network Assistant (CNA) mini-browser to display the redirected splash page, bypassing the need for the user to manually open a full browser.
5. Authentication and State Transition: The user completes the login form, submitting credentials back to the portal server, which instructs the gateway (often via a RADIUS Access-Accept or external API call) to authorise the MAC address.
6. CNA Exit Handshake: The CNA mini-browser performs another HTTP GET to its canary URL. If it receives the expected 200/204 response, it changes its top-right button from "Cancel" to "Done" and establishes the WiFi connection as the primary network interface.

Platform-Specific Mini-Browser Constraints

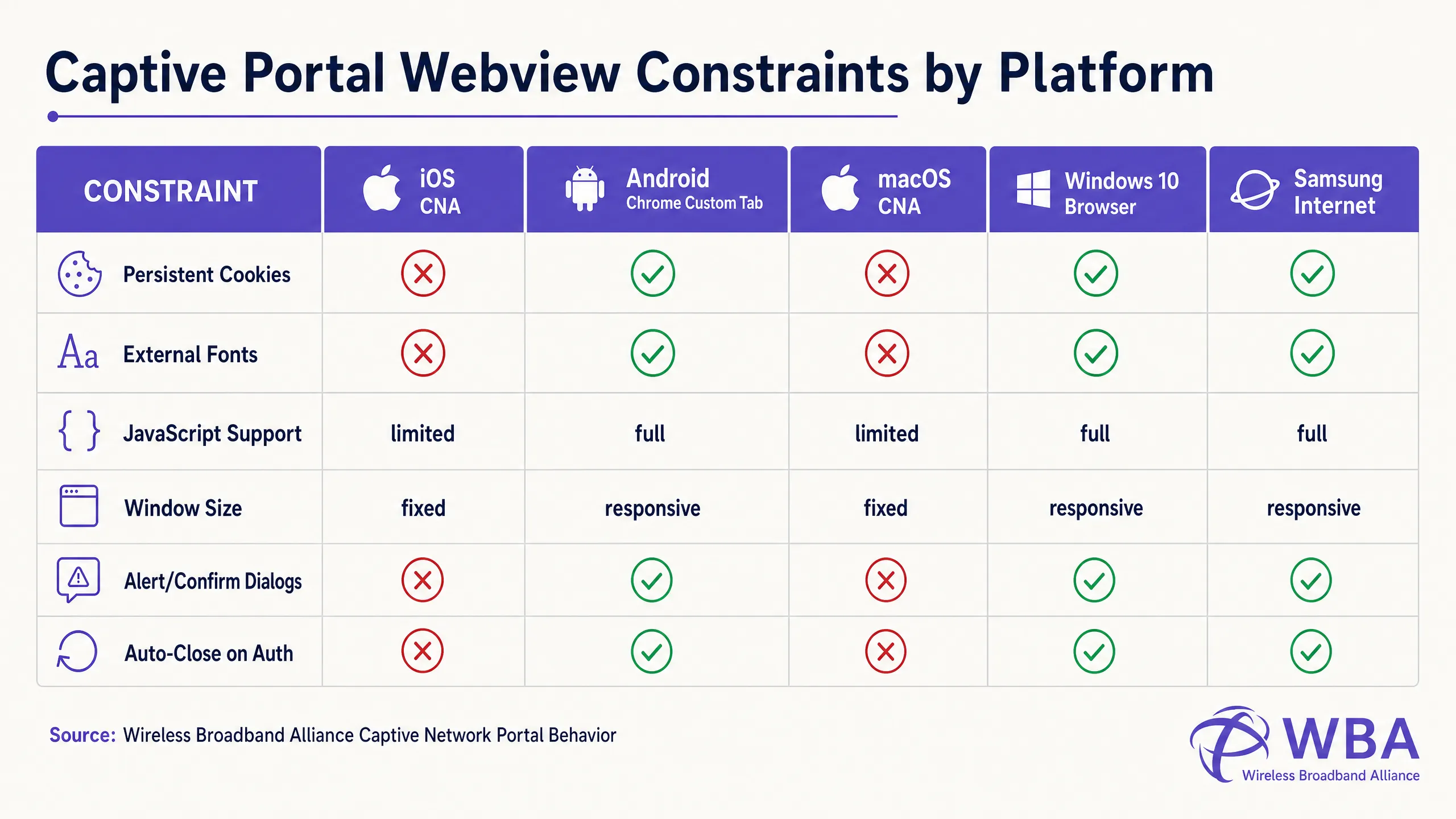

Each operating system handles this lifecycle within different webview environments, resulting in highly fragmented behaviour. The table below details these critical constraints:

Coding Around the Apple CNA "Done" Button Trap

One of the most frequent failure modes in custom portal development is the "Done" Button Trap on iOS devices. When a user authenticates, the iOS Websheet webview must detect that the network is no longer captive. It does this by monitoring the success of its background canary requests.

Crucially, the iOS CNA will only trigger this check upon a full-page HTTP navigation (location redirect). If a developer builds a modern Single Page Application (SPA) that submits form data via an asynchronous AJAX call (e.g., fetch() or Axios) and updates the DOM dynamically without changing the URL, the CNA will never re-run its connectivity check. The user will be authenticated at the gateway level, but the CNA button in the top-right corner will remain as "Cancel". If the frustrated user clicks "Cancel", the iOS device will immediately disassociate from the SSID, terminating the WiFi session [1].

To prevent this, the authentication success handler must perform a full-page redirect to a physical landing page (e.g., window.location.href = '/success') or submit the login form natively via a standard HTTP POST action.

Implementation Guide

To ensure consistent rendering across all platforms, developers must transition from modern, asset-heavy web design to a highly self-contained, defensive coding style.

The Golden Rule: Design for Zero Internet Connectivity

During the captive state, the client device has no access to the wider internet. It can only resolve and access IP addresses and domains explicitly whitelisted in the wireless controller's Walled Garden (such as the IP of the captive portal server itself). Therefore, any external asset referenced in your HTML will fail to load, resulting in a broken layout.

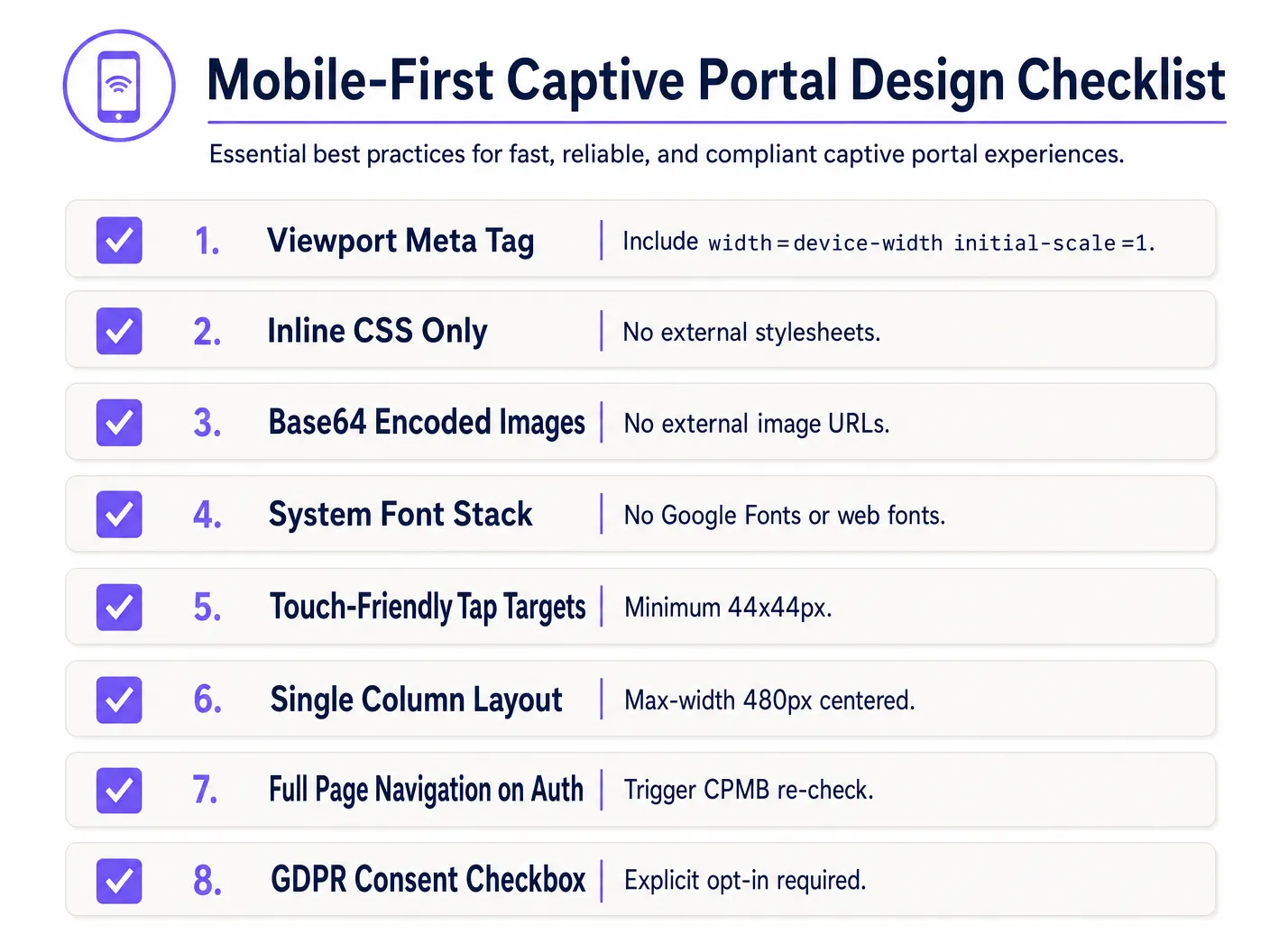

To design defensively, implement the following Mobile-First Captive Portal Design Checklist:

1. Viewport Configuration

To prevent mobile devices from scaling down the viewport to a desktop width (typically 980px), the HTML `` must include a responsive viewport meta tag. Without this, text and input fields will appear microscopic on mobile devices:

2. Inlining CSS and Removing External Dependencies

Never link to external CSS files or CDNs (e.g., Bootstrap, Tailwind, or Google Fonts). All CSS must be embedded within a `

<div class="portal-card">
    <div class="logo-container">



            YOUR BRAND

    </div>

    <h1>Welcome to Guest WiFi</h1>
    <p>Please enter your details below to gain secure, high-speed internet access.</p>



        <div class="form-group">
            Full Name

        </div>

        <div class="form-group">
            Email Address

        </div>

        <div class="consent-group">


                I accept the <a href="#">Terms of Service</a> and consent to data processing in compliance with GDPR regulations.

        </div>

        <div id="terms_box" class="terms-scrollbox">
            <strong>WiFi Terms of Service:</strong><br />
            1. This service is provided as-is without warranties.<br />
            2. Users must not engage in illegal bandwidth-intensive activities.<br />
            3. Personal data is collected solely for authentication and marketing opt-ins in compliance with our Privacy Policy.
        </div>

        Connect to WiFi


    <div class="footer">
        Powered by Purple | Secure Guest WiFi
    </div>
</div>

## Troubleshooting & Risk Mitigation

When deploying custom-coded HTML/CSS captive portals, IT operations teams frequently encounter several severe operational risks:

### 1. The SSL/TLS Certificate Warning Loop

Because captive portals function by intercepting traffic, they present a fundamental conflict with modern HTTPS web security. When a user attempts to visit an HTTPS site (e.g., `https://www.google.com`), and the gateway attempts to redirect that traffic to an HTTP captive portal, the browser detects a mismatch in the SSL certificate and displays a critical "Your connection is not private" security warning.

* **Mitigation**: Never attempt to intercept HTTPS traffic directly. Rely entirely on the operating system's native CNA helper (which makes an unencrypted HTTP request to trigger the redirect). Ensure your captive portal's domain has a valid, publicly trusted SSL certificate (e.g., Let's Encrypt or DigiCert) and is served over HTTPS *only after* the initial HTTP redirect has successfully routed the user to your portal domain [2].

### 2. DNS Resolution Failures (The Walled Garden Trap)

If your custom HTML page references external resources—such as a social login OAuth endpoint (e.g., Facebook, Google) or a payment gateway—the DNS requests for these domains will fail unless they are explicitly whitelisted in the wireless controller's Walled Garden. If a domain is missing from the whitelist, the login flow will stall, presenting a blank screen.

* **Mitigation**: Maintain a strict, minimal Walled Garden list. If utilising social logins, whitelist the specific wildcard domains recommended by the identity providers (e.g., `*.google.com`, `*.gstatic.com`).

### 3. Session Timeout and MAC Spoofing Vulnerabilities

Standard captive portals authenticate devices based on their MAC addresses. However, modern mobile operating systems (iOS 14+ and Android 10+) utilise randomised MAC addresses (private WiFi addresses) by default, rotating them periodically. This can lead to guests being repeatedly prompted to re-authenticate, destroying the user experience [1].

* **Mitigation**: Implement reasonable session timeouts (e.g., 24 hours) on the RADIUS server to prevent stale sessions, and utilise modern authentication standards like **Passpoint (Hotspot 2.0)** or **WPA3-Enterprise** for seamless, secure onboarding that bypasses MAC-based captive portals entirely.

## Purple Product Relevance: Build vs. Buy

While coding a single HTML page is straightforward, hosting, securing, and scaling a custom captive portal infrastructure presents massive technical and compliance hurdles. The table below compares the engineering and operational realities of self-hosting a custom portal versus utilising Purple's managed enterprise platform:

| Feature / Operational Requirement | Self-Hosted Custom Portal | Purple Enterprise WiFi Platform |
| :--- | :--- | :--- |
| **HTML/CSS Customisation** | Fully manual coding, uploading files to individual APs or local web servers. | **Pixel-perfect developer editor** allowing custom HTML/CSS injects, combined with a drag-and-drop visual builder.
| **RADIUS Infrastructure** | Must deploy, configure, and maintain highly available FreeRADIUS or Cloud RADIUS servers [4]. | **Built-in, globally distributed, cloud-native RADIUS** with active-active redundancy and 99.99% uptime SLAs.
| **Multi-Vendor AP Support** | Custom integration scripts required for each hardware vendor (Cisco, Aruba, Meraki, Ruckus) [5]. | **Native, out-of-the-box integration** with over 200 hardware models; unified portal deployment across mixed-hardware estates.
| **Data Privacy & Compliance** | Venue assumes 100% legal liability for GDPR, CCPA, and PCI DSS compliance, including secure database encryption and data deletion workflows. | **Fully compliant by design**. Built-in consent management, automated data-subject deletion requests, and secure ISO 27001-certified hosting.
| **Analytics & Marketing** | Requires building custom data ingestion pipelines and integrating third-party marketing tools. | **Enterprise-grade analytics dashboard** with real-time footfall tracking, return-rate metrics, and automated marketing campaign triggers [6].
| **Identity Provider Integrations** | Manual OAuth2 integrations with Google, Facebook, Apple, and local SMS gateways. | **One-click integrations** with major social platforms, SMS gateways, and Azure AD / Okta for corporate guests.

Purple's platform resolves the "Build vs. Buy" dilemma. It provides developers with the complete creative freedom of a custom HTML/CSS workspace while eliminating the complex, high-risk backend infrastructure engineering required to support secure RADIUS authentication at scale.

## ROI & Business Impact

Investing in a professionally engineered, responsive custom captive portal delivers quantifiable returns across IT operations, marketing, and legal compliance.

### 1. Operational Cost Reduction (IT Helpdesk Tickets)

In large-scale deployments, such as a stadium or multi-site retail chain, a broken captive portal is a leading driver of IT helpdesk escalations. When guests encounter a "white screen" or a non-responsive login button, they overwhelm on-site staff or submit support tickets.

$$\text{Annual Support Savings} = (\text{Total Annual Guest Visits} \times \text{Portal Failure Rate} \times \text{Helpdesk Contact Rate}) \times \text{Cost Per Support Ticket}$$

* **Scenario**: A convention centre with 1,000,000 annual visitors. A poorly coded portal has a 5% failure rate on older iOS devices, leading to a 10% helpdesk contact rate. At an industry-standard $15 per support ticket, the operational cost is:
  $$(1,000,000 \times 0.05 \times 0.10) \times \$15 = \$75,000 \text{ annually in avoidable support overhead}$$
* **Outcome**: Transitioning to a CNA-optimised, mobile-first template reduces the portal failure rate to <0.1%, virtually eliminating this operational drain.

### 2. Marketing Data Capture and Opt-in Optimisation

For retail and hospitality venues, the guest WiFi portal is the primary mechanism for capturing clean, first-party customer data. A poorly designed user interface with microscopic text or a clunky form layout causes high **bounce rates**—users abandon the login process entirely, resulting in lost marketing opportunities.

* **Case Study (Retail)**: A national retail chain implemented a mobile-first optimised captive portal utilising Purple's platform. By replacing a multi-step login form with a single-field email input (font-size: 16px) and an optimised 48px tap-target button, they saw a **42% increase in completed registrations** and a **28% increase in marketing newsletter opt-ins** within the first quarter [6].

### 3. Legal and Regulatory Risk Mitigation

Under GDPR and CCPA, non-compliant data collection carries severe financial penalties (up to 4% of global annual turnover under GDPR). Relying on pre-ticked checkboxes or failing to provide a clear, easily accessible Privacy Policy on your splash page exposes the enterprise to immense legal liability.

* **Mitigation ROI**: Implementing an explicit, un-ticked consent checkbox and hosting terms within an optimised scrollbox ensures 100% regulatory compliance, mitigating the risk of multi-million dollar regulatory fines and protecting brand reputation.

## Summary of Key Takeaways

* **The CNA Sandbox is Restrictive**: Apple's iOS Websheet and macOS CNA are highly sandboxed environments that block external assets, cookies, and web fonts. All styling and assets must be self-contained (inline CSS, Base64 images, system fonts) [1].
* **AJAX Breaks the iOS Exit Handshake**: To successfully transition the iOS device from "captive" to "connected" (changing the top-right button from "Cancel" to "Done"), you must trigger a full-page HTTP redirect. Asynchronous DOM updates will leave the device in a captive loop.
* **Mobile-First is Mandatory**: Over 90% of logins occur on mobile. Design a single-column layout (max-width: 480px), utilise touch-friendly tap targets (minimum 44px x 44px), and enforce a minimum 16px font size on all text inputs to prevent automatic iOS browser zooming.
* **Walled Gardens Control DNS**: Any external domain referenced during login (e.g., social login APIs) must be explicitly whitelisted in the wireless controller's walled garden, or the page will fail to load.
* **Purple Eliminates Backend Complexity**: Utilising Purple's portal builder gives developers complete HTML/CSS control via a custom editor, while offloading the immense security, scaling, and compliance burdens of RADIUS, multi-vendor AP integrations, and GDPR-compliant database management [3].
