DrayTek Vigor Routers and Access Points Integration with Purple WiFi

Executive summary

DrayTek Vigor routers and VigorAP access points are deployed in tens of thousands of SMB, retail, and hospitality sites across the UK and Europe. When integrated with Purple's cloud overlay, this hardware becomes the foundation of an Identity-Based Network - capturing first-party data, securing internal resources, and segmenting multi-tenant traffic, all from a single platform.

This guide covers four deployment scenarios: Guest WiFi with a branded splash page and RADIUS authentication, secure Staff WiFi using IEEE 802.1X Enterprise, Walled Garden configuration to allow pre-authentication traffic, and Multi-Tenant WiFi using DrayTek's WPA2-PPSK feature with dynamic VLAN assignment. Purple operates across 80,000+ live venues with 99.999% uptime and holds ISO 27001, GDPR, and Cyber Essentials certifications - so the security and compliance requirements your venue faces are already baked into the platform.

Supported DrayTek models include the Vigor 2862, 2865, 2866, 2926, 2927, 2952, 2962, 3220, and 3910 series. All VigorAP access points managed via Central AP Management (APM) are compatible with this integration.

Technical deep-dive

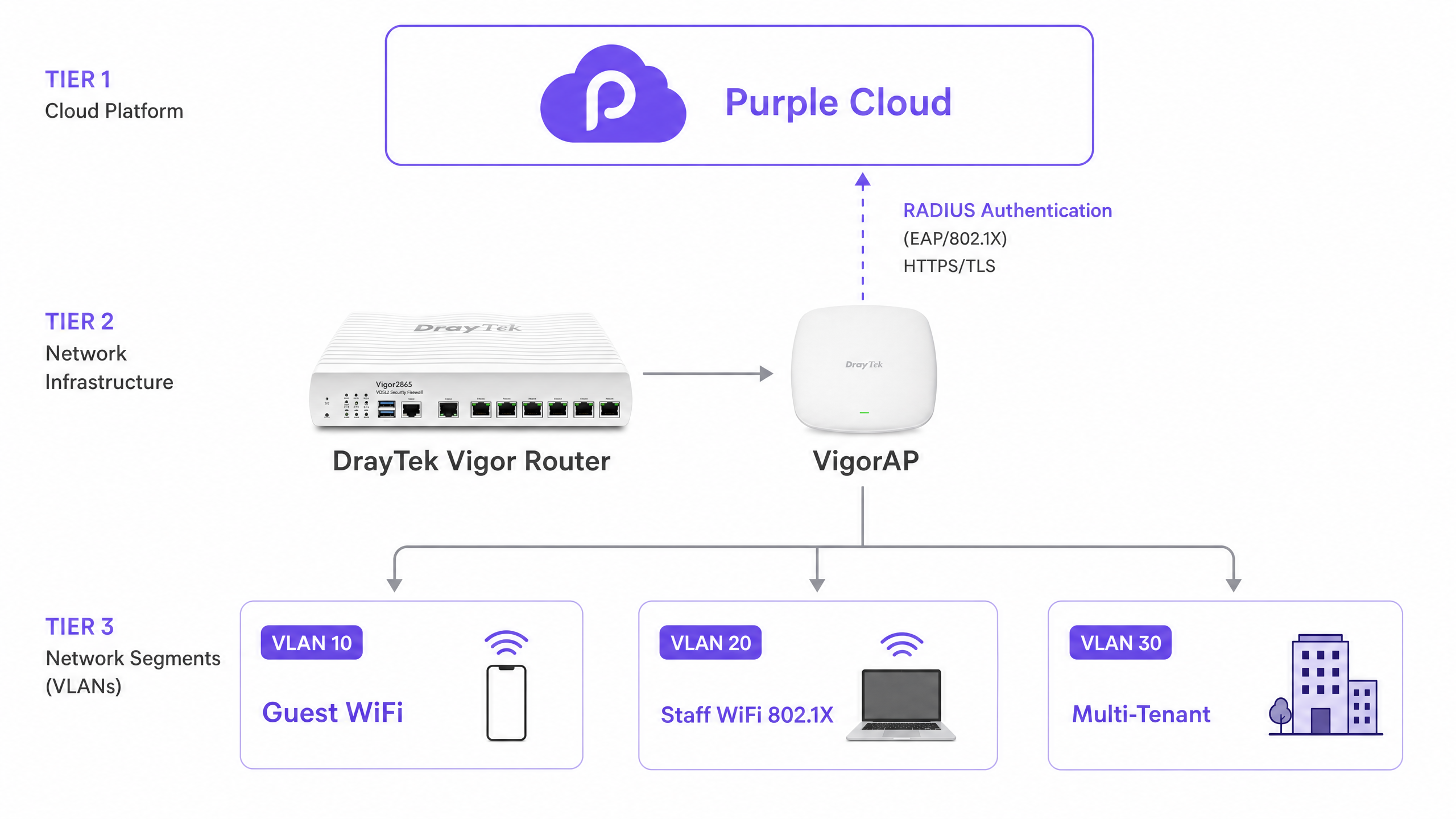

How the integration works

The DrayTek and Purple integration relies on two mechanisms working in tandem: external captive portal redirection and RADIUS (Remote Authentication Dial-In User Service) authentication. Purple acts as the centralised identity provider and policy engine. The DrayTek Vigor router acts as the Network Access Server (NAS), enforcing access decisions returned by Purple's RADIUS servers.

When a guest connects to the WiFi SSID, the DrayTek router places the device in a pre-authentication state. It intercepts the device's HTTP traffic and redirects it to Purple's cloud-hosted splash page via the Hotspot Web Portal feature in DrayOS. The user completes the login flow on Purple's platform - using social login, email, SMS, or a managed identity provider such as Microsoft Entra ID, Okta, or Google Workspace. Purple's RADIUS server then returns an Access-Accept message to the DrayTek router, which grants internet access and begins RADIUS accounting on port 1813.

Guest WiFi and the DrayTek captive portal

The DrayTek Hotspot Web Portal is the core mechanism for guest authentication. In DrayOS, you configure a Hotspot Profile that defines the portal method, authentication server, session limits, and landing page. Setting the Portal Method to External Server tells DrayOS to redirect unauthenticated clients to an external URL - in this case, your Purple access URL - rather than serving a locally hosted page.

The RADIUS configuration within the Hotspot Profile points to Purple's RADIUS server IP on port 1812 for authentication and port 1813 for accounting. The shared secret must match exactly what is displayed in your Purple venue dashboard. A mismatch here is the most common cause of authentication failures.

Session management is controlled by the Expired Time After Activation setting. For most hospitality and retail deployments, six hours is a practical default. You can align this with your Purple session timeout to ensure consistent behaviour across both systems.

Walled Garden configuration

Before a guest authenticates, their device has no internet access. However, the device must be able to reach Purple's servers to load the splash page. The Walled Garden - configured via the Dest Domain tab in the DrayTek Hotspot Profile - defines which domains are accessible before authentication.

You must add Purple's authentication domains to this list, one per index. If you are using social login providers (such as Google or Facebook) or a managed identity provider like Microsoft Entra ID, their domains must also be included. Failure to configure the Walled Garden correctly is the single most common reason a DrayTek captive portal fails to display the splash page. Purple's support documentation provides the current list of required domains for each login method.

Secure Staff WiFi using 802.1X

For internal staff, a captive portal is the wrong tool. Shared WPA2 passwords are a security liability: when an employee leaves, you must update the password on every device. IEEE 802.1X Enterprise authentication eliminates this problem entirely.

In DrayOS, navigate to Wireless LAN > Security and select WPA2/802.1X for your staff SSID. Click the RADIUS Server link and enter Purple's server IP, port, and shared secret. Staff devices authenticate using PEAP (Protected Extensible Authentication Protocol) with MS-CHAPv2 as the inner method. This is the configuration required for Windows, macOS, iOS, and Android devices connecting to an enterprise wireless network.

Purple revokes access at the identity level. When an employee leaves, you disable their account in your identity provider (Microsoft Entra ID, Okta, or Google Workspace). Purple's RADIUS server immediately stops accepting authentication requests from that account. No password change required across the venue.

For more on enterprise wireless security architecture, see our Enterprise WiFi Security: A Complete Guide for 2026 .

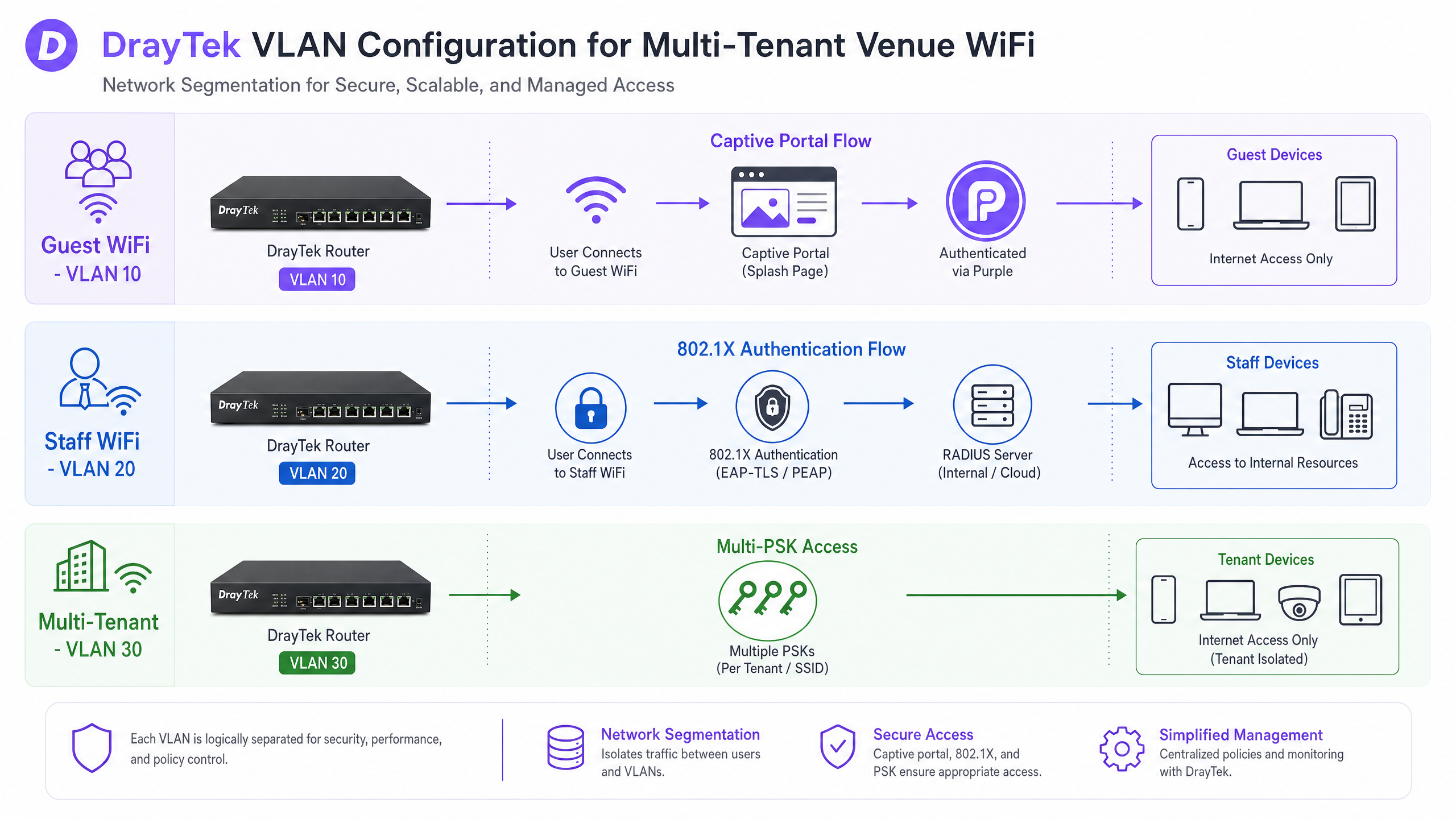

Multi-Tenant network segmentation with DrayTek Multiple PSKs

Multi-tenant environments - hotels with leased restaurant or retail space, co-working venues, student accommodation, and build-to-rent developments - require strict network isolation between tenants. A shopper in a concession unit must not be able to reach the hotel's internal network, and two retail tenants must not be able to see each other's traffic.

DrayTek addresses this with two complementary features: VLAN tagging and WPA2-PPSK (Private Pre-Shared Key).

VLAN configuration on the Vigor router assigns each tenant to a separate logical network. Navigate to LAN > VLAN, enable VLAN Configuration, and assign a unique VLAN ID to each tenant segment. All LAN ports connecting to VigorAPs must be members of all relevant VLANs, effectively operating as 802.1Q trunk ports. The Inter-LAN Routing Table in LAN > General Setup controls whether traffic can cross between VLANs - for tenant isolation, this must be disabled.

WPA2-PPSK on the VigorAP assigns a unique passphrase to each tenant. The access point binds this passphrase to the device's MAC address. When a device connects, the AP identifies the passphrase used and tags the traffic with the corresponding VLAN ID. This allows a single SSID to serve multiple isolated tenant networks simultaneously, reducing wireless overhead and simplifying the end-user experience.

Dynamic VLAN assignment via RADIUS

For deployments where VLAN assignment should be driven by user identity rather than a static passphrase, Purple's RADIUS server supports dynamic VLAN steering. When a user authenticates, Purple returns three RADIUS attributes in the Access-Accept message:

The DrayTek router reads these attributes and assigns the authenticated client to the specified VLAN, regardless of which SSID they connected to. This is Identity-Based Networking: the network segment is determined by who the user is, not which password they typed.

Implementation guide

Pre-deployment checklist

Before you begin, confirm the following:

Step 1: Configure RADIUS on the DrayTek router

Navigate to Applications > RADIUS/TACACS+ in the DrayOS web interface. On the External RADIUS tab, enable the profile and enter Purple's RADIUS server IP address, port (1812), and shared secret. Click OK to save. The router requires a reboot to apply this change - do not skip this step.

Step 2: Create the Hotspot Web Portal profile

Navigate to Hotspot Web Portal > Profile Setup and select an available index. Configure the profile as follows:

Click OK to save.

Step 3: Configure the Walled Garden

Click Save and Next to proceed to the Dest Domain tab. Add each required Purple domain, one per index. Refer to Purple's Walled Garden Domain Whitelist in the support documentation for the current list. Click Save and Next to continue.

Step 4: Configure session and landing page settings

On the final configuration screen, set:

Click Finish to save. Reboot the router before testing.

Step 5: Configure VLANs for network segmentation

Navigate to LAN > VLAN and enable VLAN Configuration. Create a VLAN entry for each network segment. Assign all LAN ports that connect to VigorAPs as members of all relevant VLANs (trunk configuration). Navigate to LAN > General Setup and use the Inter-LAN Routing Table to block cross-VLAN access where required.

Step 6: Configure 802.1X for Staff WiFi

Navigate to Wireless LAN > Security and select the Staff SSID. Set the security mode to WPA2/802.1X. Click the RADIUS Server link and enter Purple's server IP, port 1812, and shared secret. Save the configuration.

Step 7: Configure PPSK for multi-tenant isolation

On each VigorAP, navigate to Wireless LAN > Security Settings and select WPA2PPSK. Click the PPSK button to add entries. For each tenant, create a PPSK entry with the tenant's device MAC address and a unique passphrase. Ensure the passphrase is associated with the correct VLAN in your router configuration. Note that PPSK profiles for 2.4GHz and 5GHz are managed separately on VigorAPs.

Best practices

The following recommendations reflect Purple's deployment experience across 80,000+ venues, including hospitality , retail , healthcare , and transport environments.

Use wired backhaul for all VigorAPs. Wireless Distribution Systems (WDS) and universal repeater modes cannot pass 802.1Q VLAN tags. If you need network segmentation - and in any multi-tenant or mixed-use venue you do - every access point must connect to the router or a managed switch via Ethernet.

Enable AP-Assisted Mobility. DrayTek VigorAPs support Pre-Authentication and PMK Caching to accelerate 802.1X re-authentication when a client roams bebetween access points. Enable AP-Assisted Mobility to actively disassociate clients with weak signal strength, forcing them to connect to the nearest AP. This is particularly important in retail environments where shoppers move continuously through the space.

Plan your VLAN scheme before deployment. Changing VLAN IDs after deployment requires reconfiguring the router, all access points, and any managed switches in the path. Document your scheme - VLAN 10 for Guest, VLAN 20 for Staff, VLAN 30+ for tenants - before you touch the hardware.

Align session timeouts between DrayTek and Purple. If the DrayTek Hotspot profile expires a session after six hours but Purple's session is set to 24 hours, users will be redirected to the splash page mid-session. Set both to the same value.

Disable MAC randomisation for PPSK deployments. iOS and macOS devices use Private WiFi Addresses (randomised MACs) by default. Since DrayTek PPSK binds a passphrase to a specific MAC address, randomisation will cause authentication failures. Instruct users to disable this setting for your network, or document the process clearly in your onboarding flow.

Use Band Steering on VigorAPs. Enable Band Steering to guide dual-band capable devices to the 5GHz band. This reduces congestion on the 2.4GHz band and improves throughput for all connected devices.

For a broader view of enterprise wireless security architecture, see our guide on Enterprise WiFi Security: A Complete Guide for 2026 . If you are deploying across multiple sites with different hardware vendors, our SonicWall TZ and SonicWave Integration with Purple WiFi guide covers a comparable integration pattern.

Troubleshooting and risk mitigation

Splash page fails to load. The most common cause is an incomplete Walled Garden. Verify that all required Purple domains are listed in the Dest Domain tab. Also confirm that the guest DHCP pool is active and that DNS resolution is functioning for pre-authenticated clients. Test by connecting a device and attempting to browse to a known HTTP URL.

RADIUS authentication fails. Check the shared secret for typos - it is case-sensitive. Confirm that the DrayTek router has a route to the internet and is not blocking outbound UDP traffic on ports 1812 and 1813. Verify that you have rebooted the router after applying the RADIUS configuration. Check the Purple dashboard for authentication logs to identify whether the request is reaching Purple's servers.

Clients assigned to the wrong VLAN. Verify the trunk port configuration between the DrayTek router and the VigorAPs. The switch ports must allow the specific VLAN tags. If you are using an unmanaged switch, confirm it passes 802.1Q tagged frames without stripping the tags. Check the PPSK profile to confirm the correct passphrase-to-VLAN mapping.

Sticky clients not roaming. If devices are not roaming between VigorAPs as expected, verify that AP-Assisted Mobility is enabled and that the RSSI threshold is set appropriately for your venue. Also confirm that all VigorAPs are running the same firmware version, as inconsistencies can affect roaming behaviour.

iOS devices failing PPSK authentication. Confirm that the user has disabled Private WiFi Address for your specific network in Settings > WiFi > [Network Name] > Private WiFi Address. The PPSK profile must contain the device's real hardware MAC address.

ROI and business impact

Deploying DrayTek hardware with Purple delivers measurable returns across three areas: operational efficiency, data capture, and compliance.

Operational efficiency. 802.1X authentication eliminates the overhead of managing shared WiFi passwords. When a member of staff leaves, you disable their account in Microsoft Entra ID, Okta, or Google Workspace. Purple's RADIUS server stops accepting their credentials immediately. No venue-wide password rotation required. For a 50-site retail chain, this alone removes hundreds of hours of IT overhead per year.

Data capture and marketing ROI. Every guest who connects through the Purple captive portal provides a verified identity - email address, phone number, or social profile. This first-party data feeds directly into Purple's WiFi Analytics platform, where you can track dwell time, repeat visit rates, and campaign engagement. Purple has collected 29 billion data points across its network. Venues using Purple's Engage plan report measurable increases in repeat visit rates through targeted post-visit communications.

Compliance. Purple is ISO 27001 certified, GDPR and CCPA compliant, and Cyber Essentials certified. The captive portal enforces conscious-choice opt-ins, ensuring that data collection meets GDPR requirements. VLAN segmentation isolates payment card environments from guest traffic, supporting PCI DSS compliance. For healthcare venues, patient and visitor network isolation meets NHS and ICO guidance on data handling.

For a detailed view of how Purple drives analytics-led decision-making in venue environments, see our WiFi Analytics platform overview .
