I migliori canali 5GHz per reti aziendali ad alta densità

Executive Summary

Channel selection in the 5GHz band is not a configuration detail — it is a foundational architectural decision that directly determines throughput, reliability, and client capacity in any high-density deployment. For enterprise environments supporting hundreds of concurrent devices per floor, the difference between a well-planned channel strategy and a default auto-channel configuration can mean the difference between sub-50ms latency and a network that fails under load.

The 5GHz spectrum offers up to 25 non-overlapping 20MHz channels across the UNII-1, UNII-2, and UNII-3 bands. However, not all channels are equal. UNII-1 (channels 36–48) and UNII-3 (channels 149–165) are non-DFS and should form the backbone of any enterprise channel plan. UNII-2 channels (52–144) introduce Dynamic Frequency Selection obligations that create operational risk in radar-proximate environments.

This guide walks through the technical architecture of the 5GHz spectrum, provides a structured channel planning methodology, and presents real-world case studies from hospitality, healthcare, and large-venue deployments. For teams already operating Guest WiFi infrastructure at scale, the channel strategy outlined here integrates directly with analytics-driven capacity planning via WiFi Analytics .

Technical Deep-Dive

The 5GHz Spectrum Architecture

The 5GHz band is segmented into Unlicensed National Information Infrastructure (UNII) sub-bands, each with distinct regulatory characteristics. Understanding these distinctions is non-negotiable for enterprise architects.

> Note: UNII-3 DFS requirements vary by jurisdiction. In the UK and EU, channels 149–165 are non-DFS. Verify local OFCOM or national regulator requirements before deployment.

Why Channel Width Is the Most Misunderstood Variable

The instinct to configure 80MHz or 160MHz channel widths to maximise theoretical throughput is understandable but counterproductive in dense deployments. A single 80MHz channel consumes four 20MHz channels worth of spectrum. In a venue with 40 access points, this dramatically reduces the available channel pool, forcing co-channel interference that degrades aggregate network performance far more than the per-client throughput gain justifies.

For high-density environments, 20MHz channels are the correct default. The aggregate throughput across the entire venue is maximised by enabling more simultaneous spatial reuse, not by giving each client a wider pipe. 40MHz channels may be appropriate in medium-density zones such as executive boardrooms or private offices. 80MHz and 160MHz should be reserved for dedicated high-throughput applications such as wireless backhaul or AV distribution in isolated, low-client-count areas.

DFS: The Operational Risk That Vendors Understate

Dynamic Frequency Selection (DFS) is an IEEE 802.11h mechanism that requires access points to monitor for radar signals and vacate any channel on which radar is detected within 60 seconds. The mandatory Channel Availability Check (CAC) period — up to 60 seconds on some channels — means an AP cannot transmit on a DFS channel until it has confirmed the channel is radar-free. In a failover or reboot scenario, this introduces a service gap.

The practical implications for enterprise deployments are significant. Airports, ports, military installations, and weather monitoring stations all operate radar systems that can trigger DFS events. Even in urban environments, unexpected DFS events occur. A network that relies heavily on UNII-2 channels without a fallback plan will experience periodic, unpredictable client disconnections that are difficult to diagnose and frustrating for end users.

For hospitality deployments in particular, where guest satisfaction is directly tied to network reliability, DFS-triggered disruptions during peak check-in periods or conference sessions are commercially damaging. The same principle applies to retail environments where point-of-sale systems and inventory management tools depend on uninterrupted connectivity.

For a broader treatment of frequency band characteristics, see Wi-Fi Frequencies: A Guide to Wi-Fi Frequencies in 2026 .

The Best 5GHz Channels: A Definitive Ranking

For enterprise deployments, the recommended channel priority is as follows:

Tier 1 — Always Use (Non-DFS, Universal Compatibility)

• Channels 36, 40, 44, 48 (UNII-1)
• Channels 149, 153, 157, 161 (UNII-3)

These eight channels form the foundation of any enterprise channel plan. They are non-DFS, universally supported by client devices, and available in all major regulatory domains. For a deployment with up to eight APs per floor, a clean one-channel-per-AP assignment is achievable using only Tier 1 channels.

Tier 2 — Use With Monitoring (DFS, Lower Radar Risk)

• Channels 52, 56, 60, 64 (UNII-2A)

These channels carry DFS obligations but are in the lower UNII-2 range, which typically sees less radar interference than UNII-2C. They are appropriate for supplementary capacity in environments where Tier 1 channels are exhausted and radar proximity has been assessed as low.

Tier 3 — Use With Caution (DFS, Higher Radar Risk, High Power)

• Channels 100–144 (UNII-2C)

While UNII-2C channels offer higher permitted transmit power in some regions, they carry the highest radar interference risk. Reserve these for dedicated backhaul links or environments where a thorough spectrum survey has confirmed minimal radar activity.

Transmit Power and Cell Sizing

Channel planning cannot be separated from transmit power management. Over-powered access points create large cells that increase co-channel interference. In high-density deployments, the target cell size should be small and consistent. Transmit power should be set to the minimum level that provides adequate coverage for the intended zone, typically between 8–14 dBm for client-serving radios in dense indoor environments.

Automatic power control mechanisms such as Cisco's TPC or Aruba's ARM can be effective when constrained to a defined power range. Allowing these systems to operate without bounds often results in high-power configurations that undermine the channel reuse plan.

Implementation Guide

Step 1: Pre-Deployment Spectrum Survey

Before placing a single access point, conduct a passive spectrum survey of the entire venue. The objective is to identify existing RF sources — neighbouring networks, legacy equipment, microwave interference, and any radar activity. Tools such as Ekahau Sidekick, AirMagnet Survey Pro, or the built-in spectrum analysis capabilities of enterprise controllers (Cisco CleanAir, Aruba AirMatch) provide the necessary visibility.

Document the survey findings in a channel utilisation map. Identify which channels are already congested from adjacent deployments and which are clean. This data directly informs your channel assignment plan.

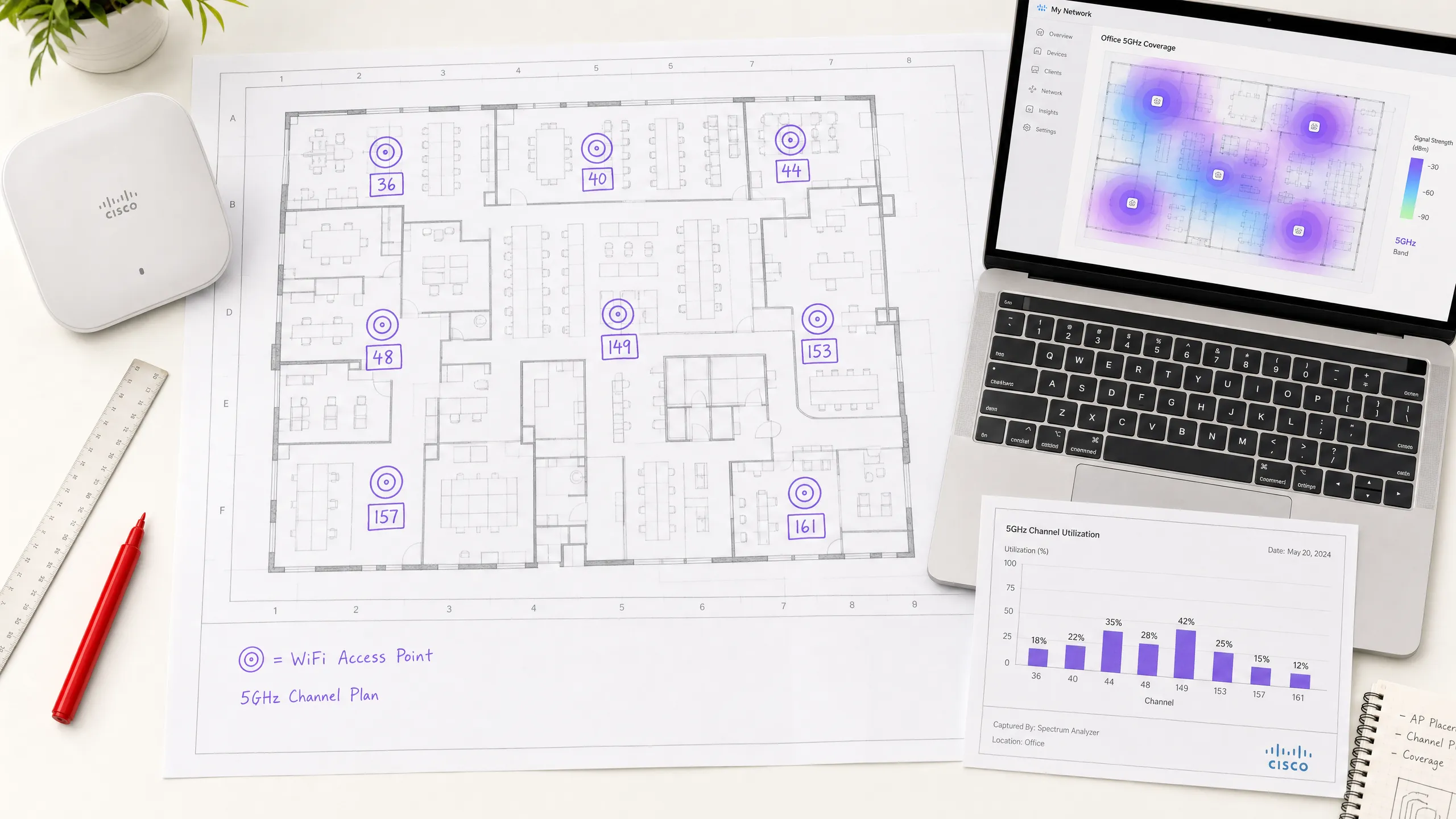

Step 2: Define Your Channel Plan

Based on the spectrum survey, assign channels to access points following these principles:

• Adjacent APs must not share the same channel.
• APs on the same channel should be separated by at least two cell diameters to minimise co-channel interference.
• Use the full set of Tier 1 channels before introducing Tier 2 or Tier 3 channels.
• For multi-floor deployments, account for vertical co-channel interference. APs directly above or below each other should be on different channels.

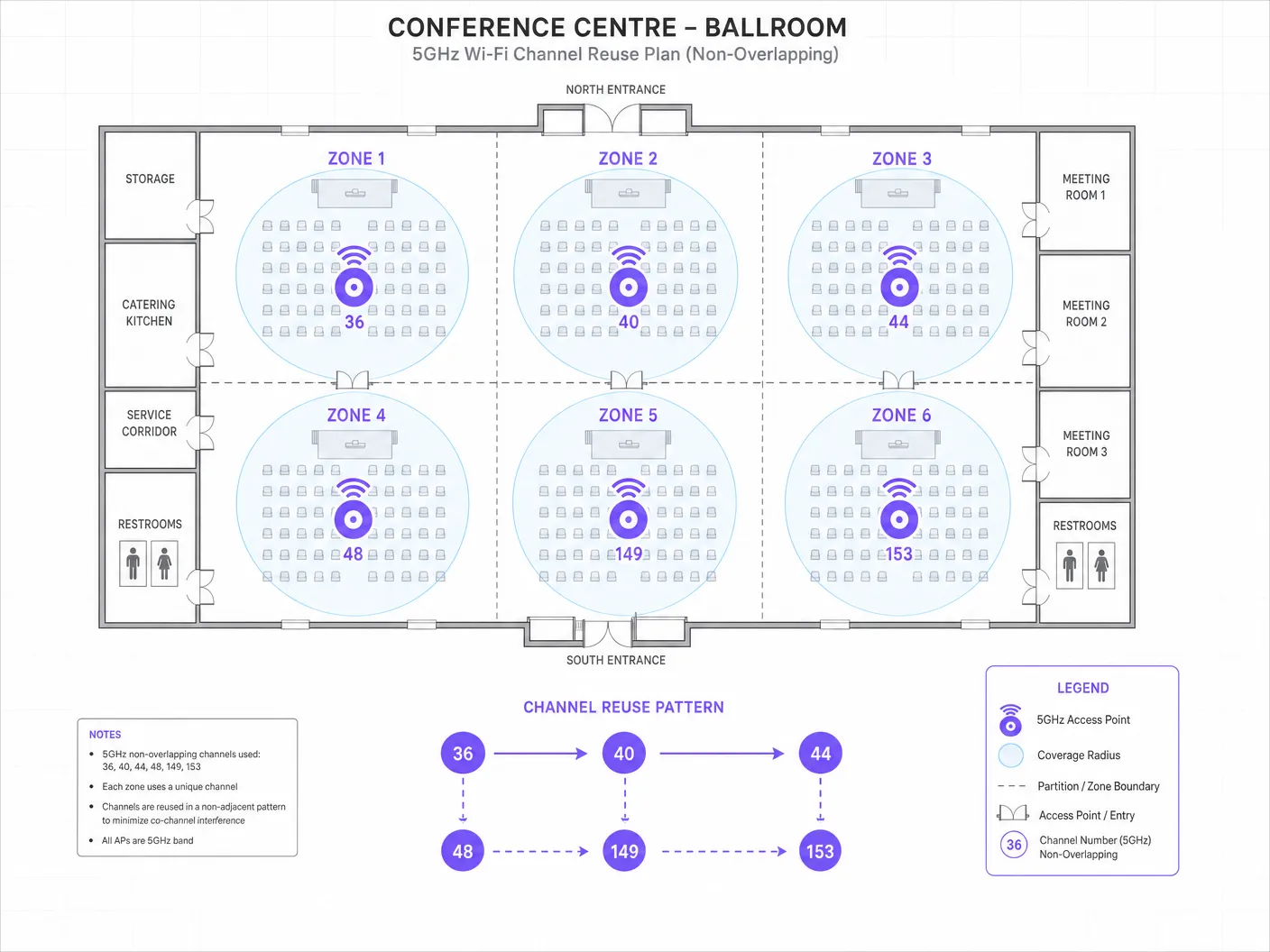

For a 10,000 sq ft floor with eight APs, a clean assignment using channels 36, 40, 44, 48, 149, 153, 157, 161 is achievable with no channel reuse on the same floor. For larger floors requiring more than eight APs, introduce Tier 2 channels after confirming low radar risk.

Step 3: Configure Channel Width

Set all client-serving radios to 20MHz channel width as the default. If specific high-throughput zones (e.g., a boardroom with video conferencing requirements) justify 40MHz, configure these as exceptions with explicit justification documented in the network design record.

Step 4: Disable Auto-Channel on Critical Infrastructure

For APs serving mission-critical applications — POS systems, VoIP, medical devices — disable automatic channel selection and assign channels statically. Auto-channel algorithms, while useful for general deployments, can make suboptimal decisions in complex RF environments and introduce unexpected channel changes during business hours.

Step 5: Configure Band Steering and Client Load Balancing

Ensure band steering is enabled to push capable clients to 5GHz. In Wi-Fi 6 (802.11ax) deployments, OFDMA and BSS Colouring provide additional mechanisms to reduce co-channel interference, but these are supplements to — not replacements for — a sound channel plan.

For guidance on segmenting traffic across multiple SSIDs in shared environments, see Micro-Segmentation Best Practices for Shared WiFi Networks .

Step 6: Post-Deployment Validation

After deployment, run an active survey to validate coverage, signal strength, and channel utilisation. Key metrics to confirm:

• RSSI at client devices: target -65 dBm or better at the cell edge.
• Co-channel interference (CCI): target below -85 dBm from co-channel neighbours.
• Channel utilisation: target below 50% on any single channel during peak load.
• Roaming performance: validate 802.11r (Fast BSS Transition) and 802.11k (Neighbour Reports) are functioning correctly.

Best Practices

The following recommendations represent vendor-neutral best practices aligned with IEEE 802.11 standards and WLAN industry guidance from bodies including the Wi-Fi Alliance and CWNP.

Standardise on 20MHz channels for all high-density deployments. The aggregate capacity benefit of channel reuse consistently outperforms the per-client throughput gain from wider channels in environments with more than 20 concurrent clients per AP.

Maintain a channel plan document. Every AP should have a documented channel assignment, power level, and justification. This is essential for troubleshooting and for maintaining consistency across firmware upgrades or hardware replacements.

Implement WPA3-Enterprise with 802.1X authentication for corporate SSIDs. In environments handling payment card data, PCI DSS 4.0 requires strong authentication and encryption. WPA3 with CNSA-suite cryptography satisfies these requirements and provides forward secrecy that WPA2 cannot guarantee.

Monitor DFS events continuously. Any AP operating on a DFS channel should have its DFS event log reviewed weekly during the first month of operation. Channels with more than two DFS events per week should be blacklisted from the auto-channel pool.

Align with GDPR requirements for guest networks. In hospitality and retail environments, guest WiFi data collection must comply with GDPR. Purple's Guest WiFi platform provides built-in consent management and data governance tooling that integrates with the network infrastructure described in this guide.

For office-specific WiFi optimisation considerations, see Office Wi-Fi: Optimize Your Modern Office Wi-Fi Network .

Troubleshooting & Risk Mitigation

Co-Channel Interference (CCI)

CCI is the most common performance degrader in enterprise WiFi deployments. Symptoms include high retry rates, reduced throughput, and poor roaming performance. Diagnosis requires a spectrum analyser or controller-based RF analysis. Resolution involves adjusting channel assignments to increase separation between co-channel APs and reducing transmit power to shrink cell sizes.

DFS-Triggered Channel Changes

If clients are experiencing periodic disconnections lasting 30–60 seconds, DFS events are the likely cause. Check the AP event log for DFS radar detection entries. Resolution: blacklist the affected channel from the auto-channel pool and assign an alternative Tier 1 channel. In environments where DFS events are frequent, consider a full migration to non-DFS channels.

Hidden Node Problem

In large open-plan environments such as warehouses or exhibition halls, the hidden node problem — where two clients cannot hear each other but both attempt to transmit to the same AP — causes collision rates to increase. Mitigation involves enabling RTS/CTS thresholds and ensuring AP placement provides adequate coverage overlap.

Legacy Client Compatibility

Legacy 802.11a devices operate only on UNII-1 channels. If your environment includes legacy devices, ensure UNII-1 channels remain available and that the SSID serving legacy clients has lower mandatory data rates enabled. Avoid mixing legacy clients with modern 802.11ac or Wi-Fi 6 clients on the same SSID, as legacy management frames reduce overall network efficiency.

For environments integrating Bluetooth Low Energy alongside WiFi — common in retail and healthcare deployments — see BLE Low Energy Explained for Enterprise for coexistence guidance.

Rogue AP Detection

In high-density environments, rogue access points operating on the same channels as your infrastructure create unmanaged interference. Implement WIDS/WIPS (Wireless Intrusion Detection/Prevention) to detect and contain rogue APs. Most enterprise controllers include this capability natively.

ROI & Business Impact

Quantifying the Cost of Poor Channel Planning

The business impact of suboptimal channel configuration is measurable. In a 200-room hotel, a network experiencing 15% packet retry rates due to co-channel interference will deliver average throughput of approximately 40–50 Mbps per AP under load, compared to 150+ Mbps achievable with a properly planned channel strategy. For guests relying on the network for video streaming, video conferencing, and cloud-based work, this difference is immediately perceptible and directly affects satisfaction scores.

In retail environments, network instability affecting POS systems creates direct revenue impact. A single POS terminal unable to process transactions for 10 minutes during peak trading costs a typical high-street retailer £200–£500 in lost sales, depending on throughput. Across a multi-site estate, the aggregate cost of poor WiFi reliability is significant.

Measuring Success

Key performance indicators for a well-executed channel plan include:

Integration with Analytics-Driven Capacity Planning

Channel planning is not a one-time exercise. As device density, usage patterns, and neighbouring RF environments evolve, the channel plan must be reviewed and updated. Purple's WiFi Analytics platform provides real-time visibility into client density, dwell time, and network utilisation by zone — data that directly informs ongoing channel plan optimisation.

For transport hubs and healthcare campuses where device density fluctuates significantly by time of day, analytics-driven dynamic channel management provides the operational intelligence needed to maintain consistent performance without manual intervention.
