Come configurare un server RADIUS per l'autenticazione WiFi

Executive Summary

For enterprise environments — whether a sprawling university campus, a high-density stadium, or a distributed retail chain — relying on a Pre-Shared Key (PSK) for WiFi access is a significant security liability. A single compromised credential exposes the entire network, and revoking access requires changing the password for every device on the estate. Implementing 802.1X authentication via a RADIUS (Remote Authentication Dial-In User Service) server eliminates this problem entirely: each user authenticates individually, access can be revoked instantly, and network segmentation is enforced dynamically.

This guide provides a definitive roadmap for IT managers and network architects to deploy RADIUS authentication. We cover the architectural trade-offs between on-premise and cloud-hosted deployments, the configuration of Extensible Authentication Protocol (EAP) methods, and the integration with directory services like Active Directory. We also demonstrate how a robust authentication layer integrates with Guest WiFi solutions to provide seamless access for visitors, while capturing the WiFi Analytics that turn your network into a business intelligence asset.

Technical Deep-Dive

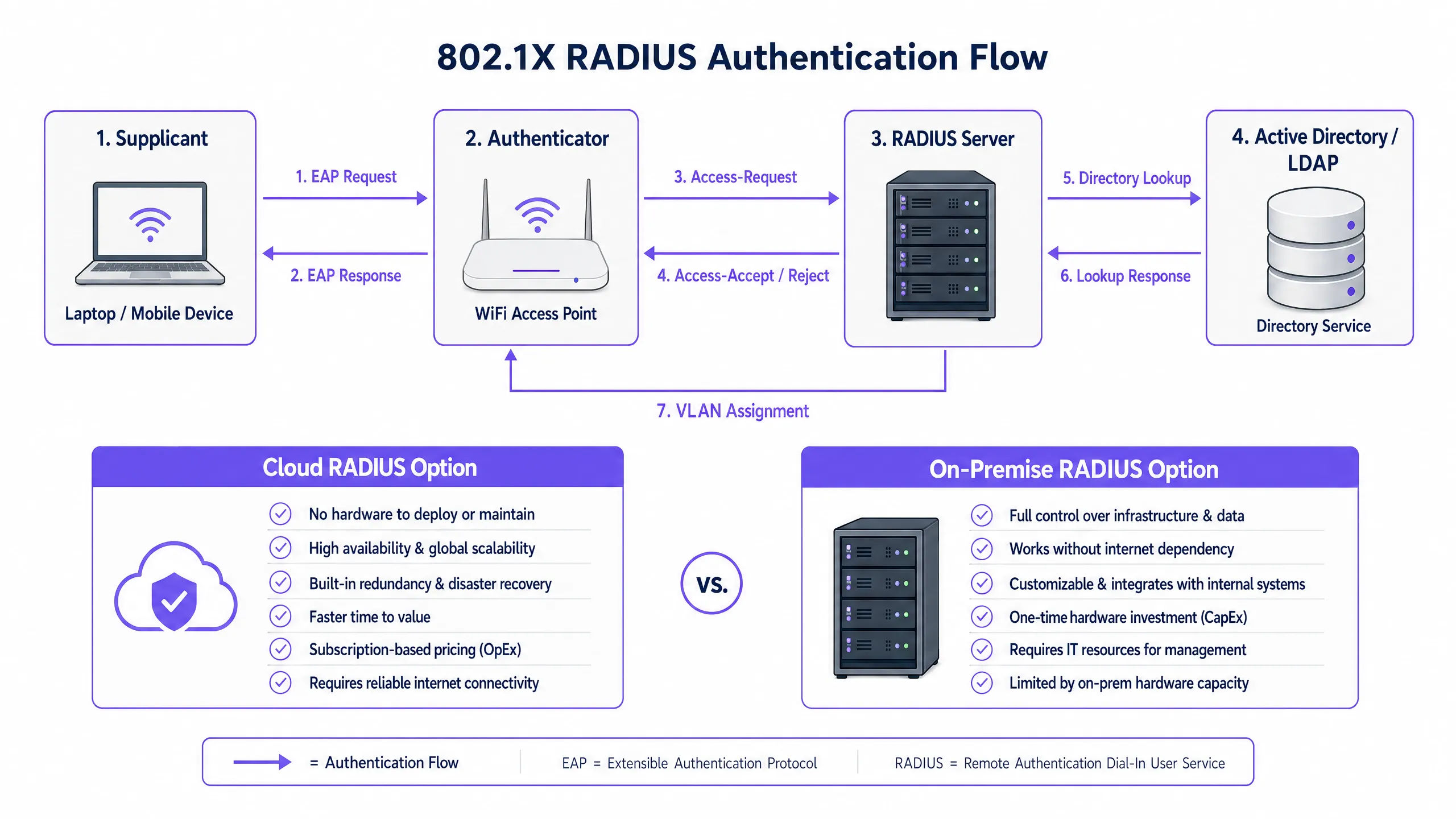

The 802.1X Architecture

The IEEE 802.1X standard defines port-based Network Access Control (PNAC). In a wireless context, it involves three primary roles working in concert:

When a supplicant associates with an access point, the AP blocks all data traffic except EAP (Extensible Authentication Protocol) messages. The AP encapsulates these EAP messages in RADIUS packets and forwards them to the RADIUS server. The server verifies the credentials against a backend database — typically LDAP or Active Directory — and returns an Access-Accept or Access-Reject message. If accepted, the AP unblocks the port and the client's traffic flows freely.

Choosing an EAP Method

The security of your RADIUS deployment depends heavily on the EAP method selected. The two most prevalent in enterprise deployments are:

EAP-TLS (Transport Layer Security) is the gold standard. It requires digital certificates on both the RADIUS server and every client device, eliminating passwords entirely. Even if an attacker captures the full authentication exchange, there are no credentials to extract. The trade-off is administrative overhead: deploying and managing client certificates requires a functioning Public Key Infrastructure (PKI) and an MDM solution (e.g., Microsoft Intune, Jamf) to distribute certificates to endpoints.

PEAP-MSCHAPv2 (Protected EAP) is the most widely deployed method in practice. It uses a server-side certificate to establish an encrypted TLS tunnel, inside which the client authenticates with a username and password. This is significantly easier to deploy than EAP-TLS because only one certificate — the server's — needs to be managed. However, it carries a critical caveat: if client devices are not explicitly configured to validate the RADIUS server's certificate, they are vulnerable to Man-in-the-Middle (MitM) attacks via rogue access points.

> Critical Security Note: Failing to enforce strict certificate validation on client devices effectively nullifies the security benefits of PEAP-MSCHAPv2. An attacker can deploy a rogue AP, present a fraudulent certificate, and capture user credentials in plaintext. This is not a theoretical risk — it is a well-documented attack vector that has been exploited in real-world environments.

Implementation Guide

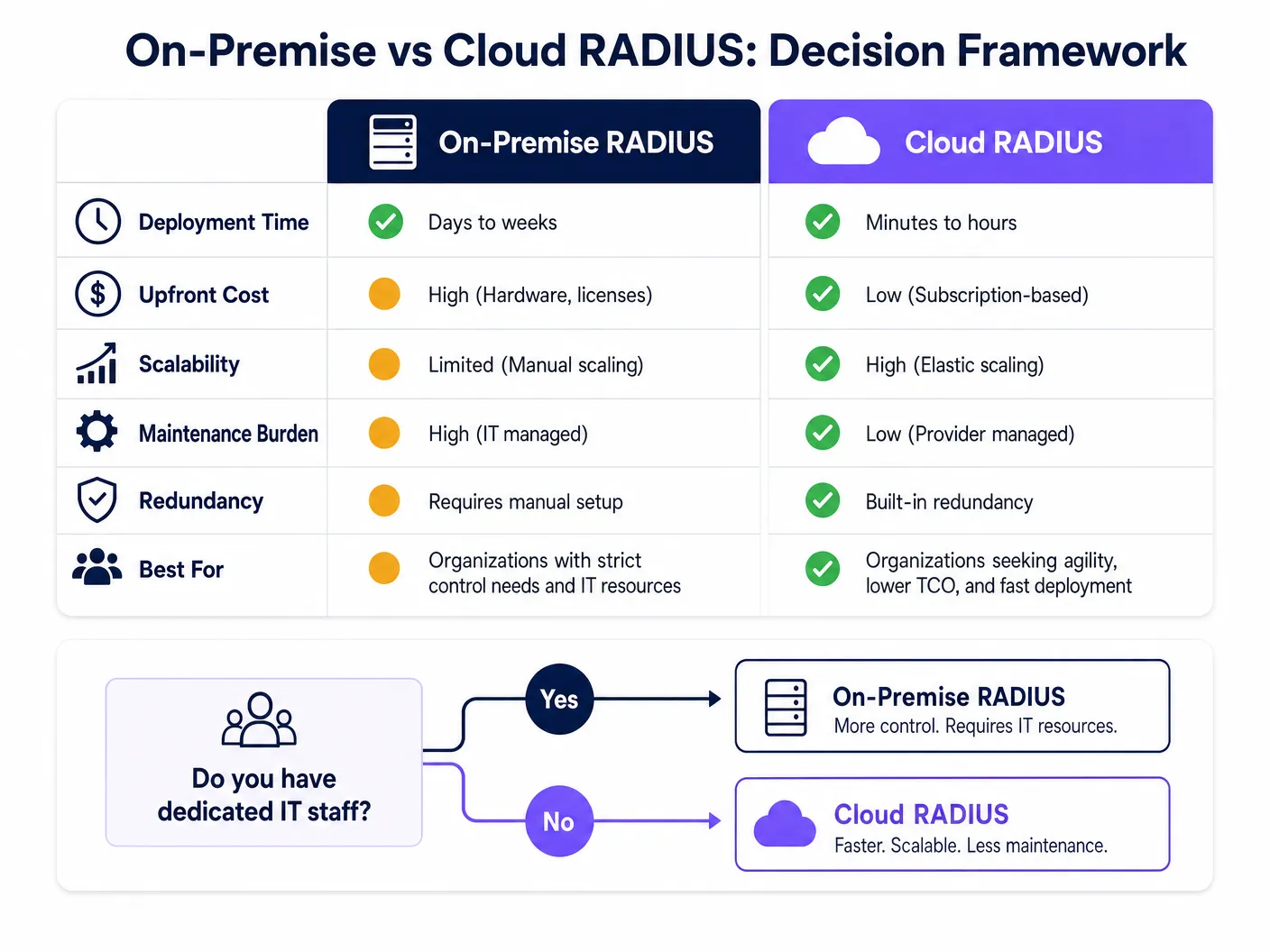

Step 1: Architectural Decision — On-Premise vs. Cloud RADIUS

The first decision is where to host the RADIUS infrastructure. This is primarily an operational and cost question, not a security one — both models can be deployed securely.

On-Premise RADIUS (e.g., Microsoft NPS, FreeRADIUS, Cisco ISE) is suited for organisations with dedicated IT staff, existing on-premise directory infrastructure, and stringent data sovereignty or compliance requirements. It does not depend on internet connectivity for authentication, which is a meaningful advantage for environments where internet uptime cannot be guaranteed.

Cloud RADIUS is increasingly the preferred model for distributed environments — Retail chains, Hospitality groups, and Transport hubs where deploying servers at every location is operationally impractical. Cloud RADIUS integrates natively with cloud identity providers (Azure AD, Google Workspace, Okta) and provides built-in high availability and global scalability.

Step 2: Install and Configure the RADIUS Server

For an on-premise deployment using Microsoft NPS (the most common choice in Windows-centric environments):

1. Install the Network Policy Server role via Server Manager.
2. Register the NPS server in Active Directory to allow it to read user dial-in properties.
3. Create a RADIUS Client entry for each access point or wireless controller, specifying the AP's IP address and a strong, unique Shared Secret.
4. Configure a Network Policy defining the conditions (e.g., user group membership) and constraints (e.g., EAP method, session timeout) for access.
5. Configure the Connection Request Policy to process requests locally.

For FreeRADIUS on Linux:

1. Install via package manager: sudo apt-get install freeradius freeradius-ldap.
2. Configure /etc/freeradius/3.0/clients.conf to define RADIUS clients (APs) and their shared secrets.
3. Configure the LDAP module in /etc/freeradius/3.0/mods-available/ldap to point to your Active Directory or LDAP server.
4. Enable the LDAP module: sudo ln -s /etc/freeradius/3.0/mods-available/ldap /etc/freeradius/3.0/mods-enabled/.
5. Define EAP methods in /etc/freeradius/3.0/mods-available/eap.

Step 3: Configure Access Points

On your wireless controller or individual access points:

1. Define the RADIUS server IP address(es) and authentication port (default: UDP 1812).
2. Configure the Shared Secret — use a minimum of 22 characters, mixing alphanumeric and special characters. Use a unique secret per location or AP group.
3. Configure the SSID to use WPA2-Enterprise or WPA3-Enterprise security mode with 802.1X key management.
4. Configure a secondary RADIUS server for failover.

Step 4: Directory Integration

For on-premise AD integration, the RADIUS server must be joined to the domain or have LDAP read access. Ensure service accounts used for LDAP binding have the minimum required permissions. For cloud RADIUS, configure the API-based synchronization or SAML/OIDC integration with your IdP.

Define clear user groups in your directory, as these will drive authorization policies. Recommended group structure:

Step 5: Client Configuration and Certificate Validation

This is the most operationally critical step. Use Group Policy (GPO) for Windows and MDM profiles for macOS/iOS/Android to push WiFi configurations silently to managed devices. The profile must specify:

• The Root CA that issued the RADIUS server's certificate.
• The expected server name (CN or SAN of the server certificate).
• The EAP method and inner authentication protocol.

For unmanaged BYOD devices, provide clear self-service onboarding instructions, ideally via a Network Access Control (NAC) portal.

Step 6: Implement Dynamic VLAN Assignment

Configure the RADIUS server to return VLAN assignment attributes in the Access-Accept response:

• Tunnel-Type = VLAN (13)
• Tunnel-Medium-Type = IEEE-802 (6)
• Tunnel-Private-Group-Id = ``

The access point reads these attributes and places the authenticated client on the specified VLAN — no manual reconfiguration required as users change roles or locations.

Best Practices

Redundancy is non-negotiable. Deploy a minimum of two RADIUS servers (primary and secondary) and configure all access points to fail over automatically. For on-premise deployments, consider placing the secondary server in a different physical location or availability zone. A RADIUS outage means nobody can authenticate, which is a complete network outage for 802.1X-protected SSIDs.

Monitor certificate expiry proactively. A RADIUS server certificate expiry is one of the most common causes of sudden, widespread authentication failures. Implement monitoring to alert administrators at least 30 days before expiry. This applies to both the server certificate and any intermediate CA certificates in the chain.

Treat the Shared Secret as a critical credential. The shared secret between the AP and the RADIUS server encrypts RADIUS packets. Use unique secrets per location or AP group, store them in a secrets manager, and rotate them periodically. See our guide on Protect Your Network with Strong DNS and Security for broader network security hygiene recommendations.

Align with compliance frameworks. For environments subject to PCI DSS (e.g., retail payment networks), 802.1X authentication directly supports requirements for network access control and audit logging. For GDPR compliance, RADIUS accounting logs (port 1813) provide a detailed audit trail of who accessed the network, from where, and when — valuable for incident response. For Healthcare environments, network segmentation via dynamic VLAN assignment supports HIPAA requirements for protecting electronic protected health information (ePHI).

Troubleshooting & Risk Mitigation

For a deeper dive into the 802.1X configuration process itself, the How to Configure 802.1X WiFi Authentication: A Step-by-Step Guide provides granular, vendor-specific configuration walkthroughs.

ROI & Business Impact

Transitioning from PSK to RADIUS-backed 802.1X requires an initial investment in configuration, and potentially licensing for cloud solutions or hardware for on-premise deployments. The ROI case is straightforward:

Risk mitigation: The average cost of a data breach in the UK is in excess of £3 million (IBM Cost of a Data Breach Report). A compromised PSK can expose the entire network. 802.1X limits the blast radius to a single compromised user account, which can be disabled in seconds via the directory.

Operational efficiency: Dynamic VLAN assignment eliminates manual network reconfiguration as staff change roles. Onboarding a new employee means adding them to the correct AD group — the network access follows automatically.

Compliance posture: For organisations subject to PCI DSS, ISO 27001, or Cyber Essentials Plus, 802.1X is a direct control that auditors expect to see. Deploying it strengthens your compliance posture and reduces audit remediation costs.

Guest experience and analytics: For venue operators, integrating RADIUS for staff authentication with Purple's Guest WiFi platform for visitor access creates a unified, tiered access model. Staff authenticate silently via 802.1X; guests connect via a branded captive portal. Purple's WiFi Analytics platform then provides real-time visibility into visitor dwell times, repeat visit rates, and engagement metrics — data that directly informs marketing spend and venue operations decisions.

For further reading, see the Como Configurar a Autenticação 802.1X WiFi: Um Guia Passo a Passo for Portuguese-language implementation guidance, and What Is a Leased Line? Dedicated Business Internet for guidance on ensuring the underlying connectivity meets enterprise requirements.
