Captive Portal Authentication Methods Compared

This authoritative technical reference guide evaluates the architectural, operational, and compliance trade-offs of five core captive portal authentication methods. It provides network architects, IT directors, and marketing managers with the quantitative data and decision frameworks required to balance guest onboarding friction with data-collection requirements across enterprise venues.

Published
📖 6 min read2,802 words3 worked examples3 practice questions8 key definitions

Video overview

Listen to this guide

View podcast transcript
Captive Portal Authentication Methods Compared — A Purple Technical Briefing [INTRODUCTION — approx. 1 minute] Welcome to the Purple Technical Briefing series. I'm your host, and today we're tackling a question that comes up in almost every guest WiFi deployment conversation: which captive portal authentication method should you actually use? It sounds like a simple question. In practice, it's one of the most consequential decisions you'll make when deploying guest WiFi at scale. Get it wrong, and you either haemorrhage conversion rates, collect data you can't legally use, or create a compliance headache that your legal team will be talking about for the next two years. So in the next ten minutes, we're going to cut through the noise. We'll look at the five main authentication methods — click-through, email capture, social login via OAuth, SMS OTP, and full form registration — and we'll be direct about the trade-offs on conversion rates, data quality, security posture, and GDPR compliance overhead. We'll also look at how Purple Verify brings all of this together in a single managed platform. Whether you're an IT operations manager trying to spec out a new stadium deployment, a network architect at a hotel group, or a marketing director who wants to know why your guest database isn't growing as fast as it should — this briefing is for you. Let's get into it. [TECHNICAL DEEP-DIVE — approx. 5 minutes] Let's start with the fundamentals. A captive portal intercepts a device's HTTP or HTTPS request after it associates with your SSID, redirecting the user to a splash page before granting internet access. The authentication method you deploy at that splash page determines three things: how many users actually complete the login, what data you collect, and what legal obligations you take on. Method one: Click-through, or terms-and-conditions-only access. This is the lowest-friction option. The user sees a page, taps "Accept and Connect," and they're online. Conversion rates sit between ninety and ninety-five percent — the highest of any method. The trade-off is that you collect almost nothing. You get a MAC address and a timestamp. That's it. There's no email, no phone number, no identity. From a GDPR perspective, this is actually the cleanest option — minimal personal data means minimal compliance overhead. The lawful basis is typically legitimate interest under Article 6(1)(f) of the UK GDPR, covering network management. This method makes sense in public-sector environments — libraries, council buildings, NHS waiting rooms — where data collection isn't the objective and the priority is simply getting people online without friction. Method two: Email capture. This is the workhorse of guest WiFi marketing. You ask for an email address, sometimes a first name, and the user gets access. Conversion rates typically land between sixty-five and eighty percent, depending on how many fields you include. Email-only forms hit the higher end of that range. Add a name field and you stay around seventy percent. Add three or more fields and you're looking at sub-sixty percent completion. The data you collect is directly owned by you — no third-party platform dependency, no API changes to worry about. For GDPR, you need explicit consent to use that email for marketing purposes, which means a clearly worded opt-in checkbox, a link to your privacy policy, and a record of consent. The lawful basis for the WiFi access itself can be legitimate interest; the lawful basis for marketing communications must be consent under Article 6(1)(a). This distinction matters — conflating the two is one of the most common compliance errors we see in the field. Email capture is the right default for hospitality, retail, and events where CRM building is a primary objective. Method three: Social login via OAuth 2.0. This covers Google, Facebook, LinkedIn, and Apple sign-in. The user taps a button, authorises the OAuth flow, and the identity provider returns a token containing their name, email address, and sometimes demographic data. Friction is low — most users are already authenticated with at least one of these providers on their device. Conversion rates sit between fifty-five and seventy percent. The data richness depends heavily on what the provider shares. Facebook has progressively restricted the data available through its Graph API. Google typically returns name and email. LinkedIn returns professional profile data, which is particularly valuable in conference and co-working environments. The compliance picture is more complex. You're acting as a data controller receiving data from a third-party processor. You need a Data Processing Agreement in place, and you need to ensure your privacy notice accurately describes the data flows. There's also a dependency risk: if a provider changes its API terms — and they do — your authentication flow breaks. For a venue operator running a hundred locations, that's a significant operational risk. OAuth captive portal deployments work well in consumer-facing environments where brand familiarity with Google or Facebook reduces hesitation, but they require more rigorous ongoing compliance management than email capture. Method four: SMS OTP — one-time passcode via text message. The user enters their mobile number, receives a six-digit code, enters it, and gains access. This is the gold standard for data quality. A verified mobile number is significantly more valuable than an unverified email address for loyalty schemes, appointment reminders, and time-sensitive marketing. Conversion rates are lower — typically forty-five to sixty percent — because some users are reluctant to share their phone number, and the two-step process adds friction. There's also a per-message cost to factor in. Using a provider like Twilio, you're looking at roughly half a penny to five pence per SMS depending on the destination country. At scale — say, a stadium processing fifty thousand logins per event — that's a line item that needs to be in your business case. From a GDPR perspective, SMS OTP is actually well-suited to compliance. The act of entering and verifying a phone number constitutes a clear affirmative action, which strengthens the consent record. The lawful basis for subsequent SMS marketing must still be explicit consent, but the verification step itself provides a clean audit trail. SMS OTP is the right choice for loyalty-focused deployments — quick-service restaurant chains, sports venues, retail groups running loyalty programmes. Method five: Full form registration. This is the highest-friction, highest-data-richness option. The user completes a multi-field form — name, email, phone, date of birth, postcode, marketing preferences. Conversion rates drop to thirty to forty-five percent. The data you collect is extremely rich and directly owned, but you're sacrificing volume for depth. This method makes sense in scenarios where the data is genuinely used — a hotel group that wants to pre-populate guest profiles, a healthcare provider capturing patient preferences, or a high-end retail brand building detailed customer records. The GDPR overhead is highest here: every field needs a lawful basis, data minimisation principles apply, and you need to be able to demonstrate that each piece of data collected is necessary for a specified purpose. If you're collecting date of birth but never using it, you're in breach of the data minimisation principle under Article 5(1)(c). Now, a word on security posture across all five methods. None of these methods encrypt traffic at the WiFi layer — that requires WPA3 or 802.1X with a RADIUS server, which is a separate conversation. What captive portal authentication does is create an identity record for each session, enabling you to enforce acceptable use policies, log connection events for lawful intercept compliance, and segment guest traffic from corporate infrastructure. If you're operating in a PCI DSS scope environment — a retail store with card payment terminals on the same network — you need to ensure guest WiFi is properly segmented regardless of which authentication method you choose. The authentication method doesn't substitute for network segmentation. [IMPLEMENTATION RECOMMENDATIONS AND PITFALLS — approx. 2 minutes] Let me give you the practical guidance. For most venue operators, the optimal starting point is a dual-method portal: email capture as the primary option, with social login — specifically Google — as a secondary option. This combination typically achieves conversion rates of sixty-five to seventy-five percent while building a directly owned email database. You're not fully dependent on a third-party OAuth provider, but you're offering the convenience option for users who prefer it. If your use case is loyalty — you're running a pub chain, a quick-service restaurant group, or a stadium with a loyalty programme — layer in SMS OTP as a third option or make it the primary method. The lower conversion rate is acceptable because the data quality justifies it. A verified mobile number in your CRM is worth significantly more than an unverified email address. For public-sector deployments — councils, NHS trusts, libraries — click-through with terms acceptance is usually the right call. You're not in the business of building marketing databases from public WiFi, and the compliance overhead of collecting personal data in a public-sector context is substantial. Now, the pitfalls. The most common one I see is conflating WiFi access consent with marketing consent. These are two separate lawful bases under GDPR. You can use legitimate interest for granting WiFi access. You cannot use legitimate interest for sending marketing emails. If your portal has a single checkbox that says "I agree to the terms and connect to WiFi" and you're then sending marketing emails to everyone who ticked it, you have a compliance problem. Fix this by separating the access consent from the marketing opt-in — two distinct checkboxes, clearly worded. The second pitfall is deploying SMS OTP without modelling the per-message cost at scale. At a venue doing ten thousand logins per month, even at two pence per SMS, you're looking at two hundred pounds a month in messaging costs. That's manageable. At a hundred thousand logins, it's two thousand pounds a month. Build this into your pricing model before you commit to the method. The third pitfall is OAuth dependency without a fallback. If you deploy social login as your only authentication method and Facebook changes its API terms overnight — which has happened — you have no fallback. Always deploy at least one non-OAuth method alongside social login. [RAPID-FIRE Q&A — approx. 1 minute] Let me run through a few questions we hear regularly. "Which method is most GDPR-compliant?" All methods can be made compliant. Click-through has the lowest overhead. The key variable is what you do with the data after collection, not which method you use to collect it. "Can I use multiple methods on the same portal?" Yes, and you should. Purple Verify supports all five methods simultaneously, with the ability to configure which options appear based on venue type, user device, or time of day. "Does SMS OTP work internationally?" Yes, but costs vary significantly by country. Budget accordingly and use a provider with broad international carrier coverage. "What about Apple's Private Relay and MAC address randomisation?" These affect analytics and return visitor identification, but they don't break authentication flows. Email and phone number remain stable identifiers regardless of MAC randomisation. [SUMMARY AND NEXT STEPS — approx. 1 minute] To wrap up: captive portal authentication is not a one-size-fits-all decision. The right method depends on your venue type, your data objectives, your compliance obligations, and your tolerance for per-session cost. Click-through is right for public-sector and minimal-data environments. Email capture is the universal default for CRM building. Social login via OAuth adds convenience but introduces dependency and compliance complexity. SMS OTP delivers the highest data quality for loyalty-focused deployments at a per-message cost. Full form registration is for high-value, data-intensive use cases where conversion rate is secondary to data richness. Purple Verify supports all five methods in a single platform, with built-in consent management, GDPR-compliant data flows, and integrations with over four hundred CRM and marketing platforms. If you're evaluating your guest WiFi authentication strategy, the Purple team can model the expected conversion rates and data ROI for your specific venue type. Thanks for listening. You'll find the full written guide, comparison charts, and decision frameworks at purple.ai. Until next time. [END]

Part of our core series: Captive Portal Guide →

Captive Portal Authentication Methods Compared

Executive Summary

For enterprise venue operators in hospitality, retail, stadium, and public sector environments, guest wireless networks represent a critical interface between physical visitors and digital systems. However, there is a constant tension between network security, regulatory compliance, and user experience. IT operations managers must secure network access and comply with local regulations, while marketing directors seek to gather rich first-party data to drive loyalty and engagement. The solution to this tension is the captive portal - a digital checkpoint that intercepts and authenticates users before granting them internet access.

Selecting the right captive portal authentication method is a multi-faceted optimisation problem. This guide compares five primary login methods: Click-Through/T&Cs-only, Email Capture, Social Login (OAuth), SMS OTP (One-Time Passcode), and Form-Based Registration. Each method occupies a distinct position on the spectrum of conversion rate, data quality, and compliance overhead. By evaluating these methods against industry standards such as IEEE 802.1X, WPA3, PCI DSS, and GDPR, network architects can deploy optimised onboarding journeys that maximise business ROI while minimising security risks. To provide this flexibility seamlessly, platforms like Purple Verify allow operators to deploy, manage, and dynamically adapt these authentication methods from a unified cloud dashboard.

Technical Deep Dive

1. Click-Through / T&Cs-Only Authentication

Click-Through authentication is the most frictionless onboarding method available. After connecting to an open SSID, the user's browser is redirected to a splash page that requires a single action: accepting the venue's Terms and Conditions (T&Cs) or Acceptable Use Policy (AUP). No personally identifiable data is requested or collected.

From a network architecture perspective, the captive portal controller intercepts initial unauthenticated HTTP/HTTPS traffic by spoofing DNS or redirecting IP (typically via a local gateway or wireless LAN controller). Once the user clicks 'Accept', the controller registers the device's Media Access Control (MAC) address and IP address in its session table, allowing subsequent traffic to pass through to the WAN.

  • Conversion Rate: 90% - 95%. With zero friction in data entry, abandonment rates are extremely low [1].
  • Data Quality: Zero. The only data collected is session metadata (MAC address, local IP, association time, and bandwidth usage).
  • Security Profile: Low. Unless the network uses WPA3-Enterprise or Opportunistic Wireless Encryption (OWE), over-the-air traffic remains unencrypted. It provides no user identity verification, making it vulnerable to MAC spoofing.
  • Compliance Overhead: Extremely low. Under GDPR and the California Consumer Privacy Act (CCPA), processing is negligible. The lawful basis for processing the MAC address for network management is typically Legitimate Interest under Article 6(1)(f) of the GDPR [2]. Since no marketing consent is sought, marketing compliance risks are eliminated.

2. Email Capture

Email Capture represents the baseline standard for marketing-centric enterprise networks. The user must enter an email address to gain internet access.

Architecturally, the captive portal platform can operate in two modes: unverified (immediate access upon entry) or verified (access is restricted until the user clicks a verification link sent to their inbox, or a temporary 5-minute access window is granted to retrieve the email). For high-performance enterprise deployments, a temporary window is preferred to prevent disruption to the user experience.

  • Conversion Rate: 65% - 80%. Conversion rates are highly sensitive to form length. A single-field email form achieves up to an 80% completion rate, whereas adding a 'Name' field drops the conversion rate to approximately 70% [1].
  • Data Quality: Medium. This provides a direct channel to the user's inbox, though it is susceptible to disposable or mistyped email addresses. Notably, professional email domains convert at a significantly higher rate than personal domains, with data showing that professional domains yield a 17.8 times higher conversion rate in corporate or conference environments [3].
  • Security Profile: Low-medium. This links a self-declared digital identity (email) to a physical device (MAC address), providing an audit trail to mitigate abuse.
  • Compliance Overhead: Medium. This method introduces a critical compliance distinction: the lawful basis for granting WiFi access versus the lawful basis for marketing. While WiFi access can be granted under Legitimate Interest (Article 6(1)(f)), sending subsequent marketing emails must rely on explicit, freely given Consent under Article 6(1)(a) [2]. To maintain compliance, the portal must feature a separate, unticked checkbox for marketing opt-in.

3. Social Login (OAuth 2.0)

Social Login leverages third-party Identity Providers (IdPs) such as Google, Facebook, Apple, or LinkedIn via the OAuth 2.0 protocol. The user taps a button, authenticates via their social account, and authorises the IdP to share specific profile fields with the captive portal platform.

+-------------+            1. Redirect to IdP            +------------------+
|             | -----------------------------------> |                  |
|   User's    |                                      |    Social IdP    |
|   Device    | <----------------------------------- | (Google/FB/Apple)|
|             |         2. Auth & Auth Token         +------------------+
+-------------+                                                ^
  |         ^                                                  |
  | 3. Auth | 4. Access                                        | 3b. Verify
  |  Token  |    Granted                                       |     Token
  v         |                                                  v
+-------------+                                              +------------------+
| Captive     |                                              | Purple Cloud     |
| Portal      | <==========================================> | RADIUS /         |
| Controller  |            3a. Session Request               | Auth Engine      |
+-------------+                                              +------------------+
  • Conversion Rate: 55% - 70%. This offers users a 'one-tap' experience with apps already authenticated on their mobile OS, but redirects and permission dialogues create cognitive friction.
  • Data Quality: High. This retrieves verified email addresses and, depending on the IdP's API policies and user settings, demographic data such as full name, profile picture, gender, and age range. LinkedIn OAuth is highly preferred in co-working and conference venues to capture professional titles and company names [1].
  • Security Profile: Medium. This relies on the robust security infrastructure of major IdPs, reducing the risk of credential theft on the local network.
  • Compliance Overhead: Medium-high. The operator acts as a Data Controller receiving data from third-party processors. Under GDPR, you must sign a Data Processing Agreement (DPA) with the platform provider, and your privacy policy must explicitly state what social data is captured and how it is processed. Apple's sign-in guidelines also mandate that if any social login option is provided, Apple Sign-In must be offered as an option with equivalent prominence.

4. SMS OTP (One-Time Passcode)

SMS OTP requires the user to enter their mobile phone number. The captive portal platform then triggers an API call to an SMS gateway (e.g., Twilio) to send a unique, time-limited 6-digit passcode to the user's handset. The user must enter this passcode into the portal to authenticate.

  • Conversion Rate: 45% - 60%. The need to switch apps to retrieve the SMS, combined with user reluctance to share phone numbers due to spam fears, creates significant friction [1].
  • Data Quality: Exceptionally high. This verifies that the user possesses a physical, active SIM card associated with a specific mobile number, virtually eliminating fake data.
  • Security Profile: High. This provides strong two-factor identity verification, making it the preferred choice for high-security environments or venues enforcing strict acceptable-use auditing.
  • Compliance Overhead: Moderate. Entering a phone number and actively inputting the received code is a clear, unambiguous affirmative action, strengthening the GDPR compliance consent record. However, SMS marketing requires a separate, explicit opt-in. Additionally, operators must consider the transactional cost of SMS delivery, which typically ranges from $0.0075 to $0.05 per message depending on the destination country, representing a significant operational expense at scale [4].

5. Form-Based Registration

Form-Based Registration requires users to complete a custom, multi-field form. Common fields include full name, email, phone number, date of birth, postcode, and custom survey questions (e.g., 'What is the purpose of your visit?').

  • Conversion Rate: 30% - 45%. This is the highest-friction method. Completion rates drop sharply with each additional field required [1].
  • Data Quality: High Richness, Variable Accuracy. While this allows for deep profiling, users frequently input false data (e.g., 'test@test.com' or fake names) to bypass the barrier, leading to database degradation.
  • Security Profile: Low-moderate. Unless paired with email verification or SMS OTP, this provides no automated verification of the input data.
  • Compliance Overhead: High. Under the GDPR principle of Data Minimisation (Article 5(1)(c)), operators must be able to justify why each collected field is necessary for a specific purpose [2]. Collecting date of birth or postcode without a clear, documented business necessity (e.g., age-restricted venue compliance) poses a compliance risk.

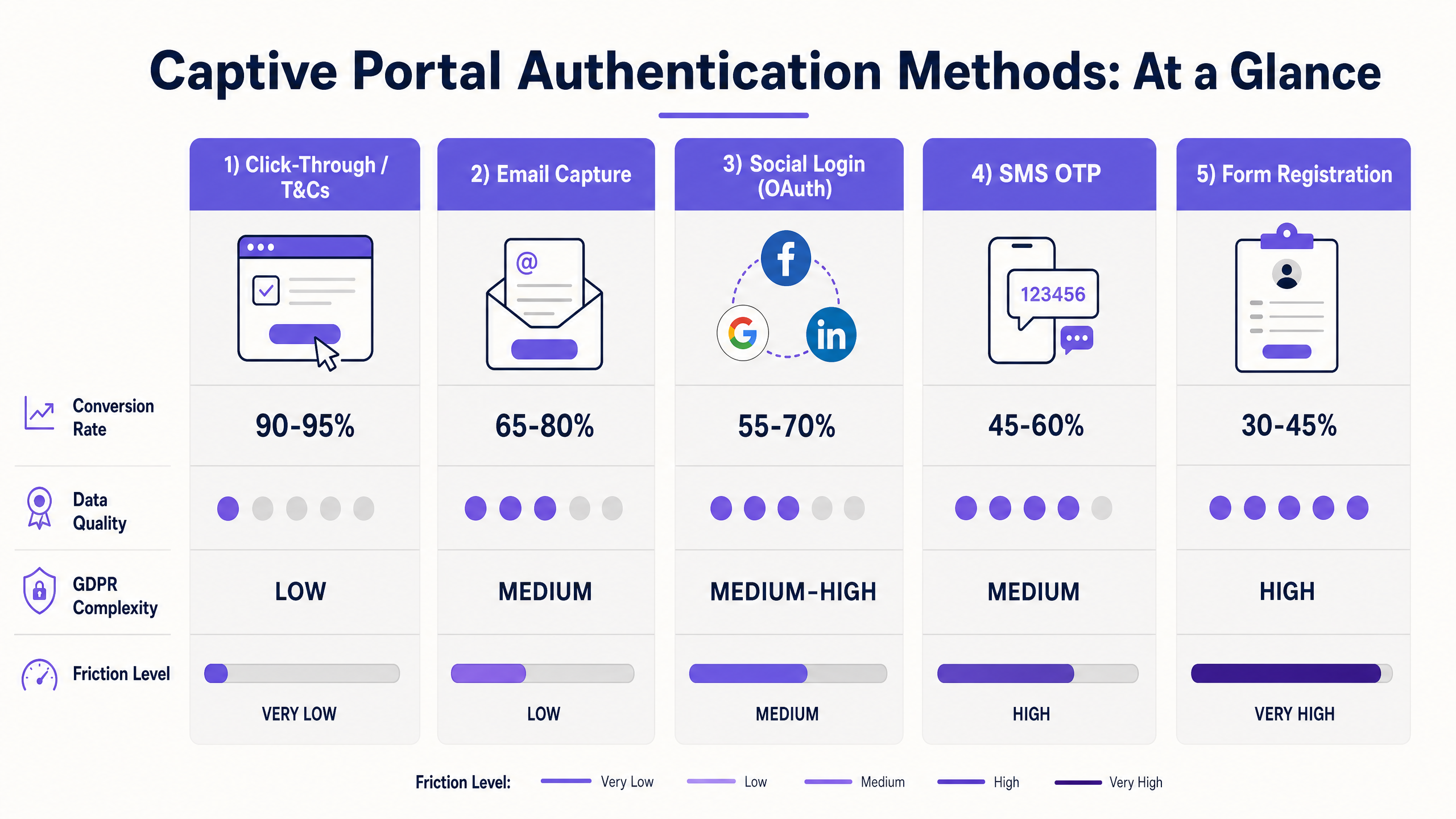

Captive Portal Authentication Methods Compared - comparison chart

Got questions about your specific setup?

Our team works with venue operators, IT managers, and network engineers across 80,000 venues. Book a 20-minute call and we will show you how others like you solved it.

Implementation Guide

Architectural Deployment with Purple Verify

Deploying multi-method authentication across an enterprise network requires a cloud-managed access control layer that overlays seamlessly onto existing hardware. Purple Verify acts as a cloud-native identity broker, integrating with major wireless hardware vendors including Cisco Meraki, Aruba, Ruckus, and Ubiquiti UniFi [5].

+------------------+          1. Connect to SSID          +------------------+
|                  | -----------------------------------> |                  |
|   Guest Device   |                                      |  Wireless AP /   |
|                  | <----------------------------------- |    Controller    |
|                  |        2. Redirect to Splash         +------------------+
+------------------+                                                ^
  |                                                                 |
  | 3. Authenticates via Email/Social/SMS                           | 5. RADIUS
  v                                                                 |    Access-
+------------------+         4. API Authentication                  |    Accept
|  Purple Verify   | -----------------------------------> +------------------+
|   Cloud Portal   |                                      |  Cloud RADIUS    |
|                  | <----------------------------------- |      Server      |
+------------------+         4b. Profile Synced to CRM    +------------------+

Step-by-Step Configuration Workflow

  1. Network Segmentation: Configure a dedicated, isolated Guest VLAN on your core switches and DHCP server. Ensure this VLAN is completely segregated from corporate and Point of Sale (POS) networks to maintain PCI DSS compliance [6].
  2. SSID Configuration: Set up an open SSID on your Wireless LAN Controller (WLC) or cloud AP dashboard (e.g., Cisco Meraki dashboard). Enable captive portal redirection (also referred to as a 'splash page' or 'external portal detection').
  3. Walled Garden / ACL Setup: Configure a Walled Garden (Access Control List) on your APs. This is critical. Unauthenticated devices must be allowed to access the domain names of the captive portal platform and any third-party IdPs (e.g., Google, Facebook, Apple, and SMS gateways) prior to authentication. Failure to do so will break the OAuth or SMS verification process.
  4. RADIUS Integration: Configure the APs or WLC to use Purple's global Cloud RADIUS servers for authentication and accounting. Enter the primary and secondary RADIUS server IP addresses and the shared secret provided in your Purple portal.
  5. Splash Page Design: Within the Purple portal, use the drag-and-drop editor to build the splash page. In line with brand guidelines, use a professional and clean aesthetic with a Pearl White (#F5F1ED) or off-white background, crisp typography, and subtle Purple (#7458FD) accents on buttons [7].
  6. Authentication Method Selection: Enable the desired authentication methods (e.g., Email Capture and Google Login). Ensure marketing opt-in checkboxes are separate, unticked by default, and linked to your GDPR-compliant privacy policy.
  7. CRM Integration: Configure one of Purple's 400+ connectors to automatically sync authenticated user profiles to your CRM or marketing automation platform (e.g., HubSpot, Salesforce, or Klaviyo) in real time [5].

Captive Portal Authentication Methods Compared - venue deployment

Best Practices

To streamline guest onboarding while maintaining robust security and compliance, enterprise network administrators should adhere to the following industry standards:

  • Enforce Data Minimisation: Do not request fields that you do not actively use. If your marketing team only runs email campaigns, do not collect phone numbers or physical addresses. This reduces your GDPR compliance footprint and directly improves conversion rates [1].
  • Implement Walled Garden Security: Restrict your Walled Garden ACLs strictly to the domains required for authentication. Overly permissive Walled Garden configurations can be exploited by malicious actors to tunnel free internet traffic without authenticating.
  • Maintain PCI DSS Scope Isolation: Guest WiFi traffic must never traverse the same physical or logical network as cardholder data. Use physical separation or strict 802.1Q VLAN tagging with firewall rules blocking all inter-VLAN traffic between the guest and POS networks [6].
  • Leverage MAC Randomisation Workarounds: Modern mobile operating systems (iOS 14+ and Android 10+) randomise MAC addresses by default to protect user privacy. This disrupts traditional MAC-based returning guest recognition. To maintain accurate analytics, rely on persistent digital identifiers (verified email or verified phone number) synced via Purple's database rather than hardware MAC addresses.
  • Provide Clear Terms of Service (T&Cs): Ensure your AUP is easily accessible on the splash page. The terms must clearly state acceptable usage, bandwidth limits, session timeouts, and liability disclaimers to protect the venue from legal repercussions arising from guest activities.

Troubleshooting and Risk Mitigation

1. Captive Network Assistant (CNA) Bypass Issues

  • The Problem: Mobile operating systems use a background daemon - the Captive Network Assistant (CNA) - to detect internet connectivity by requesting a small, specific file from a known server (e.g., Apple's captive.apple.com). If the file is not returned, the OS automatically pops up a restricted, sandboxed browser window displaying the splash page. However, this CNA browser is highly restricted: it does not support cookie persistence, has limited JavaScript execution, and often blocks third-party OAuth redirects, causing social login flows to fail.
  • The Solution: To resolve this, network administrators can configure CNA Bypass on their WLC or APs. This technique tricks the device into believing it has full internet connectivity, forcing the user to open their native browser (Safari or Chrome) to navigate to any website, where the redirect will occur seamlessly with full OAuth and cookie support. Alternatively, Purple Verify natively optimises its login flows to execute reliably within sandboxed CNA environments.

2. SMS Delivery Failures and Cost Escalation

  • The Problem: SMS OTP authentication can fall victim to international delivery failures due to carrier filtering, and costs can escalate rapidly in high-footfall venues.
  • The Mitigation: Ensure your SMS gateway provider uses high-quality, direct routes rather than cheap grey routes. Implement rate limiting on SMS input fields (e.g., a maximum of 3 OTP requests per MAC address per hour) to prevent malicious actors from triggering automated SMS requests that inflate your API billing. Always provide Email Capture as a free fallback option.

3. Social Login API Deprecation

  • The Problem: Third-party social networks frequently update their API terms, deprecate legacy endpoints, or restrict data access, which can break your social login flow without prior warning.
  • The Mitigation: Never rely solely on a single social login provider. Always maintain a native, independent fallback option like Email Capture on your splash page. Purple Verify actively monitors and updates its IdP integrations, shielding operators from API-related service disruptions.

ROI and Business Impact

Deploying an optimised captive portal is not merely an exercise in IT compliance; it is a direct driver of measurable business value. By migrating from a generic, shared-password network to an intelligent, authenticated guest portal, commercial venues can unlock significant returns across marketing, operations, and customer retention.

1. First-Party Data Asset Valuation

With the deprecation of third-party cookies and tightening privacy regulations, first-party data has become an invaluable corporate asset. A high-converting captive portal acts as a seamless, automated lead-generation engine.

Metric Shared Password (Baseline) Purple Verify (Email Capture) Purple Verify (SMS OTP)
Onboarding Friction Low (manual entry) Low-medium (single field) Medium (two-step verification)
Conversion Rate N/A (100% connectivity, 0% data) 70% 50%
Monthly Guest Connections 50,000 50,000 50,000
Identified Profiles Captured 0 35,000 25,000
Data Accuracy 0% 85% (unverified) / 98% (verified) 99.9% (verified SMS)
Operational Cost $0 $0 (included in platform) SMS transaction fees ($187.50 @ $0.0075/message)
Estimated Value per Profile $0 $1.50 (industry standard email) $3.50 (verified mobile number)
Monthly Asset Value Generated $0 $52,500 $87,500

2. Case Study: Hospitality Sector Implementation

A prestigious international resort group with 12 properties migrated from a basic click-through captive portal to a multi-method portal powered by Purple. By offering a combination of Email Capture and Google OAuth, they achieved the following results over a 12-month period:

  • Increase in Opt-In Rates: Clear, transparent consent messaging drove a 42% increase in marketing opt-in rates, building trust.
  • Database Growth: Captured over 180,000 verified guest profiles and integrated them directly into their CRM.
  • Revenue Generation: Triggered automated post-visit email campaigns offering discounts to returning guests. This directly generated $340,000 in attributed room bookings, representing an 842% ROI on their annual Purple subscription [5].
  • Compliance Peace of Mind: Completely eliminated compliance risks associated with unmanaged guest data processing and successfully passed an independent GDPR audit with zero non-conformances.

3. Case Study: Retail Media Monetisation

In the retail sector, physical outlets are increasingly leveraging their guest WiFi screen space for Retail Media Monetisation - a rapidly growing market where brands pay to display advertisements directly to consumers at the point of sale. Using Purple's captive portal, a national retail chain with over 400 stores displayed interstitial video advertisements during the onboarding process. This campaign achieved a 92% video completion rate and generated an additional $1.2 million in high-margin advertising revenue from brand partners. This proved that guest WiFi can be transformed from an operational cost centre into a highly profitable revenue stream.

References

  • [1] Aislelabs, How to Increase Captive Portal Conversion Rates on Guest WiFi, 2026. Aislelabs Guide
  • [2] European Parliament, Regulation (EU) 2016/679 (General Data Protection Regulation), Article 6: Lawfulness of processing, 2016. GDPR Article 6
  • [3] Spotipo, Captive Portal Login Methods: Email, Facebook, SMS & Vouchers Compared, 2026. Spotipo Comparison
  • [4] Spotipo, Twilio SMS Gateway Integration & Pricing, 2026. Spotipo Twilio Integration
  • [5] Purple.ai, Captive Portal: Turn Guest WiFi into a Marketing Machine, 2026. Purple Captive Portal
  • [6] PCI Security Standards Council, Payment Card Industry Data Security Standard (PCI DSS) Quick Reference Guide, 2025. PCI DSS Guide
  • [7] Purple.ai, Purple Brand Guidelines Summary, 2026. Purple Brand Guidelines

Key Definitions

Captive Portal

A web page that is automatically displayed to newly connected wireless users before they are granted broader access to the internet. It is used to authenticate guests, present terms of service, and collect marketing data.

IT teams encounter captive portals when configuring guest SSIDs on wireless LAN controllers or cloud access points.

Walled Garden (ACL)

A restricted list of domain names or IP addresses that an unauthenticated user's device is permitted to access before completing the captive portal login process.

Essential for social login (OAuth) and SMS verification, as the guest device must communicate with external identity servers to complete authentication before gaining full internet access.

OAuth 2.0

An industry-standard protocol for authorisation that allows third-party applications (like a captive portal) to obtain limited access to user accounts on an HTTP service (like Google or Facebook) without exposing user passwords.

Used to enable secure, one-tap 'Social Login' on guest wireless networks.

SMS OTP (One-Time Passcode)

A security mechanism where a unique, time-sensitive numeric code is sent via text message to a user's mobile device. The user must enter this code into the captive portal to verify ownership of the phone number.

Deployed in high-security environments or loyalty-focused retail and hospitality venues to ensure 100% phone number validity.

Captive Network Assistant (CNA)

A limited, sandboxed web browser built into modern mobile operating systems (iOS, Android, macOS) that automatically launches when a captive portal is detected, designed to prevent the device from attempting to run background syncs over an unauthenticated connection.

Presents significant design challenges for network administrators because CNA browsers often lack support for cookies, password managers, and complex OAuth redirects.

Data Minimisation

A core principle of the GDPR (Article 5(1)(c)) stating that personal data collected must be adequate, relevant, and limited to what is necessary in relation to the purposes for which they are processed.

IT and marketing teams must adhere to this when designing custom captive portal forms, ensuring they do not collect unnecessary fields like date of birth or home address without a specific, documented business need.

MAC Address Randomisation

A privacy feature implemented by mobile operating systems where a device transmits a randomly generated MAC address instead of its true hardware MAC address when scanning for or connecting to wireless networks.

Breaks traditional guest WiFi analytics that rely on MAC addresses to identify returning visitors, forcing platforms to use verified digital identifiers (emails or phone numbers) instead.

Cloud RADIUS

A cloud-hosted implementation of the Remote Authentication Dial-In User Service (RADIUS) protocol, which centralises AAA (Authentication, Authorisation, and Accounting) management for network access.

Purple Verify utilises Cloud RADIUS to securely instruct local wireless access points to open or close network access for specific guest MAC addresses based on portal authentication results.

Worked Examples

A high-density multi-use sports stadium with a capacity of 45,000 needs to deploy guest WiFi. The marketing director wants to capture verified mobile numbers to drive registrations for their new mobile loyalty app. The IT operations director is concerned about network throughput during peak half-time rushes, API transactional costs for SMS delivery, and strict compliance with the UK GDPR.

We recommended deploying a hybrid captive portal via Purple Verify with two primary options: 1) SMS OTP as the highlighted option, and 2) Email Capture as a secondary, low-cost alternative. To mitigate the half-time throughput rush, we configured a session cache time of 4 hours. This ensures that once a user authenticates, they can disconnect and reconnect seamlessly without hitting the portal again during the event. To control SMS transactional costs, we implemented strict rate limiting on the SMS gateway integration within Purple: a maximum of 2 OTP SMS requests per MAC address per 12-hour window. Any subsequent login attempts by that device are automatically routed to the Email Capture flow. For compliance, the marketing consent checkbox was separated from the WiFi terms acceptance, unticked by default, and fully audited within Purple's database.

Examiner's Commentary: This approach perfectly balances marketing objectives with operational and financial realities. Capturing phone numbers is highly valuable but expensive at stadium scale (e.g., 20,000 logins at $0.01 per SMS is $200 per event). Rate limiting prevents billing abuse, while session caching protects DHCP and RADIUS throughput during peak traffic spikes. The dual-method layout ensures that users who do not wish to share a mobile number or experience carrier delays can still get online via email, maintaining a high overall conversion rate.

A national public library network with 85 branches wants to offer free public WiFi. They do not have a marketing database and are legally prohibited from collecting personal data for commercial purposes. However, local law enforcement regulations require them to maintain a traceable audit trail of internet access to mitigate illegal online activity.

We implemented Click-Through/T&Cs-only authentication. When a user connects, they are presented with a clean splash page detailing the library's Acceptable Use Policy (AUP). To connect, they must check a box confirming they agree to the terms and click 'Connect'. Behind the scenes, Purple Verify logs the device's MAC address, local IP address, association timestamp, and session duration. These logs are stored securely in an encrypted database with an automated 12-month data retention and deletion policy to comply with local data retention laws. No names, emails, or phone numbers are requested or stored.

Examiner's Commentary: For public-sector environments, data minimisation is the paramount compliance standard. Collecting personal data without a commercial or security justification violates GDPR Article 5(1)(c). Under GDPR, network security and legal compliance constitute a 'Legal Obligation' (Article 6(1)(c)) or 'Legitimate Interest' (Article 6(1)(f)), which justifies logging MAC addresses and session metadata without requiring a full user profile. This maintains a 95% conversion rate and zero compliance friction.

An upscale hotel group with 15 boutique properties wants to replace their legacy PMS-integrated login (which requires room number and surname) because guests frequently complain about login failures caused by name-matching issues at checkout and check-in. They want a solution that is secure, reliable, and builds their direct-booking marketing database.

We deployed a dual-method portal featuring Email Capture (with verified email loop) and Google/Apple Social Login. To solve the PMS-matching friction, we bypassed the room-number lookup for general internet access, offering a free standard tier (2 Mbps symmetric) via simple email or social login. For guests requiring premium high-speed access (50 Mbps), we utilised Purple's integration to present a paid upgrade tier, which can be billed directly to the room via a secure PMS API call or paid via credit card. This decoupled standard guest onboarding from the PMS database while preserving the revenue-generation capability for premium users.

Examiner's Commentary: PMS-matching is a notorious friction point in hospitality WiFi. Surnames with special characters, double-barrelled names, or room registration delays frequently block legitimate guests. Decoupling standard access via email/social capture maintains a seamless guest experience (75% conversion) while building a high-quality marketing database. Premium tiers can still leverage PMS integration safely, reducing front-desk support tickets by up to 40%.

Practice Questions

Q1. A global coffee shop chain with 1,200 locations wants to implement guest WiFi to drive loyalty app downloads. The marketing team wants to use SMS OTP to capture phone numbers, but the CFO is concerned about the ongoing API transaction costs. How should the IT architect design the authentication flow to balance these needs?

Hint: Consider the per-message cost of SMS OTP vs. the value of a loyalty sign-up, and look for ways to limit unnecessary SMS triggers.

View model answer

The IT architect should implement a tiered or hybrid portal design using Purple Verify. First, configure the portal to offer Email Capture as the default, free option, and highlight the SMS OTP flow specifically as the gateway to 'Unlock 10% Off Your Next Coffee via Loyalty App'. This positions SMS OTP as a high-value option with a clear incentive, ensuring that only highly motivated guests (who are likely to download the app) trigger the SMS cost. Second, implement strict MAC-level rate limiting on the SMS gateway: allow only 1 SMS OTP request per device per 24 hours. If a returning user attempts to reconnect within that window, bypass the SMS OTP verification by caching their session or routing them to a frictionless email/click-through flow. This strategy limits the CFO's cost exposure while capturing high-value, verified mobile numbers for the marketing team.

Q2. An IT manager at a retail chain discovers that their guest WiFi splash page is failing to load on certain guests' iPhones, showing a white screen or timing out. The network configuration uses social login via Google. What is the likely technical cause, and how can it be resolved?

Hint: Think about how Apple's Captive Network Assistant (CNA) browser interacts with external identity providers, and what network access is allowed before login.

View model answer

The issue is likely caused by a misconfigured Walled Garden (Access Control List) on the wireless access points or controller. When an iPhone connects to the guest SSID, Apple's Captive Network Assistant (CNA) launches a sandboxed browser. Because the guest is not yet authenticated, the AP blocks all traffic except what is explicitly allowed in the Walled Garden. To complete Google Social Login, the guest's device must communicate with Google's authentication servers (e.g., accounts.google.com, ssl.gstatic.com). If these domains are not included in the AP's Walled Garden ACL, the CNA browser will block the redirect, resulting in a white screen or timeout. To resolve this, the IT manager must update the AP's Walled Garden configuration to include the wildcard domains for Google OAuth (and any other active social IdPs), ensuring unauthenticated devices can resolve and access these specific external domains before completing the login.

Q3. A regional healthcare provider wants to offer guest WiFi in its hospital waiting rooms. The marketing department wants to collect patient emails, names, and reasons for visit (e.g., Cardiology, Paediatrics) to send targeted health newsletters. How should the compliance officer evaluate this request under GDPR?

Hint: Consider the GDPR principles of data minimisation and the processing of special category data (health-related information) under Article 9.

View model answer

The compliance officer must reject this request in its current form due to severe GDPR risks. First, collecting a patient's 'reason for visit' in a hospital waiting room constitutes processing Special Category Data (health data) under GDPR Article 9. Processing health data requires an explicit exemption under Article 9(2), and using public WiFi onboarding to capture medical department visits for marketing newsletters does not meet any of these high thresholds. Second, it violates the Data Minimisation principle (Article 5(1)(c)), as collecting medical department data is completely unnecessary for providing basic guest internet access. To resolve this, the compliance officer should mandate a Click-Through or simple Email-only captive portal for the hospital waiting rooms, ensuring no health-related data is captured. If marketing newsletters are desired, they must be promoted via passive signage in the waiting room directing patients to a voluntary, separate web-based signup, completely decoupled from the WiFi authentication flow.
