The Ultimate Guide to Secure Guest WiFi Architecture

This guide provides IT managers, network architects, and CTOs at hotels, retail chains, stadiums, and public-sector organisations with a complete technical blueprint for deploying secure enterprise guest WiFi. It covers the three core architectural pillars — network segmentation, WPA3-OWE encryption, and identity-aware access control — alongside PCI DSS and GDPR compliance requirements, real-world case studies, and step-by-step deployment guidance.

📖 11 min read📝 2,638 words🔧 3 worked examples❓ 3 practice questions📚 9 key definitions

Listen to this guide

View podcast transcript
Welcome to the Purple Technical Briefing Series. I'm your host, and today we're covering something that every IT manager and network architect at a hotel, retail chain, stadium, or public-sector venue needs to have nailed down: secure guest WiFi architecture. This isn't a theoretical exercise. Guest WiFi is one of the most common attack surfaces in enterprise environments, and yet it's also one of the most frequently under-engineered. So let's get into it. --- SECTION ONE: INTRODUCTION AND CONTEXT Let's start with the problem statement. Your organisation needs to provide internet access to visitors, guests, customers, or contractors. These are unmanaged devices — you have no control over what's running on them. They could be infected with malware. They could be running a packet sniffer. And yet they need to connect to your network infrastructure. The challenge is that most organisations treat guest WiFi as an afterthought — a simple open SSID bolted onto the corporate network with a firewall rule that says "block internal traffic." That's not good enough anymore. The threats are real. Man-in-the-middle attacks on open networks. Lateral movement from a compromised guest device into your corporate LAN. Rogue access points impersonating your SSID to harvest credentials. And of course, the regulatory dimension — if you're in retail, hospitality, or healthcare, you have PCI DSS, GDPR, and potentially sector-specific data regulations to comply with. So the question isn't whether you need a properly architected guest network. The question is: how do you build one that's genuinely secure, scalable, and compliant — without creating a terrible user experience? --- SECTION TWO: TECHNICAL DEEP-DIVE Let me walk you through the core architectural pillars. The first and most fundamental pillar is network segmentation. Every guest device must be placed into a completely isolated network segment — specifically, a dedicated VLAN. Let's call it VLAN 10. This VLAN must be logically separated from your corporate LAN, your staff network, your POS systems, your IP cameras, and any other internal infrastructure. At the Layer 3 boundary — your firewall or core switch — you configure what I call the "internet-only" rule. This is an Access Control List that explicitly blocks all outbound traffic from VLAN 10 destined for private IP ranges. That means blocking the RFC 1918 ranges: 10.0.0.0 slash 8, 172.16.0.0 slash 12, and 192.168.0.0 slash 16. Guest traffic is only permitted to reach public DNS servers and the public internet. Nothing else. Within the wireless network itself, you enable client isolation — sometimes called peer-to-peer blocking. This prevents any two guest devices from communicating directly with each other over the wireless medium. So even if a guest device is infected with a worm, it cannot scan or attack other devices on the same SSID. Now, at the Layer 2 level, you should also enable DHCP Snooping and Dynamic ARP Inspection on the switches that carry the guest VLAN. DHCP Snooping prevents rogue DHCP servers — a classic attack vector for redirecting user traffic. Dynamic ARP Inspection prevents ARP spoofing, which is the foundation of most man-in-the-middle attacks on local networks. The second pillar is over-the-air encryption. For years, guest networks were left completely unencrypted — open SSIDs with no WPA key. The rationale was user experience: you don't want guests to have to type a password. But an unencrypted wireless network means that anyone with a laptop and Wireshark can passively capture every HTTP request, every DNS query, every unencrypted session from every device in range. The solution is WPA3 Opportunistic Wireless Encryption, or OWE. It's defined in RFC 8110 and it's part of the Wi-Fi Alliance's Enhanced Open certification. What OWE does is perform a Diffie-Hellman key exchange during the association process. Each client gets a unique, individualized encryption key — a Pairwise Transient Key — without any password being entered. From the user's perspective, they just tap the network name and connect. But the wireless session is fully encrypted. For legacy devices that don't support WPA3 — older Android phones, older Windows laptops — you can run OWE in Transition Mode. The controller broadcasts both a legacy open SSID and an OWE SSID under the same network name. WPA3-capable devices automatically connect to the encrypted version. Legacy devices fall back to the open version. It's not perfect, but it's a pragmatic migration path. The third pillar is identity-aware access control. Encryption protects the wireless medium, but it doesn't tell you who is connecting. For compliance and accountability, you need to bind each session to a verified identity. This is where the captive portal comes in. An enterprise captive portal is much more than a splash page. It's a policy enforcement point. When a guest connects to the SSID, their session is initially blocked at the gateway. All HTTP traffic is redirected to the captive portal URL — which must be served over HTTPS with a publicly trusted TLS certificate, by the way. The portal then prompts the user to verify their identity — via email, SMS one-time password, social login, or corporate SSO. Once verified, the portal sends an authorisation signal to the RADIUS server, which updates the session policy to allow internet access. This gives you several critical capabilities. You have an audit trail — every session is tied to a verified identity, with timestamps and MAC address bindings. You have legal accountability — users have agreed to an Acceptable Use Policy. And you have the foundation for GDPR compliance — you've collected consent at the point of authentication. Speaking of GDPR — if you're capturing any personal data through the captive portal, you need to ensure that your consent mechanism uses un-ticked checkboxes for marketing opt-ins, that you're only collecting data that's necessary for the service, and that you have a clear, automated mechanism for users to request deletion of their data. These aren't optional niceties; they're legal obligations. For PCI DSS compliance, the key requirement is complete isolation of the Cardholder Data Environment. Your guest VLAN must not be able to route to any system that stores, processes, or transmits payment card data. This needs to be verified through penetration testing, not just assumed based on firewall rules. --- SECTION THREE: IMPLEMENTATION RECOMMENDATIONS AND PITFALLS Let me give you the practical deployment guidance. When you're sizing your DHCP scope for the guest VLAN, be aware of MAC address randomisation. iOS 14 and later, and Android 10 and later, randomise MAC addresses by default. This means a single guest's phone might appear as a new device every time they reconnect, consuming multiple IP addresses. To mitigate this, use a short DHCP lease time — two to four hours — and size your subnet generously. For a 200-room hotel, I'd recommend at least a /22 subnet, giving you over 1,000 IP addresses. For high-density venues — stadiums, conference centres, exhibition halls — consider Dynamic VLAN Pooling. Instead of putting all 10,000 concurrent users into a single /20 subnet, you distribute them across a pool of four or eight VLANs using a hash of their MAC address. This reduces broadcast domain sizes, improves wireless performance, and prevents IP exhaustion. The most common troubleshooting issue I see is the captive portal redirect failure. A guest connects to the SSID but the portal page never loads. This is almost always caused by one of three things: DNS blocking before authentication, HTTPS redirect interception, or a captive portal certificate that isn't trusted by the client device. The fix is to ensure that DNS queries to public resolvers are permitted before authentication, that your portal uses a globally trusted certificate authority, and that your gateway is correctly intercepting HTTP traffic for redirect. On the topic of rogue access points — if you're operating in a public venue, you should have Wireless Intrusion Detection and Prevention enabled on your wireless controllers. WIDS/WIPS monitors the RF spectrum for evil twin attacks, where an attacker sets up an AP with the same SSID as your network to harvest credentials. Cloud-managed platforms can automatically detect and alert on these threats. --- SECTION FOUR: RAPID-FIRE Q&A Let me address a few questions I frequently get from IT teams. "Should I use a single SSID or multiple SSIDs for different guest types?" — Use multiple SSIDs only if you have genuinely different access policies. For example, a hotel might have one SSID for registered guests authenticated via the PMS, and a separate SSID for restaurant walk-ins authenticated via email. Each SSID maps to a separate VLAN with its own QoS profile. But avoid SSID sprawl — each additional SSID consumes airtime with beacon frames. "Can I use 802.1X for guest WiFi?" — You can, but it's generally not appropriate for unmanaged guest devices. 802.1X requires either a certificate or credentials on the client device, which isn't practical for visitors. It's the right choice for staff and corporate devices. For guests, OWE plus a captive portal is the correct architecture. "What bandwidth limits should I set for guest users?" — A common starting point is 2 megabits per second download and 512 kilobits per second upload per client. This is sufficient for web browsing and video calls, but prevents a single user from saturating your internet connection. Adjust based on your total available bandwidth and expected concurrent user count. --- SECTION FIVE: SUMMARY AND NEXT STEPS Let me wrap up with the key takeaways. First: segment your guest network into a dedicated VLAN and enforce internet-only ACLs at the gateway. This is non-negotiable. Second: deploy WPA3 Opportunistic Wireless Encryption. Stop running unencrypted open SSIDs. Your guests deserve encryption, and your organisation deserves the liability protection. Third: implement an enterprise captive portal that binds sessions to verified identities. This is your compliance foundation for both GDPR and PCI DSS. Fourth: enable client isolation and Layer 2 hardening — DHCP Snooping, Dynamic ARP Inspection — on every switch port carrying the guest VLAN. Fifth: size your DHCP scopes for MAC randomisation, and use Dynamic VLAN Pooling in high-density environments. For your next steps: if you're running legacy open SSIDs today, the quickest win is to enable OWE Transition Mode on your existing wireless controllers. Most enterprise platforms — Cisco, Aruba, Juniper Mist — support this without a hardware upgrade. From there, review your firewall ACLs to ensure the RFC 1918 block rule is in place, and evaluate whether your current captive portal solution is providing the identity binding and compliance reporting you need. If you want to go deeper, Purple's technical documentation covers cloud RADIUS integration, multi-site captive portal deployment, and WiFi analytics — all of which build on the secure architecture we've discussed today. Thanks for listening. This has been the Purple Technical Briefing Series.


Executive Summary

In the modern enterprise, guest WiFi is no longer a simple convenience; it is a critical business touchpoint and a significant network edge security surface. For IT managers, network architects, and CTOs at hotels, retail chains, stadiums, and public-sector venues, guest networks represent a unique architectural paradox: they must be highly accessible to unmanaged, potentially compromised devices while remaining completely isolated from secure corporate resources.

A poorly designed guest network can serve as a direct vector for lateral movement, malware propagation, and man-in-the-middle (MITM) attacks, potentially exposing payment systems or corporate databases. Global operations also require strict compliance with regulatory frameworks, including the Payment Card Industry Data Security Standard (PCI DSS) and the General Data Protection Regulation (GDPR).

This technical reference guide outlines the architectural blueprints, protocol standards, and deployment best practices required to implement a secure, high-performance, and compliant Guest WiFi infrastructure. By transitioning from legacy open SSIDs to modern, policy-driven architectures leveraging Opportunistic Wireless Encryption (OWE), robust Network Access Control (NAC), and centralised Captive Portals, enterprises can mitigate security risks while unlocking powerful first-party data analytics via platforms like WiFi Analytics .

Technical Deep-Dive: Core Architectural Pillars

A secure guest WiFi architecture is built on three non-negotiable technical pillars: strict network segmentation, modern over-the-air encryption, and identity-aware access control.

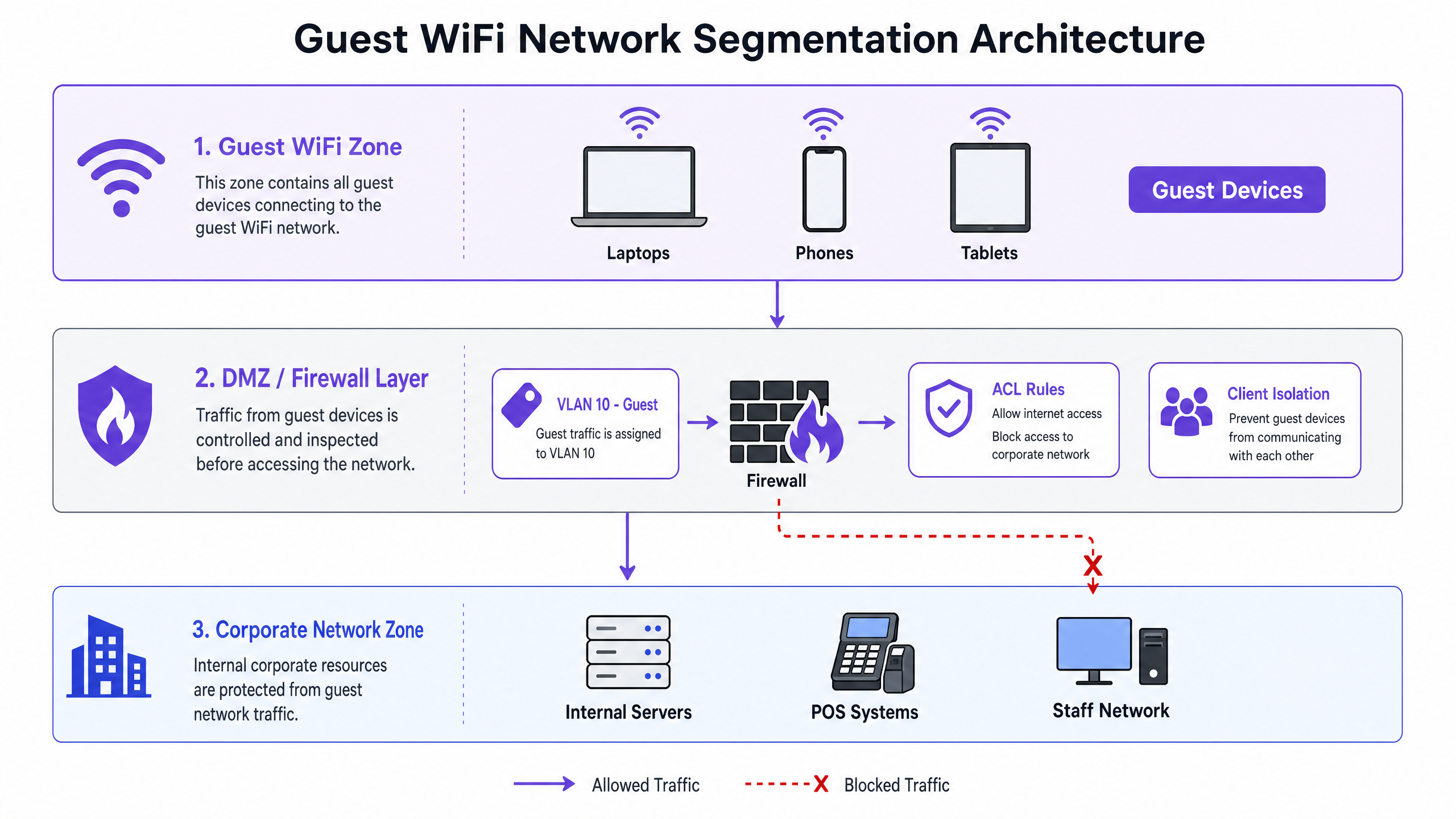

1. Network Segmentation and Layer 2/3 Isolation

The foundational security rule of guest networking is that guest traffic must be treated as untrusted and isolated at all times. This is achieved through a multi-layered segmentation strategy that operates at both Layer 2 (data link) and Layer 3 (network) of the OSI model.

Virtual Local Area Networks (VLANs) are the primary segmentation mechanism. Guest traffic must be mapped to a dedicated, non-routable VLAN (e.g., VLAN 10) at the Access Point (AP) level. This VLAN must be completely segregated from corporate, staff, and IoT VLANs. The VLAN boundary ensures that even if a guest device is compromised, the threat is contained within the guest segment.

At the Layer 3 gateway — typically a stateful firewall or a Layer 3 core switch — strict inbound and outbound Access Control Lists (ACLs) must be enforced. The critical rule is the "internet-only" ACL: all outbound traffic from the guest VLAN destined for RFC 1918 private IP ranges (10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16) must be explicitly blocked. Guest traffic is only permitted to reach public DNS servers and the public internet.

Client Isolation (also known as peer-to-peer blocking) must be enabled at the wireless controller or AP level. This prevents wireless clients on the same SSID from communicating with one another, mitigating the risk of lateral malware propagation and local packet sniffing between guest devices.

Layer 2 hardening on the switches carrying the guest VLAN should include:

Security Feature Function Threat Mitigated
DHCP Snooping Filters untrusted DHCP messages Rogue DHCP server attacks
Dynamic ARP Inspection (DAI) Validates ARP packets against DHCP bindings ARP spoofing / MITM attacks
IP Source Guard Binds client MACs to assigned IPs IP address spoofing
Port Security Limits MAC addresses per switch port MAC flooding attacks


2. Over-the-Air Encryption: The Shift to WPA3-OWE

Historically, guest networks were left open (no encryption) to eliminate user friction. However, unencrypted SSIDs expose all user traffic to passive eavesdropping — anyone within RF range with a packet analyser can capture every HTTP request, DNS query, and unencrypted session.

WPA3 Opportunistic Wireless Encryption (OWE), standardised under RFC 8110 and certified by the Wi-Fi Alliance as "Enhanced Open," solves this challenge. OWE performs a Diffie-Hellman key exchange during the 802.11 association process to establish a unique Pairwise Transient Key (PTK) for every client session. This provides:

  • Individualised Data Encryption: Complete protection against passive over-the-air eavesdropping.
  • Zero-Friction Access: No pre-shared key (PSK) or password is required for users to connect.
  • Forward Secrecy: Each session uses a unique key; compromising one session does not expose others.

For legacy devices that do not support WPA3, OWE Transition Mode can run a legacy open SSID and an OWE SSID on the same logical network simultaneously. WPA3-capable devices automatically associate with the encrypted OWE SSID, while legacy devices fall back to the open SSID. Transitioning to pure OWE is recommended as the long-term target state.

For a deeper technical exploration of WPA3 standards and deployment considerations, see the guide on How to Implement 802.1X Authentication with Cloud RADIUS .

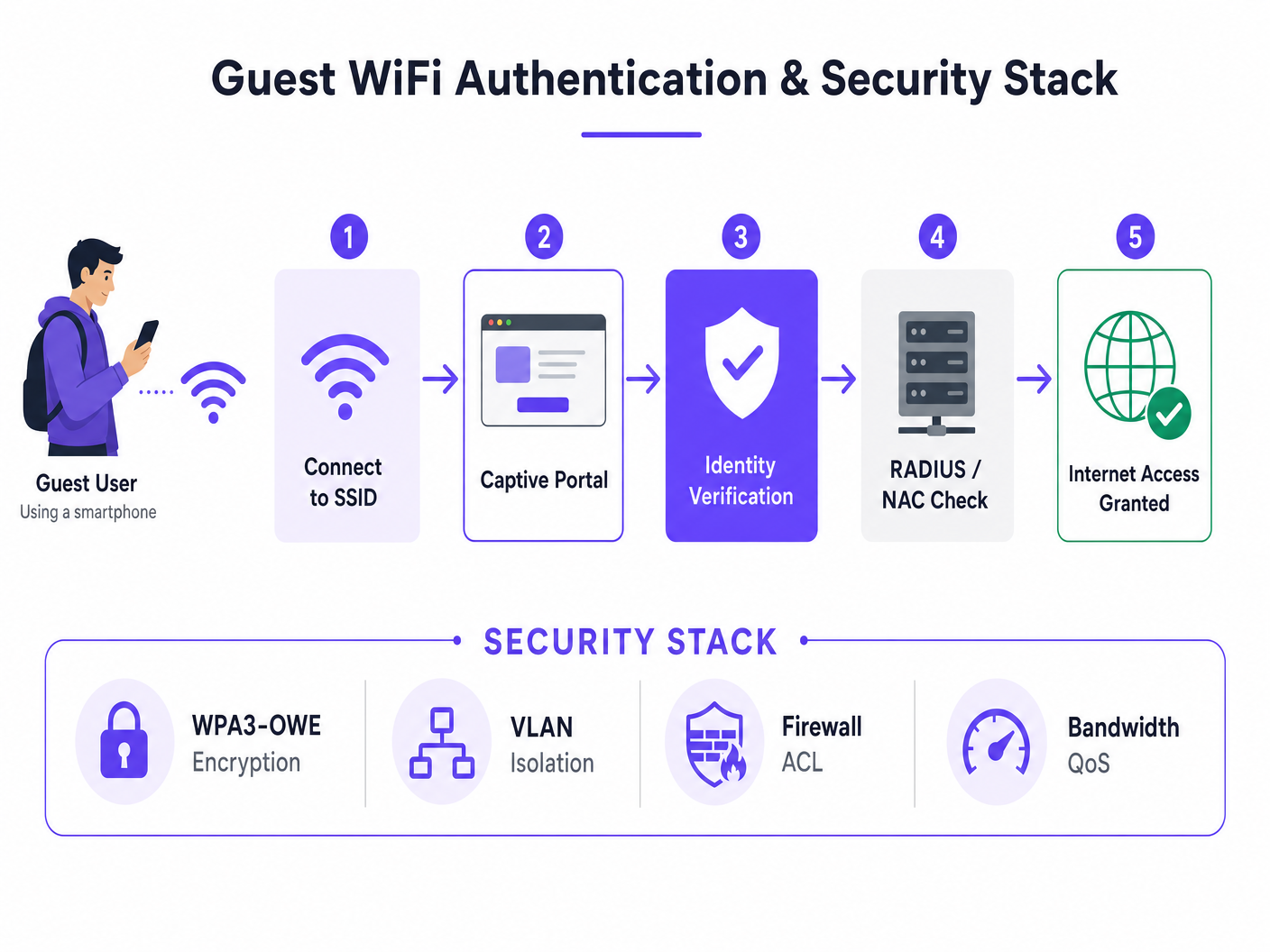

3. Identity-Aware Access Control and Captive Portals

While OWE encrypts the wireless medium, it does not verify user identity. A secure guest architecture requires an identity-binding layer, delivered via an enterprise-grade Captive Portal integrated with a Network Access Control (NAC) solution or a cloud-based guest WiFi platform.

The captive portal serves as the Policy Enforcement Point (PEP), performing the following functions:

  • Identity Association: Binds the device's MAC address to a verified identity via SMS OTP, email verification, social login, or corporate SSO.
  • Acceptable Use Policy (AUP) Enforcement: Requires users to agree to legal terms before receiving internet access.
  • GDPR Consent Collection: Captures explicit, informed consent for data processing and marketing communications.
  • Session Management: Enforces session timeouts, bandwidth throttling (QoS), and re-authentication intervals.


The captive portal must be served over HTTPS with a publicly trusted TLS certificate. A self-signed or internally issued certificate will trigger browser security warnings on modern devices, degrading user experience and undermining trust.

Implementation Guide: Step-by-Step Deployment Blueprint

Deploying a secure guest WiFi network requires coordinating configurations across Access Points, Wireless LAN Controllers (WLCs), Core Switches, Firewalls, and Cloud RADIUS servers.

Step 1: Configure the Guest VLAN and DHCP Scope

On your core switch or firewall, provision a dedicated VLAN and subnet for guest traffic. Size the subnet generously to account for MAC address randomisation on modern mobile devices (iOS 14+, Android 10+). For a 200-room hotel, a /22 subnet (1,022 usable addresses) is a reasonable minimum. Configure a short DHCP lease time (2 to 4 hours) to prevent IP address exhaustion.

Step 2: Implement Firewall ACLs

Configure stateful firewall rules at your perimeter security gateway to restrict the Guest VLAN. The following table defines the core rule set:

Source Destination Protocol / Port Action Description
Guest_Subnet 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16 Any DENY Block all private IP ranges (RFC 1918)
Guest_Subnet Corporate_Subnets Any DENY Explicit block to internal resources
Guest_Subnet Captive_Portal_IP TCP 443 ALLOW Allow redirect to authentication portal
Guest_Subnet Any (DNS) UDP/TCP 53 ALLOW Allow DNS resolution before authentication
Guest_Subnet Any (WAN) TCP 80, 443 ALLOW Allow web browsing post-authentication
Guest_Subnet Any Any DENY Default deny all other traffic

Step 3: Configure the SSID on the Wireless Controller

On your enterprise wireless platform (Cisco Catalyst, Aruba, Juniper Mist, or similar), configure the Guest SSID with the following parameters:

  • Security Type: WPA3-OWE (or OWE Transition Mode for legacy client compatibility)
  • VLAN Mapping: Map the SSID directly to the Guest VLAN
  • L2 Features: Enable Client Isolation / Peer-to-Peer Blocking
  • Captive Portal Integration: Configure RADIUS CoA (Change of Authorisation) pointing to your cloud NAC or guest WiFi platform

Step 4: Deploy and Configure the Captive Portal

Integrate your cloud captive portal with the RADIUS server. Ensure the portal:

  • Uses a publicly trusted TLS certificate (Let's Encrypt or a commercial CA)
  • Collects identity via email, SMS OTP, or social login
  • Presents GDPR-compliant consent checkboxes (un-ticked by default for marketing)
  • Logs MAC address, IP address, verified identity, and session timestamps to a centralised syslog server

For multi-site deployments in Retail or Hospitality environments, a cloud-managed captive portal ensures consistent policy enforcement across all locations without requiring per-site configuration.

Step 5: Enable Layer 2 Hardening and WIDS/WIPS

On all switches carrying the guest VLAN, enable DHCP Snooping, Dynamic ARP Inspection, and IP Source Guard. On the wireless controller, enable Wireless Intrusion Detection/Prevention (WIDS/WIPS) to detect and alert on rogue access points and evil twin attacks.

Real-World Case Studies

Case Study 1: Grand Plaza Hotels and Resorts (Hospitality)

The Challenge: A luxury resort group with 15 properties needed to replace its legacy, unencrypted guest WiFi. The existing system allowed guests to see each other's devices, violating privacy expectations, and lacked integration with their Property Management System (PMS), resulting in missed revenue opportunities from guest data capture.

The Solution: Grand Plaza deployed a secure guest WiFi architecture mapping guest traffic to isolated VLANs on Cisco Wireless APs . WPA3-OWE was implemented for over-the-air encryption, and Purple's Guest WiFi platform was integrated with their Oracle Opera PMS. Guests authenticate using their room number and surname, which is validated against the PMS in real time. Walk-in restaurant guests use a separate SSID on a separate VLAN with email-based authentication.

The Outcome:

  • 100% encryption of all guest wireless sessions, eliminating passive eavesdropping risk
  • 35% increase in guest email capture rates via the captive portal
  • Full GDPR compliance with automated consent logging and data deletion workflows
  • Seamless PCI DSS compliance through complete VLAN isolation of the POS network

Case Study 2: Metro Arena — High-Density Stadium Deployment

The Challenge: A 20,000-capacity sports and entertainment arena suffered from severe network congestion during events. Security teams had identified multiple instances of rogue access points operating during events, and the lack of network isolation posed a risk to the arena's ticketing and POS systems.

The Solution: The IT team implemented a high-density Wi-Fi 6 network with Dynamic VLAN Pooling, distributing 15,000 concurrent guest users across eight VLANs (VLAN 101 to 108) using MAC address hashing. Client isolation was enabled across all guest SSIDs. WIDS/WIPS was configured to automatically detect and alert on rogue APs. A cloud-managed captive portal enforced an Acceptable Use Policy and applied a 1.5 Mbps per-client bandwidth cap. Connection logs were streamed to a centralised SIEM for security monitoring.

The Outcome:

  • Zero security incidents reported over a 12-month period post-deployment
  • Peak throughput successfully managed across 15,000 concurrent users
  • Rogue AP detection alerts triggered and resolved within minutes during events
  • Visitor insights generated via WiFi Analytics enabled targeted concession marketing, contributing to a 12% increase in in-venue spend

Standards, Compliance, and Best Practices

Compliance must be designed into the logical topology, not added as an afterthought. The following standards are directly applicable to enterprise guest WiFi deployments.

PCI DSS v4.0 — Requirement 1.2

If your venue processes credit card payments — retail POS, hotel reception, concession stands — your network must comply with PCI DSS Requirement 1.2, which mandates that network security controls restrict inbound and outbound traffic to only that which is necessary. The guest WiFi network must be completely isolated from the Cardholder Data Environment (CDE). This isolation must be verified through annual penetration testing, not merely assumed based on firewall rule configuration.

GDPR — Articles 5, 6, and 17

Under GDPR, the lawful basis for processing guest WiFi data is typically consent (Article 6(1)(a)). This requires that consent be freely given, specific, informed, and unambiguous. Practically, this means:

  • Marketing opt-in checkboxes on the captive portal must be un-ticked by default
  • The privacy notice must clearly explain what data is collected, how it is used, and how long it is retained
  • Guests must be able to exercise their right to erasure (Article 17) via a clear, automated mechanism

IEEE 802.11 and Wi-Fi Alliance Standards

Standard Relevance
IEEE 802.11ax (Wi-Fi 6) High-density performance; BSS Colouring for interference reduction
WPA3 / OWE (RFC 8110) Mandatory for modern guest network encryption
IEEE 802.1X Enterprise authentication for staff networks; not typically used for guest access
IEEE 802.11w (PMF) Protected Management Frames; prevents deauthentication attacks

For environments where staff and guest networks coexist, the guide on How to Implement 802.1X Authentication with Cloud RADIUS provides detailed configuration guidance for the staff network side of the architecture.

Troubleshooting and Risk Mitigation

Issue 1: Captive Portal Redirect Failure

Symptom: Guests connect to the SSID but the captive portal page fails to load.

Root Causes and Mitigations:

  • DNS Blocking Before Authentication: The gateway must permit DNS queries (UDP/TCP 53) to public resolvers before the user authenticates. Without DNS, the device cannot resolve the portal hostname.
  • HTTPS Redirect Interception: Modern browsers enforce HTTPS Strict Transport Security (HSTS) on known domains. The captive portal redirect must intercept HTTP (port 80) traffic, not HTTPS. Ensure the gateway is configured to intercept HTTP and redirect to the portal URL.
  • Untrusted TLS Certificate: The portal must use a certificate signed by a globally trusted CA. Devices running iOS or Android will block connections to portals with self-signed certificates.

Issue 2: IP Address Exhaustion Due to MAC Randomisation

Symptom: The guest VLAN DHCP pool is exhausted despite a low number of active users.

Root Cause: iOS 14+ and Android 10+ randomise MAC addresses by default. Each reconnection may present a new MAC address, consuming a new DHCP lease.

Mitigation: Reduce DHCP lease time to 2 to 4 hours. Expand the guest subnet (minimum /22 for medium-density venues). Implement Dynamic VLAN Pooling for high-density environments.

Issue 3: Bandwidth Abuse and Network Saturation

Symptom: Guest network performance degrades during peak periods, affecting all users.

Mitigation: Implement per-client QoS bandwidth limits (e.g., 2 Mbps download / 512 Kbps upload). Use application-layer filtering on the gateway to block P2P torrenting. Configure aggregate bandwidth caps per SSID to protect the overall internet uplink.

Issue 4: Rogue Access Point Attacks

Symptom: Guests report being redirected to unexpected login pages, or security monitoring detects duplicate SSIDs.

Mitigation: Enable WIDS/WIPS on the wireless controller. Configure automatic alerts for SSIDs matching your guest network name. In Transport and Healthcare environments where physical security is harder to enforce, WIPS containment (automatically deauthenticating clients from rogue APs) should be considered.

ROI and Business Impact

Implementing a secure, enterprise-grade guest WiFi architecture is not merely a cost centre; it delivers measurable financial and operational returns.

Risk Mitigation Value

The average cost of an enterprise data breach now exceeds $4.4 million. By implementing strict VLAN segmentation and blocking lateral movement, an organisation ensures that even if a guest device is compromised, the threat is entirely contained within the guest VLAN. The corporate network, POS systems, and sensitive data remain secure.

First-Party Data and Revenue Generation

When integrated with a cloud analytics platform, a secure guest network becomes a powerful revenue generator. Organisations across Retail , Hospitality , and Transport sectors are using guest WiFi data to:

  • Understand visitor demographics, dwell times, and return visit rates
  • Send personalised offers to guests based on real-time location and visit history
  • Optimise staffing and venue layouts using real-time footfall heatmaps from WiFi Analytics

Compliance Cost Avoidance

GDPR fines can reach up to 4% of global annual turnover. PCI DSS non-compliance can result in fines of $5,000 to $100,000 per month. A properly architected guest network, with automated consent management and complete CDE isolation, directly mitigates these financial risks.

For organisations managing WiFi in educational settings, the principles of secure guest architecture are equally applicable — see WiFi in Schools: The 2026 Administrator & IT Guide for sector-specific guidance.

References

  1. IETF. RFC 8110: Opportunistic Wireless Encryption. https://datatracker.ietf.org/doc/html/rfc8110
  2. PCI Security Standards Council. PCI DSS v4.0. https://www.pcisecuritystandards.org/
  3. European Parliament. GDPR — Regulation (EU) 2016/679. https://gdpr-info.eu/

Key Definitions

Opportunistic Wireless Encryption (OWE)

A Wi-Fi standard (RFC 8110, Wi-Fi Alliance 'Enhanced Open') that provides individualised data encryption between a client and an Access Point without requiring a password or pre-shared key, using a Diffie-Hellman key exchange during the association process.

Encountered when deploying WPA3 guest networks to replace legacy unencrypted open SSIDs. The primary modern standard for guest network over-the-air security.

Network Segmentation

The architectural practice of splitting a computer network into smaller, isolated subnetworks (VLANs) to improve security, performance, and manageability by limiting the blast radius of a security incident.

The primary defence mechanism used to keep guest WiFi traffic completely separate from corporate data, payment systems, and staff networks.

Client Isolation

A setting on wireless access points or controllers that prevents wireless clients connected to the same SSID from communicating directly with each other at Layer 2.

Crucial for guest networks to block lateral movement of malware and prevent malicious users from scanning or attacking other visitors' devices on the same wireless network.

DHCP Snooping

A Layer 2 security feature on network switches that acts as a firewall between untrusted hosts and trusted DHCP servers, filtering untrusted DHCP messages and building a binding table of valid MAC-to-IP-to-port mappings.

Enabled on enterprise switches to prevent rogue DHCP server attacks on the guest VLAN, which could redirect user traffic to an attacker-controlled gateway.

Captive Portal

A web page displayed to newly connected WiFi users before they are granted broader network access, used for authentication, identity binding, Acceptable Use Policy acceptance, and GDPR consent collection.

Serves as the primary identity gateway and legal policy enforcement point for guest networks. Must be served over HTTPS with a publicly trusted TLS certificate.

Network Access Control (NAC)

A security solution that enforces policies, checks device posture, and manages authentication and authorisation before granting network access, typically integrating with RADIUS servers and identity providers.

Used in enterprise guest networks to integrate captive portals with backend identity providers, enforce session policies, and provide dynamic VLAN assignment.

Cardholder Data Environment (CDE)

Under PCI DSS, the people, processes, and technologies that store, process, or transmit cardholder data or sensitive authentication data, including POS terminals, payment servers, and associated network segments.

The guest WiFi network must be completely isolated from the CDE to maintain PCI DSS compliance. This isolation must be verified through annual penetration testing.

Dynamic VLAN Assignment

A technique where a RADIUS server or NAC solution dynamically assigns a connecting client to a specific VLAN based on their credentials, device type, or a hash of their MAC address, rather than using a static port-to-VLAN mapping.

Used in high-density guest networks to distribute thousands of users across multiple smaller VLANs, preventing IP address exhaustion and reducing broadcast domain sizes.

WIDS/WIPS (Wireless Intrusion Detection/Prevention System)

A system that monitors the RF spectrum for unauthorised wireless activity, including rogue access points, evil twin attacks, deauthentication floods, and other wireless-layer threats.

Deployed on enterprise wireless controllers to detect and alert on (WIDS) or actively contain (WIPS) rogue access points and wireless attacks in public venues.

Worked Examples

A 200-room luxury hotel wants to deploy a secure guest WiFi network that integrates with their Property Management System (PMS) to authenticate guests using their room number and last name. They also have a restaurant and a spa open to non-hotel guests, who should authenticate via email. The hotel operates a PCI-compliant network for its reception desk and POS systems. How should the network be architected?

The network architect designs a dual-SSID architecture mapped to separate VLANs on a cloud-managed wireless controller. SSID 1 ('Hotel-Guest') is configured with WPA3-OWE transition mode and mapped to VLAN 10. It uses a captive portal integrated via API with the hotel's Oracle Opera PMS — when a guest connects, the portal validates their room number and surname against the PMS database in real time before granting access. SSID 2 ('Restaurant-Guest') is mapped to VLAN 11 and uses a captive portal requiring email verification. The core switch is configured with Layer 3 ACLs on VLAN 10 and 11 that block all traffic to VLAN 50 (Staff/Reception) and VLAN 60 (POS CDE). Client isolation is enabled on both SSIDs. DHCP Snooping and Dynamic ARP Inspection are enabled on all switches carrying VLANs 10 and 11. The gateway firewall restricts guest bandwidth to 3 Mbps download per user. Centralised logging captures MAC address, IP, verified identity, and session timestamps to a cloud syslog server for GDPR compliance.

Examiner's Commentary: This design correctly addresses multiple security and operational requirements simultaneously. Separating hotel guests and walk-in visitors into distinct VLANs (10 and 11) allows different authentication methods and QoS profiles to be applied per segment. The Layer 3 ACLs on the core switch ensure strict isolation from the Cardholder Data Environment (VLAN 60), which is a hard requirement for PCI DSS Requirement 1.2. Integrating the guest portal with the PMS via secure APIs ensures only registered guests can access high-speed internet, preventing unauthorised bandwidth consumption. Enabling client isolation at the AP level protects guests from lateral attacks by other connected devices. The centralised logging architecture satisfies GDPR accountability requirements.

A multi-site retail chain with 50 stores wants to implement a secure guest WiFi network. They want to capture visitor emails for marketing campaigns, track store footfall, and ensure that store POS systems and security cameras are completely protected. Each store has a single broadband connection and a local firewall/router. How should this be deployed at scale?

At each retail location, a cloud-managed security gateway and enterprise access points are deployed. A dedicated Guest SSID ('Store-WiFi') is configured and mapped to VLAN 20. The local firewall is configured with an internet-only ACL for VLAN 20, explicitly blocking all traffic to VLAN 10 (POS/Backoffice) and VLAN 30 (IP Cameras). A cloud-based captive portal is configured for the Guest SSID, requiring email opt-in with GDPR-compliant consent checkboxes. The APs are configured with client isolation and rogue AP detection (WIPS). Centralised logging is configured, sending connection logs (MAC address, IP, timestamp, email) to a secure cloud syslog server. The cloud management platform pushes consistent VLAN and ACL configurations to all 50 locations, eliminating per-site manual configuration. Bandwidth is capped at 2 Mbps per client to protect the shared broadband connection.

Examiner's Commentary: This multi-site architecture leverages cloud management to ensure consistent policy enforcement across all 50 locations — a critical operational requirement for retail chains where local IT expertise may be limited. The separation of POS (VLAN 10) and cameras (VLAN 30) from the guest network (VLAN 20) is essential for securing critical store operations and maintaining PCI DSS compliance. The use of a cloud-managed captive portal simplifies GDPR compliance, as user consent and data retention are handled by a specialised platform rather than stored locally on individual store routers. Centralised logging ensures the business can respond to legal or security inquiries regarding guest network usage across all sites.

A large public-sector conference centre hosting events with up to 10,000 concurrent users needs a highly secure, high-density guest WiFi network. They require that all guest traffic be encrypted over-the-air, that users agree to an Acceptable Use Policy, and that the network can dynamically scale to prevent IP address exhaustion during peak times. What architecture should be recommended?

The network architect deploys a high-density Wi-Fi 6 wireless network. The Guest SSID is configured with WPA3-OWE to provide individual over-the-air encryption without a shared key. To prevent IP address exhaustion, Dynamic VLAN Pooling is implemented: guest clients are distributed across eight VLANs (VLAN 101 to 108) using a hash of their MAC address, each with a /22 subnet providing 1,022 usable addresses per VLAN — a total capacity of over 8,000 concurrent IP leases. DHCP lease times are set to 1 hour. The captive portal is hosted on a cloud-based NAC platform, which enforces an Acceptable Use Policy and redirects users after 8 hours of continuous connection. Client isolation is enabled across all VLANs. Bandwidth is capped at 1.5 Mbps per client. WIDS/WIPS is enabled with automatic alerts for rogue AP detection.

Examiner's Commentary: In a high-density public environment, over-the-air security and IP address management are the primary architectural challenges. Implementing WPA3-OWE is the gold standard for this use case, providing strong encryption for thousands of unmanaged devices without the administrative overhead of distributing a password. The combination of a short 1-hour DHCP lease time and Dynamic VLAN Pooling prevents IP address exhaustion, which is a common failure mode in large venues. Distributing clients across multiple VLANs also reduces broadcast domain sizes, improving overall wireless performance and reducing the impact of broadcast storms. The cloud-based captive portal provides scalable AUP enforcement without requiring local infrastructure at the venue.

Practice Questions

Q1. A hotel's IT manager reports that several guests are complaining they cannot access the guest WiFi. Upon investigation, you discover that the guest VLAN's DHCP pool is completely exhausted, even though there are only 50 guests currently in the hotel. The DHCP scope is a /24 subnet with a 24-hour lease time. What is the most likely cause, and what architectural changes should be made?

Hint: Consider the impact of modern mobile operating systems on MAC addresses and the relationship between DHCP lease times and IP address consumption.

View model answer

The most likely cause is MAC address randomisation. iOS 14+ and Android 10+ randomise MAC addresses by default, meaning each time a guest's device reconnects (or the OS rotates its MAC), it appears as an entirely new device to the DHCP server and consumes a new IP address. With a 24-hour lease time, exhausted addresses are not reclaimed quickly enough. The recommended fixes are: (1) Reduce the DHCP lease time to 2 to 4 hours to reclaim addresses from disconnected devices more rapidly. (2) Expand the subnet from a /24 (254 addresses) to at least a /22 (1,022 addresses) to provide adequate headroom. (3) For high-density environments, implement Dynamic VLAN Pooling to distribute clients across multiple VLANs, each with its own DHCP scope.

Q2. During a PCI DSS audit, an assessor flags the guest WiFi network because a device connected to the guest SSID can successfully ping the gateway IP address of the POS VLAN (e.g., 10.50.0.1), even though it cannot ping the POS terminals themselves. The IT team argues this is acceptable because the POS devices are protected. Is this a valid compliance finding, and what change is required?

Hint: PCI DSS Requirement 1.2 requires that network security controls restrict inbound and outbound traffic to only that which is necessary. Consider whether the gateway IP of the CDE is within scope.

View model answer

Yes, this is a valid and significant compliance finding. The ability to ping the CDE gateway IP indicates that the guest VLAN has Layer 3 routing access to the POS VLAN interface, which is a violation of PCI DSS Requirement 1.2. Even if POS terminals are individually protected, the gateway IP exposure creates a risk surface for denial-of-service attacks against the POS network gateway and potentially for exploiting vulnerabilities in the gateway device itself. The required fix is to add an explicit ACL rule on the firewall or core switch that blocks all traffic from the Guest VLAN destined for any internal VLAN interface IP, including gateway addresses. The guest VLAN should only be permitted to route to its own gateway IP and public WAN destinations.

Q3. A stadium network architect is planning a guest WiFi deployment for 15,000 concurrent users during events. They want all user sessions to be encrypted over-the-air without requiring users to enter a password. Which encryption standard should be deployed, and what is the key client-side compatibility consideration that must be addressed in the deployment plan?

Hint: Look at the WPA3 standard family for a technology that encrypts open networks without a shared password, and consider the installed base of legacy devices at a public venue.

View model answer

The architect should deploy WPA3 Opportunistic Wireless Encryption (OWE), also known as Wi-Fi Certified Enhanced Open. OWE provides individualised over-the-air encryption without requiring a password, using a Diffie-Hellman key exchange during the association process. The key client-side compatibility consideration is that legacy devices — older smartphones and laptops running pre-2019 operating systems — do not support WPA3-OWE. In a public venue with a diverse and uncontrolled device population, this is a significant practical constraint. The mitigation is to configure the wireless controller in OWE Transition Mode, which broadcasts both a legacy open SSID and an OWE SSID under the same network name. WPA3-capable devices automatically connect to the encrypted OWE SSID, while legacy devices fall back to the open SSID. The long-term target state is pure OWE as legacy device penetration declines.

Continue reading in this series

How to Implement Time and Bandwidth Restrictions on Guest WiFi

An authoritative technical reference guide on implementing time and bandwidth restrictions on enterprise guest WiFi networks. This guide provides actionable architectural blueprints, vendor-neutral configurations, and real-world case studies to help IT leaders balance network performance, security compliance, and visitor experience.

Read the guide →

How to Implement Time and Bandwidth Restrictions on Guest WiFi

An authoritative technical reference guide on implementing time and bandwidth restrictions on enterprise guest WiFi networks. This guide provides actionable architectural blueprints, vendor-neutral configurations, and real-world case studies to help IT leaders balance network performance, security compliance, and visitor experience.

Read the guide →

Monetising Guest WiFi Through Data Analytics and Splash Pages

This authoritative guide provides IT managers, network architects, and CTOs with a comprehensive technical framework for transforming guest WiFi from a cost centre into a high-yield first-party data asset. It outlines network architecture, data analytics integration, captive portal optimisation, and global compliance strategies to drive measurable venue revenue.

Read the guide →
