WiFi Repeater vs. Extender: Enterprise Use Cases

This technical reference guide provides a definitive comparison between WiFi repeaters and extenders for enterprise environments. It equips IT managers and network architects with the decision frameworks needed to deploy the right hardware for specific venue requirements, ensuring optimal performance, compliance, and ROI.

📖 4 min read📝 813 words🔧 2 worked examples❓ 3 practice questions📚 8 key definitions

Listen to this guide

View podcast transcript

Welcome to the Enterprise Infrastructure Briefing. I'm your host, and today we're tackling a persistent point of confusion in network design: the difference between WiFi repeaters and WiFi extenders, specifically in the context of enterprise deployments.

Now, in the consumer market, these terms are often thrown around interchangeably. But for IT managers, network architects, and venue operations directors, understanding the architectural distinction is critical. Making the wrong choice here doesn't just mean a slightly slower Netflix stream; it means dropped Point of Sale transactions, failed compliance audits, and useless location analytics.

Let's start with the definitions. A WiFi repeater is exactly what it sounds like. It listens for an existing wireless signal from your primary router, and it rebroadcasts it. It operates entirely wirelessly.

An enterprise WiFi extender, which we should accurately call an Access Point or AP, connects back to your core network via a physical cable—usually Cat6 Ethernet. It takes that wired connection and creates a fresh wireless signal.

So, why does this matter? It comes down to the backhaul and the half-duplex penalty.

Imagine a repeater as a translator in a meeting who only speaks one language at a time. They have to listen to the speaker, pause, and then repeat the message to the audience. They cannot listen and speak simultaneously. This is half-duplex communication. Because a standard repeater uses the same radio to talk to the router and talk to the client device, your available bandwidth is immediately cut in half.

In a high-density environment—say, a stadium or a busy retail floor—this is catastrophic. You introduce massive latency, and the network quickly collapses under the load.

An Access Point, on the other hand, is like a dedicated express lane. Because the backhaul to the router is handled by the physical Ethernet cable, the AP can dedicate 100% of its wireless radio capacity to serving the client devices. You get full throughput, lower latency, and significantly higher device capacity.

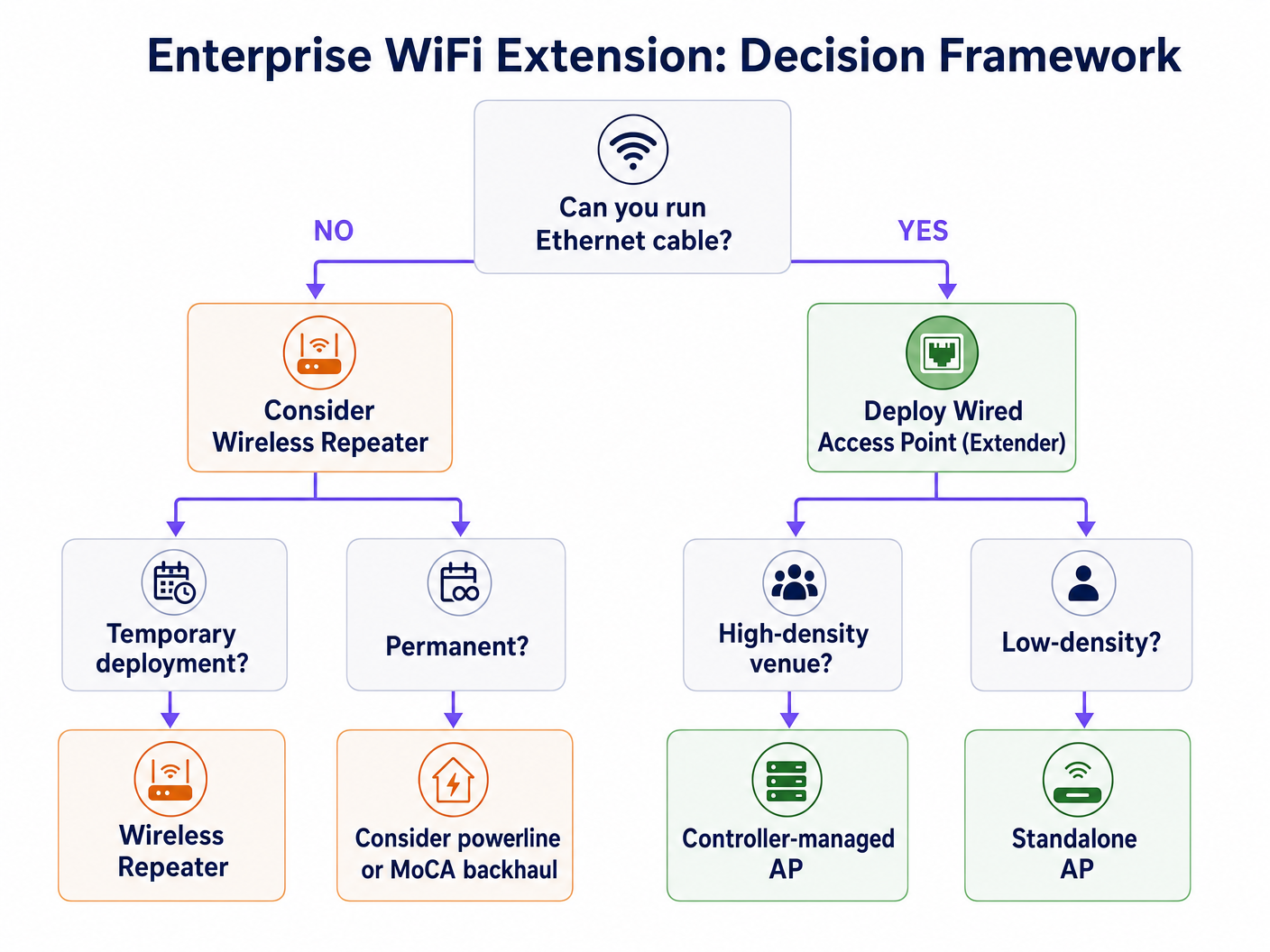

Let's look at implementation. When should you use which?

The rule of thumb is: Wired for Work, Wireless for Waiting.

If you are deploying infrastructure for a hospital, a large retail chain, or a corporate campus, you must deploy wired Access Points. This is non-negotiable. Not only for the throughput, but for management and security. APs allow you to deploy multiple SSIDs, implement strict VLAN segregation—which is mandatory for PCI DSS compliance if you're handling payments—and utilize robust authentication like 802.1X.

Furthermore, if you are leveraging a platform like Purple for Guest WiFi and location analytics, wired APs are essential. Analytics platforms rely on accurate RSSI—Received Signal Strength Indicator—data to calculate where a device is in the venue. Repeaters obscure this data. They act as a middleman, confusing the analytics engine. If you want accurate heatmapping, you need wired APs.

So, is there ever a use case for a repeater in the enterprise?

Rarely, but yes. They are acceptable for temporary deployments—like a pop-up stand where running cable is prohibited. They can also be used as a last resort in heritage buildings where drilling for Ethernet is illegal. However, even in those scenarios, you should first explore advanced mesh networks with dedicated wireless backhaul bands, or utilizing existing coaxial cables with MoCA adapters, before falling back on standard repeaters.

Let's quickly touch on a common pitfall: The Sticky Client problem.

Even with a great AP deployment, devices sometimes hold onto a weak signal from a distant AP rather than roaming to a closer one. To mitigate this, ensure your controller and APs are configured to support 802.11k, v, and r standards. These protocols help the network actively manage client hand-offs, ensuring seamless roaming as a user walks through your venue.

To summarize: Don't let consumer marketing terms dictate your enterprise architecture. A repeater rebroadcasts a wireless signal and halves your bandwidth. An extender, or Access Point, uses a wired backhaul to deliver full capacity. For security, compliance, and advanced analytics, the wired Access Point is the only viable choice for the modern enterprise.

Thank you for listening to this briefing. Be sure to review the full technical guide for detailed decision frameworks and deployment diagrams.

Executive Summary

Für Enterprise-Standorte – von hochfrequentierten Stadien bis hin zu weitläufigen Verkaufsflächen – ist die Entscheidung zwischen dem Einsatz eines WiFi-Repeaters und eines WiFi-Extenders (Access Point) eine kritische Infrastrukturentscheidung. Obwohl diese Technologien im Consumer-Markt oft synonym verwendet werden, repräsentieren sie grundlegend unterschiedliche Netzwerkarchitekturen. Ein WiFi-Repeater erfasst und sendet ein bestehendes Signal erneut, was den Durchsatz inhärent halbiert. Im Gegensatz dazu bietet ein WiFi-Extender, der als kabelgebundener Access Point fungiert, eine dedizierte Verbindung zum Kernnetzwerk und gewährleistet so die Bereitstellung der vollen Bandbreite. Dieser Leitfaden bietet einen tiefen technischen Einblick in beide Architekturen und stattet IT-Verantwortliche mit den notwendigen Frameworks aus, um Bereitstellungen zu optimieren, Compliance-Anforderungen (wie PCI DSS und GDPR) einzuhalten und den ROI durch robuste Konnektivität zu maximieren.

Technischer Deep-Dive: Architektur und Standards

Das Verständnis der physischen und logischen Schichten dieser Geräte ist für das Design von Enterprise-Netzwerken unerlässlich.

Die WiFi-Repeater-Architektur

Ein WiFi-Repeater arbeitet vollständig drahtlos. Er enthält zwei Funkeinheiten (oder manchmal nur eine, die im Halbduplex-Modus arbeitet). Er verbindet sich über WiFi mit dem primären Router und sendet gleichzeitig an Client-Geräte.

Da er dieselbe Funkeinheit verwenden muss, um sowohl Daten vom Router zu empfangen als auch Daten an den Client zu übertragen, wird die verfügbare Bandbreite effektiv halbiert. Dies wird als Halbduplex-Nachteil bezeichnet. In Umgebungen mit hoher Dichte ist dieser Latenz- und Durchsatzverlust inakzeptabel.

Die WiFi-Extender- (Access Point) Architektur

Ein echter Enterprise-WiFi-Extender ist ein Access Point (AP). Er verbindet sich über ein physisches Ethernet-Kabel (Cat6 oder besser) mit dem Kernnetzwerk, wobei häufig Power over Ethernet (PoE) für eine optimierte Bereitstellung genutzt wird.

Durch die Verwendung eines kabelgebundenen Backhauls widmet der AP seine gesamte drahtlose Kapazität der Versorgung von Client-Geräten. Diese Architektur unterstützt hohen Durchsatz, nahtloses Roaming (unter Verwendung von Standards wie IEEE 802.11r/k/v) und robuste Sicherheitsprotokolle wie WPA3-Enterprise und 802.1X-Authentifizierung.

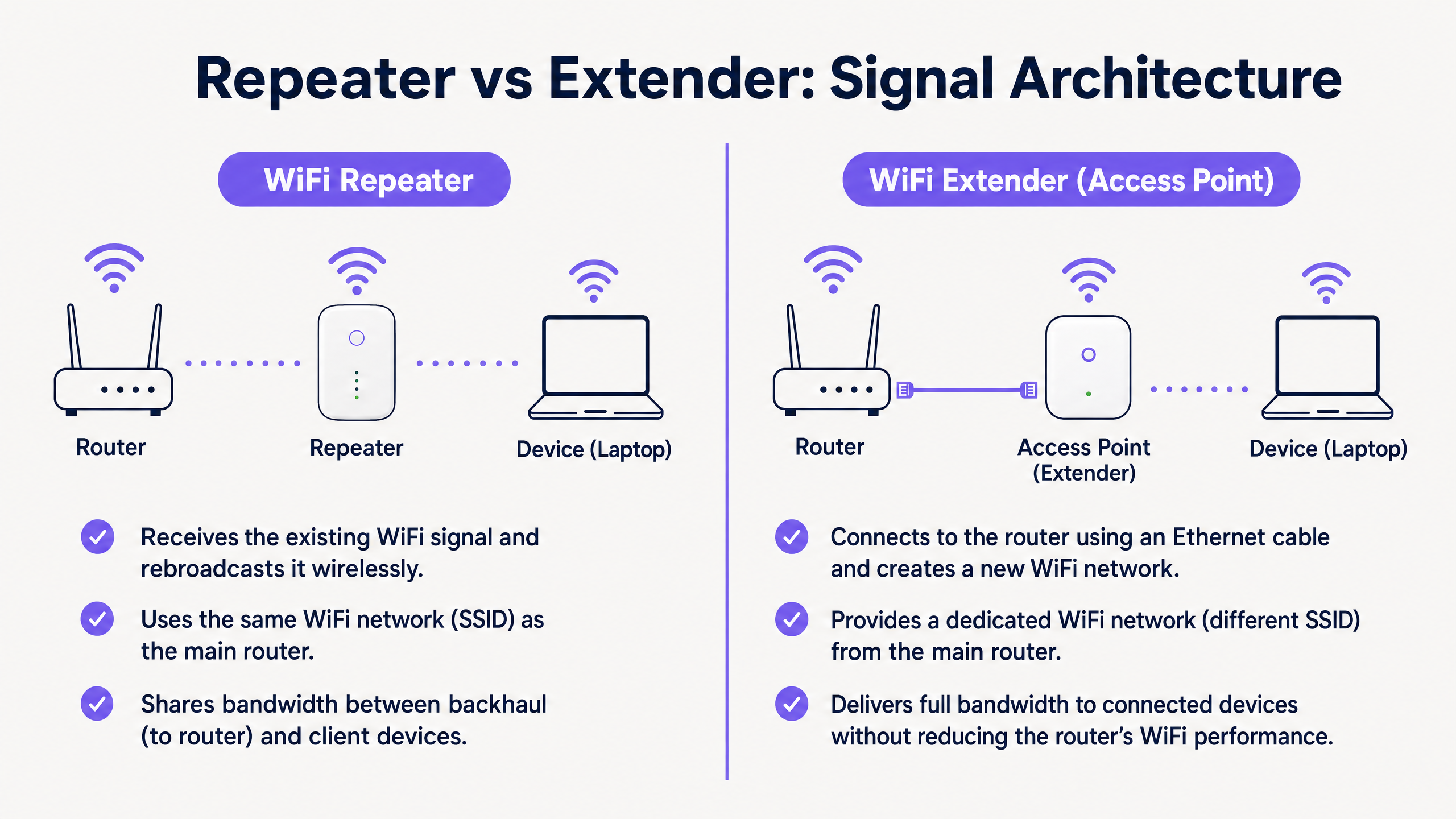

Die wichtigsten Unterschiede auf einen Blick

Feature	WiFi-Repeater	WiFi-Extender (Access Point)
Backhaul	Drahtlos	Kabelgebunden (Ethernet)
Durchsatz	Halbiert (Halbduplex)	Volle Kapazität
SSID	Meist identisch mit Primär-SSID	Kann identisch oder separat sein
Latenz	Hoch	Niedrig
Enterprise-Eignung	Nur temporär/geringe Dichte	Permanent/hohe Dichte

Implementierungsleitfaden

Bei der Planung des Netzwerks für einen gewerblichen Standort bestimmt die physische Umgebung die Hardware-Auswahl.

Szenario 1: Das High-Density-Stadion

In einem Stadion erfordern Tausende von gleichzeitigen Verbindungen maximalen Durchsatz. Der Einsatz von Repeatern würde hier aufgrund von Co-Kanal-Interferenzen und dem Half-Duplex-Nachteil zu einem sofortigen Netzwerkkollaps führen.

Empfehlung: Setzen Sie kabelgebundene Access Points (Extender) in einer High-Density-Konfiguration ein. Nutzen Sie Richtantennen und sorgen Sie für ein robustes kabelgebundenes Backhaul. Diese Infrastruktur ist entscheidend für die Unterstützung fortschrittlicher WiFi Analytics und standortbasierter Dienste.

Szenario 2: Das historische Hotel

In einem denkmalgeschützten Hotel, in dem das Verlegen neuer Ethernet-Kabel physisch unmöglich oder rechtlich eingeschränkt ist, stellt die traditionelle AP-Bereitstellung eine Herausforderung dar.

Empfehlung: Ein Wireless-Repeater mag zwar attraktiv erscheinen, ist aber für die Erwartungen der Gäste oft unzureichend. Erwägen Sie fortschrittliche Mesh-Systeme mit dedizierten Wireless-Backhaul-Bändern oder die Nutzung der vorhandenen Koaxial-Infrastruktur (MoCA), um ein kabelgebundenes Backhaul zu lokalen APs bereitzustellen. Wenn Sie Repeater verwenden müssen, stellen Sie sicher, dass diese strategisch am Rand des primären Signalbereichs platziert werden und nicht in Funklöchern. Lesen Sie mehr unter How To Improve Guest Satisfaction: The Ultimate Playbook .

Best Practices und Integration

Unabhängig von der gewählten Hardware wird der geschäftliche Nutzen erst durch die übergeordnete Management-Plattform realisiert.

Hardware-agnostisches Management: Stellen Sie sicher, dass Ihre Analytics- und Captive Portal-Lösungen hardware-agnostisch sind. Die Plattform von Purple lässt sich nahtlos in die Systeme führender Anbieter (Cisco, Aruba, Meraki) integrieren. So können Sie APs und Repeater je nach den Anforderungen der physischen Umgebung flexibel kombinieren, ohne die Transparenz zu verlieren.
Nahtlose Authentifizierung: Implementieren Sie robuste Authentifizierungsmechanismen. Die profilbasierte Authentifizierung wie OpenRoaming (bei der Purple als kostenloser Identity Provider unter der Connect-Lizenz fungiert) bietet Benutzern einen sicheren, reibungslosen Zugang und gewährleistet gleichzeitig Sicherheit auf Enterprise-Niveau. Erfahren Sie mehr darüber, How a wi fi assistant Enables Passwordless Access in 2026 .
Datensegregation: Trennen Sie in Umgebungen für den Retail und die Hospitality den Guest WiFi -Traffic strikt vom betrieblichen Traffic (z. B. Kassensysteme) mittels VLANs, um die PCI-DSS-Compliance zu wahren.

Fehlerbehebung & Risikominimierung

Das „Sticky Client“-Problem: Geräte halten oft an einem schwachen Signal eines entfernten APs fest, anstatt zu einem näher gelegenen zu wechseln. Stellen Sie sicher, dass Ihre Infrastruktur 802.11k/v unterstützt, um das Client-Roaming aktiv zu steuern.
Co-Kanal-Interferenzen: Repeater, die auf demselben Kanal wie der primäre Router senden, erhöhen das Rauschen. Eine sorgfältige Kanalplanung ist unerlässlich.
Sicherheitslücken: Repeater verfügen oft nicht über Sicherheitsfunktionen der Enterprise-Klasse. Stellen Sie sicher, dass alle Geräte WPA3 unterstützen und in Ihren zentralen RADIUS-Server integriert werden können.

ROI & geschäftliche Auswirkungen

Die Investition in die richtige Infrastruktur wirkt sich direkt auf das Geschäftsergebnis aus. Ein robustes, kabelgebundenes AP-Netzwerk ermöglicht fortschrittliche Standortanalysen. Das Verständnis der Heatmapping vs Presence Analytics: Technical Differences ermöglicht es Veranstaltungsorten, Raumlayouts und den Personaleinsatz zu optimieren. Darüber hinaus ist eine stabile Verbindung die Grundvoraussetzung für die Monetarisierung des Netzwerks durch Retail Media und zielgerichtete Kundenansprache.

Key Definitions

Half-Duplex

A communication mode where data can flow in both directions, but only one direction at a time.

This is the primary technical limitation of standard WiFi repeaters, resulting in halved throughput.

Backhaul

The connection between the access point/repeater and the core network router.

A wired backhaul (Ethernet) provides full capacity, while a wireless backhaul shares the radio spectrum with client devices.

SSID (Service Set Identifier)

The public name of a wireless network.

Repeaters often clone the primary SSID, while extenders can broadcast the same or a distinct SSID depending on the roaming configuration.

802.11r/k/v

A set of IEEE standards that facilitate fast and seamless roaming of client devices between different access points.

Essential for enterprise environments to prevent the 'sticky client' problem where devices cling to a weak signal.

PoE (Power over Ethernet)

A technology that allows network cables to carry electrical power.

Crucial for deploying wired access points in ceilings or high walls without requiring a separate electrical outlet.

RSSI (Received Signal Strength Indicator)

A measurement of the power present in a received radio signal.

Critical data point used by platforms like Purple for location analytics and heatmapping.

VLAN (Virtual Local Area Network)

A logical subnetwork that groups a collection of devices on a single physical LAN.

Mandatory for segregating guest traffic from operational traffic to maintain security and compliance (e.g., PCI DSS).

Mesh Network

A network topology where nodes connect directly, dynamically and non-hierarchically to as many other nodes as possible.

An advanced alternative to simple repeaters, often utilizing a dedicated radio band for the wireless backhaul to maintain throughput.

Worked Examples

A 200-room heritage hotel needs to provide seamless WiFi coverage. Running new Ethernet cables to the guest rooms is prohibited due to the building's listed status. The current setup uses standard wireless repeaters in the hallways, resulting in poor speeds and frequent disconnects.

Conduct a comprehensive RF site survey to identify existing signal propagation and dead zones.
Abandon the standard wireless repeaters, as the half-duplex penalty is exacerbating the poor performance.
Implement a managed mesh WiFi system that utilizes a dedicated, discrete 5GHz or 6GHz radio exclusively for wireless backhaul between nodes.
Where possible, leverage existing coaxial cabling (using MoCA adapters) to provide a wired backhaul to strategic access points without drilling new holes.
Configure the network to support 802.11r/k/v for seamless client roaming between nodes.

Examiner's Commentary: This approach correctly identifies the limitation of standard repeaters (half-duplex penalty) in a commercial setting. By moving to a dedicated backhaul mesh or utilizing existing non-Ethernet cabling (MoCA), the solution provides AP-like performance while adhering to the physical constraints of the heritage building.

A large retail chain is deploying a new Guest WiFi network across 50 locations to support an indoor mapping and location-based marketing initiative. The IT director is considering using high-end wireless repeaters to save on cabling costs.

Reject the use of wireless repeaters for this deployment.
Specify the installation of enterprise-grade, wired Access Points (Extenders) with PoE (Power over Ethernet).
Ensure AP placement is optimized for location analytics, not just coverage, requiring a higher density of APs.
Integrate the hardware with a hardware-agnostic analytics platform (like Purple) to normalize the location data across all 50 sites.
Implement strict VLAN segregation between the Guest WiFi and the PoS/operational network.

Examiner's Commentary: The solution prioritizes the business requirement (location analytics). Repeaters introduce latency and inaccurate RSSI readings, which would render the indoor mapping useless. Mandating wired APs ensures the throughput and data fidelity required for the marketing initiative, while the VLAN segregation ensures PCI compliance.

Practice Questions

Q1. Your organisation is deploying a temporary pop-up retail store in a leased space for three weeks. The landlord provides a primary router in the back office, but the signal does not reach the point-of-sale terminals at the front. Running cables is prohibited. What is the most appropriate hardware solution?

Hint: Consider the duration of the deployment and the physical constraints.

View model answer

In this specific, temporary scenario with physical constraints, a high-quality wireless repeater or a simple mesh system is appropriate. While a wired AP is always preferred for throughput, the temporary nature and cabling restrictions make a wireless solution the pragmatic choice, provided the PoS systems do not require massive bandwidth.

Q2. A hospital IT director needs to ensure seamless roaming for mobile medical carts (WoWs) moving between wards. The current infrastructure uses a mix of older routers configured as repeaters. Staff complain of dropped connections when moving. What architectural change is required?

Hint: Focus on the 'sticky client' problem and backhaul architecture.

View model answer

The hospital must rip and replace the repeater infrastructure. They need to deploy enterprise-grade wired Access Points (Extenders) with a unified controller. Crucially, the new system must support IEEE 802.11r/k/v to actively manage client hand-offs between APs, eliminating the dropped connections experienced with the disjointed repeater setup.

Q3. You are tasked with implementing Purple's location analytics in a large shopping centre. The centre management wants to use cheaper wireless repeaters to expand coverage to the car park. Why should you advise against this?

Hint: Consider how location analytics platforms calculate device position.

View model answer

You must advise against repeaters because they obscure accurate RSSI (Received Signal Strength Indicator) data. When a device connects to a repeater, the core network often sees the MAC address and signal strength of the repeater, not the client device. This renders precise location tracking and heatmapping impossible. Wired APs are mandatory for accurate analytics.
