How to Set Up WiFi in a Large Area or Multi-Site Estate

This authoritative guide details the technical architecture, deployment strategies, and security frameworks required to implement robust WiFi across large venues and multi-site estates. It provides IT leaders with actionable, vendor-neutral methodologies for transitioning from ad-hoc setups to centralised, high-capacity networks. The guide covers controller architecture, mesh networking, IEEE 802.1X security, capacity planning, and how to leverage the network as a strategic analytics asset.

📖 7 min read📝 1,686 words🔧 2 examples❓ 3 questions📚 8 key terms

🎧 Listen to this Guide

View Transcript

Welcome to the Purple technical briefing. I'm your host, and today we're tackling a complex infrastructure challenge: architecting and deploying WiFi across large areas and multi-site estates.

If you're an IT manager, a network architect, or a venue operations director, you know that scaling wireless connectivity isn't just about adding more access points. It's about capacity, security, and centralised management. Today, we'll cut through the marketing noise and look at the technical realities of building a robust, enterprise-grade wireless network that actually delivers on its promises.

[TECHNICAL DEEP-DIVE]

Let's get straight into the architecture. The fundamental shift when moving to a large-scale deployment is the move away from autonomous access points. You absolutely need a controller-based architecture.

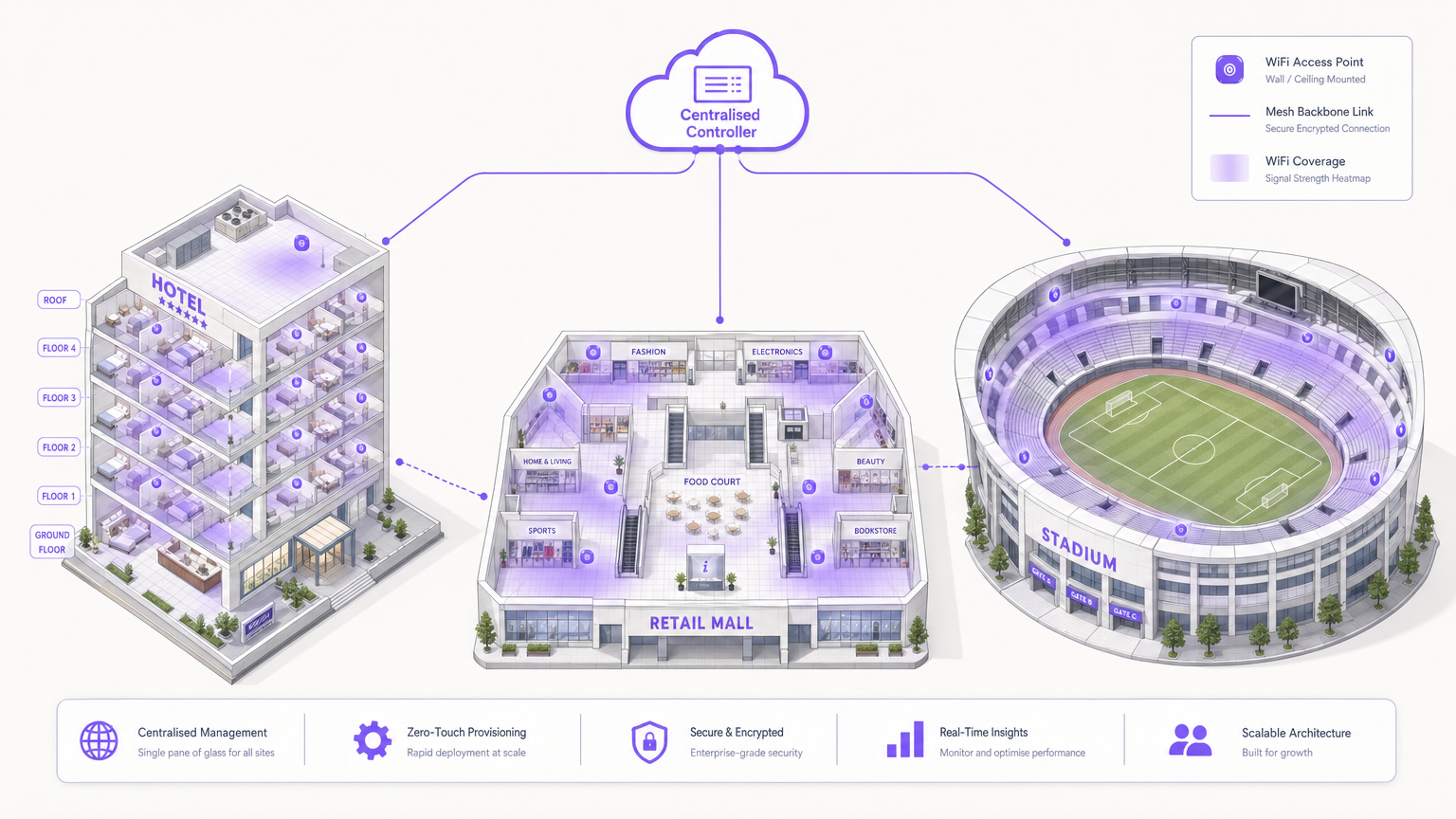

Why? Because in a large venue — say, a stadium or a sprawling retail mall — you need coordinated Radio Resource Management. The controller acts as the brain, dynamically adjusting channel assignments and transmit power to minimise Co-Channel Interference. That's where multiple access points on the same channel end up fighting each other for airtime, and your users end up with slow, unreliable connections.

Cloud-managed controllers are now the industry standard for distributed estates. They give you that single pane of glass across your entire estate. You don't want to be managing complex VPN tunnels just to push a firmware update to a branch office in Manchester or a hotel in Edinburgh.

Now let's talk about the physical layer. Structured cabling to every access point is the ideal scenario — Cat6a or fibre. But in reality, especially outdoors, in historic buildings, or across large open campuses, you'll need to rely on wireless mesh networking. If you are using a wireless backhaul, remember the hop penalty. Your throughput drops by approximately fifty percent with every wireless hop. Keep your mesh chains short — no more than two or three hops from the root node, which is the access point with a wired uplink.

On the security front, network segmentation is absolutely critical. Guest traffic must be on a separate VLAN from your corporate data. Full stop. For corporate devices, WPA3-Enterprise with 802.1X authentication is mandatory. Don't rely on pre-shared keys for your staff network. 802.1X integrates with your directory service — Active Directory, LDAP, whatever you're running — and ensures each device gets a unique encryption session. If one device is compromised, the attacker can't decrypt traffic from any other device on the network.

For guests, a captive portal is essential. Not just for terms of service, but to capture valuable analytics data in a GDPR-compliant way. When you integrate a platform like Purple's Guest WiFi solution, you get a consistent, branded login experience across all your venues, and the data flows into a centralised analytics dashboard.

[IMPLEMENTATION RECOMMENDATIONS AND PITFALLS]

Moving on to implementation. The biggest mistake we see — and I mean consistently, across hospitality, retail, and public sector — is designing for coverage rather than capacity. In modern deployments, capacity is your primary constraint, not coverage.

Here's what I mean. You can have a strong signal everywhere in a venue, but if a single access point is serving two hundred devices simultaneously, every user's experience will be poor. You need to calculate your expected client density. How many devices per square metre? What are they doing? Streaming video? Running inventory scanners? Attending a video conference?

For a hotel, the rule of thumb is one access point per two guest rooms, using low-power wall-plate APs rather than corridor-mounted units. For a retail floor, you're looking at one AP per one hundred and fifty to two hundred square metres. For a stadium concourse or conference centre during a peak event, you may need one AP per twenty-five to fifty concurrent users.

Do not skip the active site survey. Predictive surveys using RF planning software are great for budgeting and initial design, but an active survey — where you physically walk the space with an AP on a stand — is the only way to understand the real-world RF attenuation of your specific building materials. Concrete, glass, metal racking, even people, all absorb and reflect radio waves differently.

Also, check your power budgets. Modern Wi-Fi 6 and Wi-Fi 7 access points are power-hungry. They often require PoE Plus or PoE Plus Plus — that's 802.3at or 802.3bt — delivering thirty to sixty watts per port. Ensure your access switches can supply that power to all ports simultaneously, not just half of them. I've seen deployments where APs were operating in a degraded mode because the switch couldn't supply full power to every port at once.

[RAPID-FIRE Q AND A]

Question one: Why are my users complaining about slow speeds when they have full signal bars on their device?

That's classic Co-Channel Interference, or potentially a sticky client issue. Full signal bars don't mean clean airtime. They mean your device can hear the access point loudly. But if that access point is on the same channel as three others nearby, they're all competing for the same airtime. You need to look at channel utilisation in your controller dashboard. Also, ensure protocols like 802.11k and 802.11v are enabled. These help clients make better roaming decisions, steering them towards the nearest, least-loaded access point.

Question two: How do we handle IP addressing in high-turnover areas like a conference centre or a stadium?

Shorten your DHCP lease times on the guest network. If you have thousands of transient devices passing through over the course of a day, a standard eight-day DHCP lease will exhaust your subnet in hours. Drop it to thirty or sixty minutes for guest networks. Your devices will get a fresh lease when they reconnect, and you won't run out of addresses.

Question three: We have a multi-site retail estate. How do we ensure consistent security policies across all five hundred locations without a dedicated IT person at each site?

This is exactly the use case for cloud-managed networking with zero-touch provisioning. You configure your security policies, VLANs, and SSIDs once in the cloud dashboard. When a new access point or switch is plugged in at a branch, it connects to the internet, authenticates with the cloud controller, and downloads its configuration automatically. No truck roll required. The store manager just plugs it in.

[SUMMARY AND NEXT STEPS]

To wrap up: successful large-scale WiFi deployment requires three things. First, a centralised architecture — cloud-managed controllers, not autonomous access points. Second, rigorous capacity planning — design for your peak client density, not just your coverage footprint. And third, strict network segmentation — guest traffic and corporate traffic must never share the same logical network.

Don't guess on your site surveys. Measure. And ensure your switching infrastructure can support the power and throughput demands of modern access points before you commit to a hardware platform.

By getting the foundation right, your network stops being a cost centre and a source of helpdesk tickets, and becomes a strategic asset for operations and analytics. The data your guest WiFi network generates — footfall, dwell time, repeat visit rates — is genuinely valuable to your marketing and operations teams.

Thanks for joining this briefing. If you'd like to explore how Purple's platform can integrate with your existing infrastructure, visit purple dot ai.

Key Takeaways

✓Transition from autonomous APs to a centralised, cloud-managed controller architecture — this is the single most important architectural decision for any multi-site deployment.
✓Design networks for capacity and peak client density first; coverage is a secondary concern in modern high-density environments.
✓Always perform active site surveys in addition to predictive modelling — real-world RF attenuation from building materials cannot be accurately predicted from floor plans alone.
✓Implement strict VLAN-based network segmentation to isolate guest, corporate, and IoT traffic — this is both a security best practice and a PCI DSS compliance requirement.
✓Audit PoE switch power budgets before hardware procurement — Wi-Fi 6 and Wi-Fi 7 APs require PoE+ or PoE++ and will operate in degraded mode if insufficient power is available.
✓Enable 802.11k, 802.11v, and 802.11r on the wireless controller to support seamless client roaming in large venues and mobility-intensive environments.
✓Integrate your guest WiFi infrastructure with an analytics platform from day one — the footfall, dwell time, and visitor data generated by the network is a measurable business asset.

Executive Summary

Deploying wireless networking across a large area or multi-site estate requires a fundamental shift from traditional ad-hoc networking to a structured, centralised architecture. For IT managers, network architects, and venue operations directors, the challenge is not simply providing signal coverage, but delivering a scalable, secure, and manageable infrastructure that supports high client density and seamless roaming. This guide provides actionable, vendor-neutral methodologies for architecting enterprise-grade WiFi deployments. We examine the critical role of centralised controllers, mesh topologies, and robust security frameworks like IEEE 802.1X. By implementing these strategies, organisations can mitigate deployment risks, ensure compliance with standards such as PCI DSS and GDPR, and leverage their network infrastructure as a strategic asset for analytics and operational intelligence.

Technical Deep-Dive: Architecture and Standards

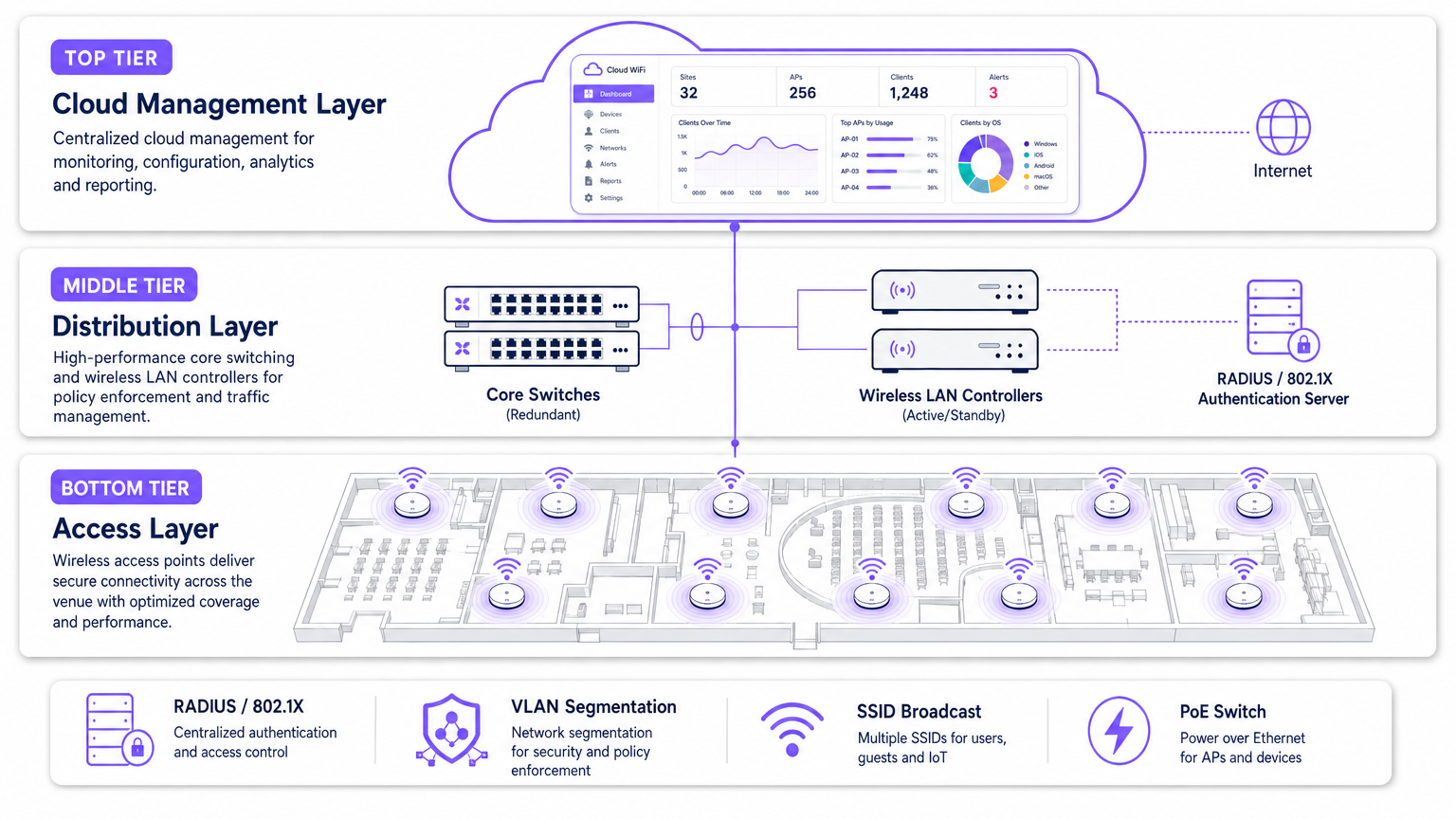

When designing a large-scale wireless network, the architecture must support both current throughput demands and future scalability. The traditional autonomous access point (AP) model is entirely unsuited for large venues due to the administrative overhead and lack of coordinated radio resource management. Instead, a controller-based architecture is essential.

Centralised Management and Controller Architecture

In a multi-site deployment, a centralised management plane is non-negotiable. This architecture separates the control plane from the data plane. The Wireless LAN Controller (WLC) handles RF management, security policies, and client roaming, while the APs simply forward traffic. Cloud-managed controllers have become the industry standard for distributed estates. They eliminate the need for complex VPNs to backhaul management traffic to a central data centre and provide a single pane of glass for monitoring AP health across global locations. When integrating with a Guest WiFi platform, this centralised architecture allows for uniform captive portal deployment and a consistent user experience across all venues.

Mesh Networking vs. Structured Cabling

While structured cabling (Cat6a or fibre) to every AP is the gold standard for performance, it is often physically or economically impossible in large outdoor areas or historic buildings. In these scenarios, wireless mesh networking is required. Mesh networks utilise a dedicated radio band — typically 5GHz or 6GHz — for wireless backhaul between APs, reducing the need for Ethernet drops. However, architects must account for the hop penalty: throughput halves with each wireless hop. Therefore, a root node (an AP with a wired uplink) should support no more than two or three mesh hops. For expansive outdoor areas, point-to-point or point-to-multipoint wireless bridges provide high-capacity backhaul to remote distribution switches.

Security Frameworks and Compliance

Enterprise deployments must adhere to strict security protocols to protect corporate data and ensure regulatory compliance. The following table summarises the key security layers for a typical multi-use venue deployment:

Access Tier	Authentication Method	Standard	Primary Compliance Driver
Corporate Staff	WPA3-Enterprise + 802.1X	IEEE 802.1X / RADIUS	ISO 27001, internal policy
Guest / Visitor	Captive Portal + WPA3-SAE	GDPR consent mechanism	GDPR, lawful intercept
IoT / POS Devices	WPA2-PSK on isolated VLAN	PCI DSS network segmentation	PCI DSS 3.2.1
Back-of-House Operations	WPA3-Enterprise + 802.1X	IEEE 802.1X	Operational security policy

For corporate access, WPA3-Enterprise with 802.1X authentication is mandatory. This requires a RADIUS server to authenticate users against a directory service such as Active Directory, ensuring each user receives a unique encryption key and preventing lateral movement if one device is compromised. For guest access, integrating a WiFi Analytics solution allows venues to understand visitor behaviour while remaining GDPR compliant through explicit consent mechanisms at the captive portal. Network segmentation using VLANs is a critical requirement for PCI DSS compliance in Retail environments where point-of-sale terminals operate on the same physical infrastructure.

Implementation Guide: Step-by-Step Deployment

Deploying a large-scale wireless network is a multi-phase project that requires rigorous planning before a single cable is pulled.

Phase 1: Predictive and Active Site Surveys

Never deploy based solely on floor plans. A predictive survey using RF planning software provides a baseline for AP count and placement, but an active 'AP-on-a-stick' survey is crucial for understanding real-world attenuation caused by walls, inventory, structural steel, and architectural features. For complex environments like Healthcare facilities with specialist equipment and strict interference requirements, refer to specialised guidance such as our WiFi in Hospitals: A Guide to Secure Clinical Networks .

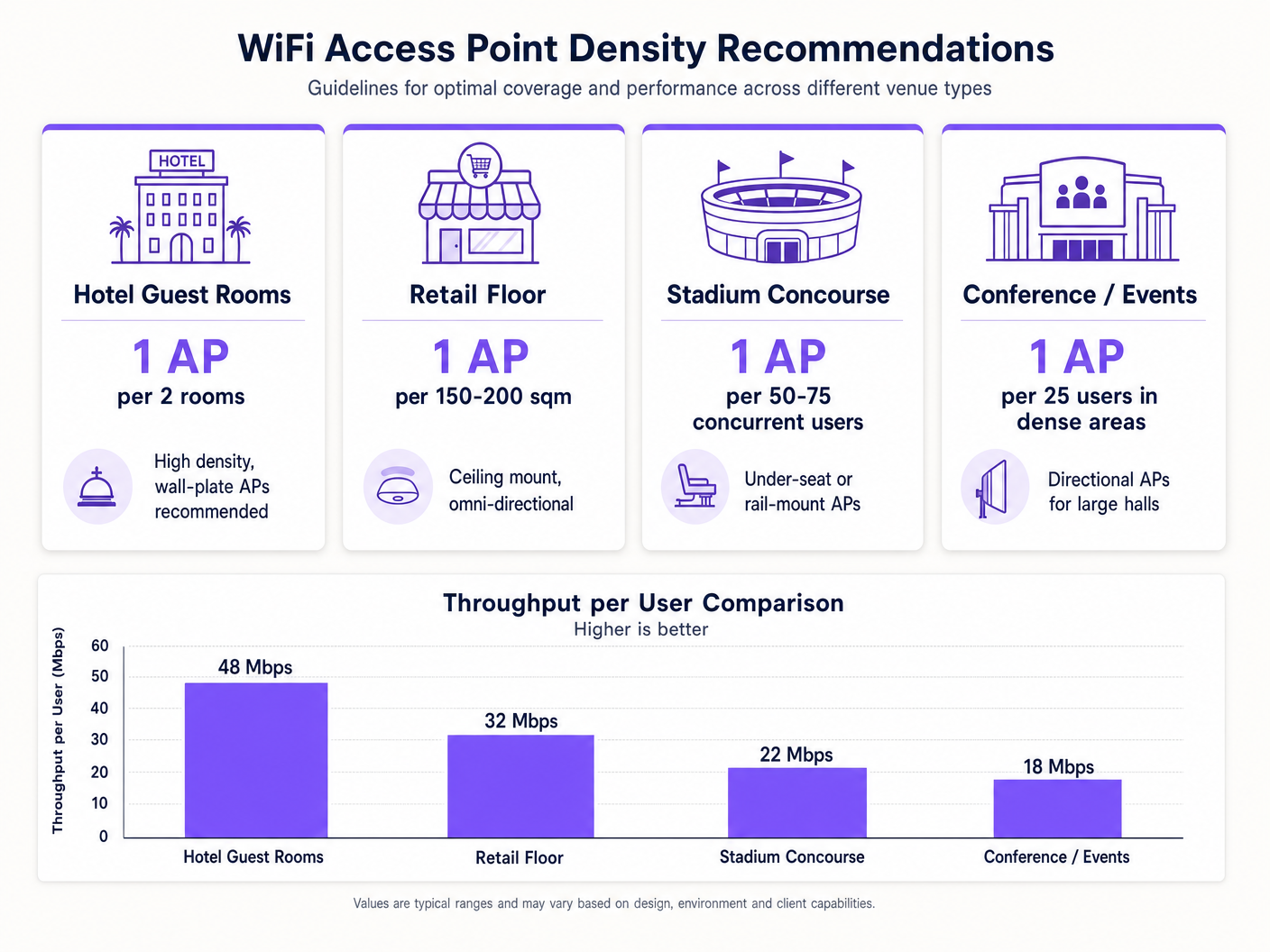

Phase 2: Capacity Planning over Coverage

In modern deployments, capacity is the primary constraint, not coverage. You must calculate the expected client density and aggregate throughput requirements before finalising AP placement. Design for the worst-case scenario — the peak concurrent user count, not the average.

For conference centres, directional antennas may be required to focus RF energy into specific seating blocks, avoiding co-channel interference (CCI) between adjacent APs. If you are managing throughput constraints in dense areas, review our guide on How to Manage Bandwidth on a WiFi Network .

Phase 3: Switching and Power over Ethernet (PoE) Infrastructure

The access layer switches must support the power requirements of modern APs. Wi-Fi 6 (802.11ax) and Wi-Fi 7 (802.11be) APs often require PoE+ (802.3at, 30W) or PoE++ (802.3bt, 60W). Ensure your switch power budgets are sufficient to power all ports simultaneously — not just the maximum rated wattage across a partial load. Implement redundant power supplies for core distribution switches and consider UPS protection for critical network closets.

Phase 4: SSID Architecture and VLAN Design

Resist the temptation to create multiple SSIDs for different user groups. Each SSID consumes airtime with management overhead. A well-designed deployment uses a maximum of three to four SSIDs per site: one for corporate staff (802.1X authenticated), one for guests (captive portal), one for IoT and operational devices (isolated VLAN), and optionally one for voice or high-priority applications. Map each SSID to a dedicated VLAN and enforce firewall policies at the distribution layer.

Phase 5: Post-Deployment Validation

A post-deployment survey is as important as the pre-deployment survey. Walk the entire venue with a wireless survey tool to validate coverage, measure RSSI levels, and confirm that roaming between APs is functioning correctly. Check channel utilisation across all APs and adjust transmit power where CCI is detected.

Best Practices for Multi-Site Estates

Standardised Configuration Templates are the single most effective tool for managing a distributed estate. Define your SSID structure, VLAN assignments, security policies, and QoS settings once in the cloud controller, then apply the template to every site. A misconfigured VLAN on a single switch port can cause an entire branch to lose connectivity.

Proactive Monitoring is non-negotiable at scale. Relying on user complaints is an unacceptable monitoring strategy for a professional IT operation. Implement SNMP or API-based monitoring to track AP uptime, client counts, channel utilisation, and upstream link health. Set threshold-based alerts so your team is notified before users are impacted.

Seamless Roaming is critical for environments requiring mobility. For Transport hubs, logistics warehouses, and large Hospitality properties, ensure protocols 802.11k (Radio Resource Measurement), 802.11v (BSS Transition Management), and 802.11r (Fast BSS Transition) are enabled on the controller. These protocols collectively guide client devices to the optimal AP and enable fast re-association, preventing VoIP call drops and session interruptions. If location tracking is a strategic priority, consider exploring Indoor Positioning System: UWB, BLE, & WiFi Guide .

Troubleshooting & Risk Mitigation

Even with meticulous planning, issues will arise in production. Understanding common failure modes accelerates resolution and reduces mean time to repair (MTTR).

Symptom	Root Cause	Remediation
Slow speeds despite strong signal	Co-Channel Interference (CCI)	Reduce AP transmit power; audit channel assignments
Devices not roaming to closer AP	Sticky client behaviour	Enable 802.11k/v; adjust minimum basic rates
Users unable to get IP address	DHCP pool exhaustion	Reduce guest DHCP lease time to 30-60 minutes
AP offline after switch reboot	Insufficient PoE budget	Audit switch power budget; upgrade to higher-wattage PoE switch
Intermittent connectivity in mesh zones	Wireless backhaul congestion	Reduce mesh hop count; add wired uplink to intermediate node
Guest portal not loading on iOS	Captive portal detection failure	Ensure DNS and HTTP redirect rules are correctly configured

Risk Mitigation for Large Deployments: Maintain a spare AP inventory of approximately five percent of the total AP count. For mission-critical venues, deploy redundant wireless LAN controllers in an active/standby configuration. Ensure your ISP provides a Service Level Agreement (SLA) with guaranteed uptime and a defined resolution time, and consider a secondary internet connection for failover at key sites.

ROI & Business Impact

A well-architected wireless network transitions from a cost centre to a strategic asset. The direct operational benefits include reduced helpdesk tickets, lower mean time to resolution for connectivity issues, and the elimination of expensive truck rolls through zero-touch provisioning and remote management capabilities.

The indirect business benefits are often more significant. By deploying a reliable infrastructure with an integrated analytics platform, venue operators can measure footfall patterns, dwell times, and repeat visit rates. This data directly informs decisions about staffing, merchandising, and marketing spend. For smaller footprint locations within a larger estate, the principles outlined in Small Business WiFi: How to Get the Setup Right Without Breaking the Budget can provide a cost-effective blueprint for branch sites.

The ROI calculation for a large-scale deployment should include the following components:

ROI Component	Measurement Approach
Reduced helpdesk tickets	Compare ticket volume pre- and post-deployment
Elimination of truck rolls	Count remote resolutions vs. on-site visits
Guest data capture value	CRM enrichment rate from captive portal sign-ups
Operational analytics value	Revenue decisions driven by footfall and dwell data
Compliance risk reduction	Avoided cost of GDPR or PCI DSS non-compliance penalties

Ultimately, the business case for investing in enterprise-grade WiFi infrastructure is strongest when the network is treated as a data platform, not merely a connectivity utility. The organisations that derive the most value from their wireless deployments are those that integrate their network with their CRM, loyalty, and operational systems from day one.

Key Terms & Definitions

Wireless LAN Controller (WLC)

A centralised device or cloud service that manages configuration, security policies, RF settings, and client roaming for multiple access points from a single management interface.

Essential for multi-site estates to provide a single point of management and coordinate radio resource management across all venues.

Co-Channel Interference (CCI)

Performance degradation that occurs when multiple access points operate on the same frequency channel and can detect each other's transmissions, forcing them to share airtime and reducing effective throughput.

The primary cause of slow WiFi in dense deployments despite strong signal strength; mitigated by careful channel planning and transmit power reduction.

IEEE 802.1X

An IEEE standard for port-based network access control that provides an authentication mechanism for devices attempting to connect to a LAN or WLAN, typically using a RADIUS server and EAP.

The mandatory authentication standard for corporate wireless networks in enterprise deployments, ensuring only authorised users and devices can access internal resources.

Captive Portal

A web page that a user of a public-access network is required to interact with before internet access is granted, typically used to enforce terms of service and collect user consent.

Used to enforce GDPR-compliant data collection on guest networks and integrate with analytics platforms for visitor intelligence.

Power over Ethernet (PoE)

A technology that delivers electrical power over twisted-pair Ethernet cabling to powered devices such as wireless access points, eliminating the need for separate power supplies.

Critical infrastructure consideration for AP deployments; Wi-Fi 6/7 APs typically require PoE+ (802.3at, 30W) or PoE++ (802.3bt, 60W), requiring careful switch power budget planning.

VLAN (Virtual Local Area Network)

A logical subnetwork that groups devices from different physical network segments, enabling traffic isolation and policy enforcement without requiring separate physical infrastructure.

Used to segment guest, corporate, and IoT traffic on shared physical infrastructure; a mandatory requirement for PCI DSS compliance in retail and hospitality environments.

Zero-Touch Provisioning

A deployment method where network devices automatically download their configuration from a central cloud controller upon connecting to the internet, requiring no manual on-site configuration.

Drastically reduces deployment time and costs for multi-site rollouts, enabling IT teams to manage hundreds of locations without on-site technical staff.

RSSI (Received Signal Strength Indicator)

A measurement of the power level of a received radio signal, typically expressed in dBm (decibels relative to one milliwatt), where values closer to 0 indicate a stronger signal.

Used during site surveys to validate coverage and determine AP placement; a minimum RSSI of -67 dBm is typically required for reliable voice and video applications.

Case Studies

A 400-room luxury hotel with thick concrete walls is experiencing poor guest WiFi performance and frequent disconnects when guests move between the lobby and their rooms. The current setup uses corridor-mounted ceiling APs at 100mW transmit power.

Transition from a corridor-coverage model to an in-room microcell architecture. Deploy low-power wall-plate APs in every room or every second room depending on measured attenuation. Configure the wireless LAN controller to aggressively manage transmit power — typically 5-10mW per radio — to prevent APs from interfering with adjacent rooms. Enable 802.11k, 802.11v, and 802.11r to facilitate seamless roaming as guests move through the property. Implement strict VLAN segmentation to isolate guest traffic from the hotel's property management system. Integrate with Purple's Guest WiFi platform to deliver a consistent branded captive portal experience and capture first-party guest data for loyalty programmes.

Implementation Notes: Corridor deployments in hotels are a legacy design flaw. Concrete walls severely attenuate the signal before it reaches the guest device, while the corridor APs have clear line-of-sight to each other, causing massive Co-Channel Interference. The in-room approach solves both the coverage and capacity issues simultaneously. The key insight is that reducing transmit power actually improves performance by reducing interference — counterintuitive but correct.

A national retail chain needs to deploy WiFi across 500 branch locations to support staff inventory scanners, digital signage, and a new customer loyalty app. They have no dedicated IT staff at the branches and a limited central IT team.

Implement a cloud-managed network architecture with zero-touch provisioning. Pre-configure AP and switch templates in the cloud dashboard before shipping hardware to branches. Utilise zero-touch provisioning so store managers simply connect the devices to the internet connection to download their configuration automatically. Deploy a minimum of three SSIDs: one for staff devices on a corporate VLAN with 802.1X authentication, one for POS and IoT devices on a fully isolated VLAN compliant with PCI DSS requirements, and one for customers via a captive portal integrated with Purple's Guest WiFi platform. Set DHCP lease times to 30 minutes on the guest SSID to handle high device turnover.

Implementation Notes: For highly distributed estates, operational efficiency is paramount. A cloud-managed solution with zero-touch provisioning eliminates expensive truck rolls to each site. The centralised dashboard ensures security policies are uniformly applied across all 500 locations and simplifies troubleshooting for the remote IT team. The PCI DSS VLAN isolation for POS devices is non-negotiable — failure to segment card payment infrastructure from guest networks is a compliance violation with significant financial penalties.

Scenario Analysis

Q1. You are designing the network for a new 50,000 sq ft distribution warehouse. The environment is highly dynamic with metal racking that changes position regularly. The operations team requires WiFi for handheld scanners and a new autonomous vehicle fleet. Which survey approach is most appropriate, and what antenna type would you specify for the APs?

💡 Hint:Consider how metal surfaces impact RF propagation, and how the autonomous vehicles' movement patterns affect roaming requirements.

Show Recommended Approach

A predictive survey alone is insufficient due to the dynamic and highly reflective nature of metal racking. An active site survey using the exact AP models planned for deployment is required to measure real-world attenuation and multipath interference. For the AP antennas, directional or downtilt antennas are preferable to omni-directional units to focus energy along the racking aisles and reduce inter-aisle interference. For the autonomous vehicles, 802.11k/v/r must be enabled to ensure seamless roaming without session drops as vehicles traverse the warehouse floor.

Q2. A retail client wants to deploy guest WiFi across 200 stores. They want to ensure that if a local access switch fails, the store's point-of-sale (POS) system remains isolated from the guest network. They also need to capture customer email addresses at login for their loyalty programme. How should the network be architected?

💡 Hint:Think about logical traffic separation and the compliance requirements for POS systems under PCI DSS.

Show Recommended Approach

The network must utilise strict VLAN segmentation with a minimum of two VLANs: one for POS and corporate devices, one for guests. Guest traffic should be firewalled off from the POS VLAN at the distribution layer, not just at the access layer. Client isolation must be enabled on the guest SSID to prevent guest devices communicating with each other. For customer data capture, a captive portal integrated with a platform such as Purple's Guest WiFi solution provides GDPR-compliant email capture with explicit consent, feeding directly into the loyalty CRM.

Q3. During post-deployment validation in a dense conference centre, users report slow speeds during a 500-person event. The controller dashboard shows high channel utilisation on 2.4GHz but low utilisation on 5GHz. What are the two most impactful remediation steps?

💡 Hint:Consider both the device behaviour and the AP configuration options available to the network administrator.

Show Recommended Approach

First, enable Band Steering on the wireless controller to actively encourage dual-band capable clients to associate on the 5GHz band, which has significantly more non-overlapping channels and lower utilisation. Second, review and reduce the transmit power of the 2.4GHz radios — or selectively disable 2.4GHz on some APs — to shrink the interference radius and reduce Co-Channel Interference. In extreme density scenarios, disabling 2.4GHz entirely on alternating APs is a valid strategy, as virtually all modern devices support 5GHz.
