WiFi managed service: a comprehensive guide for businesses

This guide covers the technical architecture, deployment strategy, and business case for a WiFi managed service in multi-tenant and enterprise environments. It explains how iPSK isolation works, how to segment resident, staff, and guest networks, and how to measure ROI - with specific relevance to BTR operators, property developers, and landlords.

📖 7 min read📝 1,668 words🔧 2 worked examples❓ 3 practice questions📚 9 key definitions

Listen to this guide

View podcast transcript

Welcome to the Purple technical briefing. Today we are dissecting WiFi managed services. We are looking specifically at enterprise and multi-tenant environments. Build-to-Rent, student housing, and large-scale venues. If you are an IT manager, a network architect, or a CTO, this briefing is for you. We are skipping the marketing fluff and getting straight into the architecture, the deployment strategies, and the business impact.

Let's start with the context. Why are we talking about managed services instead of just buying access points and plugging them in? Because the expectations have changed. We process 440 million logins a year across 80,000 venues. What we see consistently is that networks fail not because the hardware is bad, but because the architecture doesn't match the use case.

Take a Build-to-Rent property. You have 200 apartments. If you treat that like a hotel and put a captive portal on it, you will fail. Residents have smart TVs, Sonos speakers, Philips Hue lights. A captive portal isolates every device from every other device. Your resident's phone won't be able to talk to their TV. They will raise a support ticket, and your IT team will spend hours whitelisting MAC addresses. It is a nightmare.

So, what is the technical solution? It is Identity Pre-Shared Key, or iPSK. Aruba calls it PPSK. Cisco Meraki calls it Personal Private Network. It is the same concept. You broadcast one SSID for the whole building. But instead of one password, every single resident gets their own unique password.

When Resident A connects with their key, the RADIUS server says: that is Resident A, put them on VLAN 101. When Resident B connects with their key, they go to VLAN 102.

This creates a WiFi bubble. Inside Resident A's bubble, their phone sees their TV perfectly. But Resident A cannot see Resident B's devices, even if they are connected to the exact same physical access point in the hallway. Complete isolation between tenants. Complete continuity within the household. And when Resident A moves out? You revoke their key in the dashboard. You don't change a building-wide password. You don't touch the hardware.

That brings us to the architecture. You need a hardware-agnostic cloud overlay. You do not want to be locked into one hardware vendor forever. Purple sits above the hardware layer. You deploy Cisco Meraki, HPE Aruba, Ruckus, Juniper Mist, Ubiquiti UniFi, Cambium, Extreme, or Fortinet. We handle the RADIUS authentication, the policy enforcement, and the onboarding portal. The hardware handles the RF transmission. The control plane and the data plane are separated.

Let's talk implementation. How do you actually deploy this?

Phase one is RF design. Do not guess. Do a predictive survey. In an MDU, the standard is usually one access point per unit. You need to guarantee 5GHz coverage because you are dealing with 15 to 25 devices per household. A 200-unit building has between 3,000 and 5,000 devices on the WiFi at any given moment.

Phase two is segmentation. You need three networks. Three SSIDs to rule them all. One: Staff WiFi, secured with 802.1X tied to Microsoft Entra ID or Okta. Two: Guest WiFi, an open network with a captive portal and client isolation for visitors in the lobby. Three: Resident WiFi, using iPSK for the apartments. Never mix these user types on a single SSID.

Phase three is identity integration. Tie the WiFi provisioning into your property management system. When a lease is signed, the key is generated automatically. Zero IT touch. Residents are online on move-in day without waiting for a broadband engineer.

Now let's cover some pitfalls. What goes wrong?

Co-channel interference is a significant one. If you put an access point in every unit, they will shout over each other on the same radio channel. You must enable automated radio resource management on your controller to dynamically adjust channels and transmit power.

Multicast flooding is another. Smart devices use multicast to discover each other. Chromecast, Apple TV, Sonos. If you don't contain that traffic within the specific iPSK VLAN, your network will degrade. Use your hardware's multicast DNS gateway features to keep discovery traffic within the correct resident segment.

And for guest networks, be aware of MAC address randomisation. Modern operating systems randomise MAC addresses by default, which can disrupt captive portal flows. Ensure your walled garden allows access to the essential OS validation URLs. For a seamless, certificate-based alternative, look at Passpoint, also known as Hotspot 2.0.

Now, the rapid-fire questions I get asked most often.

Can I use my existing hardware? Yes. Purple is hardware-agnostic. We run on Cisco, Aruba, Ruckus, Mist, UniFi, Cambium, Extreme, and Fortinet.

What is the uptime SLA? 99.999%. That is less than six minutes of downtime per year.

Is this GDPR compliant? Yes. We are ISO 27001 certified, GDPR and CCPA compliant, and Cyber Essentials certified. Data residency is selectable: EU, UK, or US.

How long does deployment take? A typical BTR building of 200 units can be fully provisioned within a day, assuming the access points are already installed.

To wrap up. A WiFi managed service is about separating the control plane from the hardware. It is about using iPSK to create private bubbles for residents. It is about automating onboarding and offboarding. And it is about shifting from a capital expense to a predictable operational utility.

For BTR operators, this is an NOI driver. Managed WiFi commands a rent premium. It reduces vacancy periods. It eliminates IT overhead. And it gives you aggregated analytics on how your common areas are being used.

If you get the architecture right, the network runs itself. Review the full guide for the architecture diagrams and configuration specifics. Thank you for listening.

Key Takeaways

✓Multi-tenant WiFi requires per-resident isolation via iPSK - guest WiFi captive portals are architecturally unsuitable for residential deployments.
✓A managed WiFi service separates the control plane (Purple cloud overlay) from the data plane (hardware), making it hardware-agnostic across Cisco Meraki, HPE Aruba, Ruckus, Juniper Mist, and others.
✓Three SSIDs cover every user type: Staff (802.1X), Guest (Captive Portal), and Resident (iPSK). Never mix user types on a single SSID.
✓Automated onboarding tied to the property management system means residents are online on move-in day and keys are revoked automatically at move-out.
✓Purple delivers 99.999% uptime and is ISO 27001, GDPR, CCPA, and Cyber Essentials certified, reducing compliance audit overhead for operators.
✓Managed WiFi is an NOI driver for BTR operators: rent premiums, reduced vacancy periods, and eliminated IT overhead combine to make the service consistently NOI-positive.
✓Co-channel interference and multicast flooding are the two most common post-deployment issues in dense MDU environments - both are solved by enabling RRM and mDNS proxy features on the hardware controller.

Executive summary

Deploying enterprise WiFi across multi-tenant environments requires more than consumer-grade hardware and a shared password. For IT managers, network architects, and venue operations directors, a WiFi managed service transforms connectivity from a capital-intensive headache into a predictable operational utility.

Purple manages networks for 80,000+ venues globally, processing 440 million logins in 2024 (Purple internal data). We see the difference between networks that scale and networks that fail. This guide details how to architect, deploy, and manage a WiFi managed service that isolates traffic securely, supports resident smart devices, and delivers a 99.999% uptime SLA.

Whether you manage Build-to-Rent (BTR) properties, student housing, or retail environments, you need a hardware-agnostic cloud overlay that integrates with Cisco Meraki, HPE Aruba, Ruckus, Juniper Mist, Ubiquiti UniFi, Cambium, Extreme, and Fortinet. This guide covers the architecture, the deployment phases, the compliance requirements, and the business case.

Technical deep-dive: the architecture of multi-tenant WiFi

The core challenge in multi-tenant environments like BTR or MDU is delivering a home-like network experience on enterprise shared infrastructure. Guest WiFi , designed for transient visitors with captive portals, fails this requirement. Residents need their smart TVs to discover their smartphones, while remaining completely invisible to the apartment next door.

The technical solution is Identity Pre-Shared Key (iPSK), also known as PPSK by HPE Aruba or Personal Private Network by Cisco Meraki. The terminology varies by vendor; the concept is identical.

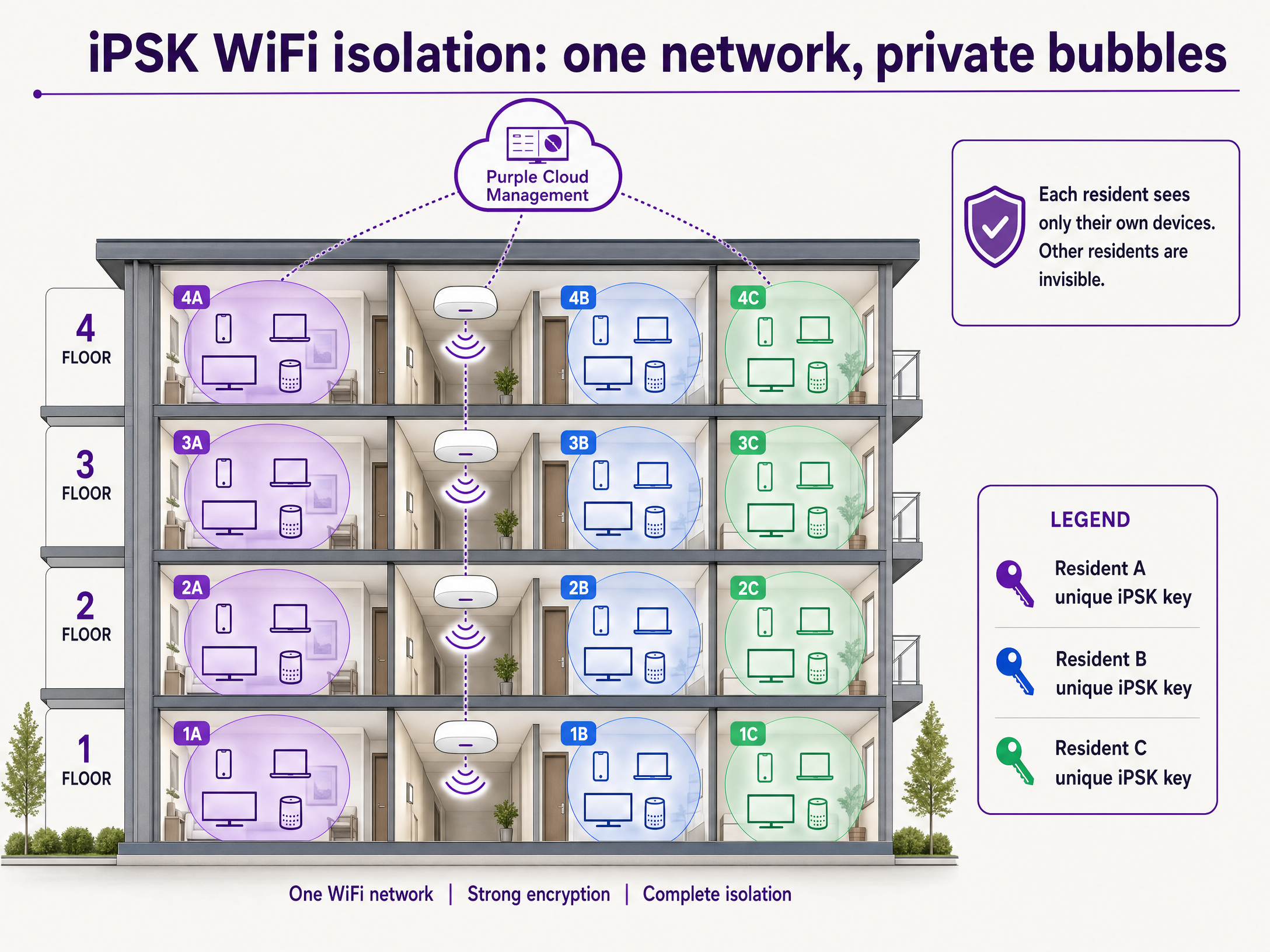

The iPSK "WiFi bubble"

iPSK assigns a unique WPA2 or WPA3 passphrase to each resident or tenant. The RADIUS server uses this unique key to assign the connecting device to a specific VLAN or apply a micro-segmentation policy. The result is a per-resident WiFi bubble.

Three properties define the bubble. First, privacy between residents: devices on Resident A's key cannot see devices on Resident B's key, even when connected to the exact same physical access point. Second, continuity within a household: Resident A's phone discovers their Chromecast and smart speaker seamlessly, exactly as it would on a home network. Third, resident-specific access: when a resident moves out, Purple revokes their specific key via the cloud overlay. You do not rotate a building-wide password. No other resident is affected.

For a deeper comparison of PPSK and iPSK deployment models, see our guide on Power probe PPSK: comparing features and deployment models .

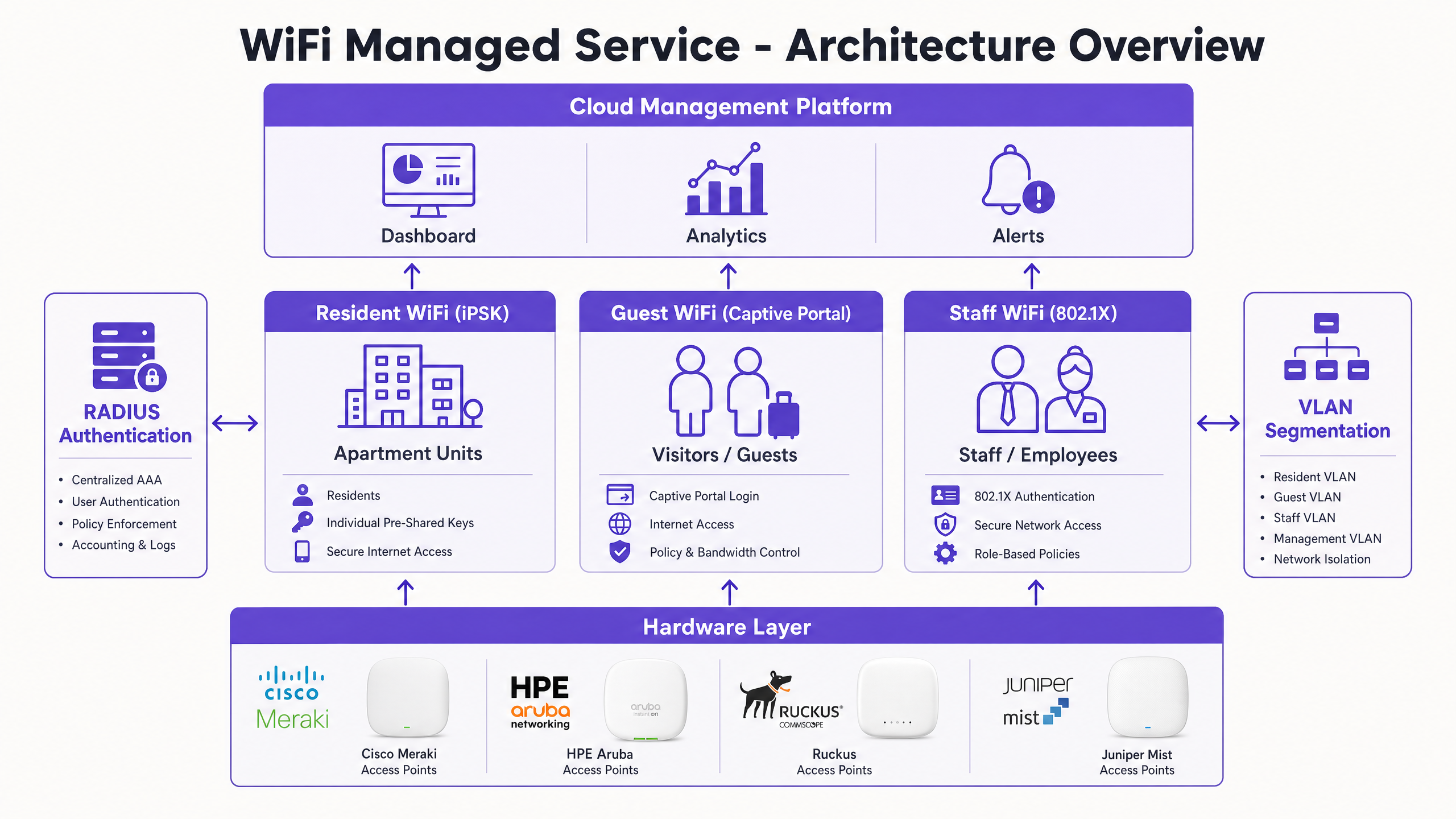

Hardware-agnostic cloud overlay

A modern WiFi managed service operates as a software overlay above the hardware layer. This architecture separates the control plane from the data plane. Purple integrates directly with your existing wireless LAN controllers or cloud dashboards. We handle the RADIUS authentication, policy enforcement, and user onboarding, while the local hardware handles RF transmission.

The architecture segments traffic into three distinct logical networks, each with its own security model. Resident WiFi uses iPSK with per-key VLAN assignment. Guest WiFi uses a captive portal with client isolation and conscious-choice opt-ins for marketing data capture. Staff WiFi uses IEEE 802.1X with EAP-TLS or PEAP, tied to Microsoft Entra ID, Okta, or Google Workspace. For a detailed breakdown of how to structure these three SSIDs, see our guide on Three SSIDs to rule them all: guest, Passpoint, and IoT WiFi .

Security standards and compliance

A WiFi managed service must pass audit. Purple is ISO 27001 certified, GDPR and CCPA compliant, and Cyber Essentials certified. For properties handling payment data, the network segmentation model supports PCI DSS compliance by isolating point-of-sale traffic on a dedicated VLAN with no lateral movement to resident or guest segments. WPA3 is supported across Cisco Meraki, HPE Aruba, Ruckus, and Juniper Mist hardware, providing forward secrecy and protection against offline dictionary attacks.

Implementation guide

Deploying a WiFi managed service requires rigorous planning across four phases. Skipping any phase is the most common cause of post-deployment support tickets.

Phase 1: RF design and hardware selection

Do not guess access point placement. Conduct a predictive RF survey using tools like Ekahau before procurement. For BTR environments, the standard is typically one access point per apartment unit to guarantee 5GHz coverage and handle the density of 15-25 IoT devices per household (Purple internal data). A 200-unit building has between 3,000 and 5,000 devices on the WiFi at any given moment.

Select hardware from the canonical list: Cisco Meraki, HPE Aruba, Ruckus, Juniper Mist, Ubiquiti UniFi, Cambium, Extreme, or Fortinet. Purple runs as a cloud overlay on all of them. You are not locked in.

Phase 2: Network segmentation strategy

Design your VLAN structure before configuring the cloud platform. The management VLAN is strictly for APs and switches, with no user traffic. Resident VLANs are dynamically assigned via iPSK, with one VLAN per resident key or per resident group. The staff VLAN is secured via 802.1X using your identity provider. The guest VLAN is an open network with a captive portal and client isolation enabled. Never bridge these VLANs.

Phase 3: Identity and authentication integration

Connect the Purple cloud overlay to your identity provider. For staff networks, configure SAML or SCIM provisioning from Microsoft Entra ID or Okta. For resident networks, integrate the WiFi provisioning step into your property management system so keys are generated automatically upon lease signing. Residents receive their unique WiFi key via email or the Purple app before they arrive. Self-service device management reduces IT support tickets significantly. For hospitality environments, integrate with your PMS to provision guest WiFi access automatically at check-in.

Phase 4: Validation and testing

Before resident move-in, validate the iPSK isolation. Connect two devices using Resident A's key and confirm they can ping each other. Connect a third device using Resident B's key and confirm it cannot ping Resident A's devices. Run a throughput test from each apartment to confirm the backhaul is not a bottleneck. Validate the captive portal flow on iOS and Android, including the MAC randomisation handling.

Best practices

When deploying a WiFi managed service, adhere to these vendor-neutral standards.

Mandate WPA3 where client devices support it. Enforce WPA3 for resident networks to prevent offline dictionary attacks. WPA3's Simultaneous Authentication of Equals (SAE) handshake replaces the vulnerable 4-way handshake in WPA2-PSK. Most devices manufactured after 2020 support WPA3.

Automate onboarding end-to-end. Residents should receive their unique WiFi key before they arrive. Tie key generation to lease signing in your property management system. Self-service device management via the Purple app eliminates the need for IT involvement in day-to-day moves and additions.

Implement per-key bandwidth shaping. Apply per-user or per-key bandwidth limits via RADIUS attributes to prevent a single resident from saturating the site's backhaul connection. This is also the mechanism for tiered service packages: the default key profile delivers 100Mbps, and an upgraded profile delivers 1Gbps, with no hardware changes required.

Isolate IoT devices by band. Encourage residents to use the 2.4GHz band for smart home devices, reserving the 5GHz and 6GHz bands for high-bandwidth applications like laptops and consoles. This reduces co-channel interference on the 5GHz band and improves overall network performance.

Use WiFi Analytics for common areas. Aggregate, anonymised footfall data from lobbies, gyms, and co-working spaces helps you optimise space utilisation and justify investment in additional amenity areas.

Troubleshooting and risk mitigation

Even with a 99.999% uptime SLA, physical and RF issues occur. Prepare for these common failure modes.

Co-channel interference (CCI). In dense BTR deployments with an AP in every unit, APs on the same channel will interfere with each other. Enable automated radio resource management (RRM) on your hardware controller to dynamically adjust channels and transmit power. On Cisco Meraki, this is Radio Settings > Auto RF. On HPE Aruba, this is ARM (Adaptive Radio Management).

Multicast and broadcast flooding. Smart home devices rely heavily on multicast traffic, specifically mDNS for Chromecast, Apple TV, and Sonos discovery. Uncontrolled multicast traffic degrades network performance across all residents. Use your hardware's multicast DNS gateway features to contain discovery traffic within the specific iPSK VLAN or policy group. On Ruckus, this is the SmartZone mDNS proxy. On Juniper Mist, this is the mDNS policy.

Captive portal interception and MAC randomisation. For the guest network, modern OS updates including iOS 14+ and Android 10+ randomise MAC addresses by default, which can disrupt captive portal flows. Ensure your walled garden allows access to essential OS validation URLs, including captive.apple.com and connectivitycheck.gstatic.com. For a seamless alternative, implement Passpoint (Hotspot 2.0) for automatic, certificate-based association without a portal login.

RADIUS server availability. If your RADIUS server is unavailable, iPSK authentication fails and residents cannot connect. Purple's Cloud RADIUS is geo-redundant with 99.999% uptime. If you run an on-premise RADIUS server, configure a secondary RADIUS server on every AP group as a failover.

ROI and business impact

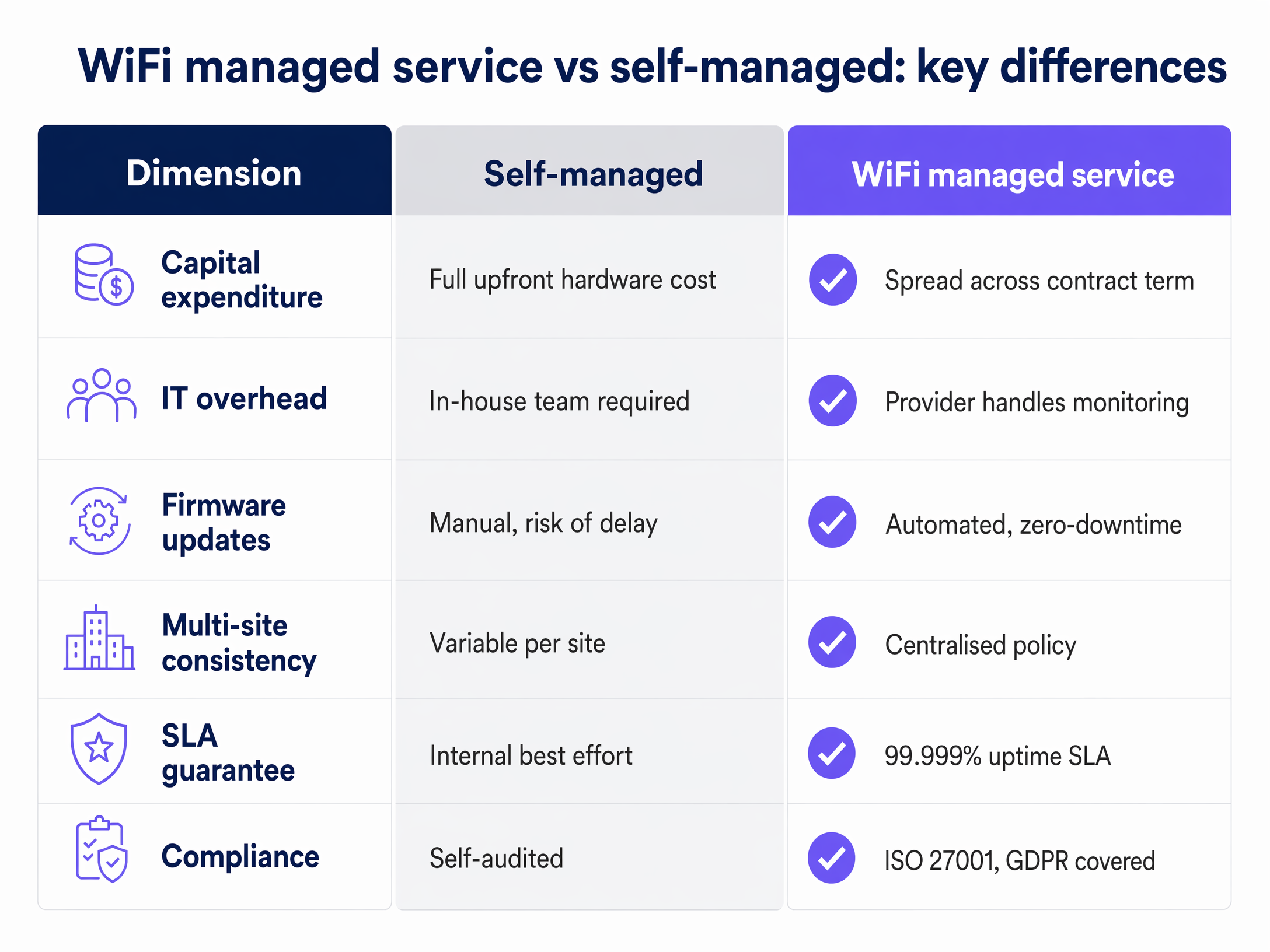

A WiFi managed service shifts the financial model from a sunk capital cost to a predictable operational expense. The comparison below illustrates the key differences.

For BTR operators, treating WiFi as a managed amenity drives measurable returns. Properties with enterprise-grade managed WiFi command a rent premium. Managed WiFi as an amenity is consistently NOI-positive when deployed as a software overlay on owned hardware, according to National Apartment Association benchmarks. The model deteriorates when WiFi is bundled with a third-party broadband contract that captures the value.

Operational efficiency gains are equally significant. Eliminating password resets and manual onboarding saves IT hours per month. Self-service key management means residents add new devices without raising a support ticket. When a resident moves out, Purple revokes their key automatically if integrated with the property management system.

For retail environments, the Guest WiFi analytics layer adds a further dimension. Purple has collected 29 billion data points (Purple internal data) across 80,000+ venues. That data translates into footfall patterns, dwell-time analysis, and repeat visitor rates that inform merchandising and staffing decisions.

For transport hubs and healthcare facilities, the compliance and security posture of a managed service reduces audit overhead. ISO 27001 certification, GDPR compliance, and Cyber Essentials certification are inherited from the platform rather than self-audited.

Listen to our full technical briefing below for a deeper discussion on deployment strategies and pitfalls.

Key Definitions

iPSK (Identity Pre-Shared Key)

A security mechanism that allows multiple unique WPA2 or WPA3 passphrases to operate on a single SSID. The RADIUS server uses the specific passphrase to identify the user and apply a VLAN assignment or policy. Also called PPSK by HPE Aruba and Personal Private Network by Cisco Meraki.

Essential for multi-tenant environments. Provides resident isolation without requiring hundreds of separate SSIDs or VLANs configured at the hardware level.

RADIUS (Remote Authentication Dial-In User Service)

A networking protocol providing centralised Authentication, Authorisation, and Accounting (AAA) management for users connecting to a network service. Defined in RFC 2865.

The authentication engine behind both 802.1X and iPSK. Purple provides Cloud RADIUS, eliminating the need for on-premise RADIUS servers and the associated maintenance overhead.

VLAN (Virtual Local Area Network)

A logical subnetwork that groups a collection of devices from different physical LANs. Defined in IEEE 802.1Q. It isolates broadcast traffic and improves security by preventing lateral movement between segments.

Used to separate resident traffic from staff traffic, and to isolate individual residents from each other within the same building.

Captive portal

A web page that a user must view and interact with before network access is granted. Typically used to present terms and conditions and capture first-party data.

Appropriate for Guest WiFi in lobbies and common areas. Not suitable for resident networks, where persistent, automatic connectivity is required.

802.1X

An IEEE standard for port-based network access control (PNAC). It provides an authentication mechanism requiring individual credentials before network access is granted. Commonly implemented with EAP-TLS (certificate-based) or PEAP (username and password).

The gold standard for Staff WiFi. Requires unique credentials tied to an identity provider rather than a shared password, enabling instant access revocation when staff leave.

BTR (Build-to-Rent)

Purpose-built residential developments designed specifically for long-term rental rather than sale. Characterised by professional management, shared amenities, and a focus on resident experience.

A primary market for multi-tenant managed WiFi. Connectivity is treated as a core amenity comparable to gym access, commanding a measurable rent premium.

Passpoint (Hotspot 2.0)

A Wi-Fi Alliance standard that enables automatic, secure network discovery and association without a captive portal. Devices connect using certificates or SIM credentials, providing a cellular-like roaming experience.

Used to eliminate repeated captive portal logins for returning visitors and to provide seamless roaming across multi-site deployments.

Cloud overlay

A software-based management and policy layer that operates above the physical network hardware. Handles authentication, policy enforcement, analytics, and onboarding without requiring changes to the underlying hardware configuration.

The architectural model that makes Purple hardware-agnostic. The overlay integrates with the hardware API rather than replacing the hardware, preserving existing investment.

WPA3 (Wi-Fi Protected Access 3)

The current generation of Wi-Fi security protocol, defined by the Wi-Fi Alliance. Introduces Simultaneous Authentication of Equals (SAE) to replace the vulnerable 4-way handshake in WPA2-PSK, providing forward secrecy and resistance to offline dictionary attacks.

Recommended for all new deployments. Supported on Cisco Meraki, HPE Aruba, Ruckus, and Juniper Mist hardware. Most devices manufactured after 2020 support WPA3.

Worked Examples

A 250-unit Build-to-Rent property in Manchester needs to provide secure WiFi for residents, staff, and visitors. The property manager wants to include 100Mbps WiFi in the base rent, with an option for residents to upgrade to 1Gbps. How should the network be architected?

Deploy a single physical network using HPE Aruba access points, one per unit. Implement Purple's cloud overlay to manage three distinct services from one platform. Staff WiFi uses 802.1X authentication tied to Microsoft Entra ID. Guest WiFi deploys a captive portal in the lobby and gym for visitors and prospective tenants. Resident WiFi uses iPSK: Purple generates a unique key for each apartment at lease signing. The default key profile is throttled to 100Mbps via RADIUS attributes. When a resident purchases the upgrade tier, the RADIUS profile updates to 1Gbps automatically. No hardware changes. No engineer visits. The property management system triggers the key update via the Purple API.

Examiner's Commentary: This approach uses a hardware-agnostic cloud overlay to segment traffic logically rather than physically. Using RADIUS attributes to control bandwidth per iPSK key enables seamless upselling without manual IT intervention, directly supporting the NOI per door model. The key insight is that the managed service layer - not the hardware - is where the commercial differentiation lives.

A national retail chain with 400 locations needs to roll out a consistent guest WiFi experience. Their current self-managed setup requires manual firmware updates, resulting in inconsistent security postures across sites. They also need to capture first-party marketing data compliantly.

Transition to a WiFi managed service. Deploy Cisco Meraki access points across all 400 sites, managed via a centralised dashboard. Integrate Purple's captive portal across all sites from a single cloud account. The managed service handles automated, scheduled firmware updates during off-hours, ensuring zero downtime and a consistent security posture. The Purple portal presents a conscious-choice opt-in for marketing, capturing first-party data (email, demographics) and pushing it directly to the chain's CRM via Purple's integration layer. GDPR compliance is inherited from the platform.

Examiner's Commentary: This scenario highlights the shift from IT overhead to managed utility. The retailer eliminates the risk of manual updates and gains a compliance-ready data capture mechanism. The critical detail is the conscious-choice opt-in: passive data collection without explicit consent fails GDPR. Purple's captive portal is designed to meet this requirement out of the box.

Practice Questions

Q1. You are deploying a network for a 500-bed student housing complex. The operator wants residents to connect smart TVs, gaming consoles, and smartphones. They currently plan to use a single SSID with a captive portal that requires MAC address registration for headless devices. What is the flaw in this plan, and what is the correct approach?

Hint: Consider how devices like Chromecast discover the controlling smartphone on a network, and what client isolation does to that discovery process.

View model answer

The flaw is that a captive portal with client isolation prevents device discovery. A smartphone cannot cast to a smart TV because the devices cannot see each other on the network. MAC address registration for headless devices is also operationally unsustainable at 500-bed scale. The correct approach is iPSK. Provide each student with a unique passphrase. This creates a private VLAN bubble for that student, allowing their devices to communicate with each other while remaining isolated from the other 499 residents. Headless devices connect using the same passphrase as the student's phone, requiring no MAC registration.

Q2. A hotel chain wants to upgrade its Staff WiFi. Currently, all staff use a single WPA2-PSK password. When an employee leaves, IT rarely changes the password due to the overhead of updating every device. Recommend a secure, enterprise-grade solution and explain the immediate operational benefit.

Hint: Look for an authentication method that ties network access to individual user identities rather than a shared secret.

View model answer

Replace the shared WPA2-PSK with 802.1X authentication (WPA2 or WPA3-Enterprise). Integrate the wireless network with the hotel's identity provider, such as Microsoft Entra ID. Staff authenticate using their individual corporate credentials. When an employee leaves, their Entra ID account is disabled, immediately revoking their WiFi access without affecting any other staff member. No password rotation. No device re-configuration. The operational benefit is zero-touch offboarding: IT disables one account and the network access is revoked automatically.

Q3. A BTR property developer is planning a 300-unit development. Their finance director asks why they cannot simply use a consumer broadband router per unit rather than a managed WiFi service. Construct a three-point business case for the managed service model.

Hint: Consider the NOI impact, the operational overhead, and the resident experience differentiators.

View model answer

Point one: NOI per door. A managed WiFi amenity commands a measurable rent premium per unit per month. Per-unit broadband contracts capture that value for the ISP, not the operator. A software overlay on owned hardware retains the value. Point two: operational efficiency. Consumer routers require per-unit maintenance, firmware updates, and password resets. A managed service handles all of this centrally. When a resident moves out, their key is revoked automatically. No engineer visit. Point three: resident experience. Consumer routers cannot support 15-25 IoT devices per household with proper isolation. A managed iPSK service delivers a home-like experience where smart devices work correctly, reducing support tickets and improving retention.
