How to Set Up a RADIUS Server for WiFi Authentication

This authoritative guide provides IT leaders and network architects with a comprehensive blueprint for deploying a RADIUS server for enterprise WiFi authentication. It covers the architectural trade-offs between on-premise and cloud-hosted deployments, EAP method selection, Active Directory integration, and dynamic VLAN assignment. Venue operators and IT teams will find actionable implementation steps, real-world case studies, and risk mitigation strategies to move from an insecure PSK environment to a robust 802.1X infrastructure this quarter.

📖 8 GuidesSlugPage.minRead📝 1,860 GuidesSlugPage.words🔧 2 GuidesSlugPage.workedExamples❓ 3 GuidesSlugPage.practiceQuestions📚 9 GuidesSlugPage.keyDefinitions

GuidesSlugPage.podcastTitle

GuidesSlugPage.podcastTranscript

Welcome to Purple's Technical Briefing. Today we are tackling a critical infrastructure decision for any enterprise IT leader: how to set up a RADIUS server for WiFi authentication. If you are managing a large-scale deployment — whether that is a hotel chain, a retail network, or a sprawling university campus — relying on a simple pre-shared key is a significant security risk. We need 802.1X, and that means we need RADIUS.

Let's start with the context. RADIUS, or Remote Authentication Dial-In User Service, acts as the gatekeeper for your network. When a device tries to connect to a WiFi access point, the access point acts as an authenticator and forwards the credentials to the RADIUS server. The server checks those credentials against a directory — like Active Directory or an LDAP database — and then returns an accept or reject message. It is the foundation of enterprise WiFi security, and it is the mechanism that allows you to enforce granular access policies at scale.

Now let's move into the technical deep-dive. The first major architectural decision you will face is choosing between an on-premise RADIUS server and a cloud-hosted solution. Historically, on-premise solutions like Microsoft's Network Policy Server, or NPS, or the open-source FreeRADIUS were the standard. They offer complete control over the infrastructure and do not rely on an external internet connection for authentication. However, they require dedicated hardware, ongoing maintenance, and manual configuration of redundancy. If you have a single data centre and a well-staffed IT team, this is a perfectly valid approach.

On the other hand, cloud RADIUS solutions have become increasingly popular, especially for distributed environments like retail chains or hospitality venues. Cloud RADIUS abstracts the hardware management entirely, offers built-in high availability, and integrates seamlessly with cloud identity providers like Azure Active Directory or Okta. The trade-off is that authentication requires a reliable internet connection, and there is an ongoing subscription cost. For a venue operator running fifty or a hundred locations, the operational savings from not deploying and maintaining on-premise servers at each site will almost certainly outweigh that cost.

When deploying RADIUS, the Extensible Authentication Protocol — EAP — is the critical piece. It defines how the client and server negotiate and perform the authentication. EAP-TLS is the gold standard for security because it uses digital certificates on both the client and the server, eliminating the need for passwords entirely. This means even if an attacker captures the authentication exchange, there are no credentials to steal. However, deploying client certificates can be administratively heavy. You need a Public Key Infrastructure and an MDM solution to push certificates to every device.

PEAP-MSCHAPv2 is the most common alternative. It uses a server-side certificate to establish an encrypted TLS tunnel, inside of which the user authenticates with a username and password. This is significantly easier to deploy than EAP-TLS because you only need to manage one certificate — the server's. However, and this is critical — if clients are not strictly configured to validate the server's certificate, they are vulnerable to rogue access points. An attacker can stand up a fake access point, present a fraudulent certificate, and capture credentials. This is not a theoretical attack. It is a well-documented real-world threat.

Let's talk implementation recommendations and pitfalls. The first recommendation is to enforce strict certificate validation on every client device. Use Group Policy Objects for Windows devices and MDM profiles — whether that is Intune, Jamf, or another solution — for macOS and mobile devices. The profile must specify exactly which Certificate Authority to trust and what the expected server name is. Do not leave this to the end user to configure manually.

The second recommendation is to implement dynamic VLAN assignment. Instead of putting all authenticated users on the same flat network, configure the RADIUS server to instruct the access point to place the user on a specific VLAN based on their group membership in the directory. This is essential for segmenting corporate devices from BYOD or guest devices. A staff member in the finance team should be on a different network segment than a contractor visiting for the day.

The third recommendation concerns guest access. For venues that need to provide WiFi to visitors — hotels, retail stores, conference centres — integrating your RADIUS infrastructure with a captive portal solution like Purple's Guest WiFi platform is a powerful combination. Staff and corporate devices authenticate silently via 802.1X, while guests are directed to a branded portal for authentication. Purple's platform then captures first-party data and provides analytics on visitor behaviour, turning your network from a cost centre into a business intelligence asset.

Now for a rapid-fire question and answer session. First question: Do I need a dedicated server for RADIUS? For on-premise deployments, yes, it is highly recommended to run it on a dedicated virtual machine rather than sharing resources with a domain controller. Authentication is a latency-sensitive operation, and resource contention can cause intermittent failures that are very difficult to diagnose. Second question: Can RADIUS handle authentication for headless devices like printers or IoT sensors? Yes, through MAC Authentication Bypass, or MAB. This allows devices without 802.1X capabilities to be authenticated based on their MAC address. However, because MAC addresses are easily spoofed, MAB-authenticated devices should always be placed on a highly restricted VLAN. Third question: How do I handle RADIUS server redundancy? Always deploy at least two RADIUS servers — a primary and a secondary. Configure all access points to fail over to the secondary if the primary becomes unreachable. For cloud RADIUS, this redundancy is typically built in and managed by the provider.

To summarise the key takeaways from today's briefing. Pre-shared keys are not acceptable for enterprise WiFi. Implement 802.1X. Choose your deployment model — on-premise or cloud — based on your IT resources, the number of locations you are managing, and your existing identity infrastructure. If you are distributed and cloud-first, cloud RADIUS is almost certainly the right answer. Enforce strict certificate validation on clients. This is non-negotiable. Use dynamic VLAN assignment to segment your network. And finally, consider how your authentication infrastructure can integrate with broader platforms to deliver business value beyond simply controlling access.

For further reading, we recommend exploring Purple's guides on configuring 802.1X WiFi authentication and securing your network with strong DNS policies. Thank you for listening.

GuidesSlugPage.keyTakeawaysTitle

✓Pre-Shared Keys (PSK) are not acceptable for enterprise WiFi: a single compromised credential exposes the entire network. 802.1X with RADIUS is the industry standard.
✓The 802.1X architecture has three roles: Supplicant (client), Authenticator (access point), and Authentication Server (RADIUS). Understanding which component is failing is the foundation of effective troubleshooting.
✓Choose Cloud RADIUS for distributed environments with limited branch IT staff; choose On-Premise RADIUS when you need maximum control, have dedicated IT resources, and have strict data sovereignty requirements.
✓PEAP-MSCHAPv2 is the most common deployment method, but it is only secure when clients are explicitly configured to validate the RADIUS server's certificate — enforce this via GPO or MDM without exception.
✓Dynamic VLAN Assignment is essential for network segmentation: it allows a single SSID to serve staff, contractors, guests, and IoT devices on separate network segments, enforced automatically based on directory group membership.
✓MAC Authentication Bypass (MAB) provides device identification for headless IoT devices but is not a security control — always pair it with restrictive VLAN assignment and firewall rules.
✓For venue operators, combining 802.1X for staff with a captive portal solution like Purple for guests creates a tiered access model that delivers both security and business intelligence from the same wireless infrastructure.

Executive Summary

For enterprise environments — whether a sprawling university campus, a high-density stadium, or a distributed retail chain — relying on a Pre-Shared Key (PSK) for WiFi access is a significant security liability. A single compromised credential exposes the entire network, and revoking access requires changing the password for every device on the estate. Implementing 802.1X authentication via a RADIUS (Remote Authentication Dial-In User Service) server eliminates this problem entirely: each user authenticates individually, access can be revoked instantly, and network segmentation is enforced dynamically.

This guide provides a definitive roadmap for IT managers and network architects to deploy RADIUS authentication. We cover the architectural trade-offs between on-premise and cloud-hosted deployments, the configuration of Extensible Authentication Protocol (EAP) methods, and the integration with directory services like Active Directory. We also demonstrate how a robust authentication layer integrates with Guest WiFi solutions to provide seamless access for visitors, while capturing the WiFi Analytics that turn your network into a business intelligence asset.

Technical Deep-Dive

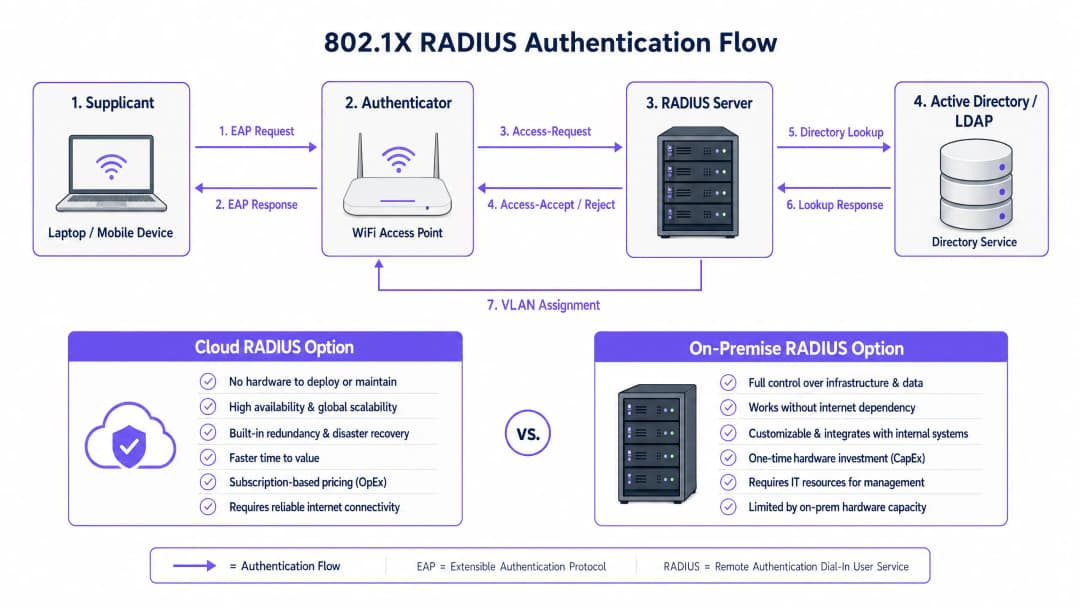

The 802.1X Architecture

The IEEE 802.1X standard defines port-based Network Access Control (PNAC). In a wireless context, it involves three primary roles working in concert:

Role	Component	Responsibility
Supplicant	Client device (laptop, smartphone)	Presents credentials to request network access
Authenticator	WiFi Access Point or Controller	Enforces access control; relays EAP messages
Authentication Server	RADIUS Server	Validates credentials; returns accept/reject and policy attributes

When a supplicant associates with an access point, the AP blocks all data traffic except EAP (Extensible Authentication Protocol) messages. The AP encapsulates these EAP messages in RADIUS packets and forwards them to the RADIUS server. The server verifies the credentials against a backend database — typically LDAP or Active Directory — and returns an Access-Accept or Access-Reject message. If accepted, the AP unblocks the port and the client's traffic flows freely.

Choosing an EAP Method

The security of your RADIUS deployment depends heavily on the EAP method selected. The two most prevalent in enterprise deployments are:

EAP-TLS (Transport Layer Security) is the gold standard. It requires digital certificates on both the RADIUS server and every client device, eliminating passwords entirely. Even if an attacker captures the full authentication exchange, there are no credentials to extract. The trade-off is administrative overhead: deploying and managing client certificates requires a functioning Public Key Infrastructure (PKI) and an MDM solution (e.g., Microsoft Intune, Jamf) to distribute certificates to endpoints.

PEAP-MSCHAPv2 (Protected EAP) is the most widely deployed method in practice. It uses a server-side certificate to establish an encrypted TLS tunnel, inside which the client authenticates with a username and password. This is significantly easier to deploy than EAP-TLS because only one certificate — the server's — needs to be managed. However, it carries a critical caveat: if client devices are not explicitly configured to validate the RADIUS server's certificate, they are vulnerable to Man-in-the-Middle (MitM) attacks via rogue access points.

> Critical Security Note: Failing to enforce strict certificate validation on client devices effectively nullifies the security benefits of PEAP-MSCHAPv2. An attacker can deploy a rogue AP, present a fraudulent certificate, and capture user credentials in plaintext. This is not a theoretical risk — it is a well-documented attack vector that has been exploited in real-world environments.

Implementation Guide

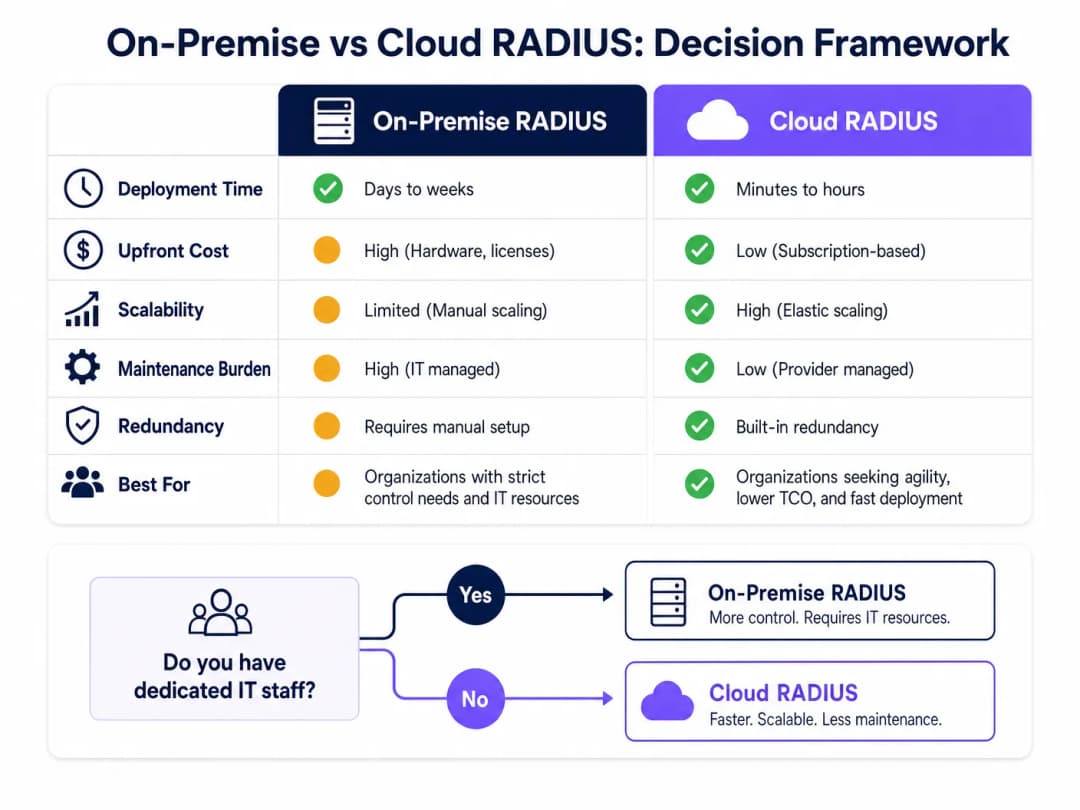

Step 1: Architectural Decision — On-Premise vs. Cloud RADIUS

The first decision is where to host the RADIUS infrastructure. This is primarily an operational and cost question, not a security one — both models can be deployed securely.

On-Premise RADIUS (e.g., Microsoft NPS, FreeRADIUS, Cisco ISE) is suited for organisations with dedicated IT staff, existing on-premise directory infrastructure, and stringent data sovereignty or compliance requirements. It does not depend on internet connectivity for authentication, which is a meaningful advantage for environments where internet uptime cannot be guaranteed.

Cloud RADIUS is increasingly the preferred model for distributed environments — Retail chains, Hospitality groups, and Transport hubs where deploying servers at every location is operationally impractical. Cloud RADIUS integrates natively with cloud identity providers (Azure AD, Google Workspace, Okta) and provides built-in high availability and global scalability.

Step 2: Install and Configure the RADIUS Server

For an on-premise deployment using Microsoft NPS (the most common choice in Windows-centric environments):

Install the Network Policy Server role via Server Manager.
Register the NPS server in Active Directory to allow it to read user dial-in properties.
Create a RADIUS Client entry for each access point or wireless controller, specifying the AP's IP address and a strong, unique Shared Secret.
Configure a Network Policy defining the conditions (e.g., user group membership) and constraints (e.g., EAP method, session timeout) for access.
Configure the Connection Request Policy to process requests locally.

For FreeRADIUS on Linux:

Install via package manager: sudo apt-get install freeradius freeradius-ldap.
Configure /etc/freeradius/3.0/clients.conf to define RADIUS clients (APs) and their shared secrets.
Configure the LDAP module in /etc/freeradius/3.0/mods-available/ldap to point to your Active Directory or LDAP server.
Enable the LDAP module: sudo ln -s /etc/freeradius/3.0/mods-available/ldap /etc/freeradius/3.0/mods-enabled/.
Define EAP methods in /etc/freeradius/3.0/mods-available/eap.

Step 3: Configure Access Points

On your wireless controller or individual access points:

Define the RADIUS server IP address(es) and authentication port (default: UDP 1812).
Configure the Shared Secret — use a minimum of 22 characters, mixing alphanumeric and special characters. Use a unique secret per location or AP group.
Configure the SSID to use WPA2-Enterprise or WPA3-Enterprise security mode with 802.1X key management.
Configure a secondary RADIUS server for failover.

Step 4: Directory Integration

For on-premise AD integration, the RADIUS server must be joined to the domain or have LDAP read access. Ensure service accounts used for LDAP binding have the minimum required permissions. For cloud RADIUS, configure the API-based synchronization or SAML/OIDC integration with your IdP.

Define clear user groups in your directory, as these will drive authorization policies. Recommended group structure:

Group	VLAN	Access Level
`Corp_Staff`	VLAN 10	Full internal network
`Corp_Contractors`	VLAN 20	Internet + specific internal resources
`Corp_IoT`	VLAN 30	Isolated, device-specific ports only
`Corp_Guests`	VLAN 100	Internet only via captive portal

Step 5: Client Configuration and Certificate Validation

This is the most operationally critical step. Use Group Policy (GPO) for Windows and MDM profiles for macOS/iOS/Android to push WiFi configurations silently to managed devices. The profile must specify:

The Root CA that issued the RADIUS server's certificate.
The expected server name (CN or SAN of the server certificate).
The EAP method and inner authentication protocol.

For unmanaged BYOD devices, provide clear self-service onboarding instructions, ideally via a Network Access Control (NAC) portal.

Step 6: Implement Dynamic VLAN Assignment

Configure the RADIUS server to return VLAN assignment attributes in the Access-Accept response:

Tunnel-Type = VLAN (13)
Tunnel-Medium-Type = IEEE-802 (6)
Tunnel-Private-Group-Id = ``

The access point reads these attributes and places the authenticated client on the specified VLAN — no manual reconfiguration required as users change roles or locations.

Best Practices

Redundancy is non-negotiable. Deploy a minimum of two RADIUS servers (primary and secondary) and configure all access points to fail over automatically. For on-premise deployments, consider placing the secondary server in a different physical location or availability zone. A RADIUS outage means nobody can authenticate, which is a complete network outage for 802.1X-protected SSIDs.

Monitor certificate expiry proactively. A RADIUS server certificate expiry is one of the most common causes of sudden, widespread authentication failures. Implement monitoring to alert administrators at least 30 days before expiry. This applies to both the server certificate and any intermediate CA certificates in the chain.

Treat the Shared Secret as a critical credential. The shared secret between the AP and the RADIUS server encrypts RADIUS packets. Use unique secrets per location or AP group, store them in a secrets manager, and rotate them periodically. See our guide on Protect Your Network with Strong DNS and Security for broader network security hygiene recommendations.

Align with compliance frameworks. For environments subject to PCI DSS (e.g., retail payment networks), 802.1X authentication directly supports requirements for network access control and audit logging. For GDPR compliance, RADIUS accounting logs (port 1813) provide a detailed audit trail of who accessed the network, from where, and when — valuable for incident response. For Healthcare environments, network segmentation via dynamic VLAN assignment supports HIPAA requirements for protecting electronic protected health information (ePHI).

Troubleshooting & Risk Mitigation

Failure Mode	Symptom	Resolution
Certificate expiry	Sudden mass authentication failures	Monitor expiry; renew and redeploy certificate
NTP desynchronisation	Intermittent EAP-TLS failures	Ensure RADIUS server and DCs sync to same NTP source
LDAP connectivity loss	Authentication fails when AD is unreachable	Deploy redundant DCs; configure RADIUS to cache recent authentications
Incorrect Shared Secret	AP logs show `RADIUS timeout` or `Bad authenticator`	Verify secret matches on both AP and RADIUS server
Client certificate mismatch	EAP-TLS failures for specific devices	Verify client cert is issued by trusted CA; check cert validity period
VLAN not assigned	User authenticated but on wrong network segment	Verify RADIUS attributes are correctly returned; check AP VLAN configuration

For a deeper dive into the 802.1X configuration process itself, the How to Configure 802.1X WiFi Authentication: A Step-by-Step Guide provides granular, vendor-specific configuration walkthroughs.

ROI & Business Impact

Transitioning from PSK to RADIUS-backed 802.1X requires an initial investment in configuration, and potentially licensing for cloud solutions or hardware for on-premise deployments. The ROI case is straightforward:

Risk mitigation: The average cost of a data breach in the UK is in excess of £3 million (IBM Cost of a Data Breach Report). A compromised PSK can expose the entire network. 802.1X limits the blast radius to a single compromised user account, which can be disabled in seconds via the directory.

Operational efficiency: Dynamic VLAN assignment eliminates manual network reconfiguration as staff change roles. Onboarding a new employee means adding them to the correct AD group — the network access follows automatically.

Compliance posture: For organisations subject to PCI DSS, ISO 27001, or Cyber Essentials Plus, 802.1X is a direct control that auditors expect to see. Deploying it strengthens your compliance posture and reduces audit remediation costs.

Guest experience and analytics: For venue operators, integrating RADIUS for staff authentication with Purple's Guest WiFi platform for visitor access creates a unified, tiered access model. Staff authenticate silently via 802.1X; guests connect via a branded captive portal. Purple's WiFi Analytics platform then provides real-time visibility into visitor dwell times, repeat visit rates, and engagement metrics — data that directly informs marketing spend and venue operations decisions.

For further reading, see the Como Configurar a Autenticação 802.1X WiFi: Um Guia Passo a Passo for Portuguese-language implementation guidance, and What Is a Leased Line? Dedicated Business Internet for guidance on ensuring the underlying connectivity meets enterprise requirements.

GuidesSlugPage.keyDefinitionsTitle

RADIUS (Remote Authentication Dial-In User Service)

A networking protocol providing centralised Authentication, Authorization, and Accounting (AAA) management for users connecting to a network service. Defined in RFC 2865.

The core server component that validates user credentials against a directory before granting WiFi access. Every enterprise WiFi deployment using 802.1X requires a RADIUS server.

802.1X

An IEEE Standard for port-based Network Access Control (PNAC). It provides an authentication mechanism to devices wishing to attach to a LAN or WLAN, blocking all non-EAP traffic until authentication succeeds.

The overarching framework standard that defines how the Supplicant, Authenticator, and Authentication Server communicate. When IT teams refer to 'enterprise WiFi security', they typically mean WPA2/WPA3-Enterprise with 802.1X.

Supplicant

The client device — or more precisely, the 802.1X software stack on that device — that initiates the authentication process by presenting credentials to the network.

On Windows, the built-in supplicant is the Wireless AutoConfig service. On macOS and iOS, it is native to the OS. Ensuring the supplicant is correctly configured (especially for certificate validation) is the most common source of deployment issues.

Authenticator

The network device — typically a WiFi access point or wireless controller — that acts as an intermediary between the Supplicant and the RADIUS server, enforcing access control based on the authentication result.

The AP blocks all data traffic on the port until it receives an Access-Accept from the RADIUS server. It also reads RADIUS attributes (e.g., VLAN assignment) from the Access-Accept response and applies them to the session.

EAP (Extensible Authentication Protocol)

An authentication framework defined in RFC 3748 that provides a standardised transport mechanism for various authentication methods (TLS, PEAP, TTLS, etc.) between the Supplicant and the Authentication Server.

EAP is the 'language' spoken between the client and the RADIUS server. The choice of EAP method (EAP-TLS vs PEAP) determines the security strength and deployment complexity of the authentication system.

PEAP (Protected EAP)

An EAP method that first establishes a TLS tunnel using the server's certificate, then performs a secondary authentication (typically MSCHAPv2 with username/password) inside that encrypted tunnel.

The most common enterprise WiFi authentication method due to its balance of security and deployment simplicity. Requires only a server-side certificate, making it far easier to roll out than EAP-TLS.

Dynamic VLAN Assignment

A RADIUS feature where the server includes VLAN-specific attributes (Tunnel-Type, Tunnel-Medium-Type, Tunnel-Private-Group-Id) in the Access-Accept response, instructing the AP to place the authenticated client on a specific VLAN.

Enables a single SSID to serve multiple user populations with different security requirements. Eliminates the need to broadcast multiple SSIDs for different user groups, reducing RF overhead and simplifying the user experience.

Shared Secret

A pre-configured text string known only to the Authenticator (AP) and the RADIUS server, used to sign and encrypt RADIUS packets, ensuring the integrity and authenticity of the communication.

A critical security configuration element. If the shared secret is weak or compromised, an attacker could forge RADIUS Access-Accept responses, granting unauthorised network access. Use unique secrets per location and store them in a secrets manager.

MAC Authentication Bypass (MAB)

A fallback authentication mechanism where a device's MAC address is used as its identity credential, enabling network access for devices that do not support 802.1X supplicants.

Used for headless devices (printers, IoT sensors, IP cameras). Because MAC addresses are publicly visible and easily spoofed, MAB provides device identification rather than strong authentication. Always pair with restrictive VLAN assignment.

GuidesSlugPage.workedExamplesTitle

A national retail chain with 500 locations needs to implement secure WiFi for store managers' tablets and POS terminals. They currently use a single PSK across all stores, which is frequently shared with unauthorized staff and contractors. They use Azure AD for identity management and have no dedicated IT staff at branch locations.

Deploy a Cloud RADIUS solution integrated directly with Azure AD. This eliminates the need to deploy and manage on-premise RADIUS servers at 500 locations. The IT team uses Microsoft Intune to push a WiFi profile to all store managers' tablets and POS terminals configured for PEAP-MSCHAPv2, strictly enforcing validation of the Cloud RADIUS server's certificate. The Cloud RADIUS policy checks the user's Azure AD group membership before granting access: 'Store_Managers' group receives VLAN 10 (full POS and back-office access), 'Contractors' group receives VLAN 20 (internet-only). When a contractor's engagement ends, removing them from the Azure AD group immediately revokes their WiFi access across all 500 locations simultaneously — no PSK change required.

GuidesSlugPage.examinerCommentary This approach addresses the core vulnerability (shared PSK) while acknowledging the operational constraints (no branch IT staff, Azure AD environment). Cloud RADIUS provides the necessary scalability and integrates natively with the existing identity provider. The use of dynamic VLAN assignment ensures that even if a contractor's device is on-site after their engagement ends, removing them from the directory group is the single action required to revoke access.

A 400-room city-centre hotel needs to provide secure WiFi for both staff (front desk, housekeeping, management) and guests. Staff require access to the property management system (PMS) and internal servers. Guests require internet access only. The hotel has a single on-premise Windows Server environment.

Deploy Microsoft NPS on a dedicated Windows Server VM. Configure two SSIDs on the wireless infrastructure: 'Hotel_Staff' (WPA2-Enterprise, 802.1X) and 'Hotel_Guest' (open or WPA2-Personal, redirecting to a captive portal). For the staff SSID, NPS validates credentials against Active Directory and returns dynamic VLAN assignments: 'Management' AD group → VLAN 10 (full access), 'FrontDesk' → VLAN 20 (PMS access), 'Housekeeping' → VLAN 30 (internet + scheduling app only). For guests, integrate the captive portal with Purple's Guest WiFi platform to provide a branded login experience, collect first-party data (email, marketing consent), and gain analytics on dwell time and repeat visits. The two-SSID model keeps staff and guest traffic completely separated at the network layer.

GuidesSlugPage.examinerCommentary The two-SSID model is the correct approach here rather than a single SSID with complex policy routing. It provides clear operational separation and simplifies troubleshooting. Integrating Purple for the guest SSID is the commercially intelligent decision: it converts the guest network from a cost centre into a data capture and marketing channel, with measurable ROI through repeat visit rates and email marketing engagement.

GuidesSlugPage.practiceQuestionsTitle

Q1. Your organisation is migrating 2,000 Windows laptops from a shared PSK to 802.1X with PEAP-MSCHAPv2. Your security team flags that PEAP is vulnerable to credential harvesting via rogue access points. What is the single most important configuration step to mitigate this risk, and how do you deploy it at scale?

GuidesSlugPage.hintPrefixConsider what prevents a client from trusting a fraudulent RADIUS server presenting a self-signed certificate.

GuidesSlugPage.viewModelAnswer

The critical step is enforcing strict server certificate validation on every client device. Using Group Policy Objects (GPO), push a WiFi profile to all 2,000 laptops that specifies: (1) the exact Root CA certificate that issued the RADIUS server's certificate, (2) the expected server name (CN/SAN), and (3) that the client must not prompt the user to trust new certificates. This ensures that even if an attacker deploys a rogue AP with a fraudulent certificate, the client will reject the TLS handshake and refuse to send credentials. Without this configuration, PEAP provides no meaningful protection against rogue AP attacks.

Q2. A hospital IT director needs to provide network access for 300 medical IoT devices (infusion pumps, monitoring equipment) that do not support 802.1X. These devices sit alongside staff workstations on the same wireless infrastructure. How should the RADIUS infrastructure handle these devices, and what network controls must be in place?

GuidesSlugPage.hintPrefixThink about the authentication method available for headless devices and how to compensate for its inherent weakness.

GuidesSlugPage.viewModelAnswer

Configure MAC Authentication Bypass (MAB) on the RADIUS server for these specific devices. Register each device's MAC address in a dedicated Active Directory group or RADIUS database. Because MAC addresses are easily spoofed, the RADIUS server must use Dynamic VLAN Assignment to place all MAB-authenticated devices onto a dedicated, highly restricted VLAN (e.g., VLAN 30 - IoT). This VLAN should be firewalled to allow communication only with specific medical server IP addresses and block all other traffic, including internet access and lateral movement to staff VLANs. Staff workstations authenticate via 802.1X and are placed on a separate VLAN. This architecture satisfies HIPAA network segmentation requirements for ePHI-adjacent devices.

Q3. You are the network architect for a 50-venue restaurant chain. Authentication is working correctly at 49 venues using Cloud RADIUS, but one specific venue reports that all devices fail to authenticate. The Cloud RADIUS management portal shows zero authentication requests arriving from that venue. What is your diagnostic approach?

GuidesSlugPage.hintPrefixIf the RADIUS server is receiving no requests at all, the problem is in the communication path between the Authenticator and the server — not in the authentication logic itself.

GuidesSlugPage.viewModelAnswer

Since the RADIUS server is receiving zero requests from this venue, the fault lies between the access points and the cloud RADIUS server. Diagnostic steps in order: (1) Verify the RADIUS server IP address and port (UDP 1812) configured on the venue's APs or wireless controller — a typo here is the most common cause. (2) Check the local firewall or router rules at that venue to confirm outbound UDP 1812 traffic is permitted to the cloud RADIUS IP range. (3) Verify the Shared Secret configured on the APs matches the secret configured for that venue in the Cloud RADIUS portal — a mismatch causes the RADIUS server to silently discard packets. (4) Check if the venue's internet connection is functioning — cloud RADIUS requires reliable internet connectivity. Running a packet capture on the AP or upstream router will confirm whether RADIUS packets are being sent and whether responses are being received.
