Executive Summary

Modern enterprise venues operate in a hyper-connected, highly regulated landscape. The provision of shared wireless infrastructure—whether in a hotel, retail development, transport hub, or public-sector campus—is no longer a simple utility; it is a regulated activity. The moment an organisation routes traffic or collects data from multiple independent tenants, employees, and public guests on a single physical network, it assumes substantial legal liabilities. These obligations span data privacy regulations such as the General Data Protection Regulation (GDPR) [1], payment card security standards (PCI DSS 4.0) [2], and national security legislation such as the UK Investigatory Powers Act [3].

For the Chief Technology Officer (CTO) and Chief Information Security Officer (CISO), a failure to architect these networks correctly exposes the enterprise to severe regulatory fines—up to 4% of global annual turnover under GDPR—and catastrophic security breaches. For the Venue Operations Director, non-compliance represents a direct threat to business continuity, tenant retention, and customer trust.

This guide provides a comprehensive, vendor-neutral architectural blueprint to navigate these challenges. By implementing virtual network segmentation (VLANs), robust identity-based access control (IEEE 802.1X), and automated consent management, organisations can transform their shared wireless network from a high-risk liability into a secure, compliant, and highly valuable business asset. Integrating enterprise intelligence platforms like Purple's Guest WiFi and WiFi Analytics ensures that compliance is not achieved at the expense of user experience, but rather acts as an enabler for secure, first-party data capture and operational efficiency.

Technical Deep-Dive

Transitioning from a single-venue wireless deployment to a shared, multi-tenant infrastructure requires a fundamental shift in network design philosophy: from a flat, trusted environment to a segmented, zero-trust framework. The primary objective is to ensure that multiple independent tenants co-exist on a single physical infrastructure without compromising security, performance, or privacy.

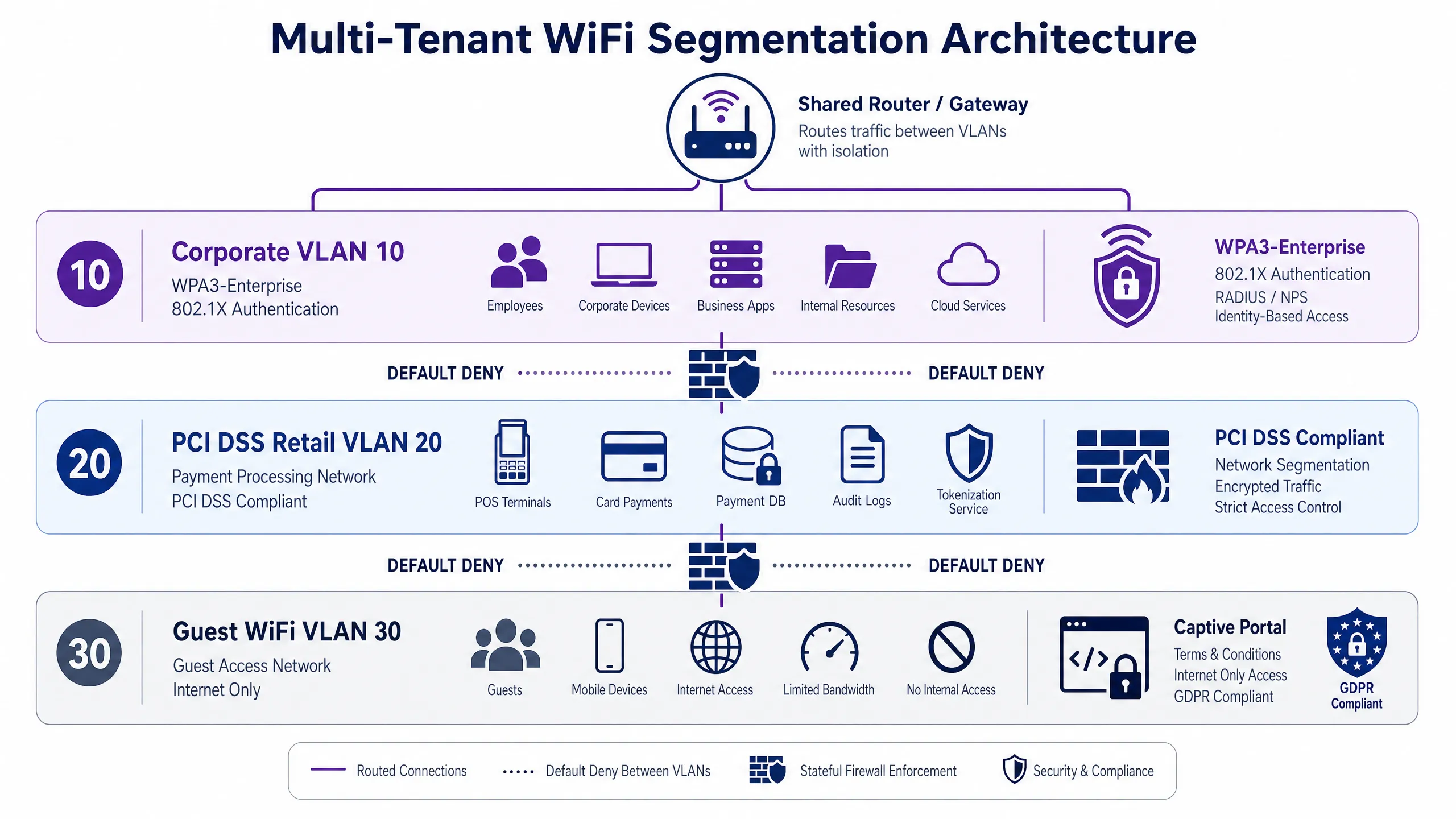

The Foundational Imperative of VLAN Segmentation

The cornerstone of any multi-tenant network is the Virtual Local Area Network (VLAN). As defined by the IEEE 802.1Q standard, VLANs allow a single physical network switch to be partitioned into multiple, logically separate broadcast domains [4]. In a shared venue, this means that traffic from one tenant—for example, a retail store on VLAN 10—is completely invisible and inaccessible to traffic from another tenant, such as a corporate office on VLAN 20, even when their devices connect to the same physical access points.

> Architectural Rule: Without proper VLAN implementation, tenant separation is merely cosmetic. Multiple SSIDs on a single, flat LAN offer no security isolation; any device on the network can sniff broadcast traffic and perform lateral reconnaissance.

To enforce strict tenant isolation, the network core must implement stateful, inter-VLAN firewall rules. By default, all inter-VLAN routing must be blocked (Default Deny). Traffic must only be permitted to traverse VLAN boundaries if it matches explicit, highly restricted firewall rules (e.g., routing specific ports to a shared local printer or payment gateway).

Authentication Standards: WPA3 and IEEE 802.1X

Securing access to the shared infrastructure requires matching the authentication protocol to the specific tenant risk profile. A one-size-fits-all pre-shared key (PSK) approach is a critical security vulnerability and a direct compliance failure in enterprise environments.

• Corporate and Regulated Tenants: These environments demand WPA3-Enterprise paired with IEEE 802.1X port-based network access control [5]. This architecture replaces static passwords with individual, dynamic credentials authenticated via an Extensible Authentication Protocol (EAP) method, such as EAP-TLS (certificate-based) or PEAP-MSCHAPv2 (credential-based), communicating with a central RADIUS (Remote Authentication Dial-In User Service) server. This ensures that when an employee leaves or a device is compromised, their access can be revoked instantly without affecting any other user or tenant. For detailed deployment steps, refer to our guide on How to Implement 802.1X Authentication with Cloud RADIUS .
• IoT and Headless Devices: Smart building sensors, digital signage, and environmental controls often lack the capability to perform 802.1X authentication. For these devices, Multi-Pre-Shared Key (MPSK) or Dynamic PSK (DPSK) technologies must be deployed. This allows the network to assign a unique, individual PSK to each device, mapping it automatically to a restricted IoT VLAN without requiring enterprise-grade client software.
• Public Guest Access: To protect public guest traffic from passive wireless sniffing without introducing the friction of passwords, venues should deploy WPA3-Enhanced Open, based on Opportunistic Wireless Encryption (OWE) [6]. OWE establishes individual, encrypted wireless sessions for each guest device automatically, ensuring privacy on open networks while maintaining a seamless onboarding flow through a captive portal.

The Data Protection Layer: GDPR and UK GDPR Compliance

When a venue operates a guest WiFi network, it is legally classified as a Data Controller under the GDPR and UK GDPR. The captive portal provider acts as the Data Processor. This distinction is critical: the venue retains ultimate legal liability for how guest data is captured, processed, and stored.

Under Article 4 of the GDPR, personal data includes any information relating to an identified or identifiable natural person [1]. In a guest WiFi environment, this encompasses both explicit data (names, email addresses, phone numbers, or social media profiles captured via the captive portal) and implicit data (MAC addresses, IP addresses, session timestamps, and device location data captured automatically by the wireless controller).

To process this personal data legally, venues must establish a valid lawful basis under GDPR Article 6. For basic network connectivity and security logging, venues can claim Legitimate Interest (Article 6(1)(f)). However, if the venue wishes to use this data for marketing, behavioural profiling, or analytics, it must obtain Explicit Consent (Article 6(1)(a)).

> Consent Standard: Consent must be freely given, specific, informed, and unambiguous. It must be indicated by a clear, affirmative action. Bundling marketing consent with the terms of service for network access is a direct violation of the regulation.

To meet this standard, the captive portal splash page must be architected with separate, unticked checkboxes for each distinct processing purpose. For example, a user must be able to accept the network Terms of Use to get online without being forced to opt into marketing communications. Furthermore, the system must maintain a detailed, tamper-proof Consent Audit Trail, logging exactly who consented, when, what disclosures they were shown, and the exact privacy policy version active at that moment.

Data Retention and the Regulatory Conflict

IT teams face a complex, dual-front challenge when managing network log retention. They must balance the GDPR principle of Data Minimisation (retaining personal data for no longer than is strictly necessary) with national security laws that mandate log retention.

For example, the UK Investigatory Powers Act 2016 (IPA) requires communication service providers to retain Internet Connection Records (ICRs) for up to 12 months to assist law enforcement in serious-crime investigations [3]. Similarly, various European national telecommunications regulations mandate connection log retention ranging from 30 days to 12 months.

To navigate this conflict, venues must implement a Tiered Retention Architecture that segregates and automates retention schedules based on data classification:

1. Network Session Logs (IP allocations, MAC addresses, timestamps): Retained for 12 months in a secure, encrypted syslog repository with restricted access to satisfy statutory law enforcement obligations, then automatically purged.
2. Captive Portal Registration Data (unconsented): Purged or fully anonymised within 30 days of session termination.
3. Marketing Profiles (consented): Retained until the user withdraws consent (opts out). Inactive profiles (e.g., users who have not connected for 180 days) must be automatically flagged for deletion or re-consent campaigns.

Implementation Guide

Deploying a secure, compliant, multi-tenant wireless network requires a structured, phase-gate approach. This section outlines the critical configuration steps, focusing on vendor-neutral best practices for network architects and IT managers.

Step 1: Physical and Logical VLAN Configuration

Begin by defining the VLAN schema at the core switch and propagating it across all distribution switches and access points (APs) using 802.1Q trunking. Allocate distinct subnets and VLAN IDs to isolate traffic domains completely:

Configure Core Switch:
  vlan 10 -> Name: Corporate_Tenant (Subnet: 10.10.10.0/24)
  vlan 20 -> Name: Retail_POS_PCI (Subnet: 10.20.20.0/24)
  vlan 30 -> Name: Guest_WiFi (Subnet: 172.16.0.0/16)

On the edge switches, configure the ports connecting to the wireless Access Points as Trunk Ports, allowing VLANs 10, 20, and 30. Ensure the native (untagged) VLAN is set to a non-routing management VLAN (e.g., VLAN 99) to protect management traffic from tenant interception.

Step 2: Access Control List (ACL) and Firewall Enforcement

At the Layer 3 boundary (typically the core switch or security gateway), enforce strict inter-VLAN blocking. The default state for all inter-VLAN traffic must be blocked. Implement stateful Access Control Lists (ACLs) or firewall rules to prevent lateral movement:

Create Access-List (Cisco IOS Example):
  ip access-list extended BLOCK_LATERAL
    deny ip 172.16.0.0 0.0.255.255 10.10.10.0 0.0.0.255 (Block Guest to Corp)
    deny ip 172.16.0.0 0.0.255.255 10.20.20.0 0.0.0.255 (Block Guest to PCI)
    permit ip 172.16.0.0 0.0.255.255 any (Permit Guest to WAN)

Apply this ACL inbound on the SVI (Switch Virtual Interface) for VLAN 30. For the PCI-scoped VLAN 20, configure a stateful inspection rule that blocks all inbound traffic from all other VLANs, permitting only outbound encrypted TLS sessions to the specific payment processor IP addresses.

Step 3: Enterprise RADIUS and 802.1X Integration

For corporate tenants, integrate the wireless controller with a secure RADIUS server (such as FreeRADIUS, Microsoft NPS, or a cloud-based RADIUS solution). Configure the corporate SSID to use WPA3-Enterprise (AES-CCMP or GCMP-256 encryption) with 802.1X authentication.

Configure the RADIUS server to perform certificate-based authentication (EAP-TLS). Generate and distribute unique client certificates to all corporate devices via an MDM (Mobile Device Management) platform. This prevents unauthorized personal devices from connecting to the corporate network, even if user credentials are leaked.

Step 4: Captive Portal and Consent Capture Setup

For the public Guest WiFi (VLAN 30), configure the wireless controller to redirect all unauthenticated HTTP/HTTPS traffic to an external captive portal. Ensure the portal is hosted on a secure, HTTPS-enabled server with a valid SSL/TLS certificate.

Using a compliance-focused platform like Purple, design the captive portal splash page to enforce the following UI elements:

1. Clear Privacy Notice: Display a prominent, easily readable summary explaining what data is collected (e.g., name, email, MAC address) and the purposes of processing.
2. Separate Consent Checkboxes: Implement separate, unticked, non-mandatory checkboxes for marketing opt-ins. The 'Accept Terms of Use' checkbox must be separate from the marketing opt-in.
3. Data Subject Rights Link: Provide direct, functional links to the venue's full Privacy Policy and a self-service portal where guests can request data access or deletion (DSARs).

Best Practices & Regulatory Mapping

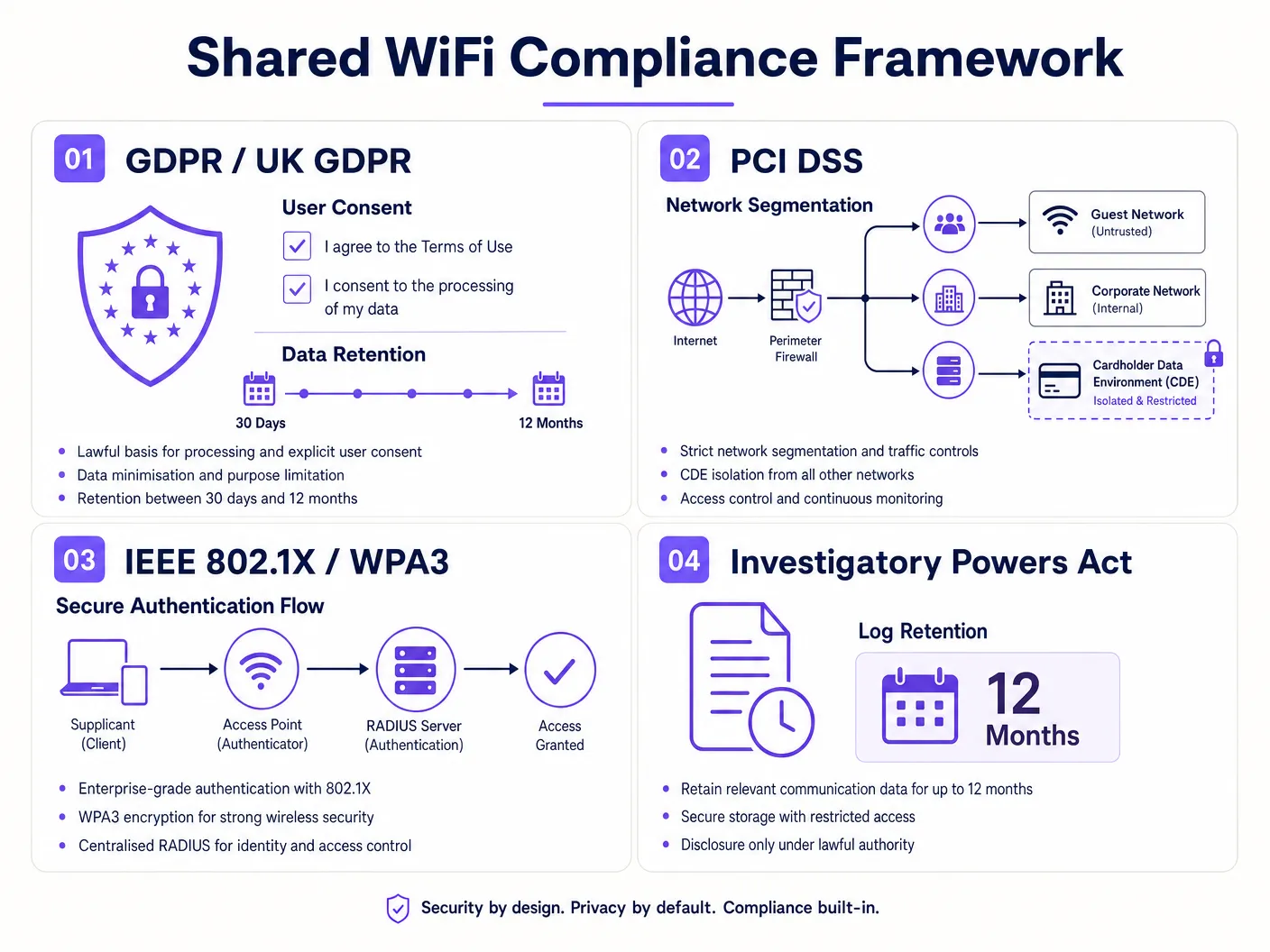

To ensure long-term compliance, IT teams must align their technical controls with established international regulations and standards. The table below maps specific regulatory requirements to the corresponding technical controls and architectural best practices.

Industry-Specific Implementation Best Practices

• Hospitality (Hotels & Resorts): Guest networks must be segmented per room or per guest using Private VLANs (PVLANs) or Client Isolation at the AP level. This prevents guests in Room 101 from scanning or accessing devices (like smart TVs or laptops) in Room 102. For the retail and food-and-beverage tenants operating on-site, enforce strict VLAN segregation to keep their Point-of-Sale (POS) systems completely out of the hospitality guest scope [7]. Refer to our Hospitality Industry Guide for deep-dive vertical insights.
• Retail Chains & Malls: Retailers must isolate their primary POS networks from both the public guest WiFi and the back-office corporate networks. If deploying location-based analytics (such as tracking customer dwell times via WiFi probe requests), the system must immediately hash or anonymise MAC addresses at the edge to prevent tracking identifiable individuals without consent. Explore our Retail Industry Guide to learn how to balance compliant data capture with marketing intelligence.
• Public Sector & Education: Municipalities and school districts must enforce strict content filtering (CIPA compliance in the US, or local public-sector filtering guidelines in the UK) to block access to harmful or illegal material on public networks [8]. Furthermore, networks must be segmented to ensure that administrative systems, student records, and public guest networks are entirely isolated. For education-specific compliance, see our comprehensive guide on WiFi in Schools: The 2026 Administrator & IT Guide .

Troubleshooting & Risk Mitigation

Even the most carefully designed networks can experience configuration drift or operational failures that compromise compliance. This section outlines common failure modes and provides technical mitigation strategies.

Common Failure Modes and Technical Mitigations

1. The 'Noisy Neighbour' and Bandwidth Exhaustion

• Risk: A single tenant or public guest consumes excessive bandwidth (e.g., streaming high-definition video), degrading network performance for critical business applications or other tenants.
• Mitigation: Enforce Quality of Service (QoS) policies and strict rate-limiting. Apply upstream and downstream bandwidth caps per user session on the guest VLAN (e.g., 5 Mbps down, 1 Mbps up). At the WAN edge, configure class-based queuing to guarantee a minimum dedicated bandwidth pool for critical corporate and payment processing VLANs, regardless of guest network utilization.

2. VLAN Leaks and Misconfigured Switch Ports

• Risk: A switch port is misconfigured (e.g., an untagged access port assigned to the wrong VLAN, or a trunk port leaking management traffic), allowing packets to traverse tenant boundaries without passing through the firewall.
• Mitigation: Implement Dynamic ARP Inspection (DAI), DHCP Snooping, and IP Source Guard on all switches to prevent MAC spoofing and unauthorized IP address assignment. Conduct bi-annual network audits using automated configuration-compliance tools to detect unauthorized VLAN changes or port misconfigurations.

3. Rogue Access Points and 'Evil Twin' Attacks

• Risk: An attacker deploys an unauthorized access point broadcasting the same SSID as the venue's guest WiFi, capturing guest login credentials and personal data via a rogue captive portal.
• Mitigation: Enable Wireless Intrusion Prevention System (WIPS) on all enterprise APs. Configure WIPS to actively monitor the airwaves, detect unauthorized APs broadcasting corporate or guest SSIDs, and automatically contain the rogue devices using de-authentication frames. Enforce WPA3-Enterprise and WPA3-Enhanced Open, which mitigate the risk of passive eavesdropping and offline dictionary attacks.

4. Consent Audit Trail Failures

• Risk: The captive portal platform fails to log a guest's marketing opt-in timestamp or records it incorrectly, leaving the venue unable to prove compliance during a regulatory audit.
• Mitigation: Deploy a robust, cloud-based platform like Purple that replicates consent logs across multiple geographically isolated data centres. Ensure that consent logs are stored in a read-only, append-only database with cryptographic hashing to guarantee log integrity. Implement automated daily health checks to verify that database writes are occurring successfully.

ROI & Business Impact

IT leaders often view legal and compliance requirements solely through the lens of cost and risk mitigation. However, a well-architected, compliant shared WiFi infrastructure is a powerful driver of operational efficiency, customer trust, and measurable business value.

The Cost-Benefit of Compliance

The financial impact of non-compliance is severe. Under the GDPR, the maximum fine for a serious breach is €20 million or 4% of global annual turnover, whichever is higher [1]. For a large hotel group or retail multinational, a single compliance failure can result in a multi-million-pound penalty, not including the associated legal fees, forensic investigation costs, and catastrophic damage to brand reputation.

Conversely, the cost of implementing a compliant, enterprise-grade solution like Purple is a fraction of this risk exposure. By consolidating multiple fragmented network utilities into a single, centrally managed, multi-tenant physical infrastructure, organisations achieve significant Capital Expenditure (CapEx) and Operational Expenditure (OpEx) savings:

• Infrastructure Consolidation: Instead of deploying separate physical cabling, switches, and access points for each tenant or service, a single high-performance physical network is logically segmented. This reduces hardware acquisition costs by up to 40% and dramatically lowers energy consumption and ongoing maintenance overhead.
• Centralised Management: Managing multiple tenants from a single, cloud-based dashboard reduces the administrative burden on internal IT teams. Onboarding a new tenant, adjusting bandwidth limits, or updating captive portal privacy policies can be executed in minutes rather than days, representing a massive operational efficiency gain.

Turning Compliance into a Strategic Asset

By deploying a compliant captive portal, venues can legally capture high-quality, first-party data from their visitors. This data is highly valuable for marketing and business intelligence, provided it has been captured ethically and transparently:

• Ethical Marketing Databases: Because guests have actively and transparently opted into marketing communications via compliant, unticked checkboxes, the resulting marketing database exhibits significantly higher engagement, lower unsubscribe rates, and superior conversion metrics compared to unsegmented or non-compliant lists.
• Granular Visitor Analytics: By leveraging compliant, anonymised location tracking, venue operators gain deep insights into visitor behaviour—such as footfall patterns, average dwell times, and repeat visit frequencies. This data can be shared with retail tenants to help them optimise staffing, evaluate window displays, and measure marketing ROI, creating a powerful differentiator in competitive property markets.

To hear an in-depth audio briefing on these concepts, listen to the professional podcast episode below:

References

1. European Parliament and Council. (2016). Regulation (EU) 2016/679 (General Data Protection Regulation). Official Journal of the European Union. https://gdpr-info.eu/
2. PCI Security Standards Council. (2022). Payment Card Industry (PCI) Data Security Standard, Version 4.0. https://www.pcisecuritystandards.org/
3. UK Parliament. (2016). Investigatory Powers Act 2016. UK Statute Law Database. https://www.legislation.gov.uk/ukpga/2016/25/contents
4. IEEE Computer Society. (2018). IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks (IEEE Std 802.1Q-2018). IEEE Xplore. https://ieeexplore.ieee.org/document/8403927
5. Wi-Fi Alliance. (2018). WPA3™ Security White Paper. https://www.wi-fi.org/
6. IETF RFC 8110. (2017). Opportunistic Wireless Encryption (OWE). Internet Engineering Task Force. https://tools.ietf.org/html/rfc8110
7. PCI Security Standards Council. (2009). PCI DSS Wireless Guidelines. https://www.pcisecuritystandards.org/pdfs/PCI_DSS_v2_Wireless_Guidelines.pdf
8. Federal Communications Commission. (2001). Children's Internet Protection Act (CIPA). FCC Consumer Guide. https://www.fcc.gov/consumers/guides/childrens-internet-protection-act
