WiFi compatible con HIPAA: Una guía para organizaciones sanitarias

Esta guía de referencia técnica proporciona estrategias de cumplimiento prácticas para equipos de TI sanitarios que implementan WiFi empresarial y de invitados. Cubre la segmentación de red, la autenticación 802.1X, el registro de auditoría y cómo implementar un acceso inalámbrico seguro y aislado utilizando la plataforma de Purple.

📖 5 min de lectura📝 1,170 palabras🔧 2 ejemplos❓ 3 preguntas📚 8 términos clave

🎧 Escuchar esta guía

Ver transcripción

[INTRO MUSIC - upbeat, professional corporate theme]

HOST: Welcome back to the Purple Enterprise IT Briefing. I'm your host, and today we're diving into a topic that keeps healthcare IT directors awake at night: HIPAA-compliant WiFi. Whether you're managing a 500-bed hospital, a chain of outpatient clinics, or a mixed-use facility with healthcare tenants, getting wireless security right isn't just about good practice—it's a federal requirement.

Today, we're cutting through the noise. We'll look at the exact technical requirements for HIPAA compliance on wireless networks, how to properly segment your traffic, and how Purple's enterprise platform helps you achieve compliance without sacrificing the guest experience.

Let's get straight to it.

[MUSIC FADES]

HOST: First, let's establish the baseline. The HIPAA Security Rule doesn't explicitly say "configure your WiFi this way." Instead, it mandates technical safeguards to protect electronic Protected Health Information, or ePHI, during transmission. In the context of wireless networks, this translates to three non-negotiable pillars: Strong Encryption, Robust Authentication, and Strict Network Segmentation.

Let's start with encryption and authentication. The days of a shared WPA2 password are long gone. For any network touching ePHI, you need WPA3-Enterprise, or at the very least, WPA2-Enterprise, paired with 802.1X authentication.

What does this mean in practice? It means every user and every device must be individually authenticated against a RADIUS server before they even get an IP address. For clinical devices like WOWs—Workstations on Wheels—or medical IoT, you should be using certificate-based authentication like EAP-TLS. This removes the human element of passwords and allows you to instantly revoke access if a device is lost or compromised.

Now, let's talk about the most critical architectural decision: Network Segmentation.

You cannot have guest smartphones sitting on the same subnet as your EHR terminals. It's a recipe for disaster. The industry standard is a strict three-zone architecture using VLANs and firewalls.

Zone 1 is your Clinical Network. This is the vault. It handles ePHI, connects to the EHR, and is restricted strictly to authorized clinical staff and managed medical devices.

Zone 2 is the Administrative Network. This is for billing systems, staff laptops, and operational tools that don't need direct access to patient records.

And Zone 3 is the Guest WiFi. This is an isolated, internet-only connection for patients and visitors. It must be completely walled off from Zones 1 and 2.

This brings us to a common challenge. Healthcare facilities want to provide excellent Guest WiFi—it's crucial for patient satisfaction and visitor experience. But how do you do that securely?

This is where a platform like Purple becomes invaluable. Purple acts as your secure identity provider and guest portal. When a visitor connects to the Guest SSID, they are presented with a captive portal. Here, they must accept terms and conditions—which is crucial for data consent and liability—before they are granted internet access.

Furthermore, Purple's platform integrates seamlessly with your existing wireless infrastructure, whether you're using Cisco Meraki, Aruba, or Ruckus. It handles the complex authentication flows and provides the detailed audit logging that HIPAA requires. If an auditor asks, "Who was on the guest network last Tuesday at 2 PM?" Purple gives you that answer instantly.

[TRANSITION SOUND]

HOST: Let's look at some implementation recommendations and common pitfalls.

The biggest pitfall we see is the "Shadow IT" access point. A department needs better coverage, so someone plugs a consumer-grade router into a wall jack. Suddenly, you have an unencrypted, unmonitored bridge straight into your clinical network. You must have Rogue AP detection enabled on your enterprise controllers to automatically detect and suppress these unauthorized devices.

Another pitfall is failing to secure the Business Associate Agreement, or BAA. Under HIPAA, any vendor that handles ePHI on your behalf is a Business Associate. While a guest WiFi provider like Purple typically doesn't handle ePHI directly, having a BAA in place with your network and analytics vendors provides an essential layer of legal and operational protection.

When deploying, always remember the principle of least privilege. A device should only have access to the specific resources it needs to function.

[TRANSITION SOUND]

HOST: Let's do a rapid-fire Q&A based on questions we frequently hear from IT directors.

Question 1: Can we use a captive portal for clinical staff authentication?
Answer: No. Captive portals are for guest access. Clinical staff accessing ePHI must use 802.1X with WPA-Enterprise for secure, encrypted layer-2 authentication.

Question 2: Does Purple's Guest WiFi solution comply with HIPAA?
Answer: Yes. Purple's platform is designed to securely isolate guest traffic and provides the comprehensive audit trails and consent management required for compliance, ensuring guest traffic never touches your ePHI.

Question 3: How often do we need to assess our wireless security?
Answer: HIPAA requires periodic risk assessments. Best practice is to conduct a formal wireless risk assessment annually, or whenever there is a significant change to your network architecture.

[TRANSITION SOUND]

HOST: To summarize, HIPAA-compliant WiFi isn't a single setting you toggle on your router. It's a comprehensive architecture built on WPA3-Enterprise encryption, 802.1X authentication, strict VLAN segmentation, and continuous monitoring.

By leveraging enterprise platforms like Purple for your guest access, you can maintain that strict isolation while still delivering a seamless, high-quality experience for patients and visitors, complete with the analytics and audit trails you need.

That's all for today's briefing. For a deeper dive, be sure to read our comprehensive technical reference guide on this topic. Thanks for listening, and keep those networks secure.

[OUTRO MUSIC]

Resumen Ejecutivo

Para los gerentes de TI, arquitectos de red y CTO en entornos sanitarios, la implementación de redes inalámbricas implica equilibrar dos prioridades críticas y a menudo contrapuestas: asegurar la Información Sanitaria Protegida electrónica (ePHI) para cumplir con las estrictas regulaciones HIPAA, y proporcionar conectividad fluida y de alta calidad para pacientes, visitantes y personal clínico. Un único punto de acceso mal configurado o una contraseña compartida pueden provocar una devastadora violación de datos, multas regulatorias y daños a la reputación. Esta guía proporciona un marco práctico y neutral respecto al proveedor para implementar WiFi compatible con HIPAA. Cubre el modelo esencial de segmentación de tres zonas, los estándares de cifrado de datos (WPA3-Enterprise), una gestión de identidad robusta a través de 802.1X y un registro de auditoría exhaustivo. Además, detalla cómo la integración de una plataforma empresarial como Purple para Guest WiFi y WiFi Analytics garantiza que el acceso público permanezca estrictamente aislado de los sistemas clínicos, al tiempo que captura valiosos datos de interacción.

Análisis Técnico Detallado

Lograr una red inalámbrica compatible con HIPAA requiere ir más allá de la conectividad básica e implementar una arquitectura de defensa en profundidad. La Regla de Seguridad de HIPAA exige salvaguardas técnicas para el control de acceso, controles de auditoría, integridad y seguridad de la transmisión [1].

1. Cifrado y Autenticación (802.1X y WPA3-Enterprise)

La base de la seguridad inalámbrica es un cifrado robusto. Los protocolos heredados como WEP, WPA e incluso WPA2-Personal (que utilizan claves precompartidas) son completamente insuficientes para entornos que manejan ePHI. Una PSK comprometida otorga a un atacante acceso a toda la subred.

Las organizaciones sanitarias deben implementar WPA3-Enterprise (o WPA2-Enterprise como mínimo) junto con la autenticación 802.1X. Esta arquitectura requiere que cada usuario y dispositivo se autentique individualmente contra un servidor RADIUS (Remote Authentication Dial-In User Service) antes de obtener acceso a la red [2].

Dispositivos Clínicos (IoT, WOWs): Utilice autenticación basada en certificados, específicamente EAP-TLS (Extensible Authentication Protocol-Transport Layer Security). Esto elimina por completo las contraseñas, basándose en certificados digitales gestionados centralmente e instalados en dispositivos autorizados. Si un dispositivo se pierde, su certificado puede ser revocado instantáneamente.
Dispositivos del Personal (Portátiles, Móviles): Aplique la autenticación utilizando credenciales de dominio vinculadas al control de acceso basado en roles (RBAC), a menudo integrándose con Active Directory o un Proveedor de Identidad (IdP).

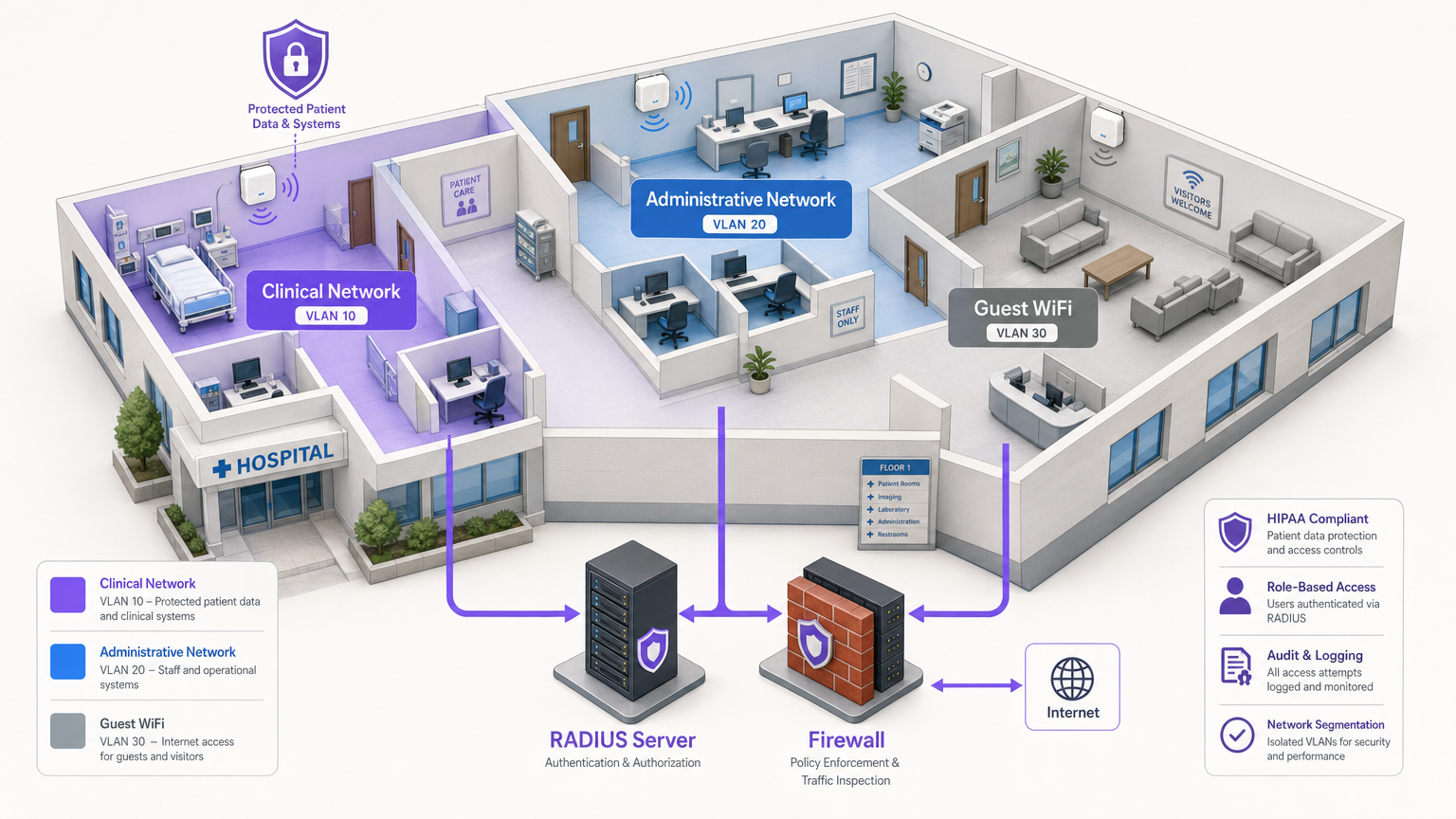

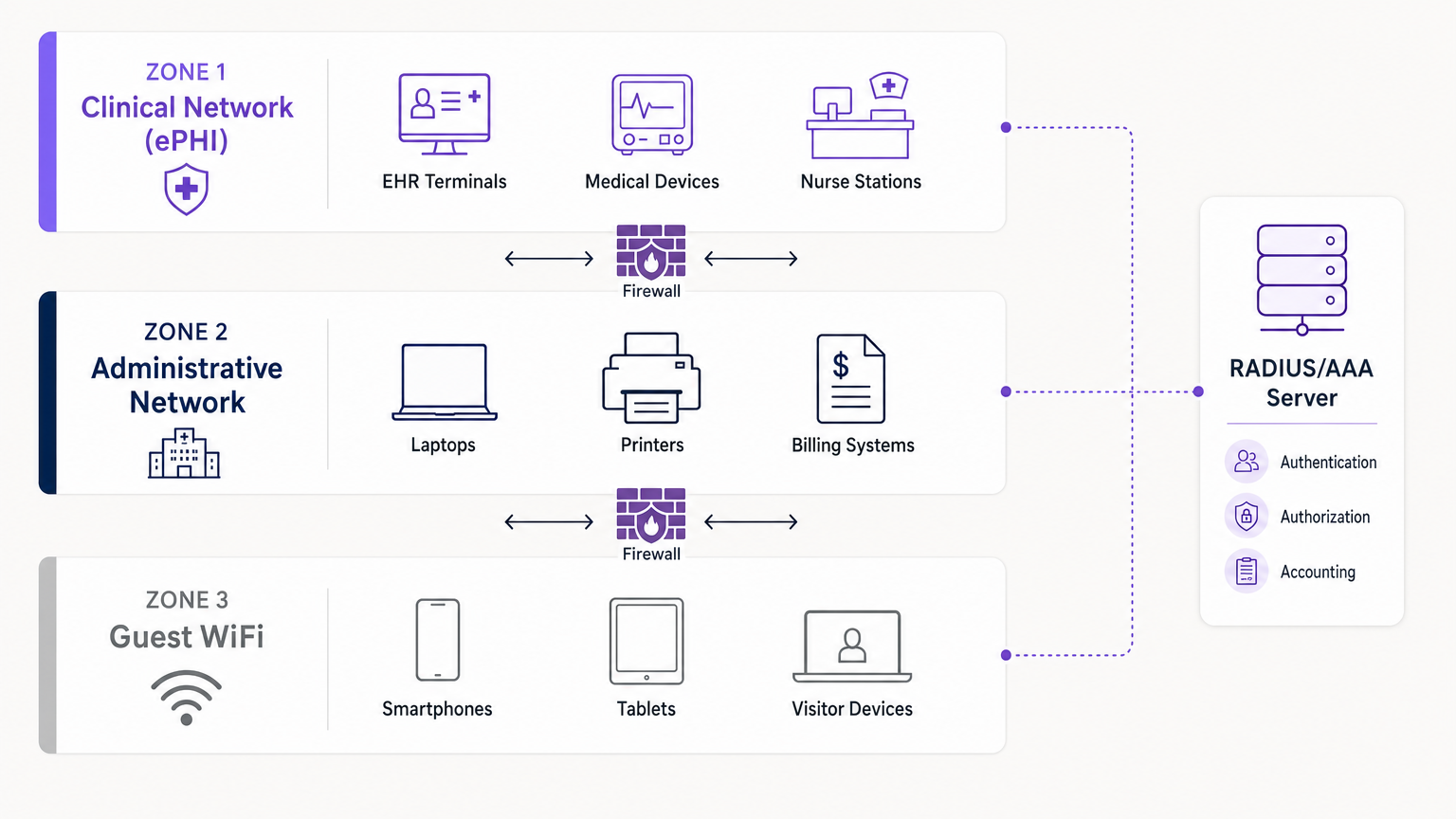

2. Segmentación de Red (El Modelo de Tres Zonas)

La segmentación es la defensa arquitectónica más crítica contra el movimiento lateral. No puede tener smartphones de invitados en la misma VLAN que sus terminales de Historial Clínico Electrónico (EHR). El estándar de la industria es una arquitectura estricta de tres zonas, separadas física o lógicamente a través de VLANs y firewalls.

Zona 1: Red Clínica (ePHI): Esta VLAN altamente restringida maneja todos los datos sensibles. Conecta sistemas EHR, dispositivos médicos y estaciones de enfermería. El acceso está estrictamente limitado al personal clínico autenticado y a los dispositivos gestionados a través de 802.1X.
Zona 2: Red Administrativa: Esta VLAN soporta las operaciones hospitalarias —sistemas de facturación, portátiles del personal e impresoras— que no requieren acceso directo a los registros de pacientes.
Zona 3: Guest WiFi: Una conexión aislada, solo a internet, para pacientes y visitantes. Debe estar completamente separada de las Zonas 1 y 2, utilizando el aislamiento de cliente para evitar que los dispositivos de los invitados se comuniquen entre sí.

3. Registro de Auditoría e Integración SIEM

HIPAA exige a las organizaciones implementar mecanismos de hardware, software y procedimientos que registren y examinen la actividad en los sistemas de información que contienen ePHI [1]. Sus controladores inalámbricos y servidores RADIUS deben registrar todos los intentos de autenticación (exitosos y fallidos), las duraciones de las sesiones y los cambios administrativos. Estos registros deben ser enviados a un sistema centralizado de Gestión de Información y Eventos de Seguridad (SIEM) para una monitorización continua y detección de anomalías.

Guía de Implementación

Desplegar una red compatible requiere una planificación y ejecución cuidadosas. Aquí se presenta un enfoque paso a paso para integrar el acceso clínico seguro con servicios de invitados aislados.

Paso 1: Realizar una Evaluación de Riesgos Inalámbricos

Antes de desplegar nuevo hardware, realice un estudio de sitio RF y una evaluación de riesgos exhaustivos. Identifique todos los puntos de acceso existentes, incluidos los posibles dispositivos no autorizados. Mapee las áreas de cobertura requeridas para el acceso clínico frente al acceso de invitados. Para obtener información sobre la selección de hardware, consulte Soluciones WiFi Empresariales: Guía del Comprador .

Paso 2: Configurar las VLAN Clínicas y Administrativas

Despliegue su infraestructura central (por ejemplo, Cisco Meraki, Aruba o Su Guía para un Punto de Acceso Inalámbrico Ruckus ). Configure el SSID clínico para que se transmita solo en las áreas necesarias. Implemente WPA3-Enterprise y conecte sus controladores al servidor RADIUS. Despliegue certificados EAP-TLS en todos los dispositivos médicos propiedad del hospital.

Paso 3: Desplegar el Portal de Guest WiFi

Aquí es donde plataformas como Purple destacan. En lugar de una simple red abierta, despliegue un Guest SSID aislado que enrute el tráfico a través del Captive Portal de Purple.

Aislamiento: Asegúrese de que la VLAN de invitados tenga reglas de firewall estrictas que denieguen cualquier enrutamiento IP interno. Habilite el aislamiento de clienión en los puntos de acceso.
Consentimiento y Términos: El Captive Portal debe requerir que los usuarios acepten los Términos y Condiciones, estableciendo límites legales y el consentimiento para el uso de datos.
Autenticación: Purple actúa como proveedor de identidad para los invitados, gestionando inicios de sesión por SMS, correo electrónico o redes sociales, manteniendo este tráfico completamente separado de su Active Directory interno.

Paso 4: Implementar Monitorización Continua

Habilite la detección de APs no autorizados (Rogue AP) en su sistema de prevención de intrusiones inalámbricas (WIPS). Esto identificará y suprimirá automáticamente los puntos de acceso no autorizados conectados a la red por el personal o los visitantes. Asegúrese de que todos los registros fluyan a su SIEM.

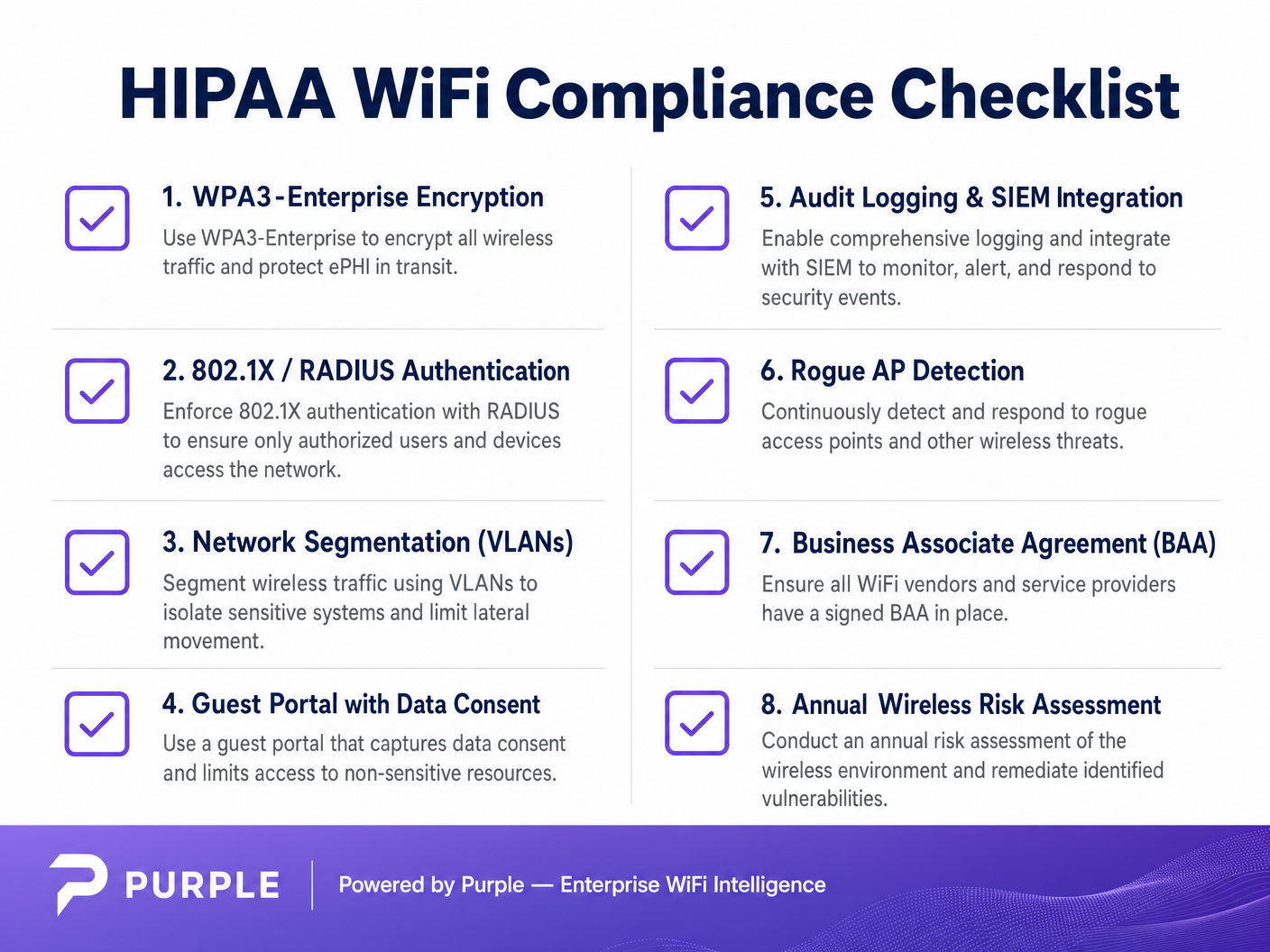

Mejores Prácticas

Principio del Mínimo Privilegio: Los usuarios y dispositivos solo deben tener acceso a los recursos de red específicos necesarios para su función. Un administrativo de facturación no necesita acceso a la VLAN de imágenes.
Acuerdos de Asociado Comercial (BAA): Asegúrese de que cualquier proveedor que ofrezca servicios de red gestionados en la nube o de análisis haya firmado un BAA, definiendo claramente sus responsabilidades en cuanto a la seguridad de los datos.
Deshabilitar Protocolos Heredados: Desactive WEP, WPA, TKIP y protocolos de gestión obsoletos como Telnet en todo el hardware de red. Imponga SSH y HTTPS para el acceso administrativo.
Auditorías Regulares: La seguridad inalámbrica no es una implementación de "configurar y olvidar". Realice pruebas de penetración anuales y revisiones de configuración. Para un contexto más amplio sobre implementaciones seguras, lea WiFi en Hospitales: Una Guía para Redes Clínicas Seguras .

Resolución de Problemas y Mitigación de Riesgos

Modos de Fallo Comunes

El Punto de Acceso de "Shadow IT": Un departamento necesita mejor cobertura, por lo que un empleado conecta un router de consumo a una toma de pared. Mitigación: Seguridad estricta del puerto físico (802.1X en puertos cableados) y supresión activa de Rogue APs a través de WIPS.
Caducidad del Certificado: Los dispositivos clínicos se desconectan repentinamente de la red porque sus certificados EAP-TLS han caducado. Mitigación: Implemente la gestión automatizada del ciclo de vida de los certificados (CLM) y umbrales de alerta 30 días antes de la caducidad.
Fuga de Tráfico de Invitados: Una configuración incorrecta del etiquetado de VLAN permite que el tráfico de invitados se dirija a la subred administrativa. Mitigación: Pruebas de penetración regulares y auditorías de configuración automatizadas para verificar el aislamiento de VLAN.

ROI e Impacto Empresarial

Invertir en una arquitectura inalámbrica compatible con HIPAA ofrece retornos significativos más allá de simplemente evitar multas regulatorias (que pueden alcanzar millones de dólares).

Mitigación de Riesgos: Un robusto 802.1X y la segmentación reducen drásticamente la superficie de ataque, protegiendo a la organización contra el ransomware y las filtraciones de datos.
Eficiencia Operativa: La autenticación basada en certificados para dispositivos clínicos reduce los tickets de soporte de TI relacionados con restablecimientos de contraseña y problemas de conectividad, manteniendo a los clínicos centrados en la atención al paciente.
Experiencia del Paciente Mejorada: Al implementar de forma segura la plataforma de WiFi para invitados de Purple, los hospitales pueden proporcionar acceso a internet fiable —un factor clave de las puntuaciones de satisfacción del paciente (HCAHPS)— mientras aprovechan el Captive Portal para la orientación, las comunicaciones con el paciente y la recopilación de comentarios sin comprometer la seguridad de la red clínica.

Referencias

[1] Health Insurance Portability and Accountability Act of 1996 (HIPAA), Pub. L. No. 104-191, 110 Stat. 1936 (1996). [2] Censinet. "HIPAA-Compliant Wireless Network Setup Guide." Censinet Perspectives, 2024.

Términos clave y definiciones

ePHI (Electronic Protected Health Information)

Any protected health information that is created, stored, transmitted, or received electronically.

The primary asset that HIPAA regulations are designed to protect. If a network transmits ePHI, it falls under the strict requirements of the HIPAA Security Rule.

802.1X

An IEEE standard for port-based network access control (PNAC) that provides an authentication mechanism to devices wishing to attach to a LAN or WLAN.

The mandatory authentication framework for enterprise healthcare networks, ensuring that only verified users and devices can access the clinical VLAN.

RADIUS (Remote Authentication Dial-In User Service)

A networking protocol that provides centralized Authentication, Authorization, and Accounting (AAA) management for users who connect and use a network service.

The core server infrastructure that processes 802.1X requests, verifying credentials against a directory (like Active Directory) before granting WiFi access.

EAP-TLS (Extensible Authentication Protocol-Transport Layer Security)

An EAP method that relies on client and server certificates to establish a secure connection, providing strong mutual authentication.

The gold standard for authenticating headless medical devices and mobile workstations, eliminating the need for vulnerable passwords.

Network Segmentation

The practice of splitting a computer network into subnetworks, each being a network segment or VLAN.

Crucial for HIPAA compliance, it ensures that a compromised device on the guest or administrative network cannot access the clinical network housing ePHI.

VLAN (Virtual Local Area Network)

A logical subnetwork that groups a collection of devices from different physical LANs.

The primary mechanism used by network engineers to implement segmentation, isolating clinical, administrative, and guest traffic on the same physical access points.

Captive Portal

A web page accessed with a web browser that is displayed to newly connected users of a Wi-Fi network before they are granted broader access to network resources.

Used for Guest WiFi (often provided by platforms like Purple) to capture user consent, enforce Terms and Conditions, and authenticate visitors without touching internal systems.

Rogue AP (Access Point)

A wireless access point that has been installed on a secure network without explicit authorization from a local network administrator.

A major security risk in hospitals (Shadow IT). Enterprise wireless controllers must actively scan for and suppress these devices to prevent unauthorized network bridging.

Casos de éxito

A 300-bed regional hospital needs to deploy new mobile workstations (WOWs) for nursing staff. The current network uses a single SSID with a WPA2 Pre-Shared Key (PSK) for all hospital-owned devices. How should the IT architect redesign this for HIPAA compliance?

The architect must eliminate the PSK. They should create a dedicated 'Clinical_ePHI' VLAN and SSID. The new SSID must be configured for WPA3-Enterprise (or WPA2-Enterprise). The architect will deploy a RADIUS server and implement EAP-TLS certificate-based authentication. Each WOW will be provisioned with a unique digital certificate via Mobile Device Management (MDM). The RADIUS server will authenticate the certificate before granting the WOW access to the clinical VLAN.

Notas de implementación: This approach is the industry standard for securing clinical IoT and mobile devices. Using a PSK in a healthcare environment is a critical vulnerability; if the key is compromised, the entire network is exposed. EAP-TLS provides the strongest level of mutual authentication and allows IT to instantly revoke access for a single device if it is lost or stolen, without impacting the rest of the fleet.

A large outpatient clinic wants to offer free WiFi to patients in the waiting room, but the CTO is concerned about visitors attempting to access the clinic's billing servers. How should this be implemented?

The network team must implement strict network segmentation. They will create a 'Guest_WiFi' SSID mapped to a dedicated, isolated VLAN (e.g., VLAN 30). Firewall rules must be configured to explicitly deny any routing from VLAN 30 to the internal clinical or administrative subnets (VLANs 10 and 20). Client isolation must be enabled on the access points to prevent guest devices from communicating with each other. Finally, the guest SSID should route through a captive portal, such as Purple, to capture Terms and Conditions consent and handle guest authentication (SMS/Email) separately from the clinic's Active Directory.

Notas de implementación: This solution addresses both the technical security requirement (segmentation and isolation) and the administrative requirement (consent and liability). By using a third-party platform like Purple for the captive portal, the clinic offloads the risk and management of guest identities, ensuring that public traffic never touches the internal infrastructure.

Análisis de escenarios

Q1. A clinic administrator requests that the new Guest WiFi network use a simple WPA2 password ('ClinicGuest2024') posted on the wall to make it easy for elderly patients to connect, rather than using a captive portal. As the network architect, how do you respond?

💡 Sugerencia:Consider the requirements for audit logging, user consent, and the risks of shared credentials on public networks.

Mostrar enfoque recomendado

You must advise against using a shared PSK for the guest network. A shared password provides no individual accountability or audit trail, making it impossible to identify malicious actors on the network. Furthermore, it bypasses the opportunity to present a captive portal where users must accept Terms and Conditions, which is critical for limiting the clinic's liability. The recommended approach is an open Guest SSID that routes immediately to a captive portal (like Purple) for individual authentication (e.g., via SMS or email) and T&C acceptance, ensuring secure, logged, and legally compliant access.

Q2. During a wireless risk assessment, you discover a consumer-grade WiFi router plugged into an Ethernet jack in the radiology department. The staff explains they installed it because the enterprise WiFi signal was weak in that corner. What immediate actions must be taken?

💡 Sugerencia:Address both the immediate technical threat and the underlying infrastructure issue.

Mostrar enfoque recomendado

Immediately disconnect the rogue router from the network, as it creates an unmonitored, unencrypted bridge into the clinical environment, violating HIPAA transmission security rules. 2) Ensure that the enterprise Wireless Intrusion Prevention System (WIPS) is configured to automatically detect and suppress rogue APs. 3) Configure 802.1X on all wired switch ports so unauthorized devices cannot connect to the LAN. 4) Conduct an RF site survey in the radiology department to identify the coverage gap and deploy an authorized, properly configured enterprise access point to resolve the staff's legitimate connectivity issue.

Q3. You are configuring 802.1X authentication for a fleet of new medical infusion pumps. The devices do not have keyboards or screens for users to input credentials. How do you securely authenticate them to the clinical VLAN?

💡 Sugerencia:Look for an authentication method that relies on machine identity rather than user identity.

Mostrar enfoque recomendado

The devices should be authenticated using EAP-TLS (certificate-based authentication). You will generate unique digital certificates from the hospital's internal Certificate Authority (CA) and install them on each infusion pump. The RADIUS server will be configured to verify these certificates. When a pump connects to the clinical SSID, it presents its certificate; if valid, the RADIUS server assigns it to the clinical VLAN. This provides strong, passwordless mutual authentication.
