Captive Portal 登入：疑難排解與說明指南

Executive Summary

For modern enterprise venues, guest wireless networks are no longer a simple amenity; they represent a critical touchpoint for customer engagement, operational intelligence, and brand positioning. However, the business value of these networks depends entirely on the reliability of the initial connection experience. When a guest connects to a network and the captive portal login page fails to appear, the venue immediately suffers from increased front-of-house friction, a surge in support tickets, and lost opportunities for data capture.

At the core of these failures is a fundamental tension between secure web standards and the network-level interception techniques historically used by captive portals. Modern web browsers and operating systems are designed to detect and block unauthorized traffic redirection to protect users from man-in-the-middle (MitM) attacks. By understanding the precise HTTP and DNS redirection sequences, the impact of secure protocols like HTTP Strict Transport Security (HSTS), and the client-side settings that disrupt these mechanisms, IT organizations can implement robust configurations that ensure seamless onboarding.

This guide details how Purple's cloud-managed Guest WiFi platform addresses these challenges to deliver high-availability redirection across all consumer operating systems, minimizing venue support overhead and maximizing the return on wireless infrastructure investments. Whether you are deploying in Hospitality , Retail , Healthcare , or Transport environments, the principles and checklists in this guide apply universally.

Technical Deep-Dive

To effectively troubleshoot captive portal failures, network administrators must understand the exact sequence of events that occurs when a client device connects to an open or pre-shared key (PSK) guest wireless network. Modern operating systems — including Apple iOS/macOS, Google Android, Microsoft Windows, and Linux distributions — do not wait for a user to open a browser to test for internet connectivity. Instead, they execute an automated active probing mechanism immediately upon completing the association and DHCP phases.

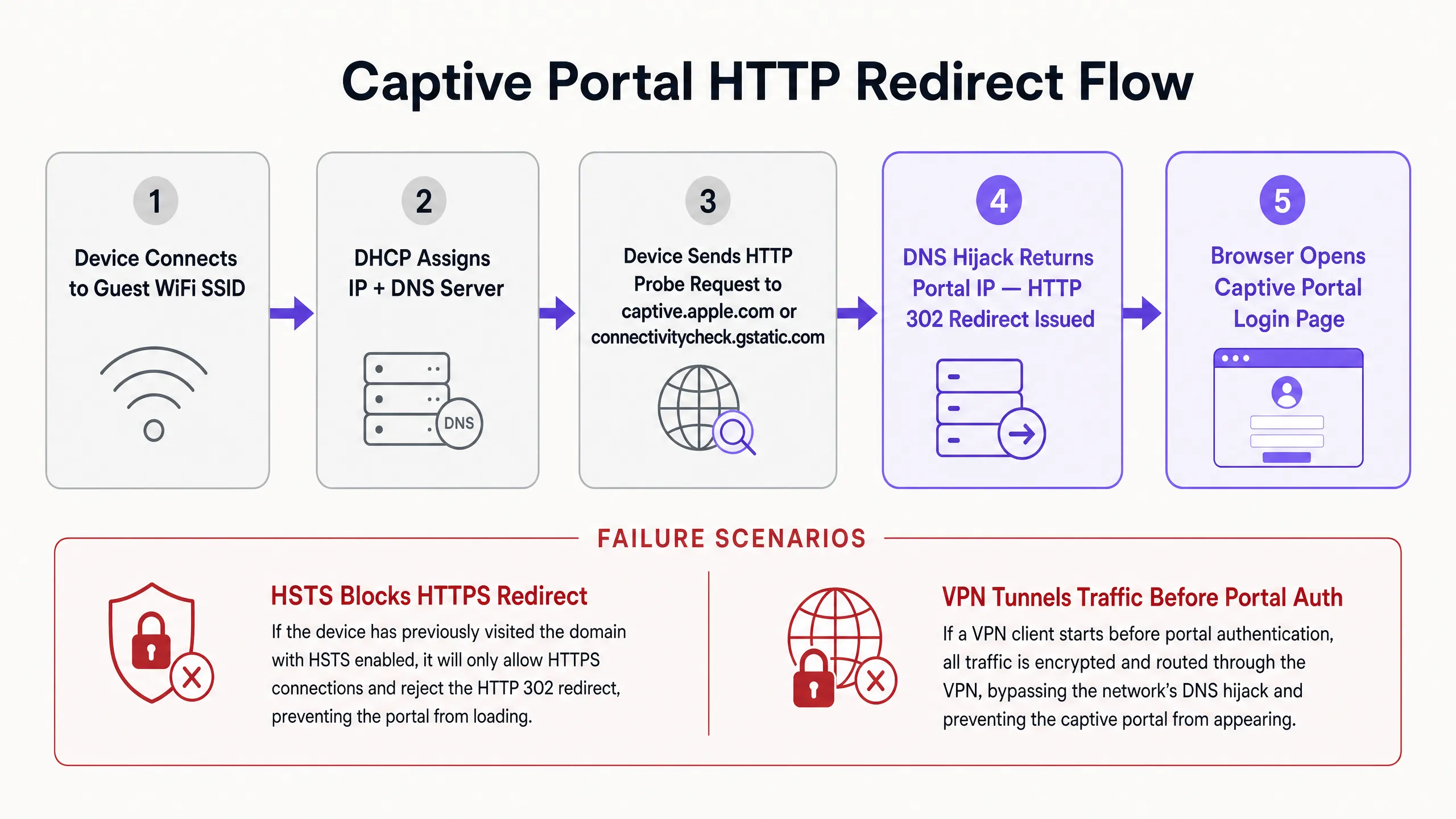

The Captive Portal Detection Sequence

The connection and verification process follows a highly structured sequence:

+--------+             +------------+             +------------+             +-------------------+
| Client |             | AP/Gateway |             | DNS Server |             | Captive Portal IP |
+--------+             +------------+             +------------+             +-------------------+
    |                        |                          |                              |
    |--- 1. DHCP Request --->|                          |                              |
    |<-- 2. DHCP Ack --------|                          |                              |
    |    (IP & DNS Assigned) |                          |                              |
    |--- 3. DNS Query ------>|------------------------->|                              |
    |    (canary URL)        |                          |                              |
    |<-- 4. DNS Response ----|<-------------------------|                              |
    |    (Resolved IP)       |                          |                              |
    |--- 5. HTTP GET ------->|                          |                              |
    |    (canary URL)        |                          |                              |
    |<-- 6. HTTP 302 --------|                          |                              |
    |    (Redirect to Portal)|                          |                              |
    |--- 7. DNS Query ------>|------------------------->|                              |
    |    (Portal FQDN)       |                          |                              |
    |<-- 8. DNS Response ----|<-------------------------|                              |
    |    (Portal IP)         |                          |                              |
    |--- 9. HTTP/S GET ------>-------------------------------------------------------->|
    |    (Render Splash Page)|                          |                              |
    |<-- 10. Render Page <-------------------------------------------------------------||

Each operating system utilizes a distinct set of canary URLs and expected responses to determine network status. Apple (iOS/macOS) probes http://captive.apple.com/hotspot-detect.html expecting an HTML document containing only the word Success in both the title and body. Google (Android/ChromeOS) probes http://connectivitycheck.gstatic.com/generate_204 expecting an HTTP status code 204 No Content with an empty body. Microsoft (Windows 10/11) probes http://www.msftconnecttest.com/connecttest.txt expecting a plain text response of Microsoft Connect Test.

If the device receives the expected response, it concludes that the network has direct, unhindered internet access. If the response is modified — such as receiving an HTTP 302 redirect — the operating system's Captive Portal Assistant (CPA) immediately launches a dedicated, sandboxed browser window to display the redirect target: the captive portal login page.

The HSTS and HTTPS Redirection Conflict

The historical method of captive portal redirection relies on DNS hijacking or HTTP interception. When an unauthenticated user attempts to browse to any website, the gateway intercepts the TCP port 80 (HTTP) or port 443 (HTTPS) traffic and responds on behalf of the destination server, injecting an HTTP 302 redirect. While this worked seamlessly in an era of unencrypted HTTP web browsing, it introduces severe security and operational challenges in modern HTTPS-dominated environments.

The primary obstacle is HTTP Strict Transport Security (HSTS), a web security policy mechanism specified in RFC 6797. HSTS forces web browsers to interact with websites using only secure HTTPS connections. When a browser attempts to connect to an HSTS-enabled domain — such as Google, Facebook, or banking portals — it strictly forbids any unencrypted communication and enforces strict SSL/TLS certificate validation.

If a captive portal gateway attempts to intercept an HTTPS request to an HSTS domain, it must present its own SSL certificate or a spoofed certificate to the client. Because the gateway's certificate does not match the requested domain name, the client's browser detects a man-in-the-middle attack and displays a non-bypassable security warning (e.g., NET::ERR_CERT_COMMON_NAME_INVALID or Your connection is not private). The browser blocks the redirect entirely, preventing the captive portal page from loading and leaving the user with a broken connection.

To mitigate this, modern enterprise wireless networks utilize two advanced mechanisms. First, exempting OS probes ensures that the unencrypted HTTP probes sent by operating systems are never subjected to HTTPS interception; the gateway must allow the unencrypted HTTP probe to be redirected using a standard HTTP 302 response to the secure, fully-qualified domain name (FQDN) of the captive portal. Second, RFC 8910 (Captive Portal API) defines a mechanism where DHCP options (Option 114) or IPv6 Router Advertisements inform the client device of the exact URL of the captive portal API endpoint. Instead of relying on brute-force DNS hijacking or HTTP redirection, compatible client devices query this API directly to obtain the portal URL and network status, bypassing the HSTS conflict entirely.

Implementation Guide

Deploying a reliable captive portal requires careful coordination between the physical wireless infrastructure (Access Points, Controllers, Gateways) and the cloud-based portal platform. This section provides a vendor-neutral, step-by-step implementation guide to ensure robust redirection compatibility across enterprise networks, referencing standard configurations found in controllers from Cisco, Aruba, and Ruckus. For related access control architecture, see the guide on How to Implement 802.1X Authentication with Cloud RADIUS .

Step 1: Walled Garden (ACL) Configuration

A Walled Garden or Access Control List (ACL) defines the specific external domains, IP addresses, or subnets that an unauthenticated guest device is permitted to access before logging in. If the walled garden is configured incorrectly, the client device will be unable to resolve or load the captive portal assets, resulting in a blank screen or a timeout error.

To ensure seamless operation with Purple's platform, the walled garden must include the following components. Portal FQDNs are the fully-qualified domain names of the splash page hosting servers (e.g., *.purple.ai or regional variants). Identity Providers (IdPs) must be included if the portal supports social login — the walled garden must include the extensive list of domains used by these providers for OAuth authentication. Content Delivery Networks (CDNs) hosting CSS, JavaScript, fonts, or images used on the splash page must also be included.

Many modern controllers support wildcard domain names (e.g., *.purple.ai) in their walled garden configurations. The controller dynamically snoops DNS queries from unauthenticated clients; when a client queries a domain matching the wildcard, the controller temporarily adds the returned IP address to the client's pre-authentication allowlist. For legacy controllers that only support static IP addresses, administrators must configure a local DNS proxy or regularly update the static IP blocks associated with the cloud portal.

Step 2: DHCP and DNS Optimization

Because captive portal detection relies heavily on the initial network handshake, DHCP and DNS configurations must be optimized for high-density, transient environments. In high-footfall venues such as retail malls, transit hubs, or stadiums, IP address exhaustion is a common cause of captive portal failure. If the DHCP lease time is set too long (e.g., 24 hours), the IP pool will quickly deplete, preventing new guests from obtaining an IP address. For guest networks, the DHCP lease time should be configured between 15 to 30 minutes (900 to 1800 seconds).

Guest clients must be assigned a reliable, fast DNS server capable of resolving both public domains and the local captive portal FQDN. It is highly recommended to use enterprise-grade public DNS resolvers such as Cloudflare 1.1.1.1 or Google 8.8.8.8, or a local high-performance DNS forwarder. Critically, the wireless gateway must allow unauthenticated clients to perform DNS resolution. If a firewall rule blocks port 53 (UDP/TCP) traffic for pre-authenticated users, the client's OS will be unable to resolve the canary URLs, and the captive portal assistant will never launch.

Step 3: SSL/TLS Certificate Management

When a guest device is redirected to the captive portal, the browser establishes a secure HTTPS connection to the portal's FQDN. To prevent certificate warning screens, the captive portal must be secured with a valid, publicly-trusted SSL/TLS certificate. Self-signed certificates will be immediately blocked by modern mobile operating systems, preventing the captive portal assistant from rendering the page. If the redirection mechanism requires the client to communicate with the local gateway IP (e.g., for local MAC-to-IP binding), the gateway must have a valid certificate matching its local FQDN, and this FQDN must be resolvable by the guest DNS.

Best Practices

To maintain a high-performing guest wireless network that minimizes support tickets and maximizes user satisfaction, network operators should adhere to the following industry standards and best practices.

1. Optimize Walled Garden Rules for Social Logins

When utilizing social login options to capture user profiles, the walled garden must be meticulously maintained. Social media platforms frequently update their authentication subdomains and CDN IP ranges. If a single required domain is missing from the walled garden, the social login popup will fail to load or hang indefinitely.

2. Transition to Profile-Based Authentication and OpenRoaming

While captive portals are excellent for initial data capture and terms of service acceptance, repeating the login process on every visit introduces user friction. Modern enterprise networks are increasingly transitioning to profile-based authentication and Passpoint (Hotspot 2.0) technologies, such as OpenRoaming.

Under the Purple Connect license, Purple acts as a free identity provider for OpenRoaming services. Passpoint allows a guest to install a secure profile on their device during their first visit. Upon subsequent visits to any participating venue worldwide, the device automatically and securely associates with the network at Layer 2 using WPA3-Enterprise and 802.1X authentication, completely bypassing the captive portal. This delivers a seamless, cellular-like roaming experience while maintaining secure, encrypted data transmission. For a detailed implementation guide, see How to Implement 802.1X Authentication with Cloud RADIUS .

3. Ensure Compliance with Regulatory Frameworks

Guest WiFi deployments must be designed with strict adherence to global data privacy and security standards. For GDPR / CCPA Compliance, the captive portal must present clear, unambiguous terms of service and privacy policies. Consent for marketing communications must be actively opted-in (not pre-checked), and users must have a straightforward mechanism to request data deletion. For PCI DSS Compliance, if the guest network co-exists on the same physical infrastructure as the venue's Point of Sale (POS) systems, strict logical segmentation must be enforced. The guest VLAN must be completely isolated from the production and payment card VLANs using firewall rules and ACLs. For wireless security, implement WPA3-Transition Mode to allow older devices to connect using WPA2-Personal while newer devices benefit from the enhanced security of WPA3, including Protected Management Frames (PMF).

Troubleshooting & Risk Mitigation

When guest wireless issues are reported, venue operations and front-of-house staff require a clear, structured diagnostic sequence to identify and resolve the root cause. Captive portal failures typically fall into two categories: client-side misconfigurations and operator-side infrastructure issues.

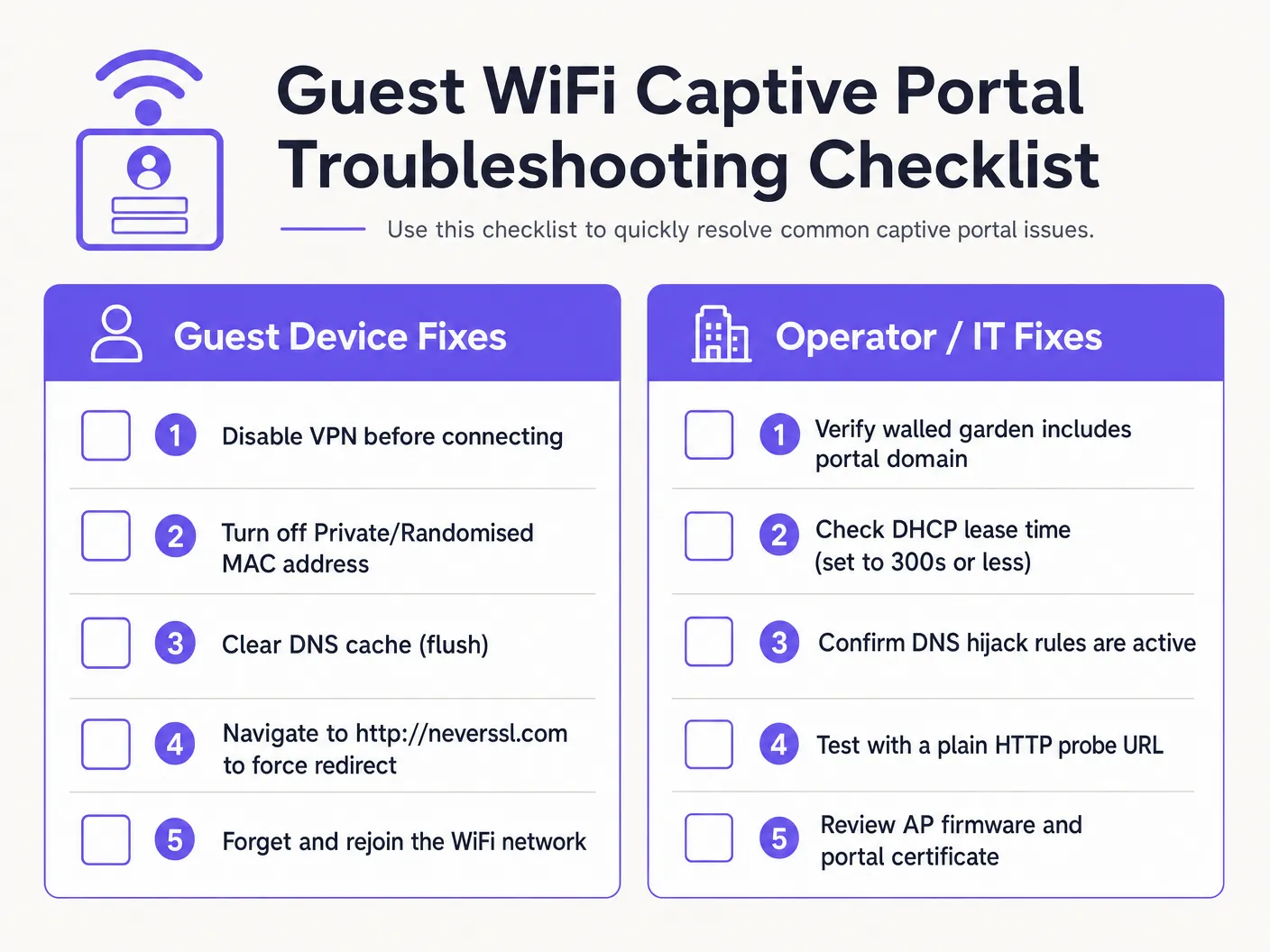

Client-Side Diagnostic and Resolution Checklist

For front-of-house staff assisting guests, work through these steps in order.

1. Disable Active VPNs. Virtual Private Networks establish an encrypted tunnel from the client device directly to a remote server. Because the VPN client attempts to encrypt and route all traffic immediately upon network connection, it bypasses the local gateway's DNS hijack and HTTP redirection rules. The guest must temporarily disable their VPN to complete the captive portal login, after which the VPN can be safely re-enabled.

2. Turn Off Private/Randomized MAC Addresses. Modern operating systems (iOS 14+ and Android 10+) enable Private Wi-Fi Address or MAC Randomization by default to prevent tracking. While beneficial for privacy, this feature causes the device to present a different MAC address to the network on subsequent connections or after a short period of inactivity. This breaks MAC-based session persistence, forcing the guest to re-authenticate repeatedly. Instruct the guest to disable Private Address for the venue's SSID in their device's wireless settings.

3. Bypass Secure DNS (DoH/DoT). If the guest has configured a custom DNS server or uses DNS-over-HTTPS (DoH) or DNS-over-TLS (DoT) in their browser settings, the browser will refuse to accept the local gateway's hijacked DNS responses. The user must temporarily disable secure DNS in their browser settings or clear their device's DNS cache to allow the local redirect to function.

4. Force an Unencrypted HTTP Connection (NeverSSL). If the captive portal assistant fails to launch automatically, the guest's browser may be stuck trying to load an HTTPS page. Instruct the guest to open a standard browser window and navigate to http://neverssl.com. Because this website is explicitly designed to never use SSL/TLS, the gateway can intercept the HTTP request and successfully inject the HTTP 302 redirect to the guest internet login screen.

5. Forget and Rejoin the Network. If a previous authentication session was terminated abnormally, the client device may hold stale DHCP or ARP cache data. Forgetting the network in the wireless settings and reconnecting forces a clean DHCP handshake and restarts the captive portal detection sequence.

Operator-Side Infrastructure Troubleshooting

For network administrators investigating systemic issues where multiple guests report portal failures, the following checks should be performed. Monitor DHCP Pool Utilization by inspecting the DHCP scope on the local gateway or router; if the pool is 100% utilized, reduce the lease time to 5-10 minutes to rapidly reclaim IP addresses from departed guests. Verify DNS Redirection Rules by performing a packet capture (PCAP) on the gateway interface to confirm that unauthenticated clients are successfully sending DNS queries to port 53 and receiving responses. Audit Walled Garden Latency to ensure that the walled garden is optimized and that DNS resolution for walled garden domains is caching correctly on the controller. Finally, check Certificate Expiration to ensure that the SSL/TLS certificate installed on the wireless controller or gateway is valid, unexpired, and signed by a trusted Certificate Authority (CA).

ROI & Business Impact

Investing in a robust, cloud-managed captive portal platform like Purple yields measurable financial and operational returns for enterprise venues. By systematically resolving captive portal login issues, organizations directly impact both the top and bottom lines.

Reduction in Support Overhead and Guest Friction

For hospitality and retail venues, front-of-house staff frequently spend valuable time troubleshooting guest WiFi connectivity. A high captive portal failure rate leads to increased guest frustration and negative online reviews, a high volume of low-complexity support tickets escalated to the IT team, and operational inefficiencies as front-of-house staff are distracted from their primary duties. By implementing Purple's robust, cross-platform compatible redirection mechanism, venues typically experience a 50% to 70% reduction in WiFi-related support complaints.

Maximizing Data Capture and Marketing ROI

A captive portal is the primary gateway for capturing valuable first-party customer data, including email addresses, phone numbers, and social profiles. When a captive portal fails to load, the venue loses the opportunity to register that guest. With a functional portal, venues can achieve opt-in rates of over 60% for marketing communications, rapidly growing their customer CRM database. By integrating guest authentication with WiFi Analytics , venue operators gain deep insights into visitor behavior, including dwell times, return rates, and footfall patterns across different zones.

Unlocking Retail Media and Monetization Opportunities

For large-scale venues like shopping malls, stadiums, and exhibition centers, the captive portal represents premium digital real estate. By utilizing the splash page and post-login redirect screens, operators can tap into the rapidly growing Retail Media market. Display highly targeted, location-aware advertisements to guests at the exact moment they connect, or sell sponsorship packages to brands, turning a traditional IT cost center into a direct revenue-generating asset.
